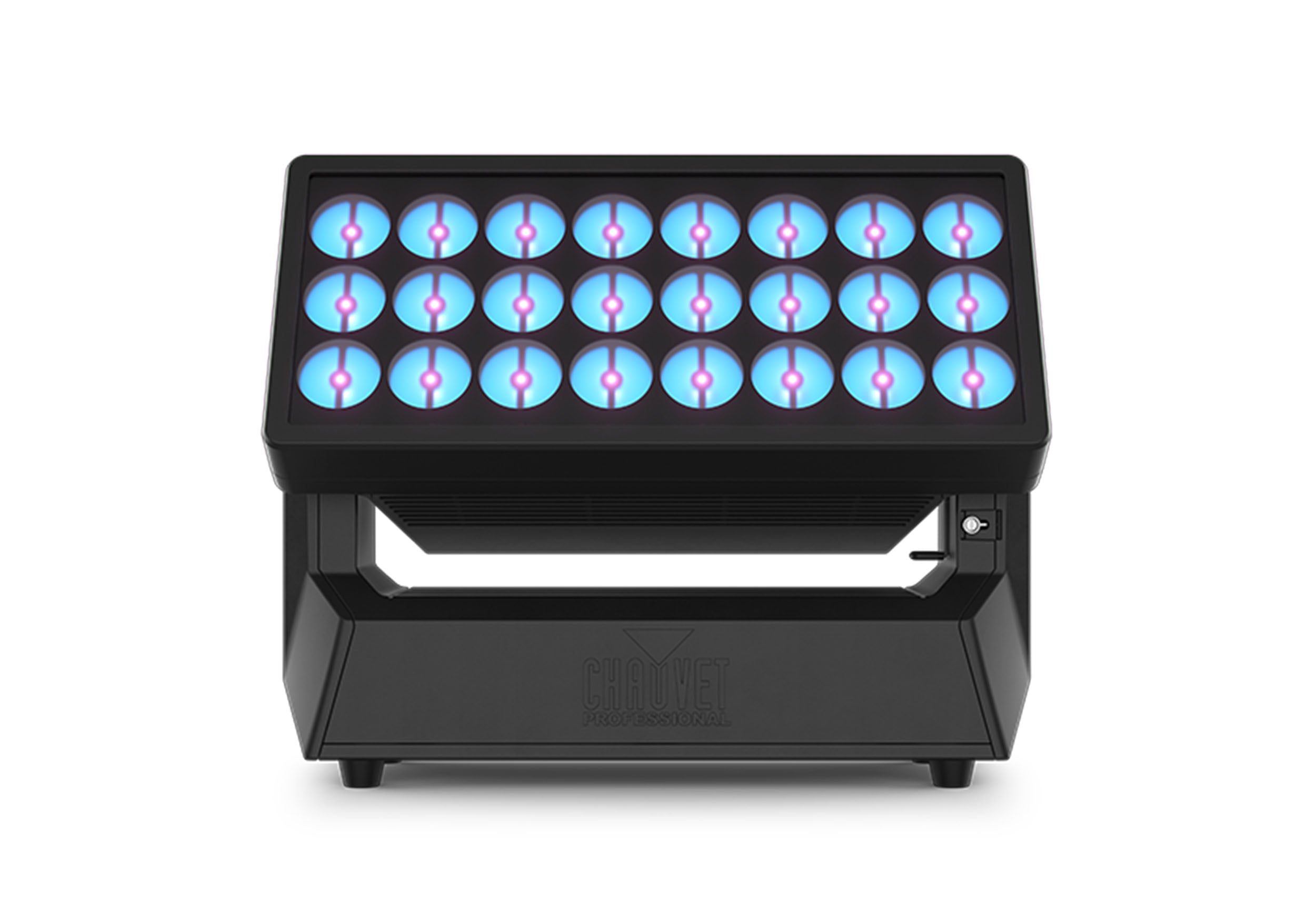

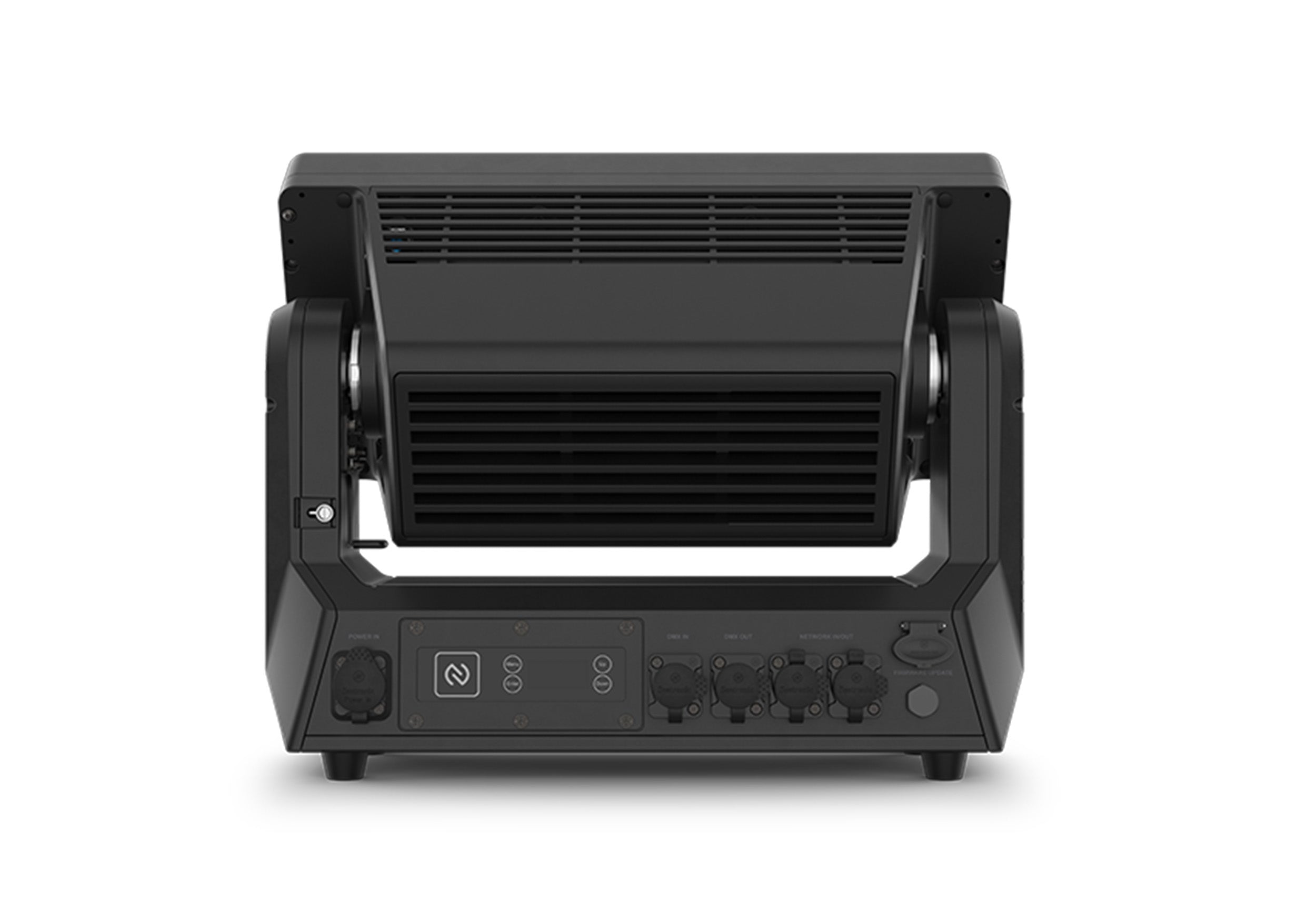

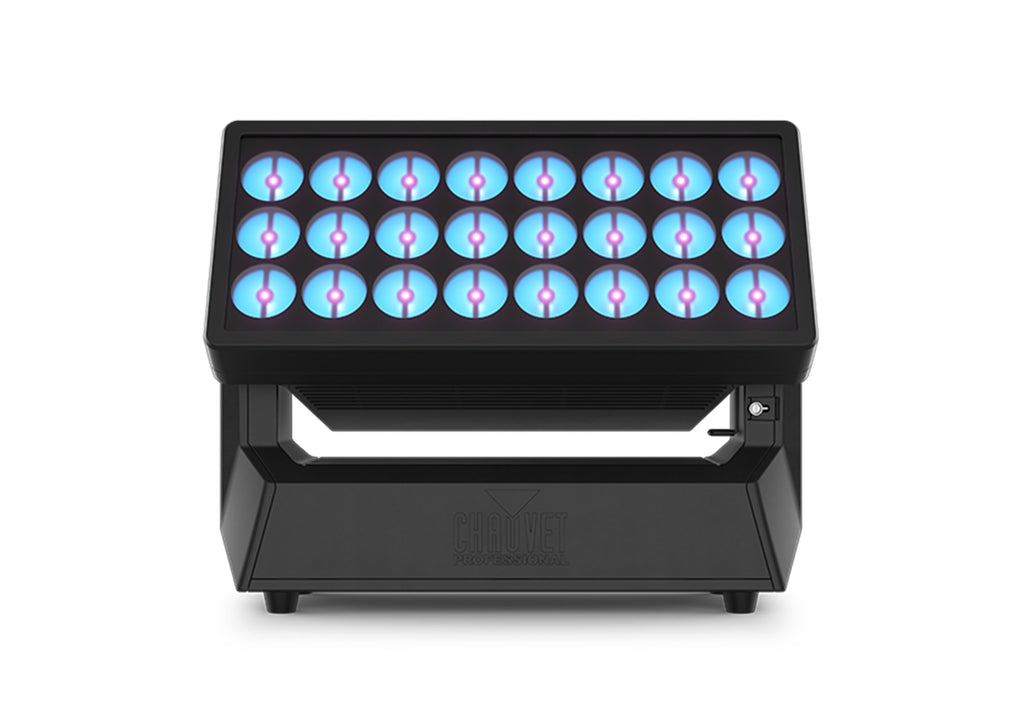

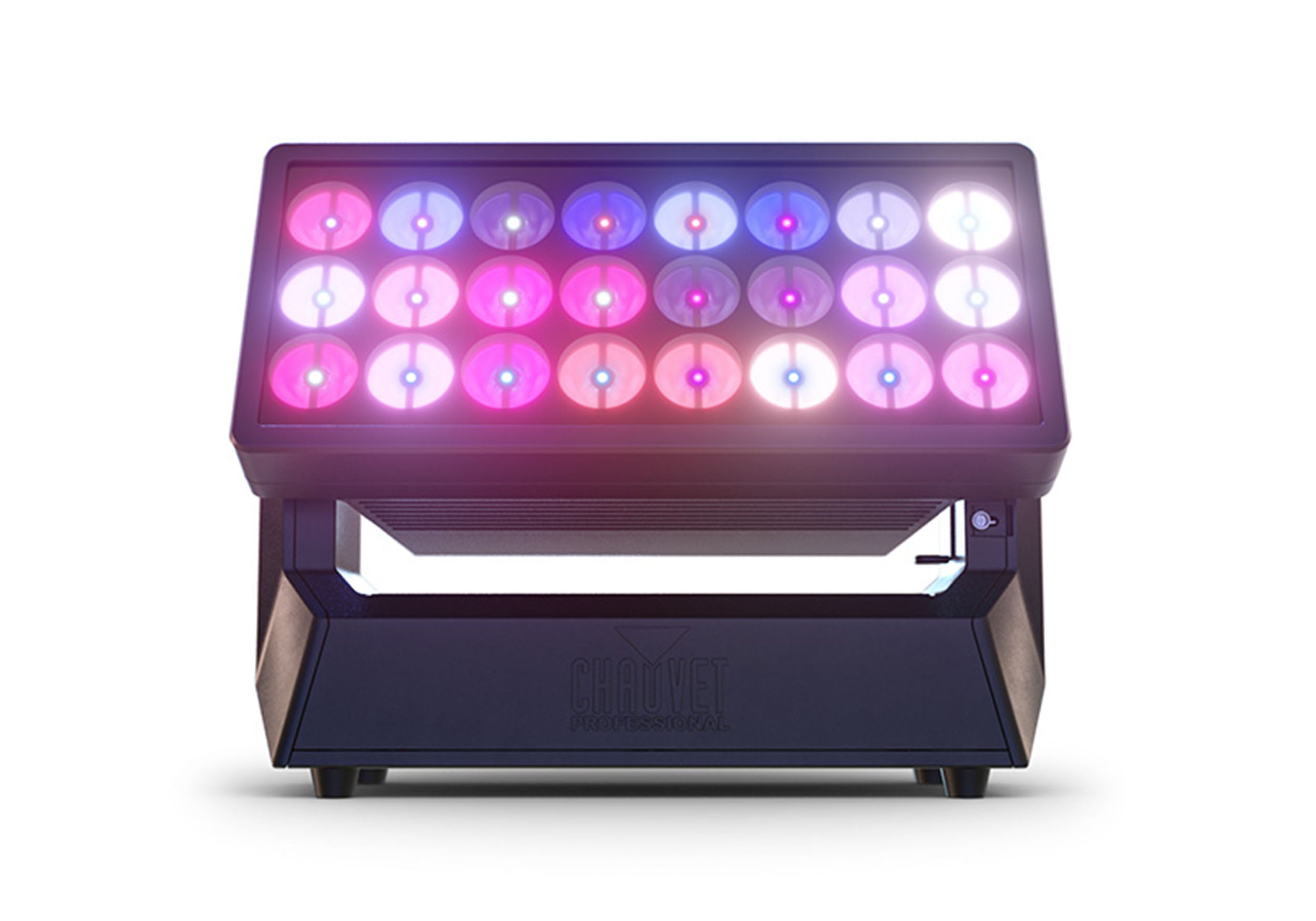

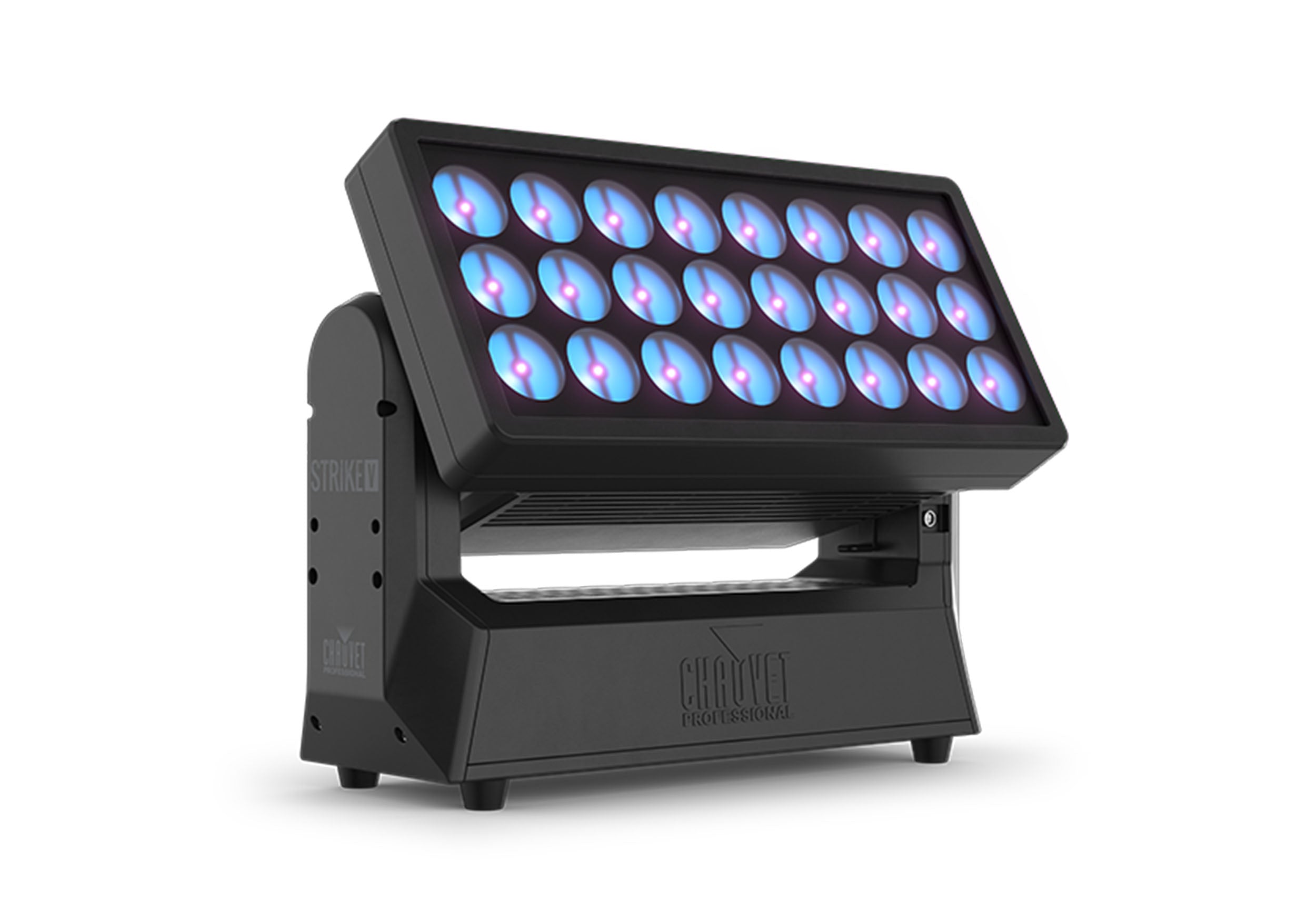

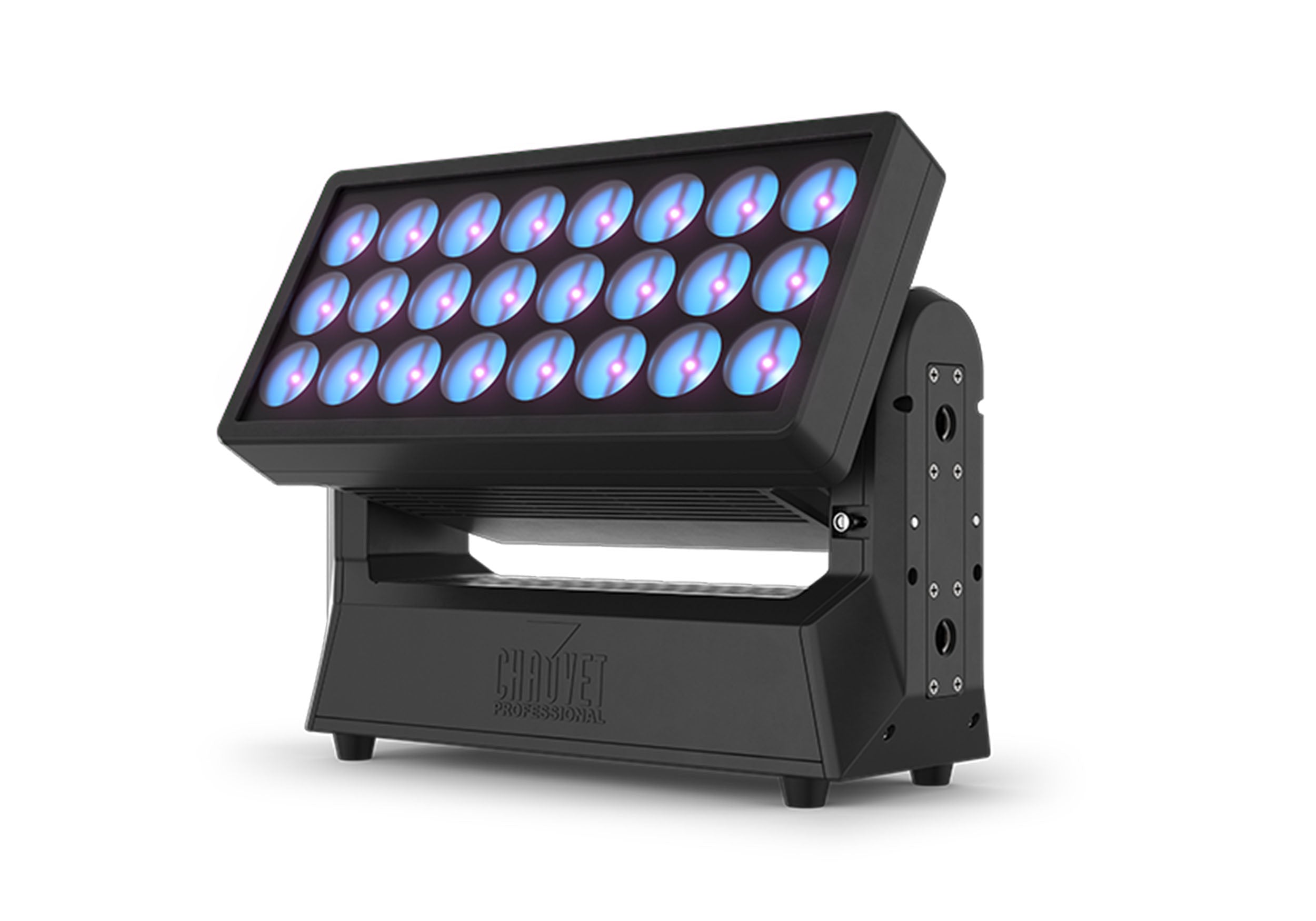

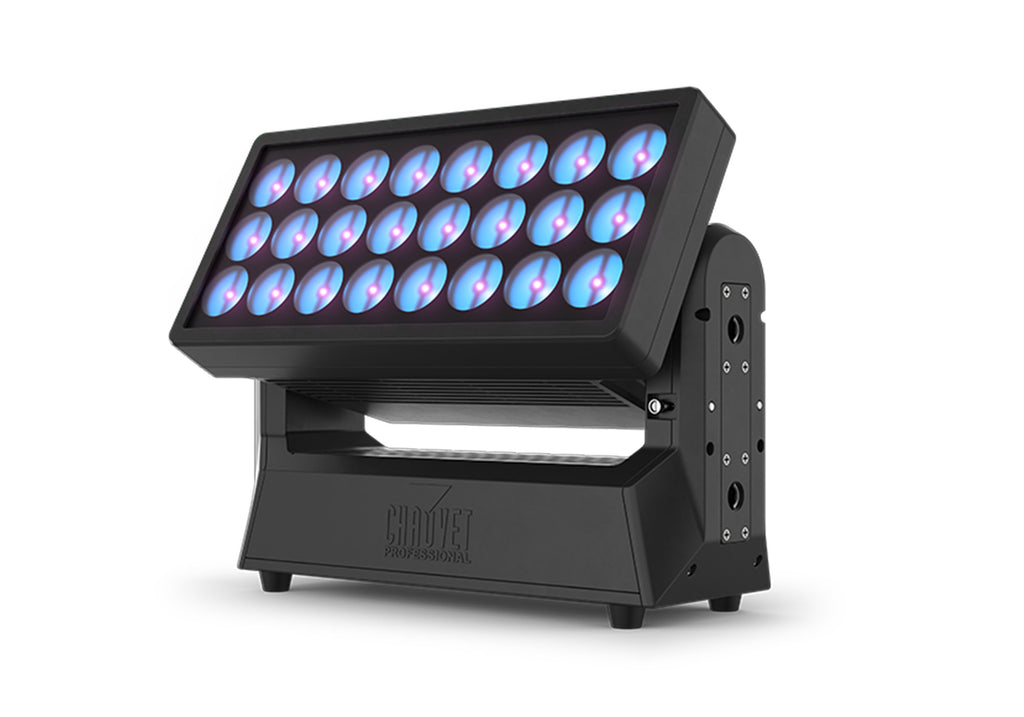

Chauvet Pro STRIKE V RGBW Outdoor-Ready Moving Head Blinder

The Chauvet Pro STRIKE V RGBW Outdoor-Ready Moving Head Blinder design introduces dynamic dual-layer pixel effects with a punchy flair that brings totally new and unique looks to our tour-proven STRIKE family of IP65-rated strobes and blinders. STRIKE V features dual LED diodes, under a variable electronic frost plate that can change beam angles instantly at the press of a button, and together offer fresh new multicolor creative possibilities. Advanced eye-candy effects, vibrant color washes, and stunning strobe capabilities from a motorized 180° tilting strobe/wash hybrid designed for powerful performance in the most demanding applications and conditions.

This fully featured, high-power hybrid strobe/wash delivers versatile performance with a 180° tilting design and an IP65 rating for reliable outdoor use. Its 48 individually controllable pixels span two LED layers, enhanced by variable electronic frost and an included magnetic stealth filter that conceals the LEDs when powered off. The fixture offers flexible rigging with multiple mounting points and a repositionable yoke, plus RDM over DMX, 16-bit master dimming, and an intuitive OLED display. Built for durability, it features adjustable PWM, a USB port for software updates, built-in alignment pins for flawless linear arrays, and failsafe Ethernet connectivity that maintains data flow even without power.

Product Specifications:

Optical:

Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy

Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy

Beam Angle (Combine): 9.9°

Beam Angle (Dot): 105.7°

Beam Angle (Cell): 9.9°

Beam Angle (w/E-Frost Combine): 50.3°

Beam Angle (w/E-Frost Dot): 103.1°

Beam Angle (w/E-Frost Cell): 46.8°

Field Angle (Combine): 17.6°

Field Angle (Top Plate): 153.1°

Field Angle (Cell): 17.5°

Field Angle (w/E-Frost Combine): 125°

Field Angle (w/E-Frost Dot): 155.6°

Field Angle (w/E-Frost Cell): 117.2°

Lumens (Combine): 19,589

Lumens (Dot): 1,912

Lumens (Cell): 17,127

Lumens (w/E-Frost Combine): 13,406

Lumens (w/E-Frost Dot): 1,633

Lumens (w/E-Frost Cell): 15,769

Illuminance (Combine): 16,779 lux @ 5 m

Illuminance (Dot): 29 lux @ 5 m

Illuminance (Cell): 16,789 lux @ 5 m

Illuminance (w/E-Frost Combine): 539 lux @ 5 m

Illuminance (w/E-Frost Dot): 26 lux @ 5 m

Illuminance (w/E-Frost Cell): 536 lux @ 5 m

Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz

Dynamic Effects:

Tilt: 180°

Tilt Ranges: 0° to 180°

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Standalone Color Mixing: Yes

Dim Modes: 4

Built-in Automated Programs: Yes

Housing Material: AZ91D Magnesium diecast

Connections:

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65

Cable Length (power): 5 ft (1.5 m)

Control:

Control Protocol: Art-Net, DMX, RDM, sACN

DMX, ArtNet, and sACN Channels single mode: 29, 222, 314

DMX, ArtNet, and sACN Channels Dual mode Movement: 30

DMX, ArtNet, and sACN Channels Dual Mode Pixels: 144, 192, 240, 288

ArtNet and sACN Channels Multi-Layer Control Movement: 30

ArtNet and sACN Channels Multi-Layer Control Dot Pixels: 72, 96, 120, 144

ArtNet and sACN Channels Multi-Layer Control Cell Pixels: 72, 96, 120, 144

Electrical:

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz

Power and Current: 747 W, 6.20 A @ 120 V, 60

Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz

Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz

Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz

Battery:

Certifications / Qualifications: CE, MET, ROHS, FCC

IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included:

STRIKE V

Seetronic Powerkon IP65 power cord

Omega bracket

Stealth filter

Optional Accessories:

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-08

IP Rated Seetronic Powerkon Extensions

IP Rated DMX cables

IP Rated EtherCon Cables

UPLOAD 03 software uploader

Construction / Physical:

Exterior Color: Black

Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)

Weight: 36 lbs. (16.3 kg)

Shipping Weight: 38 lbs.

Shipping Dimensions: 18 x 9 x 14 inches
