Description

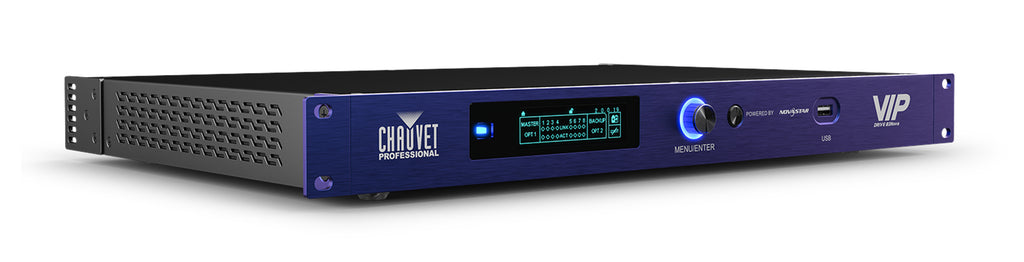

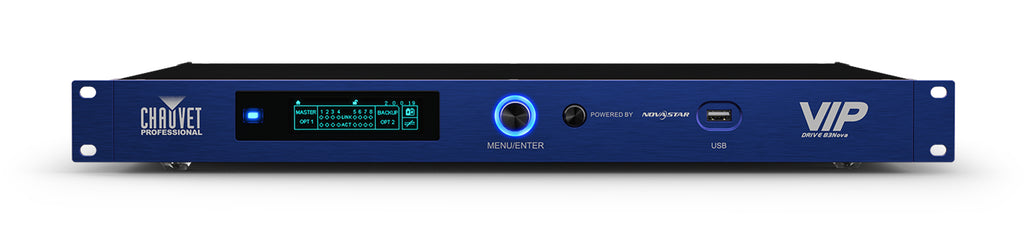

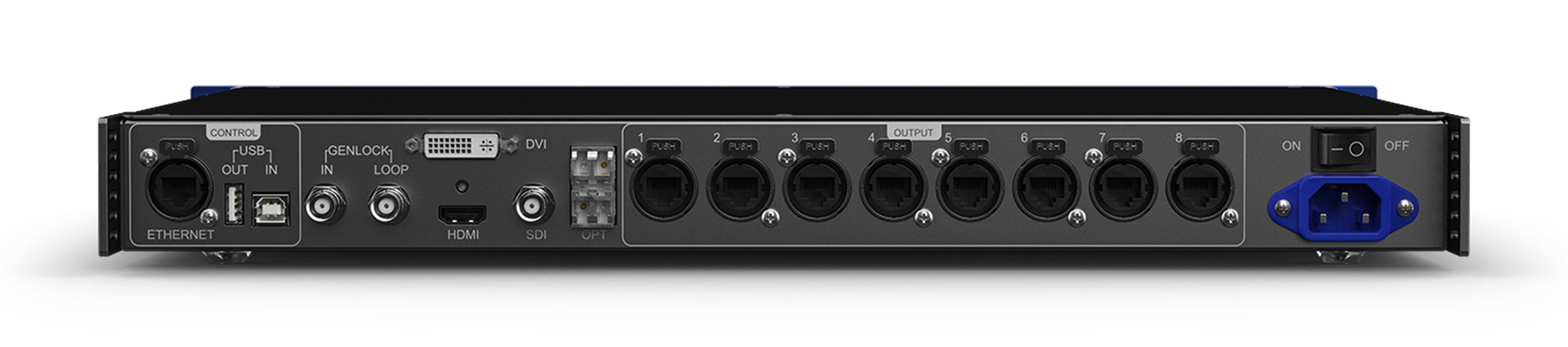

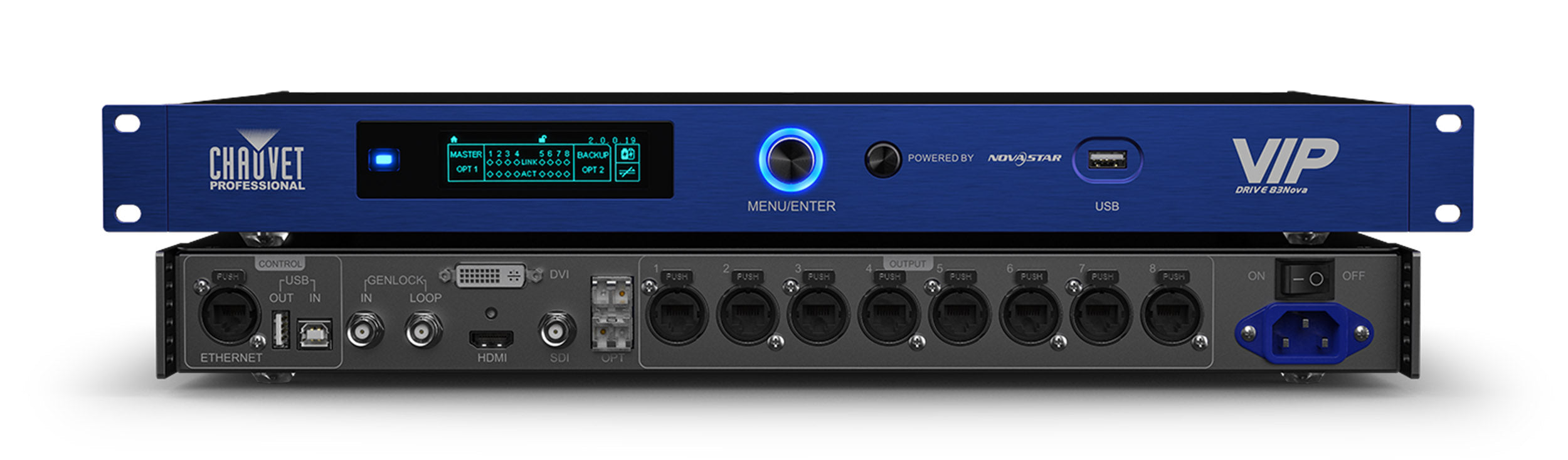

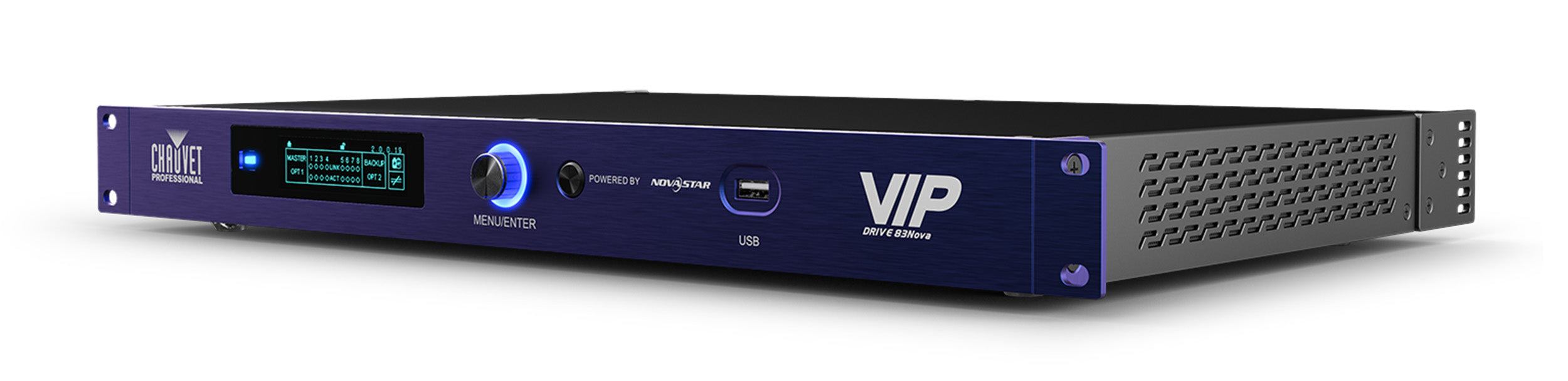

The Chauvet Pro VIP Drive 83R Nova, NovaStar All-in-One Video Wall Mapper / Switcher with 3 x Inputs / 8 x Outputs is a streamlined all-in-one video wall mapper/ switcher for use with the Novastar video control protocol. With three inputs, eight outputs, it will map your video wall, switch your video source, and handle sending/receiving via fiber for long transmissions, eliminating the need for individual mappers and video switchers. With onboard genlock via BNC connector, VIP Drive 83R Nova can synchronize with the whole video system, including cameras, switchers, and additional VIP Drive 83R Nova products for larger systems.
Product Specifications:
Power Connection: Edison (Local) plug to IEC
Power Input: IEC
Cable Length (power): 5 ft (1.5 m)
Video Input: Dual-link DVI-I (VESA standard, 1080i, HDCP support)
Video Input: HDMI (EIA/CEA-861 standard, meeting HDMI-1.4 standard, HDCP support)
Video Input: 6G-SDI (480i, 576i, 720p, 1080i/p)
Video Output: Neutrik etherCONr (8)
Video Output: SFP-LC Fiber optical (2) (SFP fiber module not included)
Genlock Input: Blackburst via locking BNC
Genlock Loop Output: Blackburst via locking BNC
Linking Connection: USB
Software Connection: Front/Rear USB
Backup/update Connection: Front/Rear USB
Control Protocol: NOVASTAR
Maximum Supported Input Resolution: 3840 x 1080
Maximum Supported LEDs: 5,242,880
Remote Control: NovaLCTMars PC software via front/rear USB (1)
Supported Video Standards (Dual-link DVI): DVB-ASI
Supported Video Standards (HDMI): HDMI 1.4, and DVB-ASI
Color Space Supported (DVI): RGB 4:4:4
Color Space Supported (HDMI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
Color Space Supported (6G-SDI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 40 W, 0.33 A @ 120 V, 60 Hz
Power and Current: 40 W, 0.19 A @ 208 V, 60 Hz
Power and Current: 40 W, 0.17 A @ 230 V, 50 Hz
Housing Material: Aluminum alloy
Rackmount: 1U
Dimensions: 19 x 12 x 1.7 in (483 x 335 x 52 mm)
Weight: 9.5 lb (4.3 kg)
