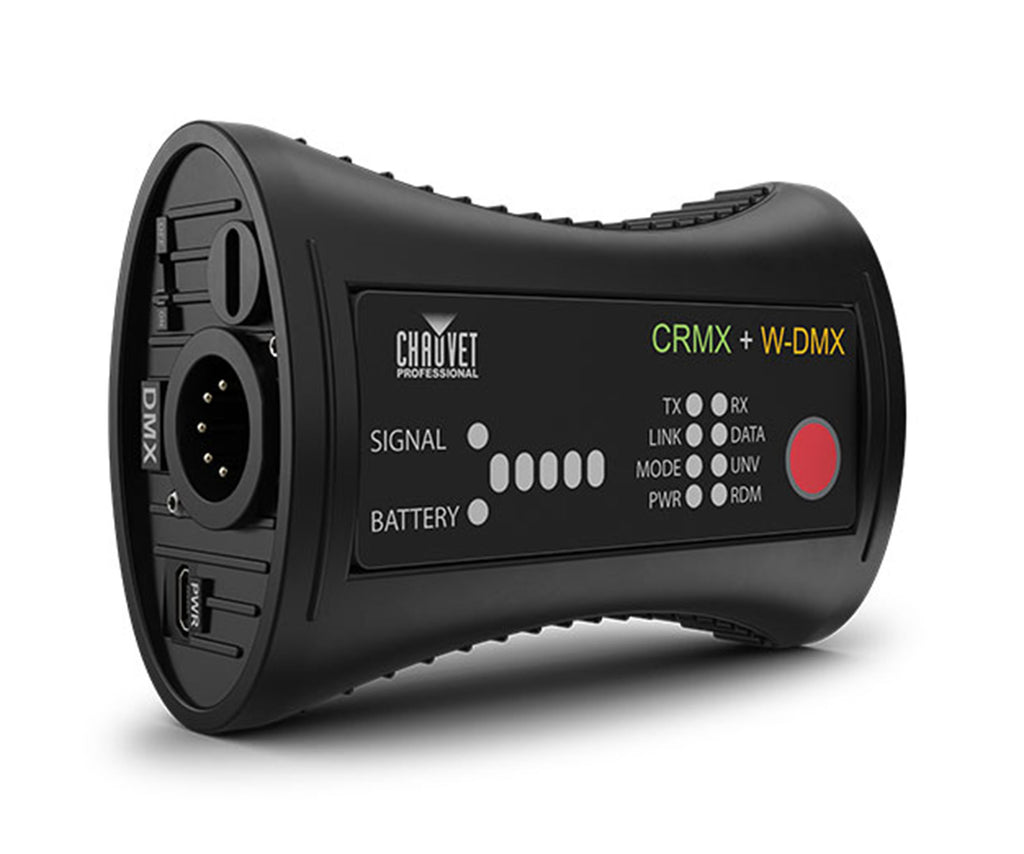

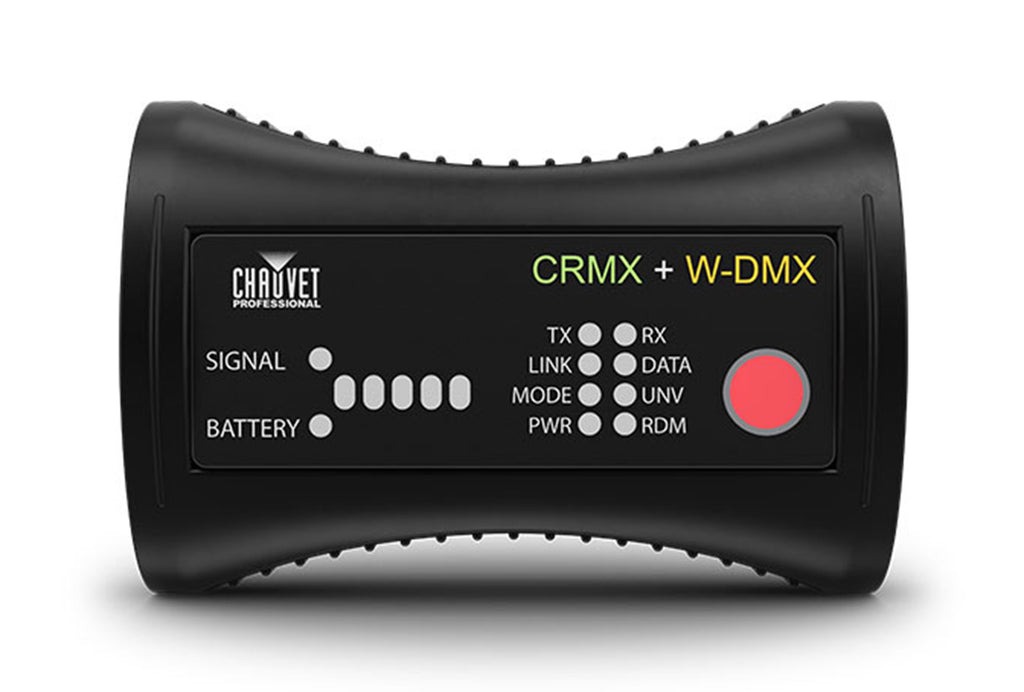

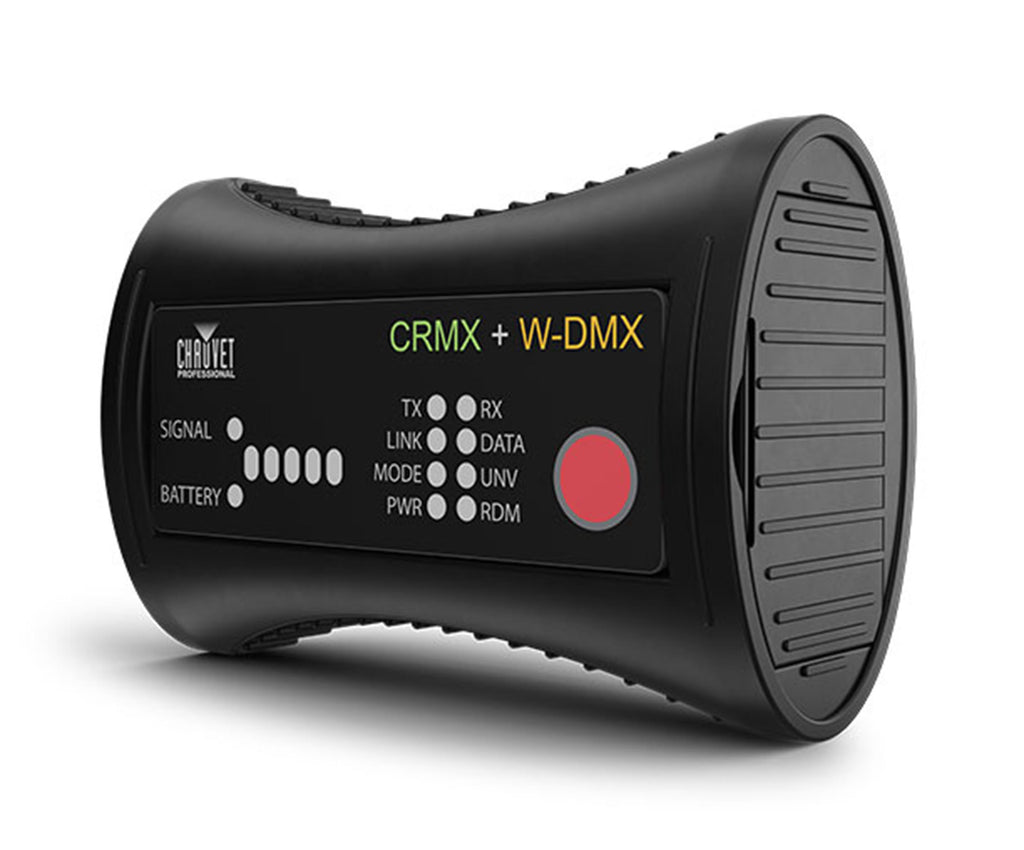

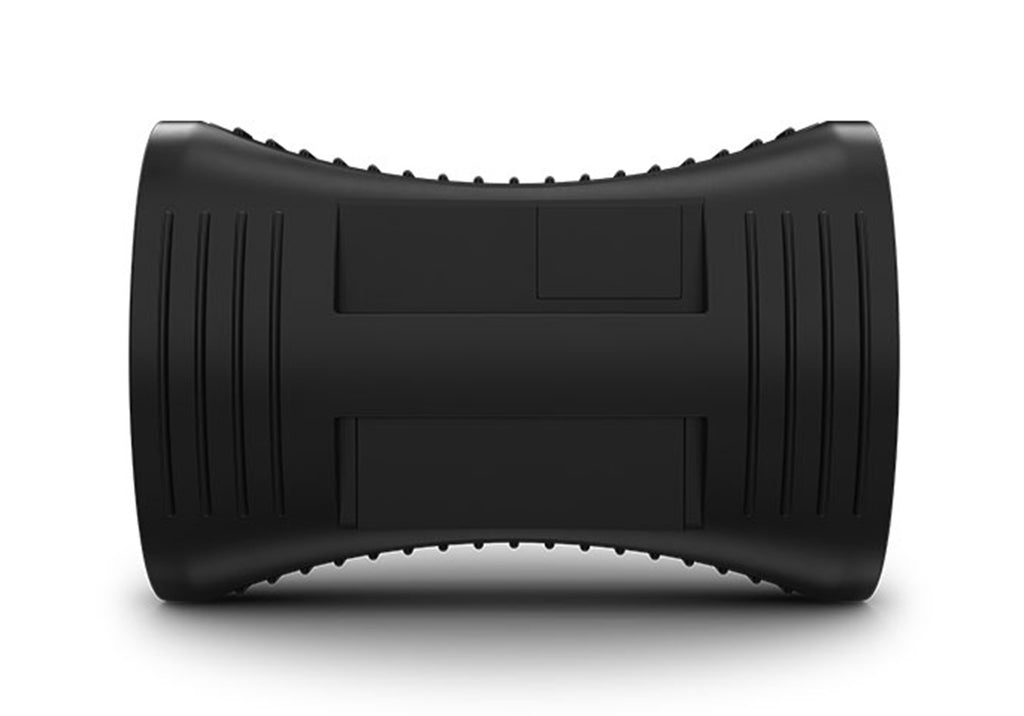

Chauvet Pro W-DMX Micro T-1 TRX G6 Wireless DMX Transceiver

The Chauvet Pro W-DMX Micro T-1 TRX G6 Wireless DMX Transceiver enabled fixtures to generate a wireless control signal for DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX or CRMX signals to make any fixture or rig wireless. Backward compatible with G3, G4, G4S, and G5 series, and able to operate both W-DMX and CRMX enabled products in G4S Mode. Configurable via Bluetooth with the W-DMX Configurator app. It also features a 5V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.

Product Specifications:

Construction / Physical

Dimensions: 3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)

Weight: 1.67 lb (800 g)

Exterior Color: dark gray

Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: 5V micro USB connector (micro B) to wall wart adapter

Data Connectors: 5-pin XLR

Control

Control Protocol: W-DMX, CRMX, RDM

Frequency (operating): # 2.4 GHz

Universes per device: 1

Number of DMX channels: 512

DMX Latency: <5 ms

Max universe in coexistence: 16

Error correction: yes

DMX Fidelity: yes

Adaptive Frequency Hopping: Yes

W-DMX G3, G4, G4S, and G5 compatibility: Yes

Standard range: up to 650 ft (200 m)

Internal antenna: Yes

Sensitivity (0.1% PER): -97 dBm

Modulation method: GFSK

Electrical

Input Voltage: 9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz)

Battery

Battery type: AAA

Rechargeable: No

Battery Life: 8 hours in receiver mode, 4 hours in transceiver mode

Certifications / Qualifications

CE, FCC

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

W-DMX Micro T-1 TRX G6

Micro USB to wall wart adapter

User Manual

Velcro attachment strap
