Description

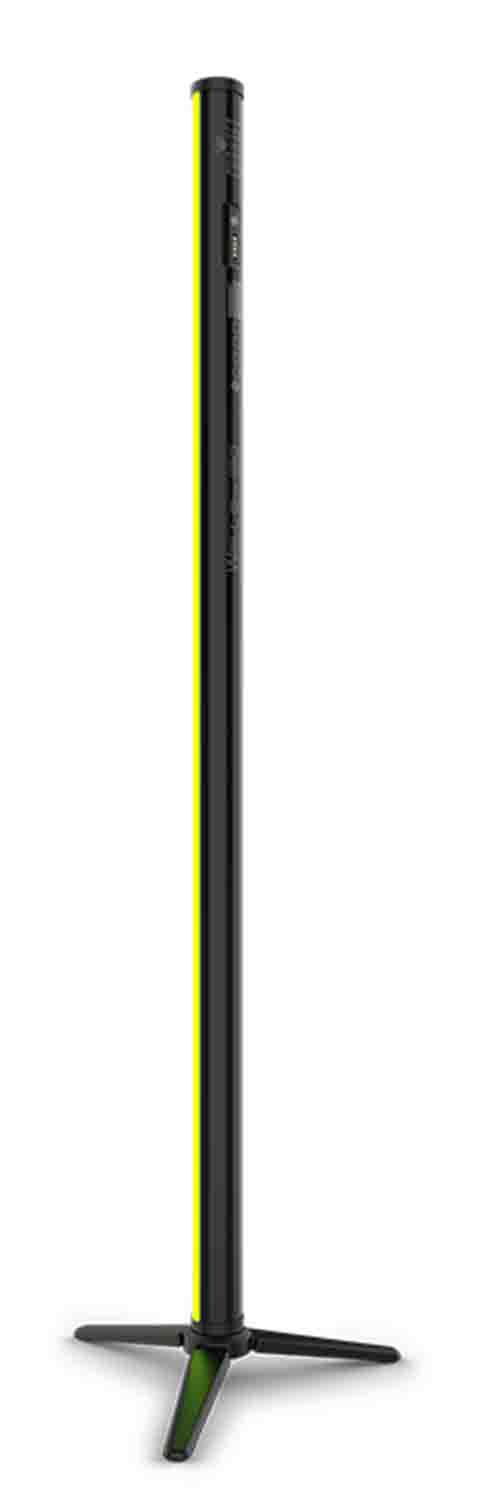

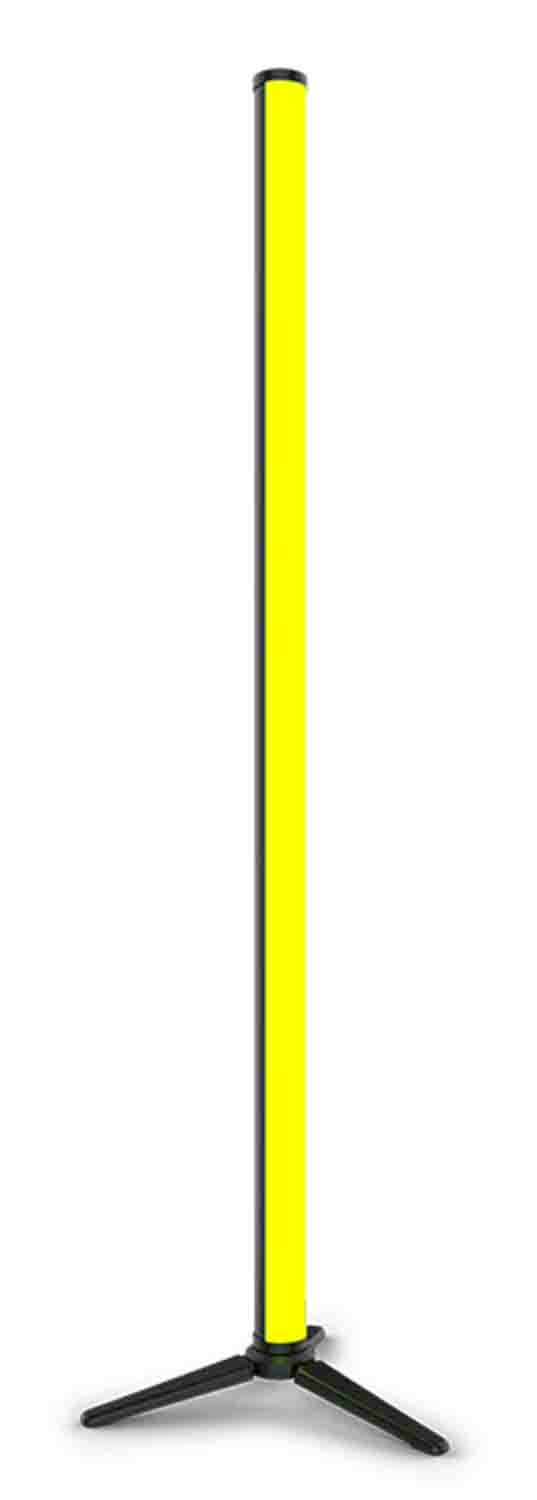

The Chauvet Pro WELL STX 180 Battery Powered IP65 LED Tube Kit with Stands, Case, And Hardware is a dynamic freestanding, battery-operated, and outdoor-ready LED tube that emits 180° of ultra-bright, high-quality, pixel-mappable light with an optional stealth filter for a complete disappearing effect when off. Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI - so it will look as great on camera as it does in person. In addition to being IP65 rated, WELL STX 180 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of. The unit is packaged as part of a complete kit that includes: 6 WELL STX 180, 12 Magnetic Brackets for attaching to steel surfaces, 6 eyebolts for suspended hanging options, 6 folding floor stands, 6 stealth black diffusers 1 IR Remote, and 1 ABS Plastic charging flight case.
Product Specifications:
Optical
Light Source: 128 LEDs (64RGB / 64WW) SMD 5050, 50,000 hours life expectancy
Color Temperature (Range): 2800 to 8000 K
Color Temperature (At Full): 9936 K
Cri: 94 @4000 K
Beam Horizontal Angle: 126°
Beam Vertical Angle: 125°
Field Horizontal Angle: 214°
Field Vertical Angle: 210°
Illuminance (Total): 17 lux @ 5 m – 3 hr. run time
Lumens – Output: 1387 – 3 hr. run time
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 22 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-In Automated Programs: Yes
Construction / Physical
Dimensions: 39.3 x 1.6 x 1.6 in (1000 x 42.4 x 42.4 mm)
Weight: 3.4 lb (1.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Plastic
Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Control
Control Protocol: W-DMX
Dmx Channels: 4, 15, 64 or 67
Modes/Personalities: 4 personalities
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 8 units @ 120 V; 11 units @ 208 V; 11 units @ 230 V
Power and Current (Single Unit Charging): 33 W, 0.27 A @ 120 V, 60 Hz
Power and Current (Charging Case): 198 W, 1.62 A @ 120 V, 60 Hz
Power and Current (Single Unit Charging): 42 W, 0.20 A @ 208 V, 60 Hz
Power and Current (Charging Case): 252 W, 1.2 A @ 208 V, 60 Hz
Power and Current (Single Unit Charging): 44 W, 0.19 A @ 230 V, 50 Hz
Power and Current (Charging Case): 264 W, 1.14 A @ 230 V, 50 Hz
Battery
Battery Type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 6 hours
Battery Life: 3,5,8,12-hour settings for optimizing performance time
Battery Power: 14.8 V, 6.7 Ah
Certifications / Qualifications
CE, FCC
Ip Rating: IP65, for temporary outdoor use
What's Included
(6) WELL STX 180
True 1 style power cord with Edison plug (EU bare end)
Charging flight case
(6) stands
(12) magnetic clamps
(6) hanging eye bolts
(6) Stealth filters
Quick Reference Guide
Optional Accessories
Safety Cable: SC-07
Ip Rated Seetronic Powerkon Extensions
