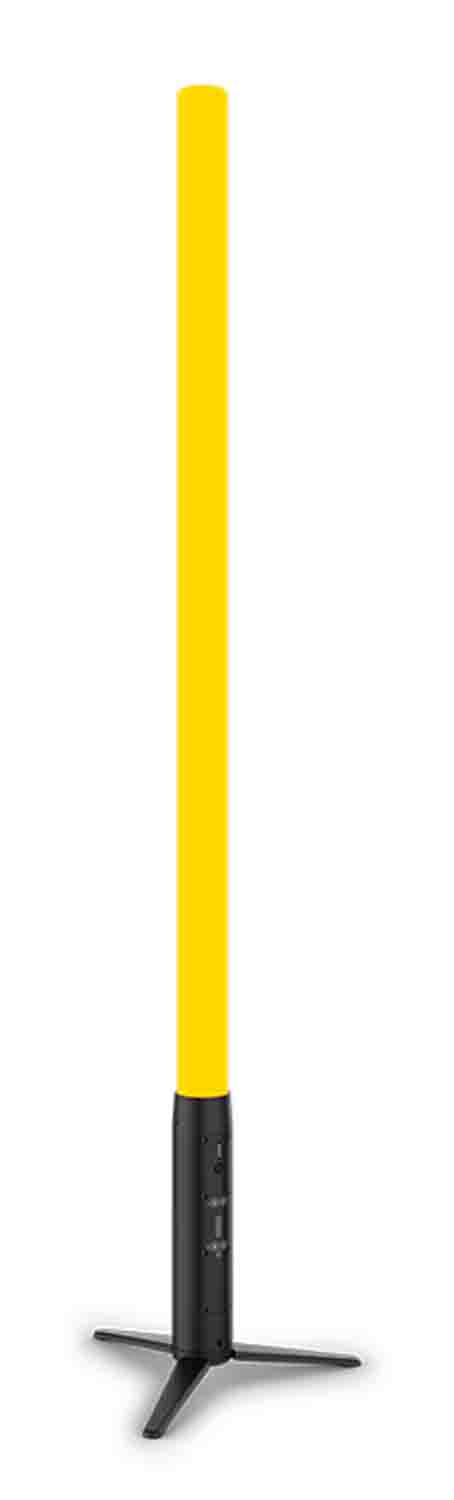

Chauvet Pro WELL STX 360 Battery-Operated Outdoor-Ready LED Tube

The Chauvet Pro WELL STX 360 Battery-Operated Outdoor-Ready LED Tube is a large freestanding, battery-operated, and outdoor-ready LED tube that emits 360° of ultra-bright, high-quality, pixel-mappable light. Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI – so it will look as great on camera as it does in person. In addition to being IP65 rated, WELL STX 360 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of. The unit is packaged as part of a complete kit that includes: 4 WELL STX 360, 4 eyebolts for suspended hanging options, 4 folding floor stands, 1 IR Remote, and 1 charging flight case. The device is also controllable via W-DMX, which can be used with almost any standard lighting controller, including the WELL COM with its built in W-DMX receiver.

Product Specifications:

Optical

Light Source: 512 LEDs (256 RGB / 256 WW) SMD 5050, 50,000 hours life expectancy

Color Temperature (Range): 2800 to 8000 K

Color Temperature (At Full): 9670 K

Cri: 91.9 @ 4000 K

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 28 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-In Automated Programs: Yes

Construction / Physical

Dimensions: 59.09 x 2.75 x 2.75 in (1501 x 70 x 70 mm)

Dimensions (Charging Case): 69.8 x 19.5 x 6.4 in 1773 x 495 x 163 mm)

Weight: 9 lb (4.1 kg)

Exterior Color: Black

Housing Material: Aluminum alloy, Plastic

Connections

Power Connection (Single Charger): Edison (Local) plug to Seetronic Powerkon IP65

Power Connection (Charging Case): Edison (Local) plug to Seetronic Powerkon IP65

Power Input (Single Charger): Seetronic Powerkon IP65

Control

Control Protocol: W-DMX

Dmx Channels: 4, 15, 64 or 67

Modes/Personalities: 4 personalities

Electrical

Input Voltage (Charging Case): 100 to 240 VAC, 50/60 Hz (auto-ranging)

Input Voltage (Single Charger): 24 VDC, 2.5 A, 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking (Charging Case): 8 units @ 100 V; 10 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 12 Units @ 230 V

Battery

Battery Type: Lithium Ion

Quantity of Cells: 5 cells

Rechargeable: Yes

Watt Hours: 185.9 Wh

Battery Charge Time: 4 hours

Battery Life: 3,5,8,12 hours

Battery Power: 18.5 V, 10.05 Ah

Certifications / Qualifications

CE, FCC

Ip Rating: IP65, for temporary outdoor use

Temperature (Startup): -4 °F to 113 °F (-20 °C to 45 °C)

Temperature (Operating): -22 °F to 113 °F (-30 °C to 45 °C)

What's Included

(4) WELL STX 360

True 1 style power cord with Edison plug (EU bare end)

Charging flight case

(4) tripod stands

(4) hanging eye bolts

(1) IR Remote

Quick Reference Guide

Optional Accessories

Safety Cable: SC-07

IP Rated Seetronic Powerkon Extensions
