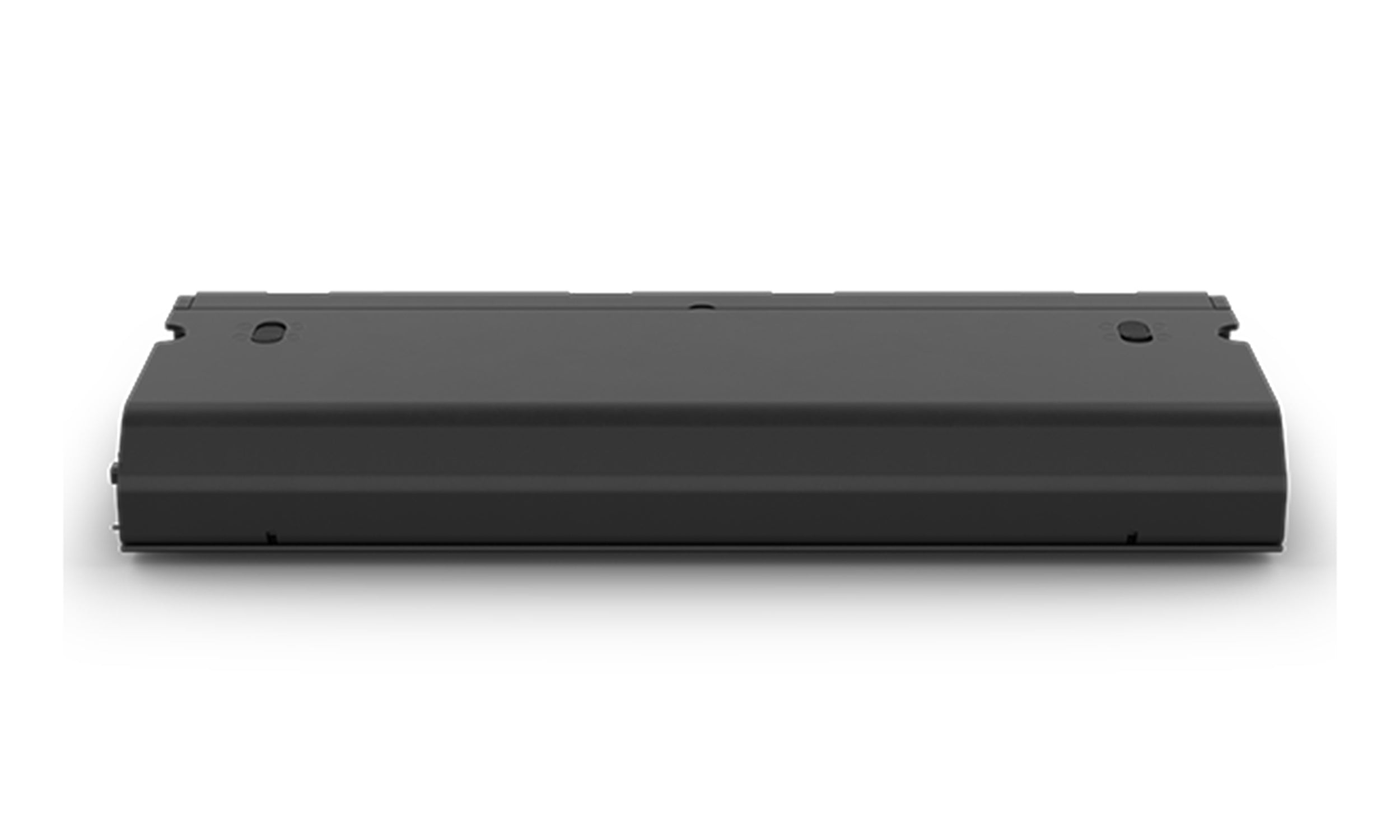

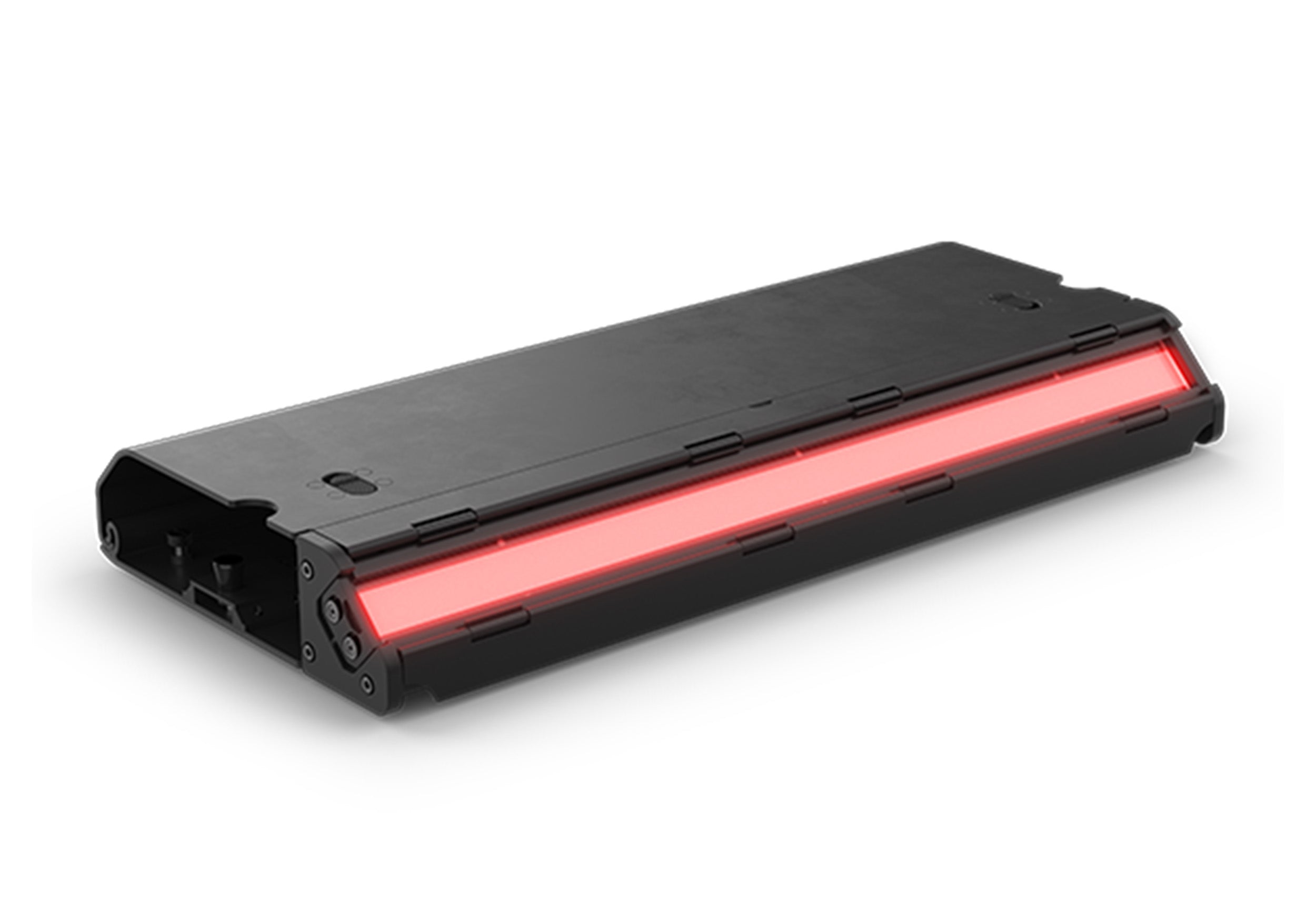

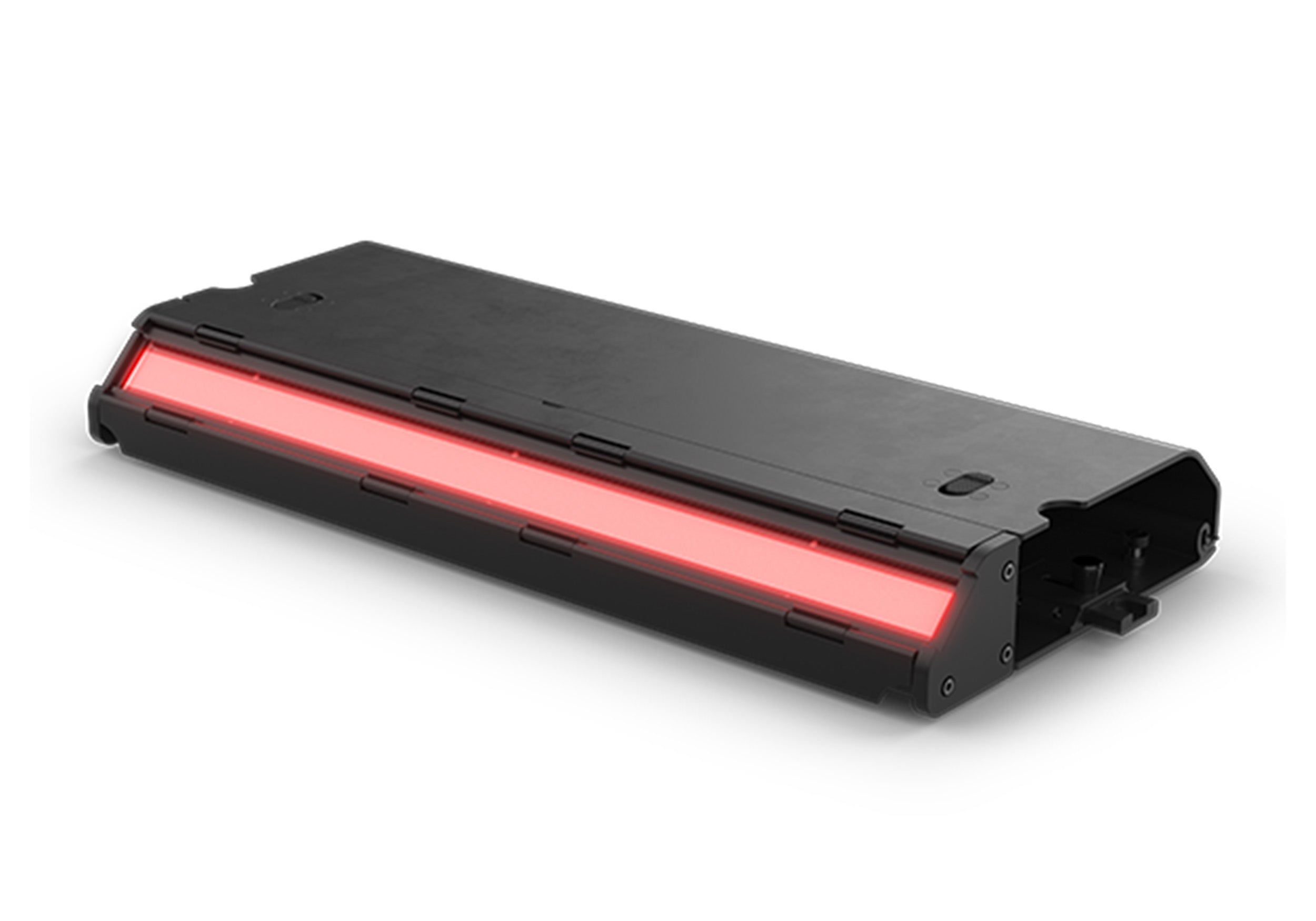

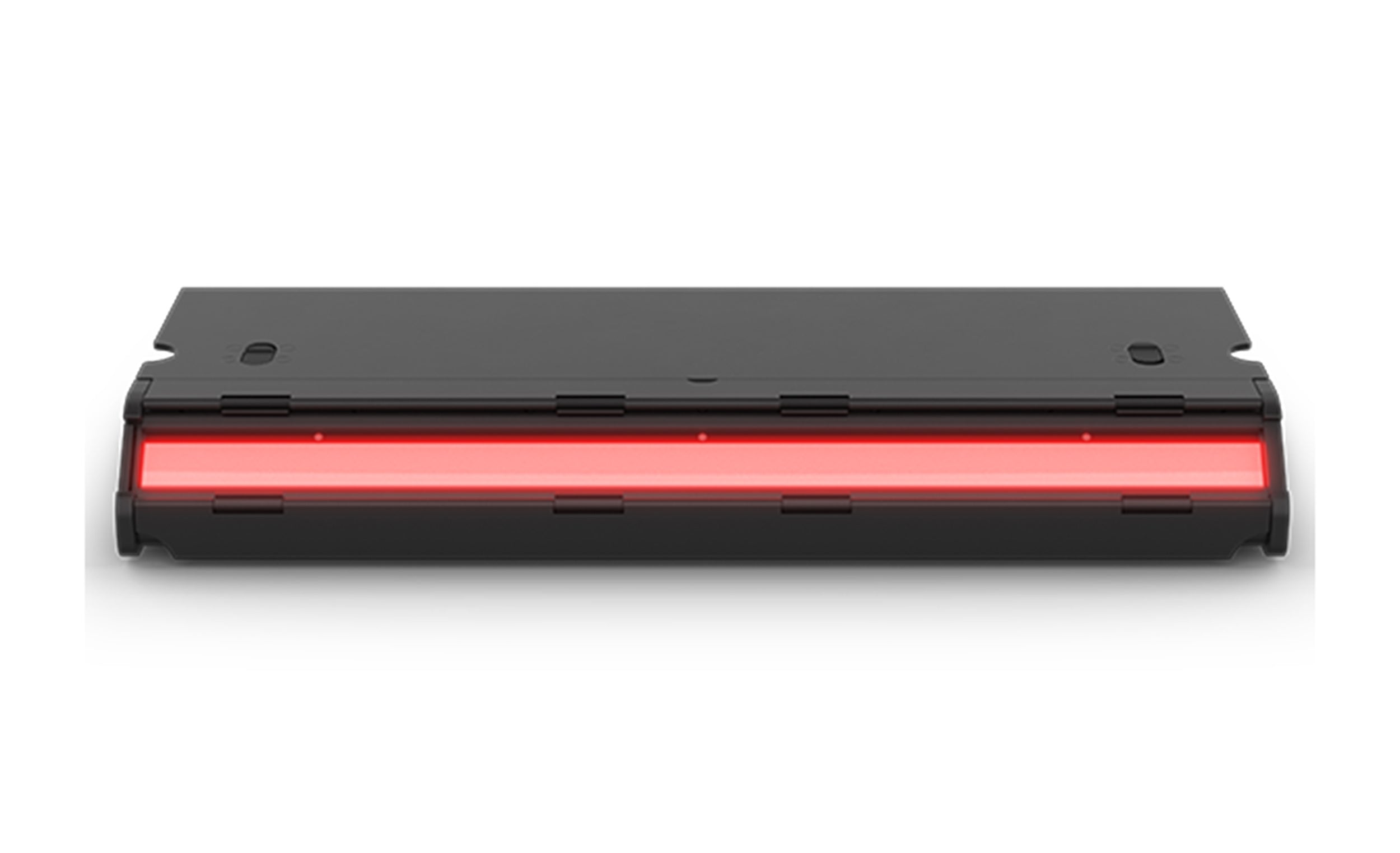

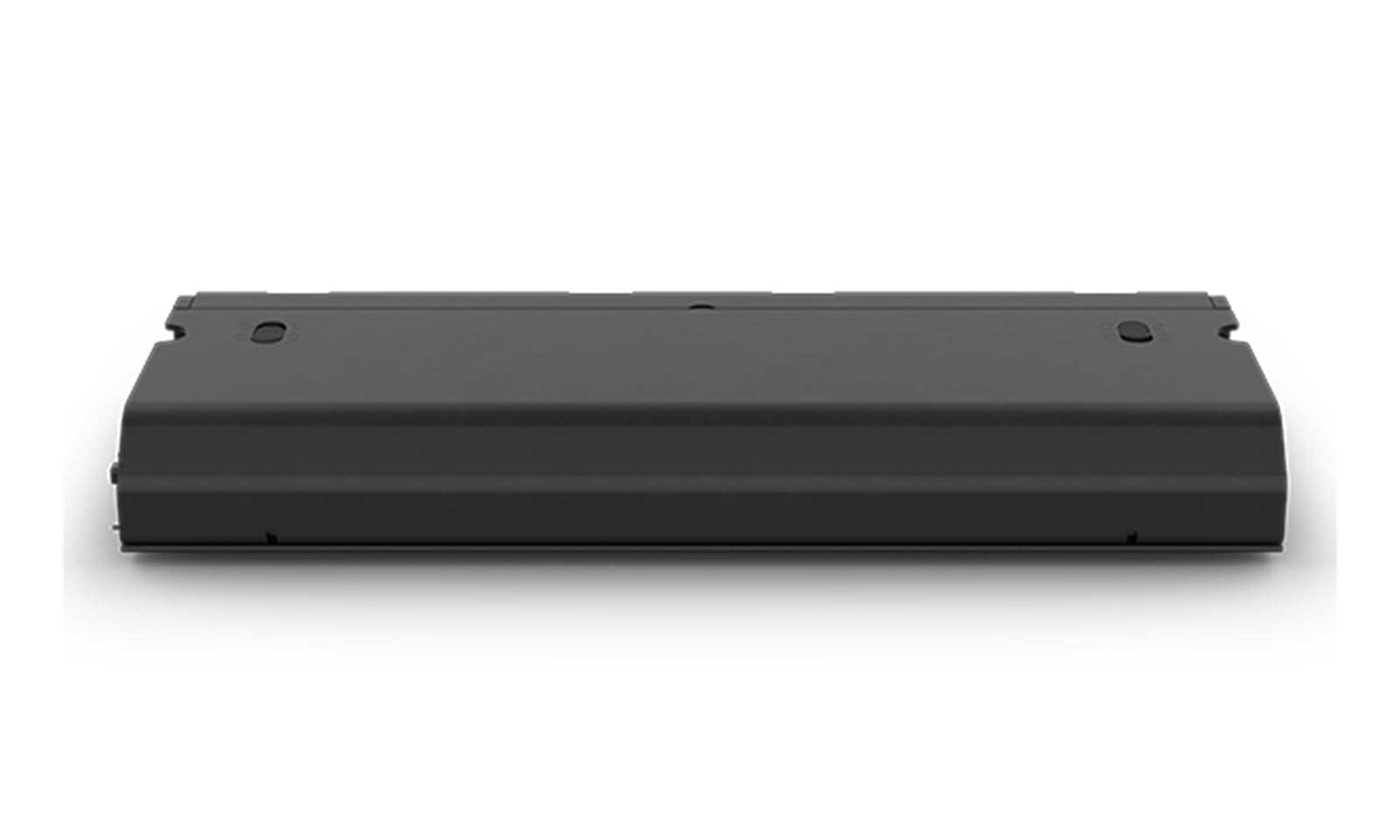

Chauvet Professional COLORado Solo Edge 1 IP65 RGBwWL LED Footlight

The Chauvet Professional COLORado Solo Edge 1 is a low-profile, 0.5-meter IP65-rated RGBwWL LED footlight designed for stage, broadcast, and architectural applications requiring smooth output and elegant integration. Its single-source lens delivers high-quality white light and rich, full-spectrum color with no visible pixelation, while an included stealth filter allows the fixture to visually disappear when off. Fully controllable RGB marker lights provide practical stage cues or edge marking, and seamless end-to-end alignment ensures a clean, cable-free appearance. Built with rugged aluminum construction and weather resistance, the COLORado Solo Edge 1 is ideal for demanding indoor and outdoor productions.

Product Specifications:

Optical:

Light Source: 56 LEDs (Quintuple-color-RGBwWL), K 20,000 hours life expectancy

Color Temperature (range): 2800 to 8000 K

Color Temperature (at full): 6350K

CRI (2800): 96.2

Beam Angle: 111.1° (Horizontal)

Beam Angle: 120.1° (Vertical)

Field Angle: 134.1 ° (Horizontal)

Field Angle: 161.4° (Vertical)

Lumens: 7,144

Illuminance (total): 104 lux @ 5 m

PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Dynamic Effects:

Dimmer: Electronic

Shutter/Strobe: Electronic

Framing Shutters: No

Strobe Rate: 0 to 30Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Dim Curves: 4

Built-in AutomatedPrograms: Yes

Customizable Programs: Yes

Recall Custom Programs: Yes/No

ExteriorColor: Black

Housing Material: Aluminum alloy and Aluminum diecast

Connections:

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control:

Control Protocol: Art-Net, DMX, sACN

DMX Channels:

1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21

2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37

Art-Net Channels:

1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21

2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37

Modes/Personalities: Personalities (22)

Frequency (operating): 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Electrical:

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking:

Power and Current: 126 W, 1.05 A @ 120 V, 60 Hz

Power and Current: 125 W, .61 A @208 V, 60 Hz

Power and Current: 125 W, .55 A @230 V, 50 Hz

Certifications / Qualifications:

CE, MET, ROHSIP Rating: IP65, outdoor/wet, with pressure equalizing M6 GORE valve

Temperature(Ambient): 5 °F to 113 °F (-15 °C to 45 °C)

What's Included:

COLORado Solo Edge 1

Seetronic Powerkon IP65 power cord

Power and Data linking cables

Stealth Filter

Omega bracket with mounting hardware

Optional Accessories:

Professional Clamps:

CTC-50HC, CTC-50HCN

Riglink TR1 Cables

Riglink IP DMX cables

Riglink IP Network cables

Construction / Physical:

Dimensions: 19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm)

Weight: 12.6 lb. (5.7kg)

Shipping Weight: 15.5 lbs

Shipping Dimensions: 24 × 12 × 6 inches
