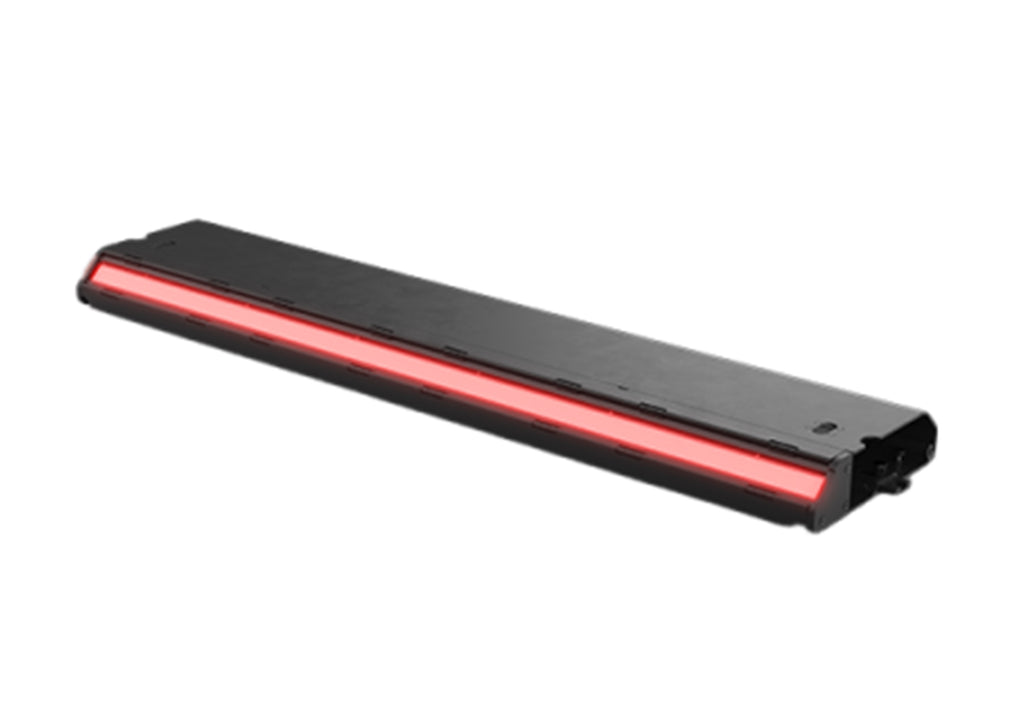

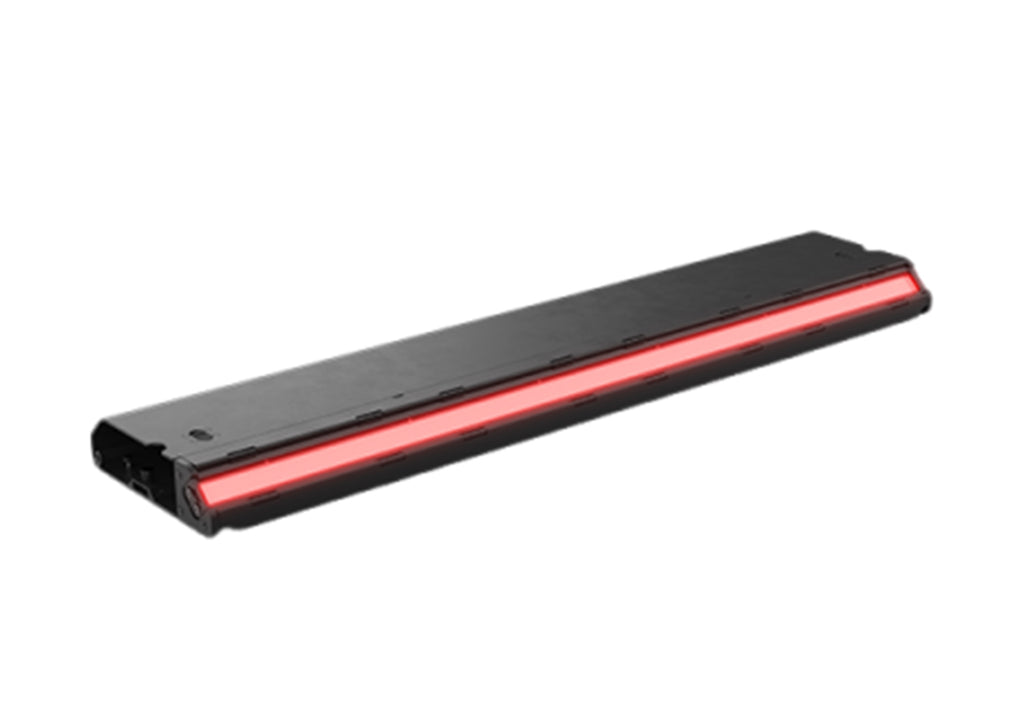

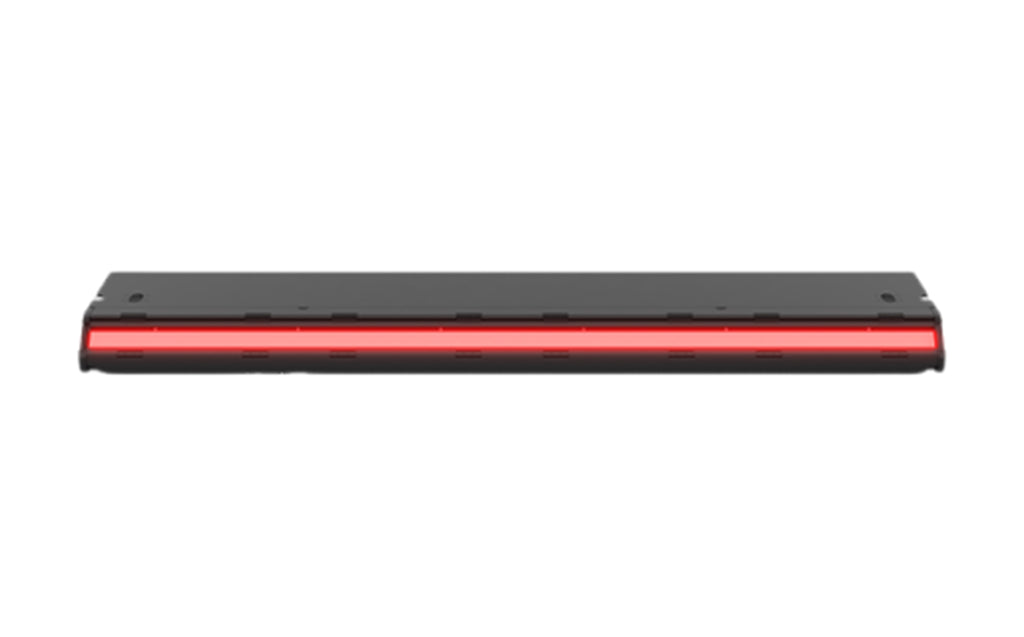

Chauvet DJ Professional COLORado Solo Edge 3 LED Footlight w/ Stealth

The Chauvet Professional COLORado Solo Edge 3 is a low-profile, 1-meter, IP65-rated RGBwWL LED footlight that delivers high-quality white light and a full color spectrum through a single-source lens for smooth, even output with no visible pixelation.

Fully controllable RGB marker lights provide discreet talent cueing or stage-edge marking, while seamless end-to-end alignment, concealed cabling, a covered display, and an integrated stealth filter ensure a clean, elegant appearance that virtually disappears when the fixture is off.

Product Specifications:

Light Source: 112 LEDs (Quintuple-color RGBWL)

LED Life Expectancy: 20,000 hours

Color Temperature (range): 2800 to 8000 K

Color Temperature (at full): 6600 K

CRI (2800 K): 93

Lumens: 17,698

Illuminance (total): 221 lux @ 5 m

Beam Angle:

111° (Horizontal)

120° (Vertical)

Field Angle:

134° (Horizontal)

161° (Vertical)

PWM Frequency: 1000 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25 kHz, 64 kHz

Selectable PWM: 1000 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25 kHz, 64 kHz

Dynamic Effects:

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Framing Shutters: No

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Dim Curves: 4

Built-in Automated Programs: Yes

Customizable Programs: Yes

Recall Custom Programs: Yes / No

Construction / Physical:

Dimensions: 39.37 × 8.85 × 2.51 in (1000 × 225 × 64 mm)

Weight: 22 lb (10 kg)

Exterior Color: Black

Housing Material: Aluminum alloy and aluminum diecast

Connections:

Power Connection: Edison (local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin XLR

Power Cable Length: 5 ft (1.5 m)

Control:

Control Protocol: Art-Net, DMX, sACN

Modes/Personalities: 32

Operating Frequency: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25 kHz

DMX Channels:

1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14, or 21

2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23, or 37

4 Cell: 14, 15, 15, 18, 22, 33, 37, 41, 42, or 69

Art-Net Channels:

1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14, or 21

2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23, or 37

4 Cell: 14, 15, 15, 18, 22, 33, 37, 41, 42, or 69

Electrical:

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking:

5–6 units @ 120 V

10 units @ 208 V

11 units @ 230 V

Power and Current:

242 W, 2.03 A @ 120 V, 60 Hz

237 W, 1.18 A @ 208 V, 60 Hz

236 W, 1.06 A @ 230 V, 50 Hz

Certifications / Qualifications:

Certifications: CE, MET, RoHS

IP Rating: IP65 (outdoor/wet) with pressure-equalizing M12 GORE valve

Ambient Temperature: 4 °F to 113 °F (−15 °C to 45 °C)

What’s Included:

COLORado Solo Edge 3

Seetronic Powerkon IP65 power cord

Power and data linking cables

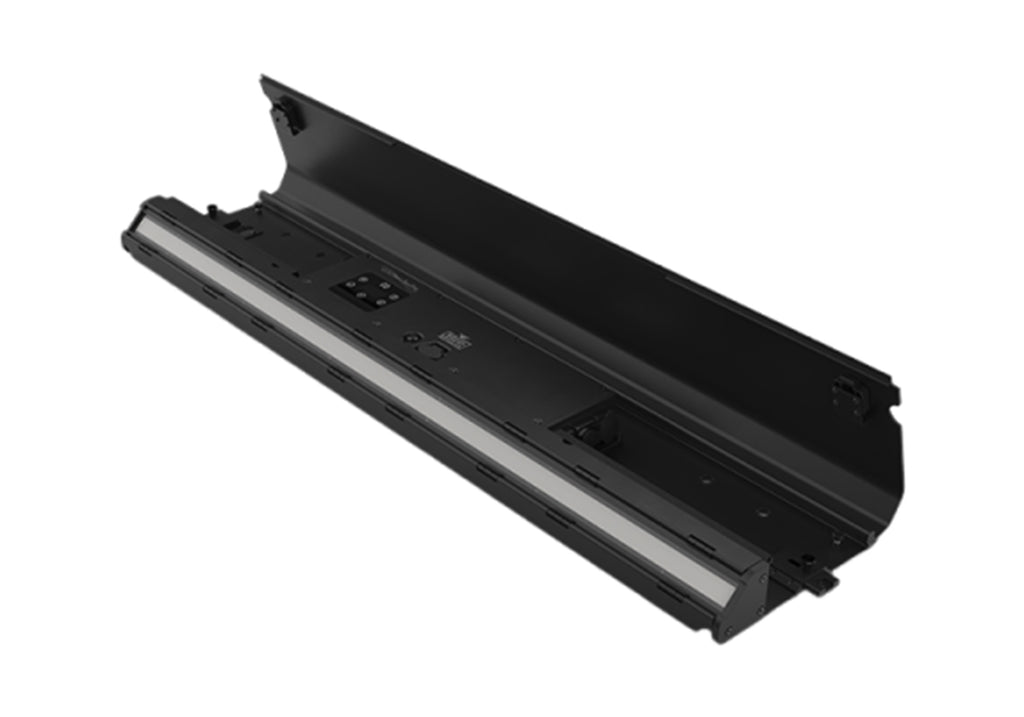

Stealth filter

Omega bracket with mounting hardware

Shipping Weight: 30 lbs

Shipping Dimensions: 45 × 13 × 6 inches
