Description

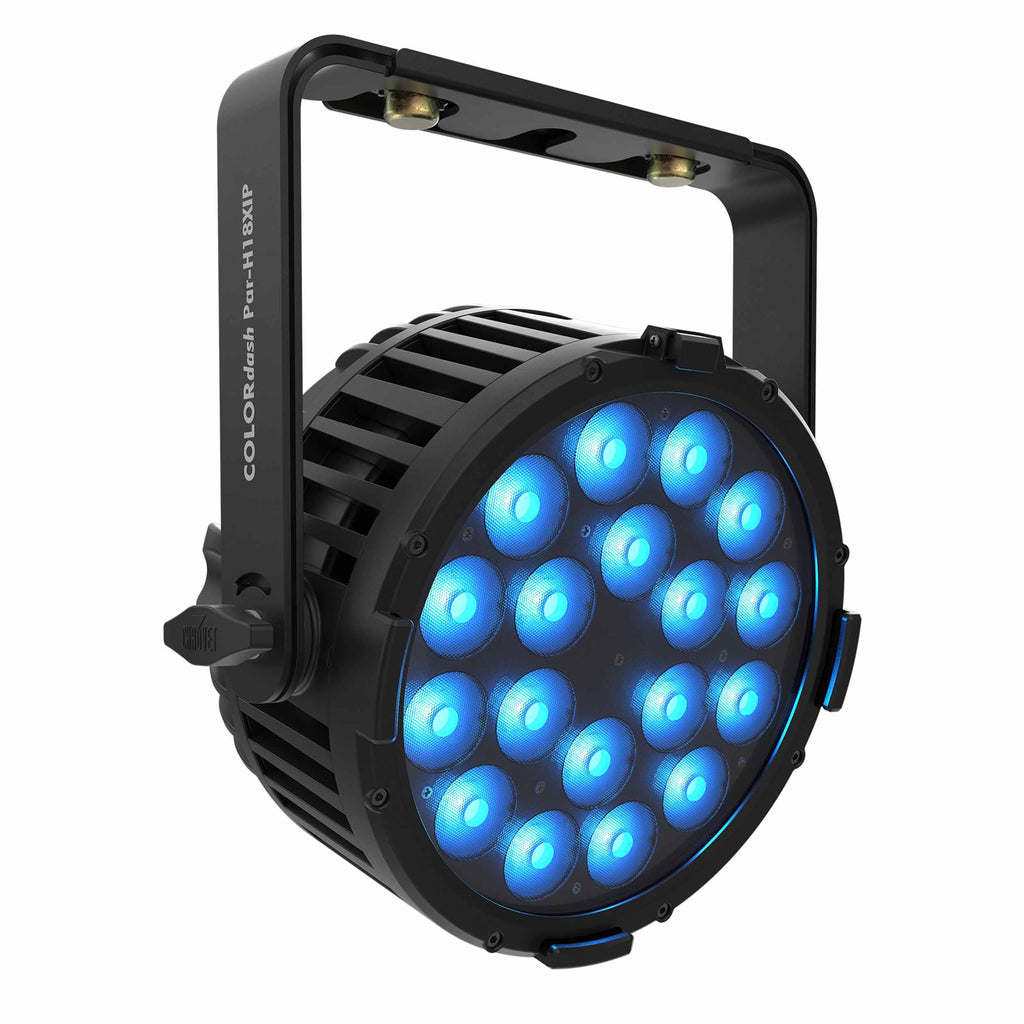

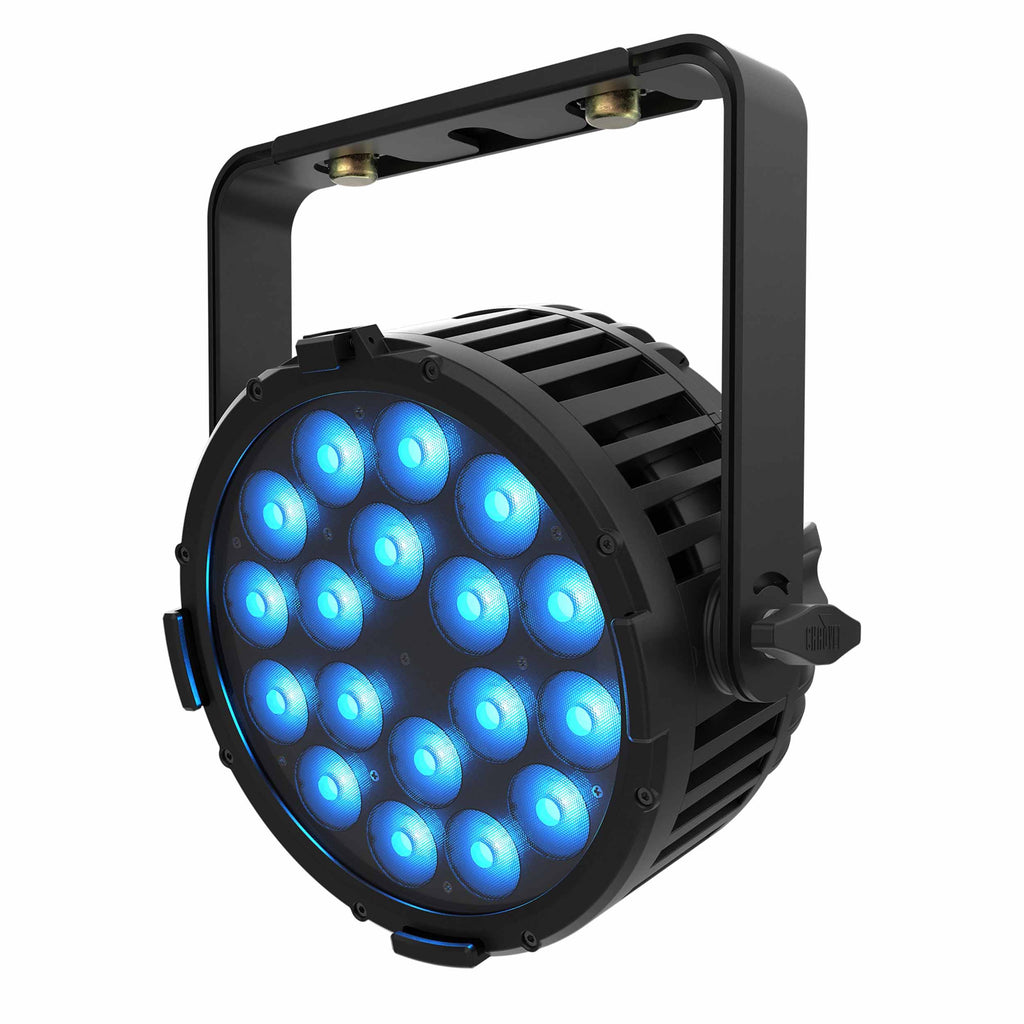

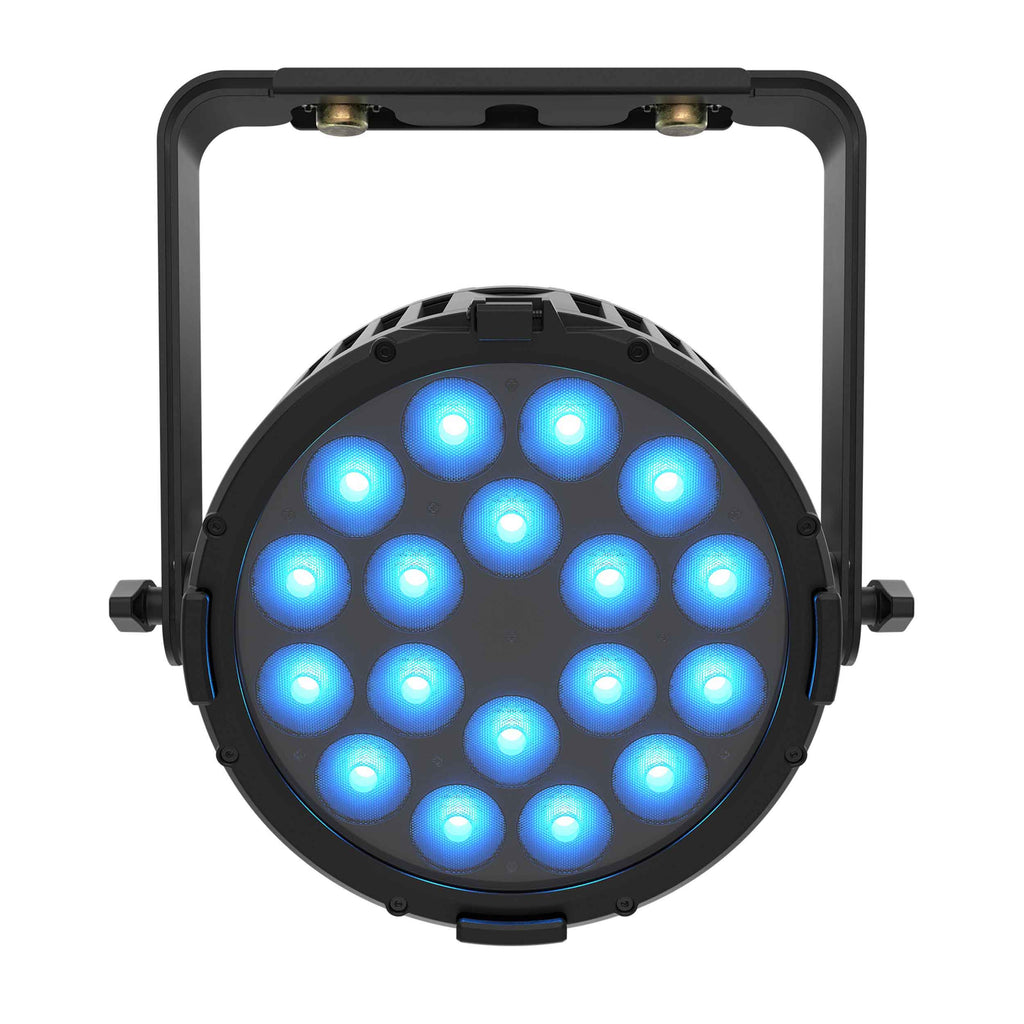

The Chauvet Professional COLORdash PAR H18 XIP is a rugged, IP65-rated LED wash fixture engineered to deliver exceptional color performance in virtually any environment. Designed for live productions, broadcast applications, architectural installations, and outdoor events, this versatile fixture combines reliability with precision to produce everything from delicate pastel tones to richly saturated hues. Equipped with 18 powerful hex-color RGBAWUV LEDs, it offers an expansive color palette and beautifully consistent output whether mounted in a rig, used as an uplight, or deployed in demanding weather conditions.
Built to thrive both indoors and outdoors, the COLORdash PAR H18 XIP features a durable die-cast housing with weatherproof power and data connections that provide dependable operation in rain, dust, and humid environments without additional protection. Advanced optical design and high-efficiency color mixing enable precise color rendering, calibrated white light, vibrant washes, and intense strobe effects. Flawlessly smooth 16-bit dimming with four selectable dimming curves ensures seamless fades and transitions free from visible stepping, while multiple PWM frequency options eliminate on-camera flicker, making the fixture ideal for broadcast studios, livestreams, and filmed productions.
Convenience and flexibility are integrated into every aspect of the design. RDM capability allows remote addressing and configuration, simplifying management of fixtures installed in hard-to-reach positions, while the password-protected OLED touchscreen display provides an intuitive interface for secure onboard adjustments. The included double-bracketed yoke and omega bracket offer versatile mounting possibilities and can also function as a stable floor stand for uplighting applications. Combining all-weather durability, sophisticated control, and outstanding color quality, the COLORdash PAR H18 XIP is a professional lighting solution built to perform wherever creativity demands.
What’s in the Box:
COLORdash PAR H18X IP
Seetronic Powerkon IP65 power cord
Gel frame
Omega bracket
Quick Reference Guide or User Manual
Product Specifications:
Light Source: 18 x HEX-Color RGBAWUV LEDs
Color Temperature Range: 2800 K To 10000 K
Color Temperature At Full: 8439 K
Beam Angle: 25.4°
Field Angle: 39°
Lumens: 5567 lm
Illuminance: 1106 Lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 To 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-In Automated Programs: Yes
Housing Material: Aluminum Diecast
Exterior Color: Black
Accessory Holder/Gel Frame Size: 241.3 mm (9.5 In)
Power Connection: Edison Plug To Seetronic PowerKON IP65
Power Input: Seetronic PowerKON IP65
Power Output: Seetronic PowerKON IP65

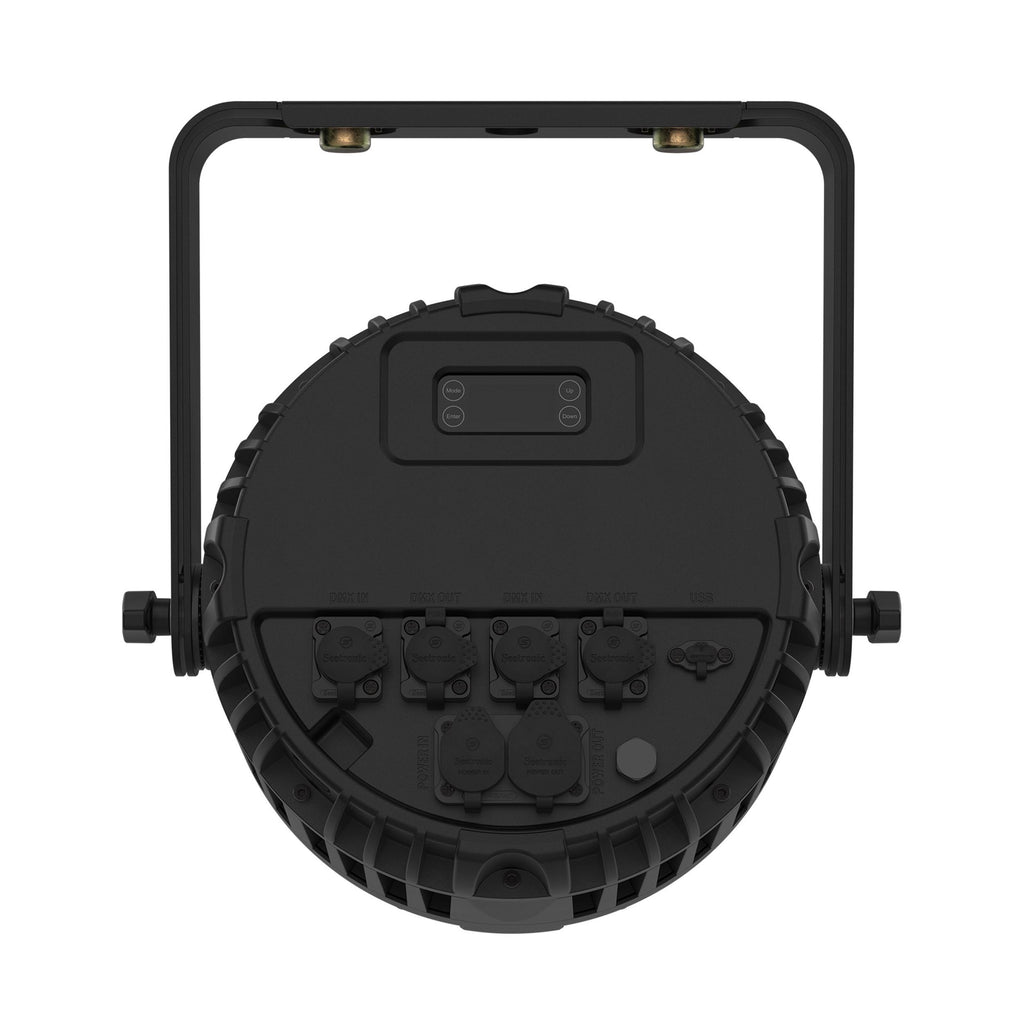

Data Connectors: 3-Pin And 5-Pin XLR
Cable Length: 1.5 m (5 Ft)
Software Update: USB-C
Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13, Or 14
Modes/Personalities: 5 (6CH, 8CH, 9CH, 13CH, 14CH)
Input Voltage: 100 To 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 9 Units @ 120 V; 16 Units @ 208 V; 18 Units @ 230 V
Power Consumption: 154 W, 1.25 A @ 120 V, 60 Hz
Power Consumption: 148 W, 0.72 A @ 208 V, 60 Hz
Power Consumption: 150 W, 0.66 A @ 230 V, 50 Hz
Certifications: CE, MET, FCC, UKCA
IP Rating: IP65
Operating Temperature: -20 °C To 45 °C (-4 °F To 113 °F)
Weight: 6.6 kg (14.4 Lbs)
Height: 344.8 mm (13.58 In)
Width: 327.4 mm (12.89 In)
Depth: 158.2 mm (6.23 In)
Shipping Weight: 18.43 lbs.
Shipping Dimensions (L x W x H): 17.3 x 15.94 x 9.84 in
