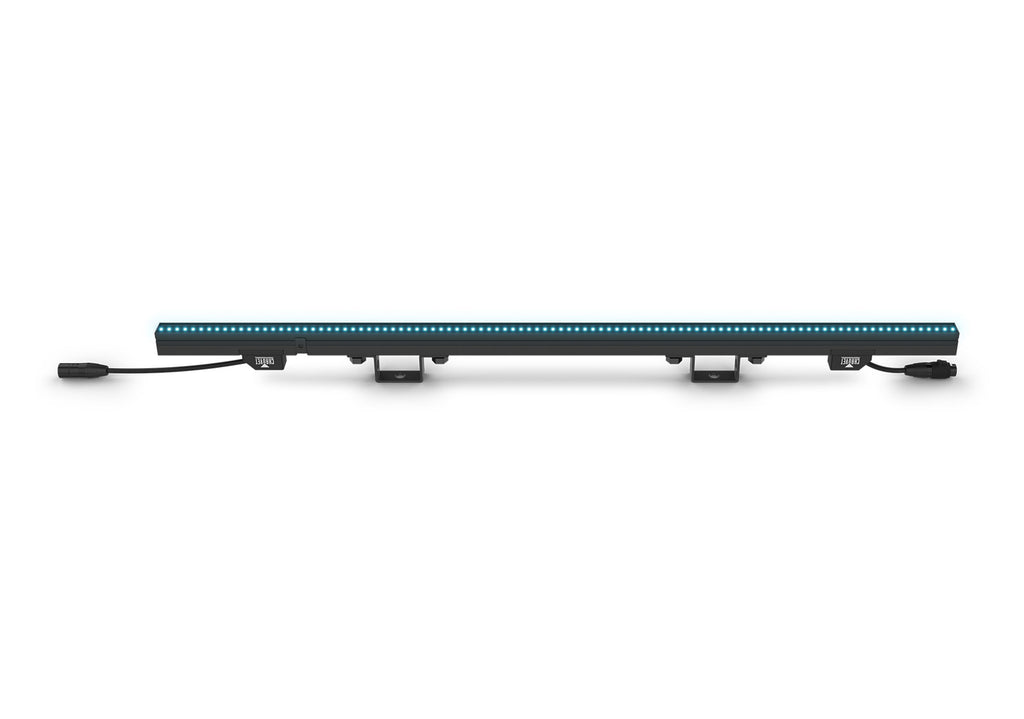

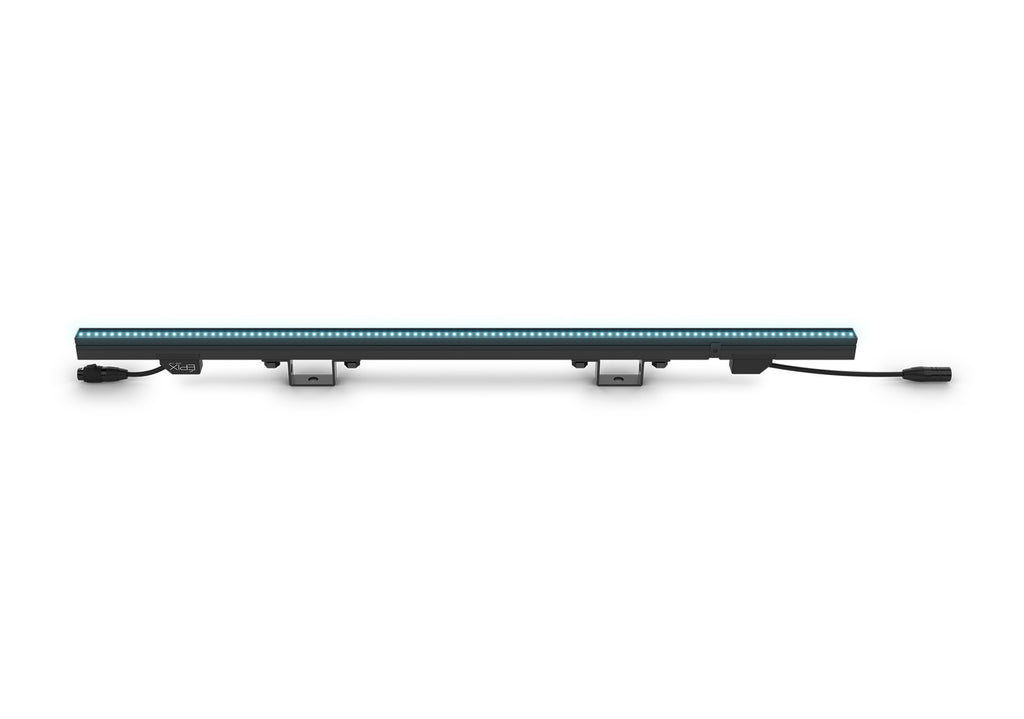

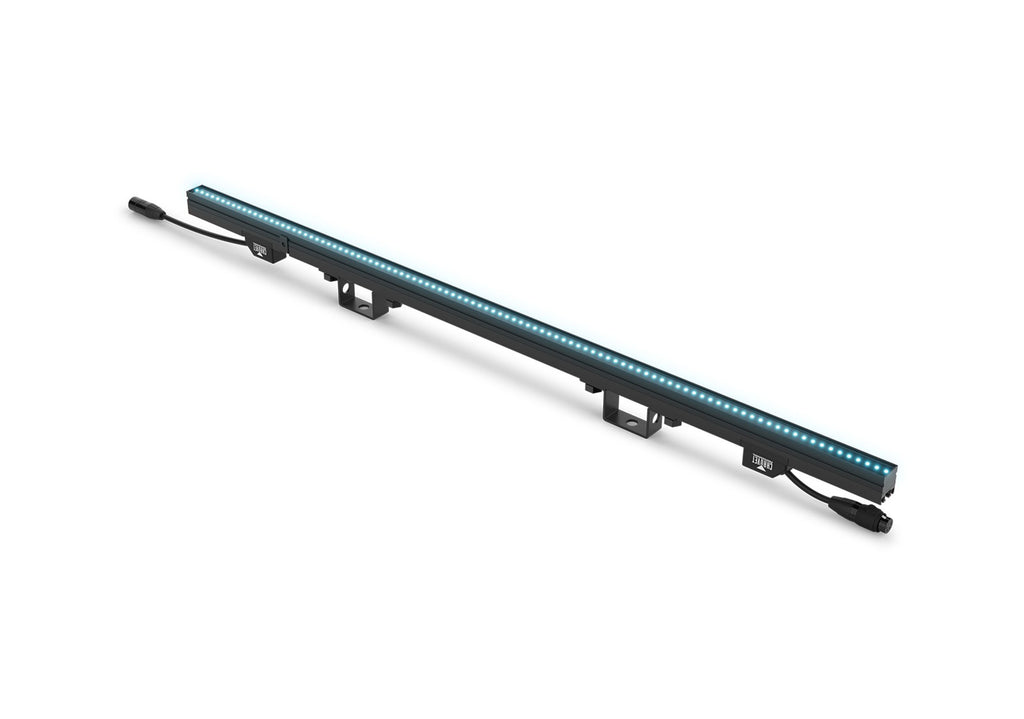

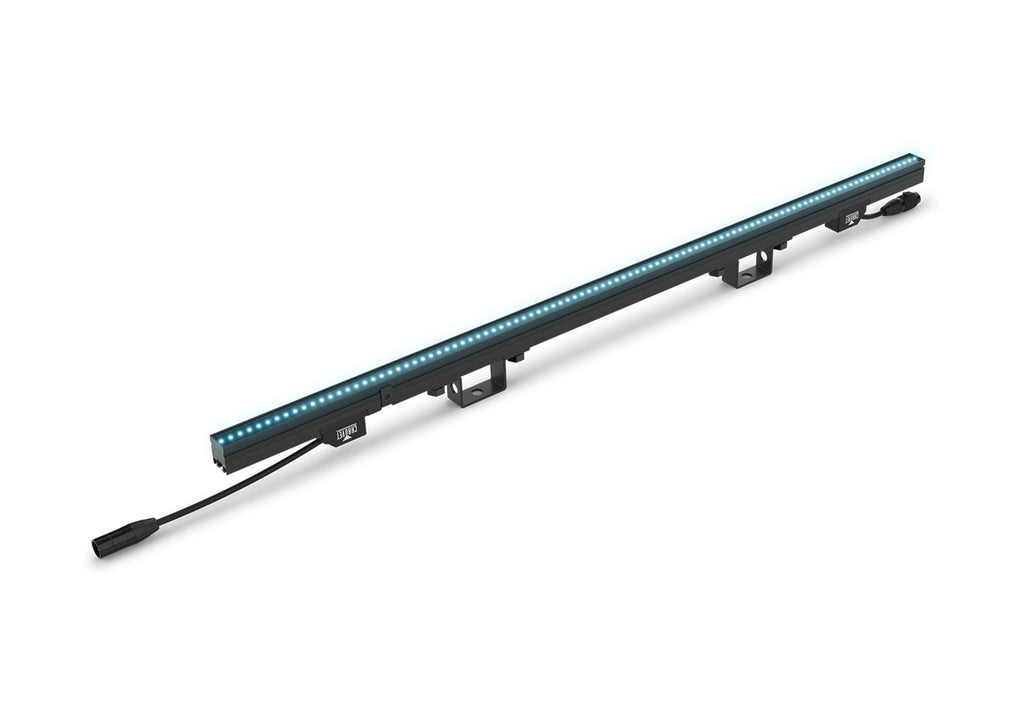

Chauvet Pro Epix Line 10 IP - 1m IP65 RGB LED Pixel Strip with 100 LEDs

The Chauvet Professional ÉPIX Line 10 IP is a one-meter, IP65-rated linear pixel strip designed to deliver vivid, wide-gamut RGB color for demanding entertainment and architectural applications. Its sleek, outdoor-rated design makes it equally suited for touring productions, rental inventories, and permanent installations, providing reliable performance in environments where durability and visual impact are essential. With a 10 mm pixel pitch, the fixture creates striking effects that enhance building facades, stages, scenic elements, and large-scale productions with vibrant, dynamic visuals.

Engineered for versatility, the ÉPIX Line 10 IP includes three interchangeable optical filters that allow users to tailor the fixture's output to different applications and viewing requirements. These filters provide multiple looks and wider viewing angles, giving lighting designers the flexibility to create everything from tightly defined pixel effects to broader washes of color. Standard 4-pin XLR connectivity further supports efficient deployment and integration into a variety of professional lighting systems.

Designed with long-term usability in mind, the slim and serviceable construction simplifies installation in tight spaces while ensuring full repairability to reduce maintenance costs and extend product life. Powered by the ÉPIX D4 IP Drive, the fixture offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection for fast and intuitive setup. This streamlined approach to video mapping and scalable system configuration makes the ÉPIX Line 10 IP an ideal solution for professionals seeking creative flexibility, efficient deployment, and dependable all-weather performance.

What's Included

ÉPIX LINE 10 IP

Interlocking Bracket

Milky White Square Filter (Installed)

Black Stealth Square Filter (Included)

Milky White Round Filter (Included)

2X Mounting Brackets (Installed)

Product Specifications:

Light Source: 100 x SMD 2727 Tri-Color RGB LEDs

LED Life Expectancy: 50,000 hours

Beam Angle: 115.2°

Field Angle: 163°

Viewing Angle: 171.6°

Pixel Pitch: 10 mm

Display Refresh Rate: 4,900 Hz

Strobe Rate: 0 – 30 Hz

Dimensions (No Filter): 39.37 x 1.16 x 2.86 in (1000 x 29.5 x 72.7 mm)

Dimensions (Square Filter): 39.37 x 1.23 x 2.86 in (1000 x 31.2 x 72.7 mm)

Dimensions (Round Filter): 39.37 x 1.97 x 2.86 in (1000 x 50 x 72.7 mm)

Weight: 2.89 lb (1.3 kg)

Exterior Color: Black

Housing Material: Aluminum Alloy, Aluminum Die-Cast, High-Impact Flame-Retardant Polymer, Stainless Steel

IP Rating: IP65

Power Supply: ÉPIX D4 IP Remote Driver

Physical Linking (Standard Mode): Up to 10 ÉPIX Line 10 IP Fixtures

Physical Linking (Hi Power Mode): Up to 6 ÉPIX Line 10 IP Fixtures

Data Connectors: 4-pin IP65 XLR

Minimum Cable Size: 4-Conductor (2 x 14 AWG, 2 x 16 AWG)

Maximum Shielded Cable Length: 210 ft (64 m)

Maximum Shielded Distance to First Fixture: 65 ft (20 m)

Maximum Shielded Distance Between Fixtures: 60 ft (18 m)

Maximum Unshielded Cable Length: 300 ft (91 m)

Maximum Unshielded Distance to First Fixture: 150 ft (45 m)

Maximum Unshielded Distance Between Fixtures: 100 ft (30 m)

Control Protocols: Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System

DMX Channels: 2, 18, Groups of 5 / 10 / 50 / 255, or 300

Video Refresh Rate: 60 Hz

Input Voltage: 48 VDC

Power Consumption (Standard Mode): 21W

Current Draw (Standard Mode): 0.44A @ 48 VDC

Power Consumption (Hi Power Mode): 32W

Current Draw (Hi Power Mode): 0.671A @ 48 VDC

Compliance: CE, MET, FCC, ETL, UKCA

Operating Temperature: -4°F to 122°F (-20°C to 50°C)

Weight: 2.89 lbs (1.3 kg)

Dimensions (No Filter): 39.37 x 1.16 x 2.86 in (1000 x 29.5 x 72.7 mm)

Dimensions (Square Filter): 39.37 x 1.23 x 2.86 in (1000 x 31.2 x 72.7 mm)

Dimensions (Round Filter): 39.37 x 1.97 x 2.86 in (1000 x 50 x 72.7 mm)
