Description

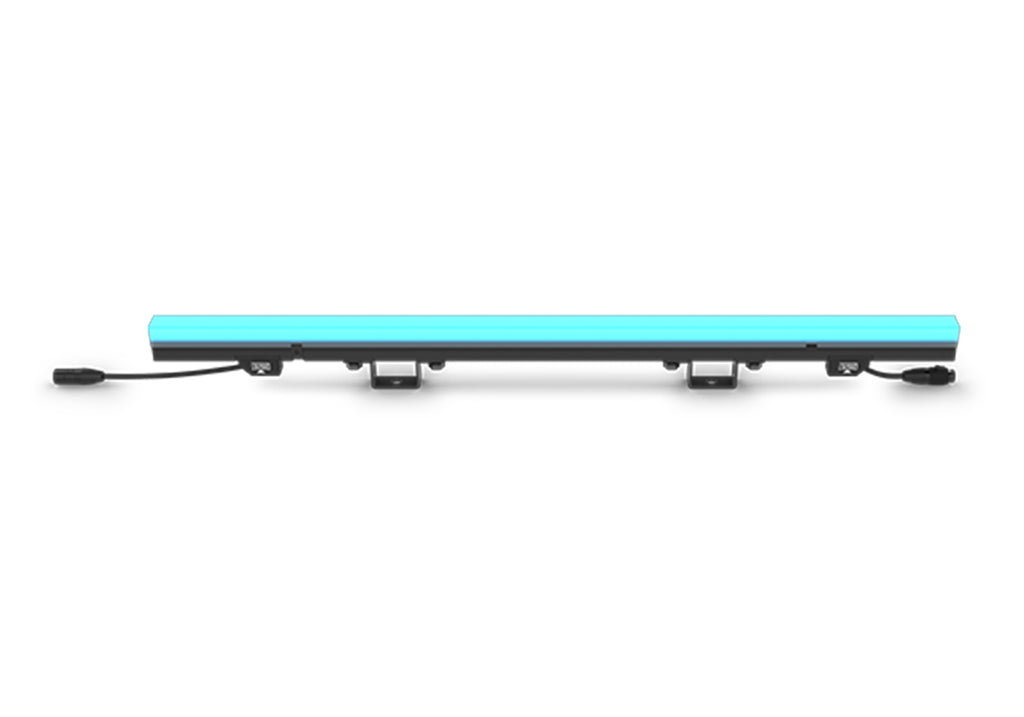

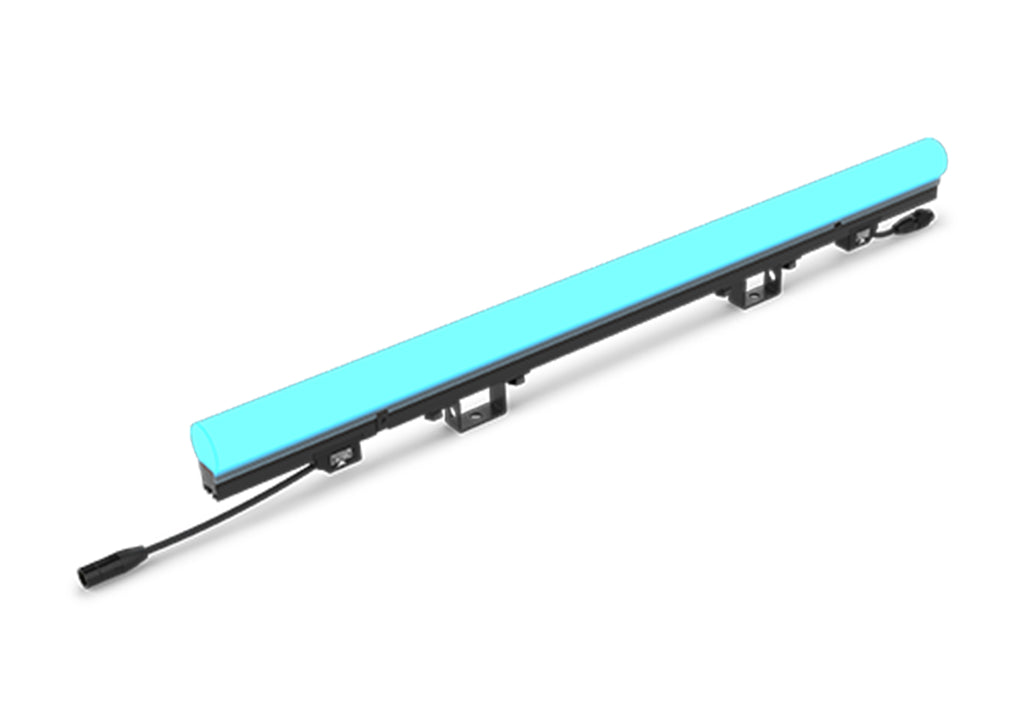

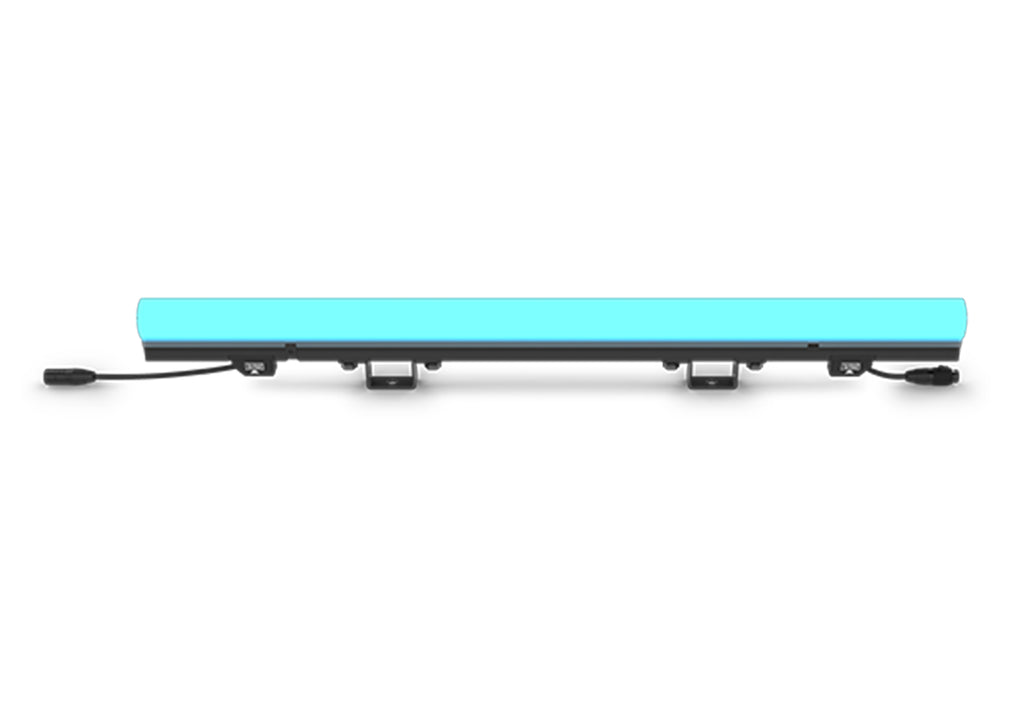

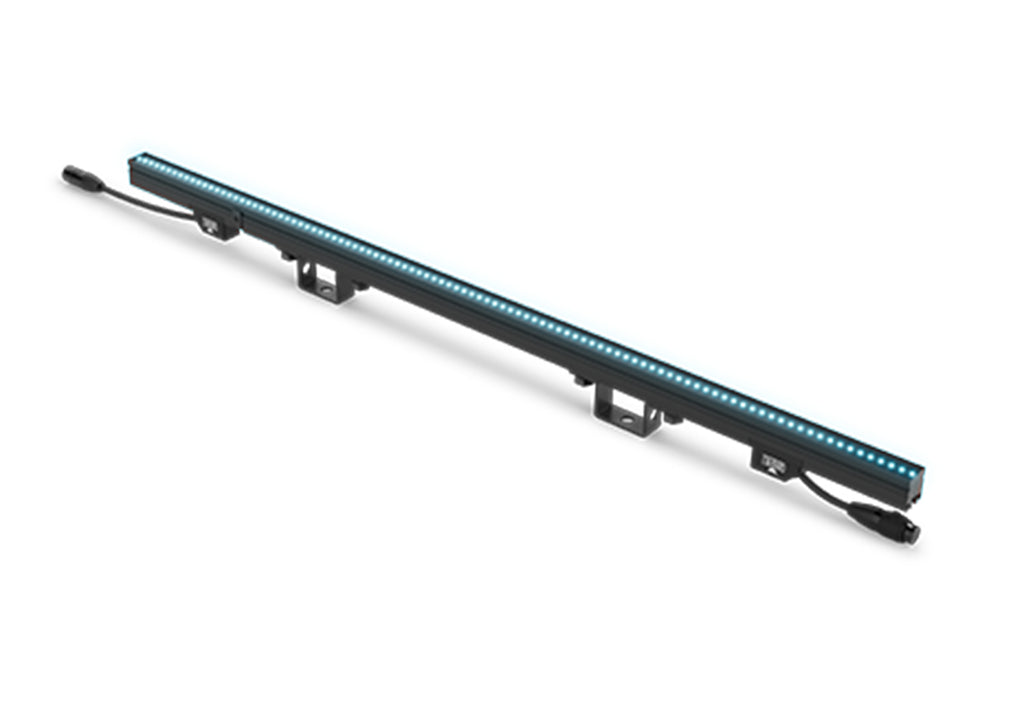

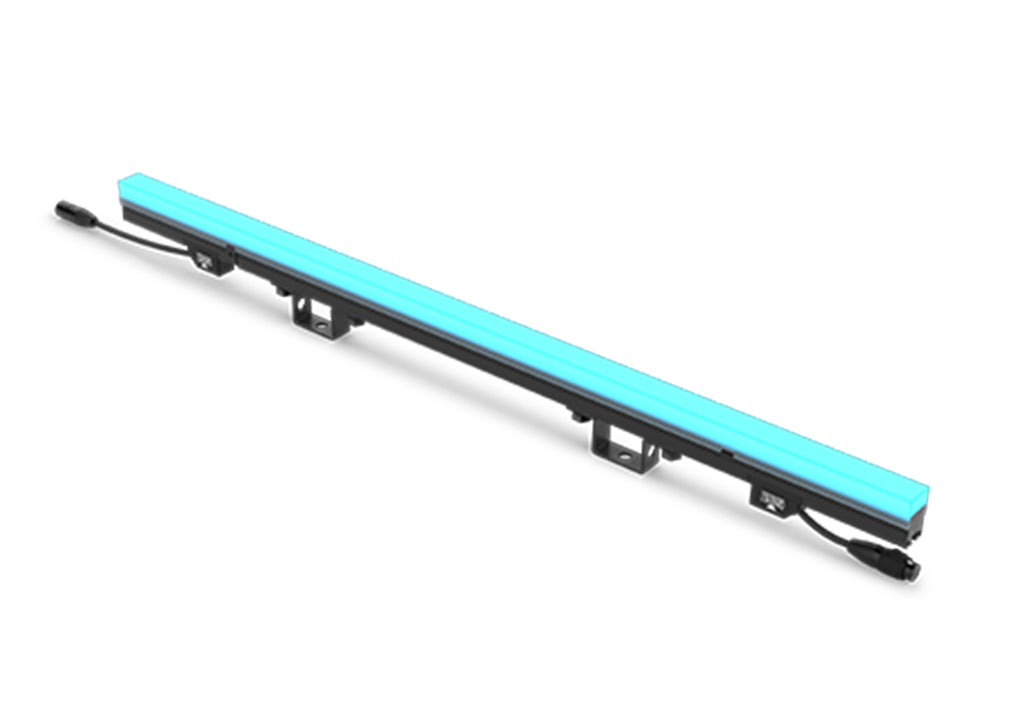

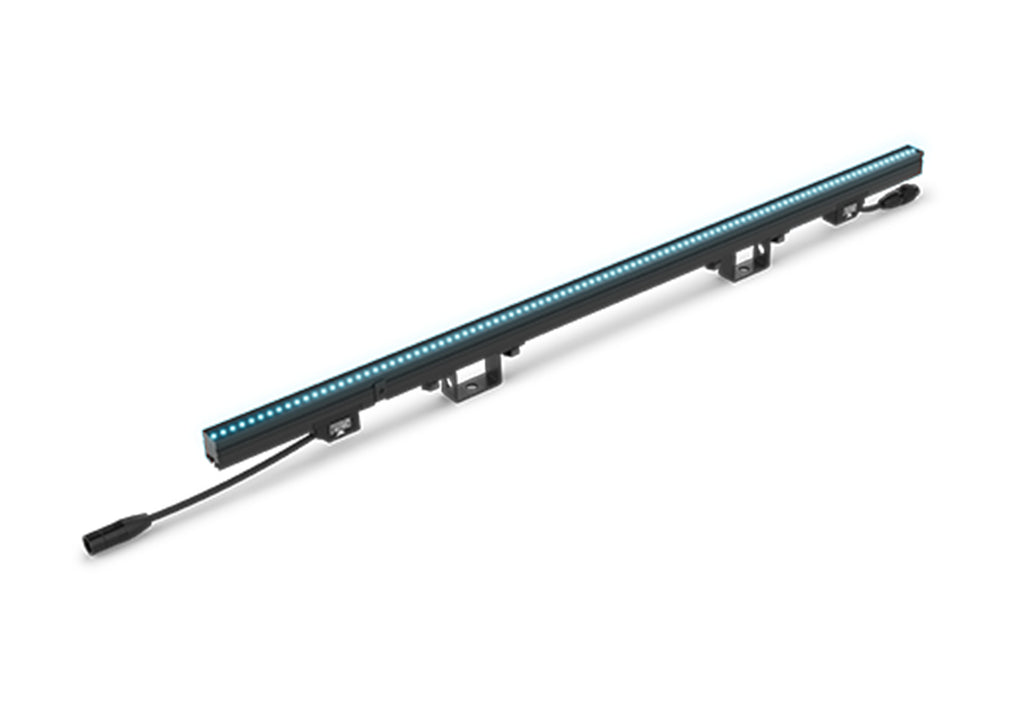

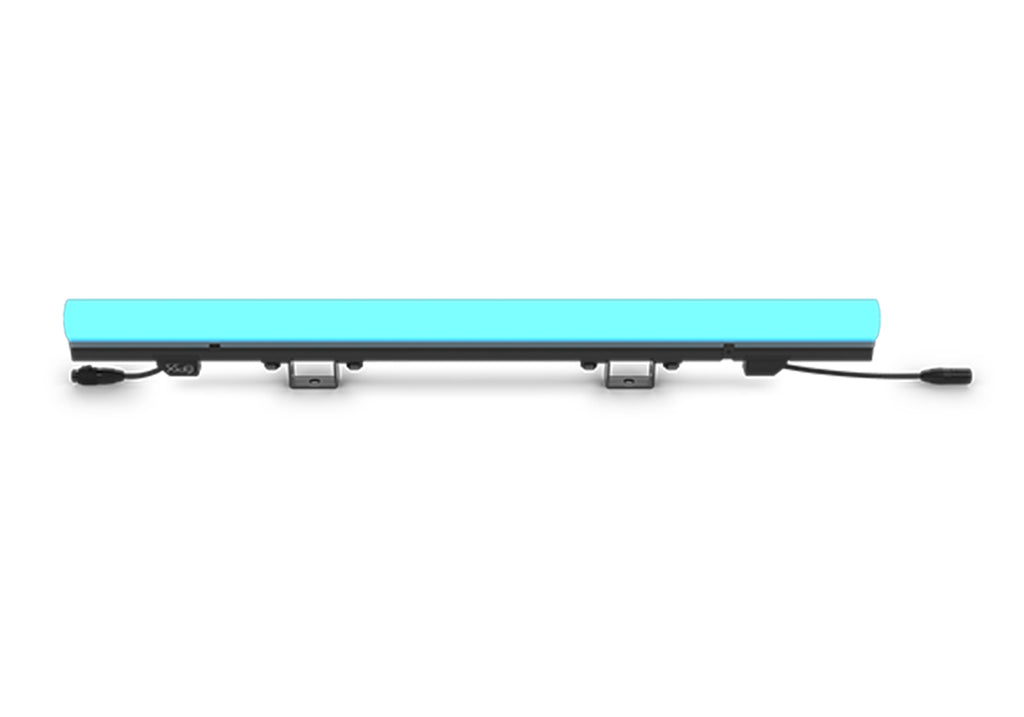

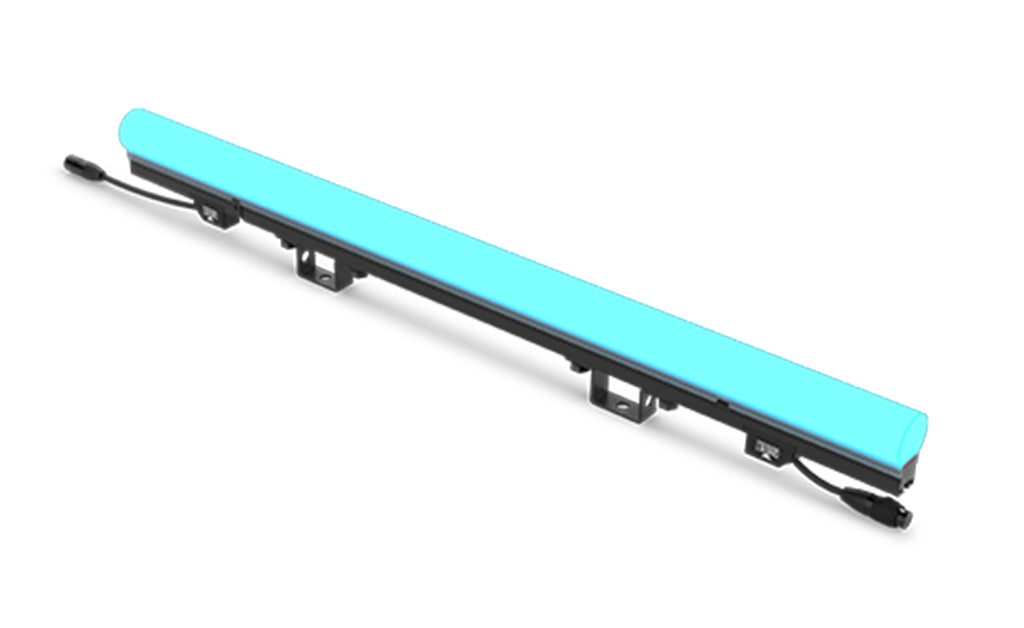

The Chauvet Professional Epix Line 10 IP is a sleek, 1-meter, outdoor-rated linear pixel strip designed to deliver vivid, wide-gamut RGB color for architectural, entertainment, touring, and permanent installation applications. Powered by the ÉPIX D4 IP drive, it offers native compatibility with the ÉPIX Mapping System, automatic fixture detection, and support for industry-standard MVR files, enabling fast, intuitive setup and highly scalable video mapping workflows.
Equipped with three interchangeable optical filters, ÉPIX Line 10 IP provides flexible viewing angles and visual effects to suit a wide range of creative needs. Its slim, serviceable design allows easy integration into tight spaces while ensuring long-term reliability, making it an ideal solution for rental houses, system designers, and lighting professionals working in demanding environments.
Product Specifications:
Optical:
Light Source: 100 × SMD 2727 tri-color RGB LEDs
LED Life Expectancy: 50,000 hours
Lumens: 1,385
Pixel Pitch: 10 mm
Beam Angle: 114.6°
Field Angle: 161.9°
Viewing Angle: 170°
Display Refresh Rate: 4,900 Hz
Dynamic Effects:
Strobe Rate: 0–30 Hz
Construction / Physical:
Dimensions (no filter): 39.37 × 1.161 × 2.862 in (1000 × 29.5 × 72.7 mm)
Dimensions (square filter installed): 39.37 × 1.228 × 2.862 in (1000 × 31.2 × 72.7 mm)
Dimensions (round filter installed): 39.37 × 1.969 × 2.862 in (1000 × 50 × 72.7 mm)
Weight: 2.89 lbs (1.3 kg)
Exterior Color: Black
Housing Materials: Aluminum alloy, aluminum die-cast, high-impact flame-retardant polymer, stainless steel
IP Rating: IP65
Connections:
Power Supply: Remote driver (ÉPIX D4 IP)
Data Connector: 4-pin IP65 XLR
Physical Linking Capacity:
Standard Mode: 10 inline ÉPIX Line 10 IP
Hi-Power Mode: 6 inline ÉPIX Line 10 IP
Cable Requirements:
Minimum cable size: 4-conductor (2 × 14 AWG, 2 × 16 AWG)
Max total cable length (shielded): 210 ft (64 m)
Max first-fixture distance (shielded): 65 ft (20 m)
Max distance between fixtures (shielded): 60 ft (18 m)
Max total cable length (unshielded): 300 ft (91 m)
Max first-fixture distance (unshielded): 150 ft (45 m)
Max distance between fixtures (unshielded): 100 ft (30 m)
Control:
Control Protocols: Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System
DMX Channel Modes: 2, 18, groups of 5 / 10 / 50 / 255, or 300
Video Refresh Rate: 60 Hz
Electrical:
Input Voltage: 48 VDC
Power Consumption (Standard): 21 W, 0.44 A @ 48 VDC
Power Consumption (Hi-Power): 32 W, 0.671 A @ 48 VDC
Certifications / Qualifications:
Compliance: CE, MET, FCC, ETL, UKCA
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
What’s Included:
ÉPIX Line 10 IP
Interlocking bracket
Milky white square filter (installed)
Black stealth square filter
Milky white round filter
2 × mounting brackets (installed)
Required Accessories:
Controller: ÉPIX D4 IP
Optional Mapping Software: KLSTR
Compatible Mounting Hardware: EPIXMNTSPIGOT, M12 bolt
Optional Accessories:
EPIXMNTSPIGOT (28 mm spigot adapter)
EPIXMNTANGLE (+/-120° angling adapter)
Professional clamps
RIGLINK 4-pin XLR cables
Flight case
Shipping Weight: 4.5 lbs
Shipping Dimensions: 44 × 6 × 6 inches
