Description

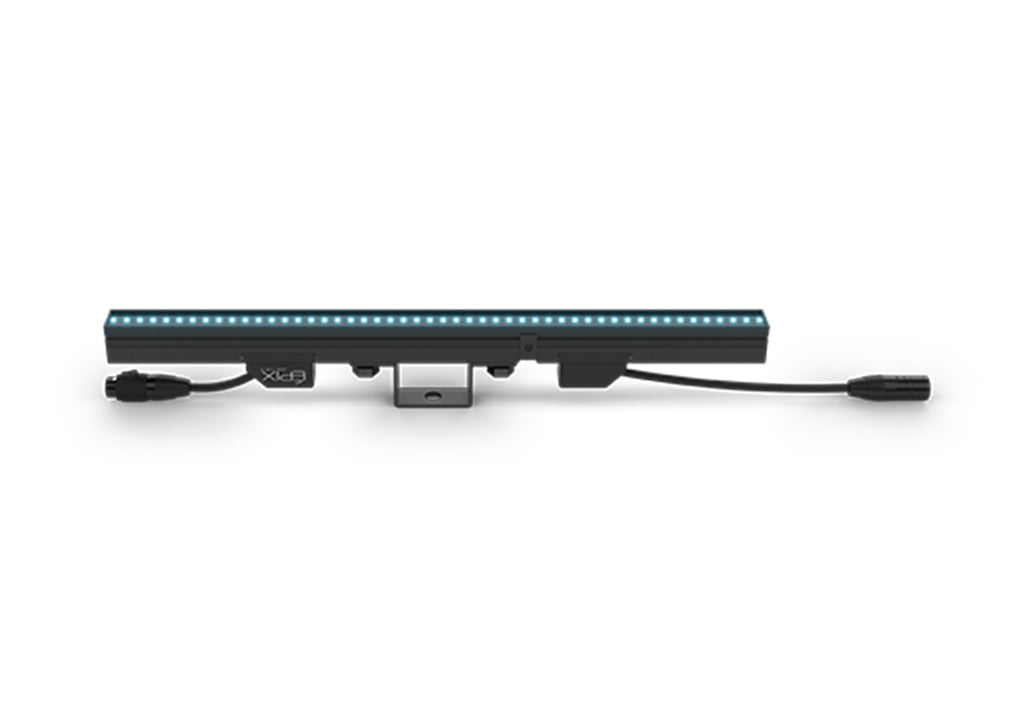

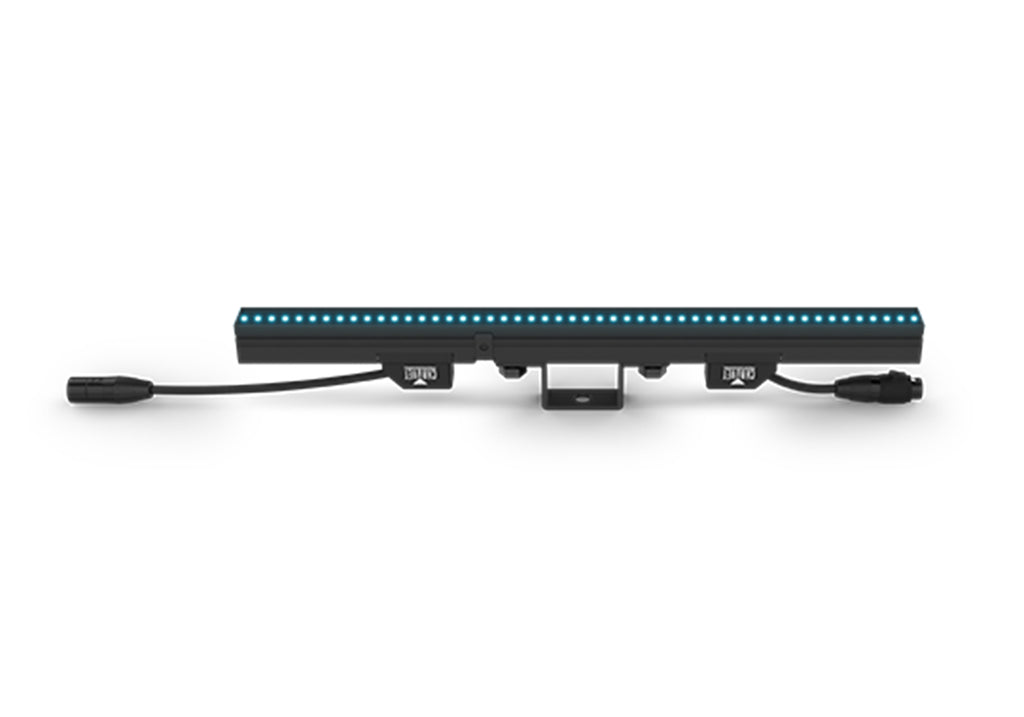

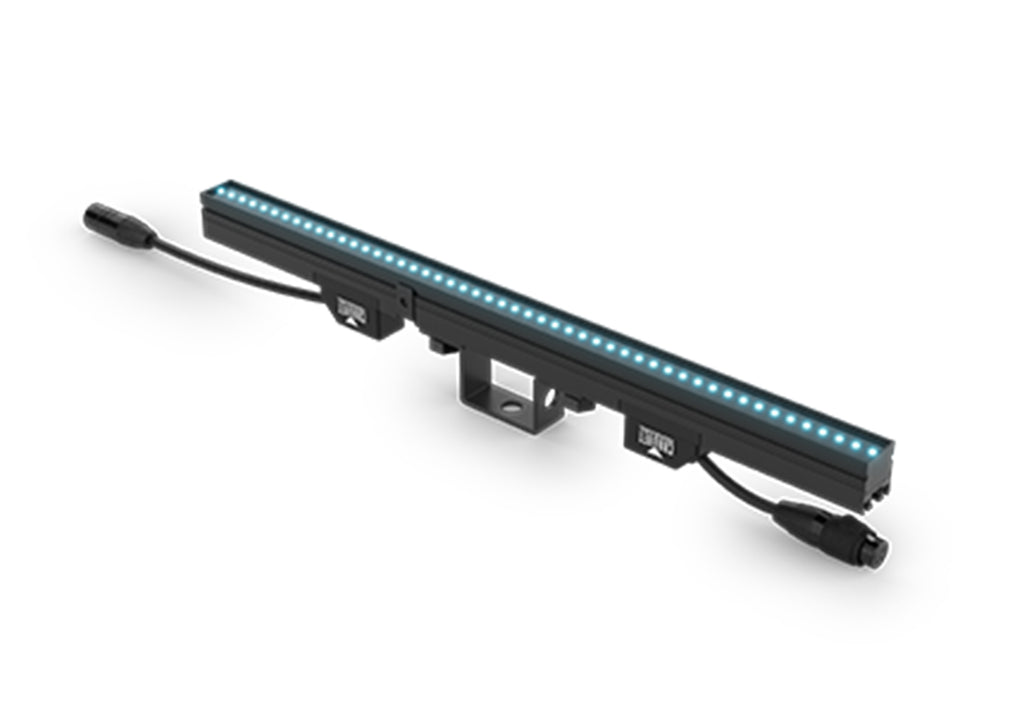

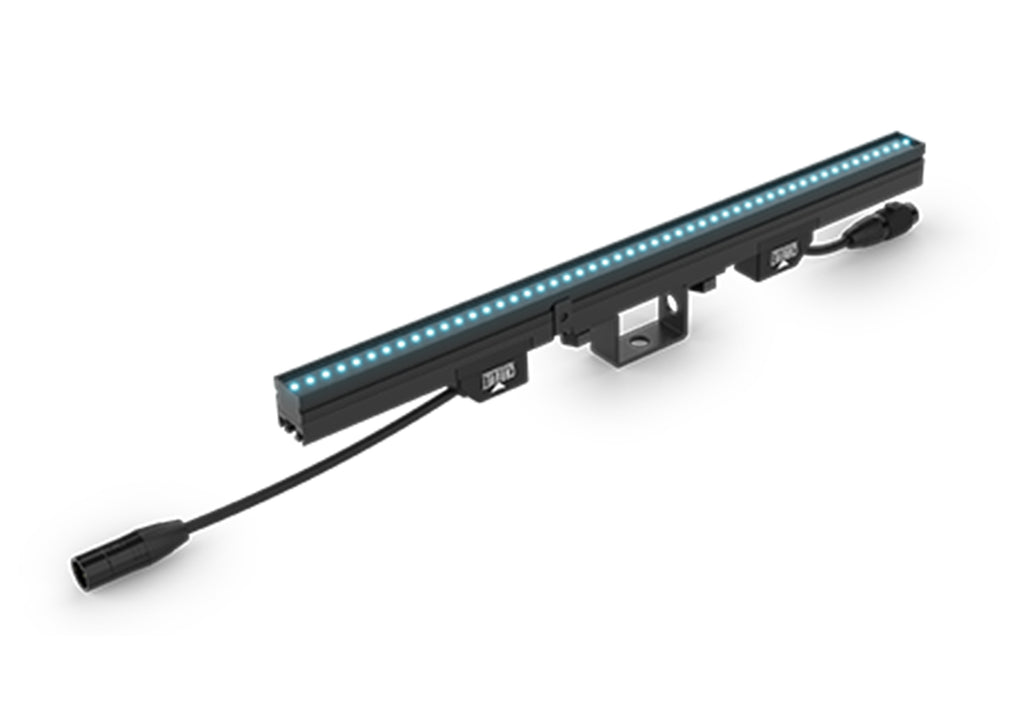

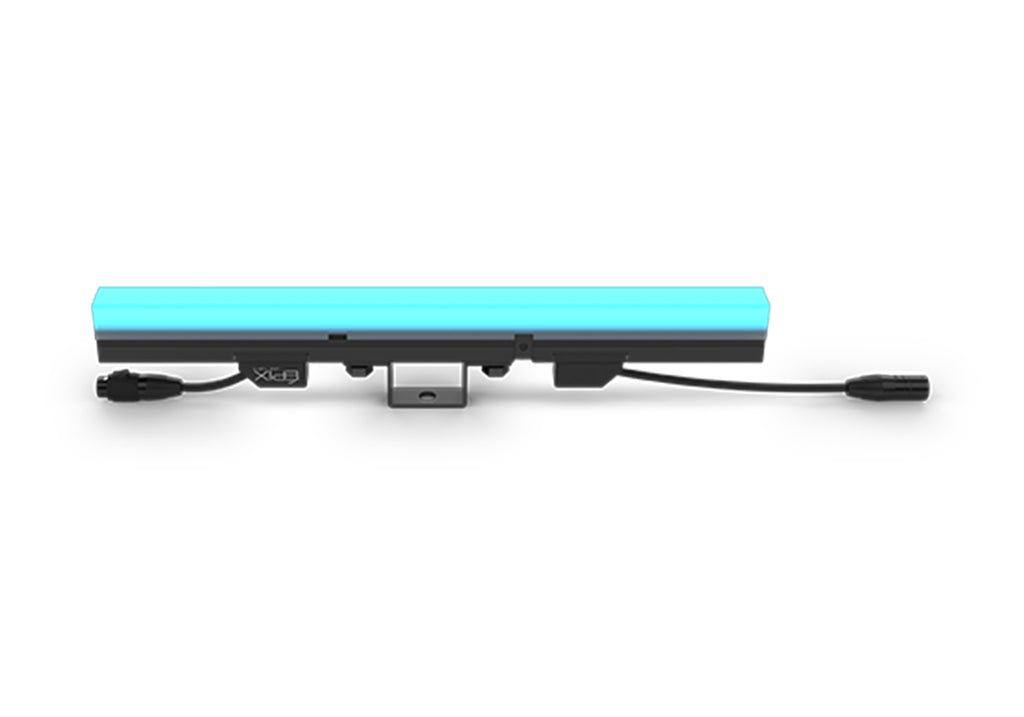

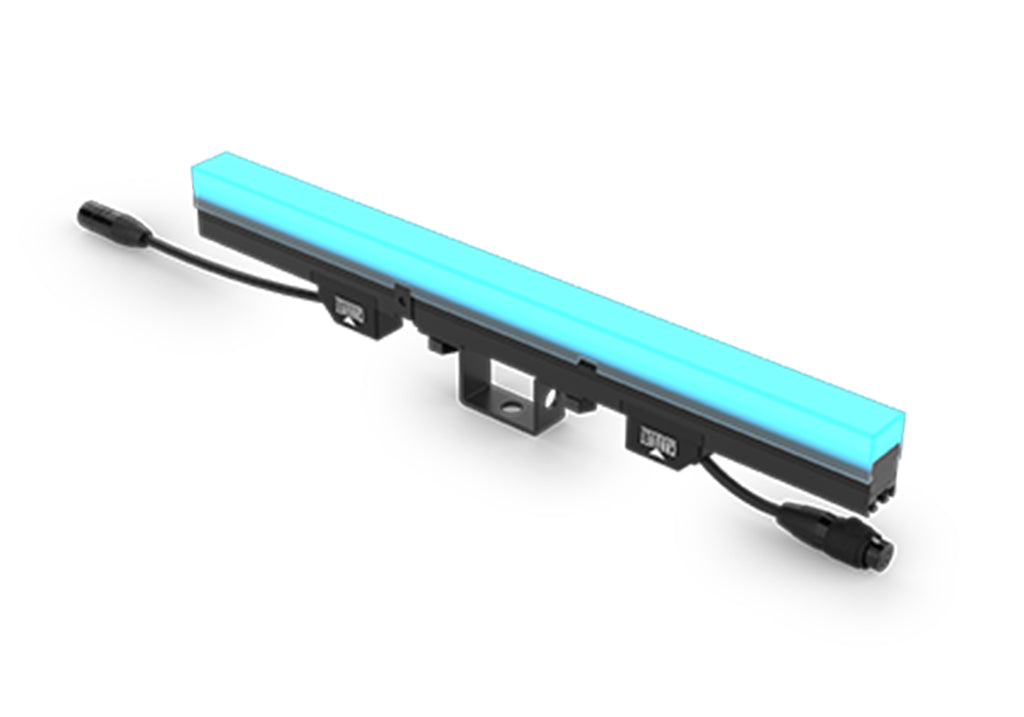

The Chauvet Professional Epix Line 10 IP S delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPiX D4 IP Drive, this compact 0.5-meter outdoor-rated linear pixel strip offers native compatibility with the Epix Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.
Product Specifications:
Optical:
Light Source: 50 SMD 2727 LEDs (tri-color RGB)
LED Life Expectancy: 50,000 hours
Beam Angle: 114.6°
Field Angle: 161.9°
Viewing Angle: 170°
Lumens: 644.6
Pixel Pitch: 10 mm
Display Refresh Rate: 4900 Hz
Dynamic Effects:
Strobe Rate: 0 to 30 Hz
Connections:
Power Supply (remote driver): Epix D4 IP
Physical Linking (Standard Mode): 20 inline EPIX Line 10 IP S
Physical Linking (Hi Power Mode): 13 inline EPIX Line 10 IP S
Data Connectors: 4-pin IP65 XLR
Minimum required device linking cable size: 4 conductors (2 × 14 AWG, 2 × 16 AWG)
Total max. cable length (shielded) between Epix D4 IP and last Epix Line: 210 ft (64 m)
Max. cable length (shielded) between Epix D4 IP and first Epix Line: 65 ft (20 m)
Max. cable length (shielded) between each Epix Line: 60 ft (18 m)
Total max. cable length (unshielded) between Epix D4 IP and last Epix Line: 300 ft (91 m)
Max. cable length (unshielded) between Epix D4 IP and first Epix Line: 150 ft (45 m)
Max. cable length (unshielded) between each Epix Line: 100 ft (30 m)
Control:
Control Protocol: Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System
DMX Channels: 2, 18, Groups of 5 / 10 / 50 / 255, or 300
Video Refresh Rate: 60 Hz
Electrical:
Input Voltage: 48 VDC
Power and Current (Standard): 11 W, 0.223 A @ 48 VDC
Power and Current (Hi-Power): 16 W, 0.328 A @ 48 VDC
Certifications / Qualifications:
Compliance: CE, MET, FCC, ETL, UKCA, etc.
Operating Temperature: −4 °F to 122 °F (−20 °C to 50 °C)
What’s Included:
EPIX Line 10 IP S
Interlocking bracket

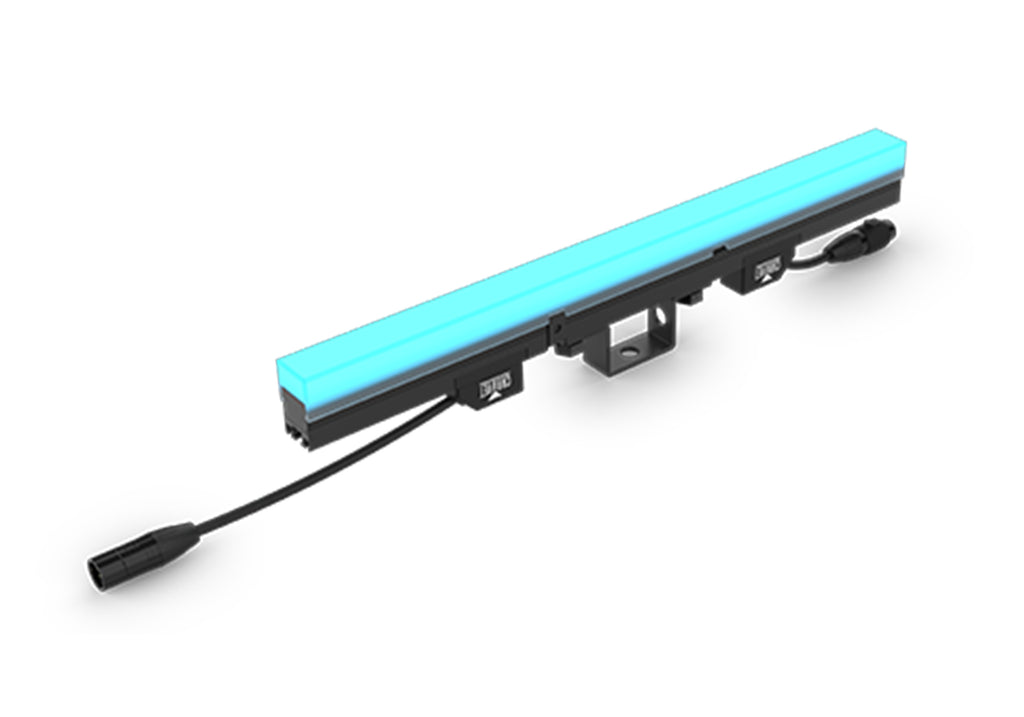

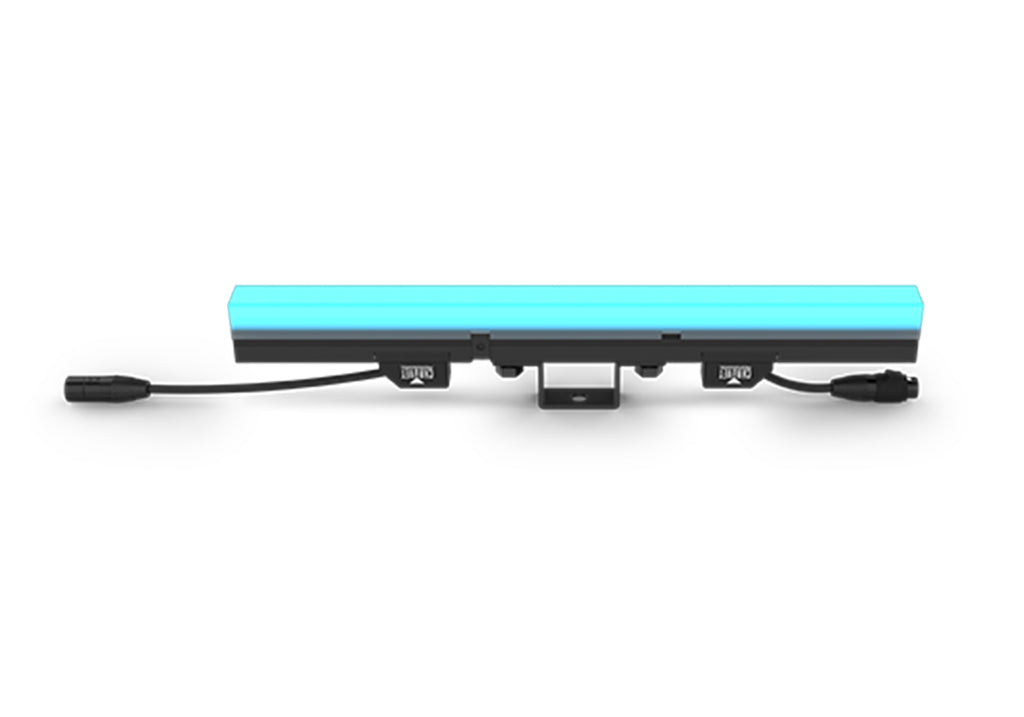

Milky white square filter (installed)
Black stealth square filter (included)

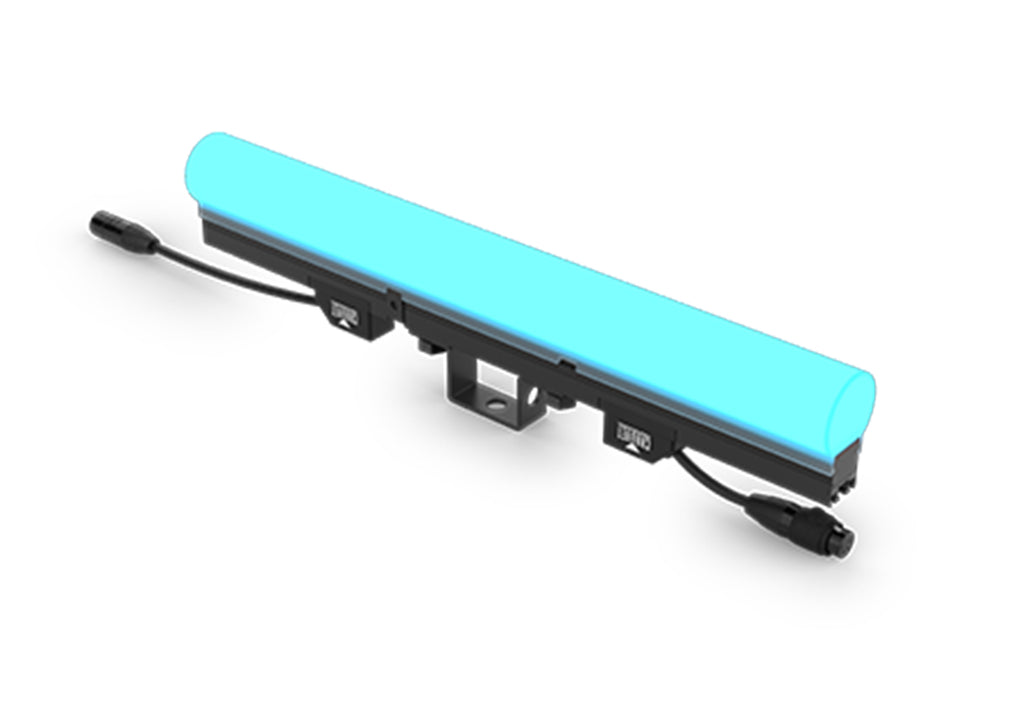

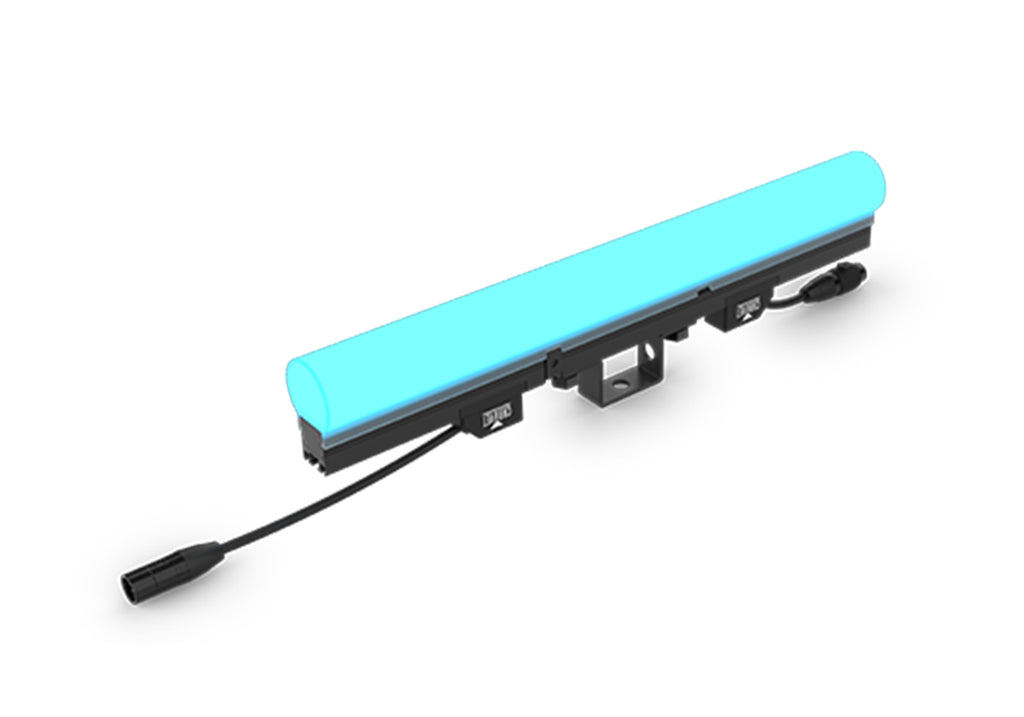

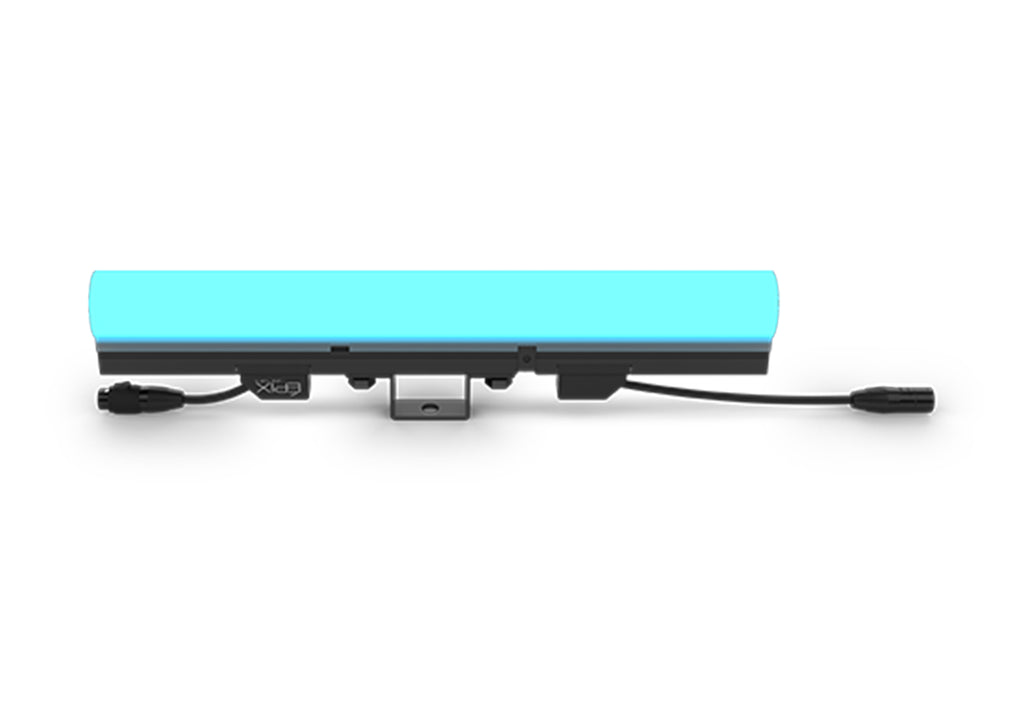

Milky white round filter (included)
1× mounting brackets (installed)
Required Accessories:
Optional Software (mapping): KLSTR
Controller (required): Epix D4 IP
Compatible Mounting Options: EPIXMNTSPIGOT, M12 bolt
Optional Accessories:
EPIXMNTSPIGOT (Epix mounting bracket: spigot adapter 28 mm)
EPIXMNTANGLE (Epix mounting bracket: ±120° angling adapter)
Clamps
RIGLINK 4-pin XLR cables
Flight case
Construction / Physical:
Exterior Color: Black
Housing Material: Aluminum alloy, aluminum die-cast, high-impact flame-retardant polymer, stainless steel
IP Rating: IP65
Dimensions (no filter): 19.685 × 1.161 × 2.862 in (500 × 29.5 × 72.7 mm)
Dimensions (square filter installed): 19.685 × 1.228 × 2.862 in (500 × 31.20 × 72.7 mm)
Dimensions (round filter installed): 19.685 × 1.969 × 2.862 in (500 × 50 × 72.7 mm)
Weight: 1.644 lb (0.746 kg)
Shipping Weight: 4 lbs.
Shipping Dimensions: 24 × 6 × 4 inches
