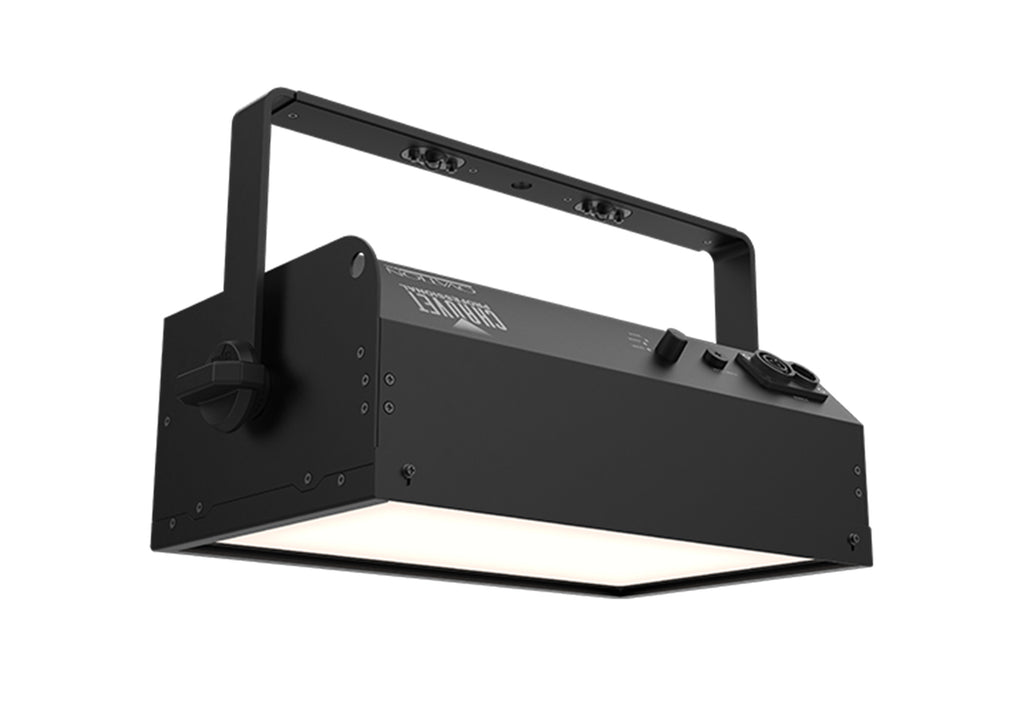

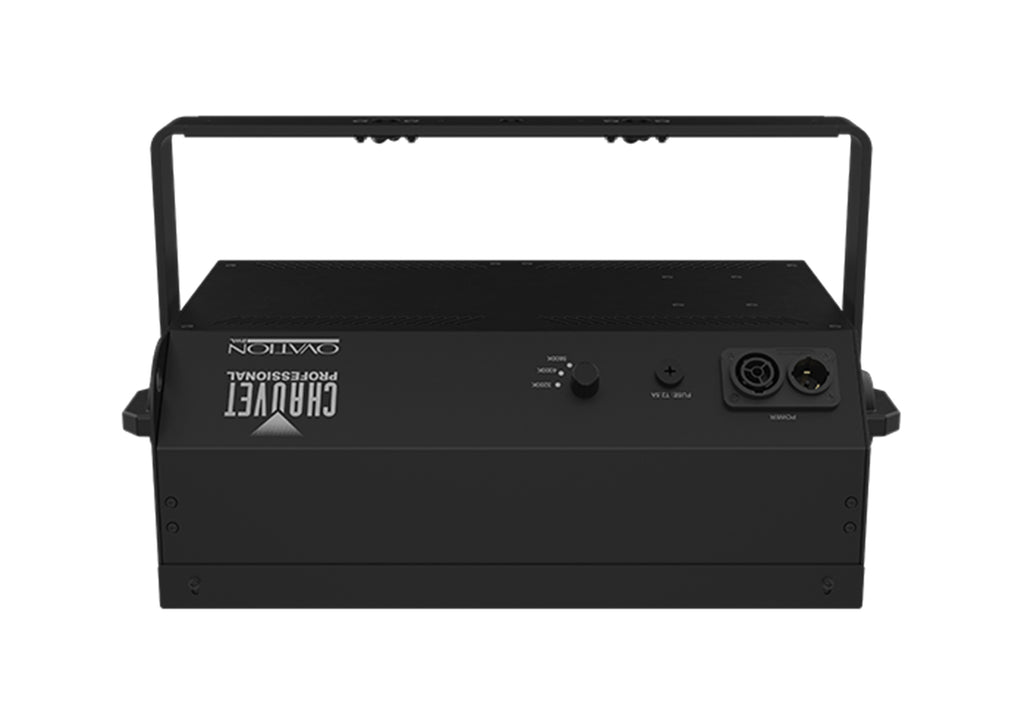

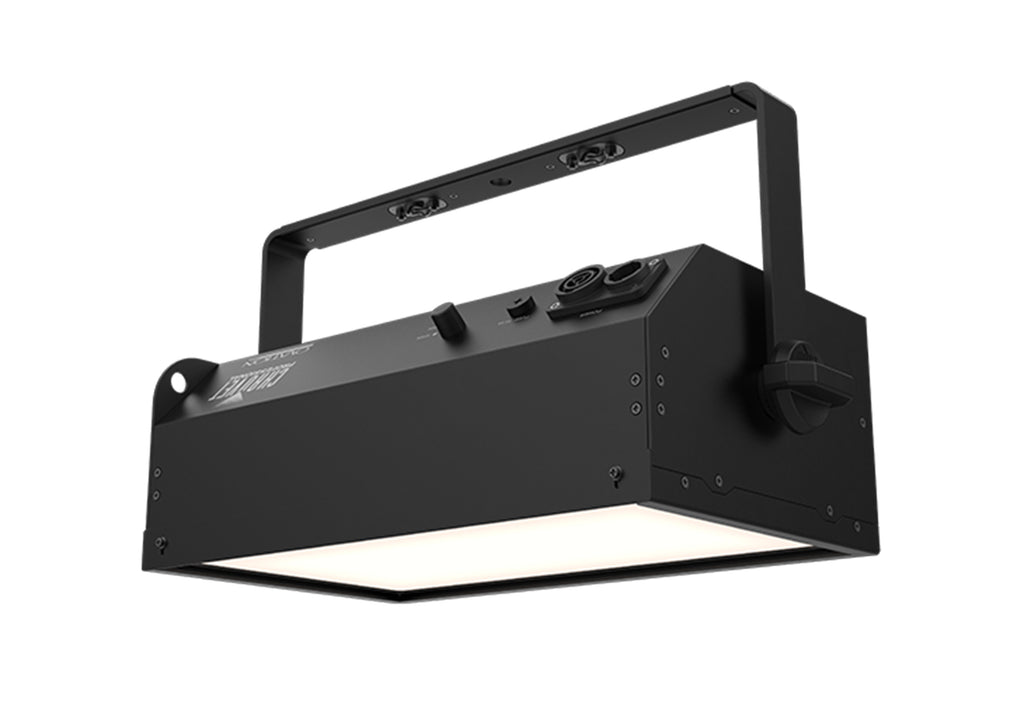

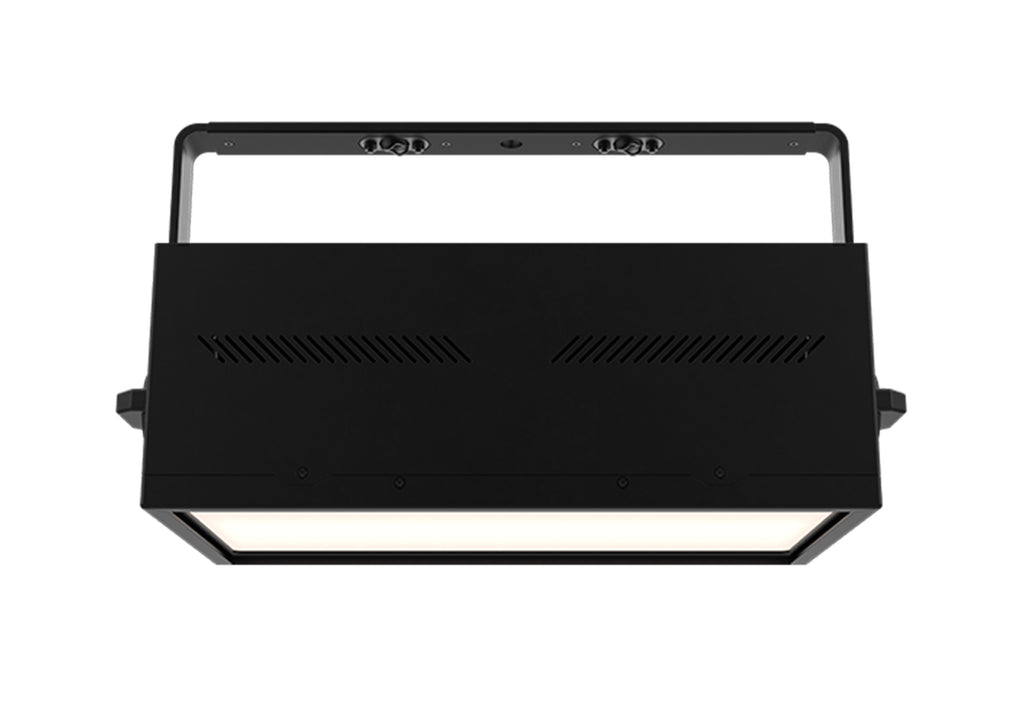

Chauvet Professional Ovation 2WL Line-Voltage Utility LED Wash

The Chauvet Professional Ovation 2WL Useful for times when DMX lighting isn’t needed, this effective utility light is powered by direct line voltage and can be dimmed via off-the-shelf phase-cut or triac dimmers. Projecting a soft flood light that minimizes shadows, Ovation 2WL offers selectable 3200K, 4000K, and 5600K color temperatures that provide wide-spectrum, high-CRI lighting.

Product Specifications:

Optical:

Light Source: 960 LEDs (CW, WW)

Color Temperature (3200 K): 3217 K

Color Temperature (4000 K): 3960 K

Color Temperature (5600 K): 5584 K

CRI (3200 K): 95.3

CRI (4000 K): 95.2

CRI (5600 K): 94.0

Beam Angle: 107.4°

Field Angle: 158.7°

Lumens (3200 K): 10,564

Lumens (4000 K): 10,954

Lumens (5600 K): 11,328

Illuminance (3200 K): 158 lux @ 5 m

Illuminance (4000 K): 164 lux @ 5 m

Illuminance (5600 K): 169 lux @ 5 m

Dynamic Effects:

Dimmer:

External dimmer (phase cut or triac compatible)

On-board Color Temperature Selection

Housing Material: Aluminum alloy

Accessory Holder / Gel Frame Size: 14.375 × 8.50 × 0.125 in (365.125 × 216 × 3.175 mm)

Connections:

Power Connection: Edison (local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Power Cable Length: 5 ft (1.5 m)

Electrical:

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking:

13 units @ 120 V

21 units @ 208 V

23 units @ 230 V

Power and Current:

103 W, 0.91 A @ 120 V, 60 Hz

99 W, 0.55 A @ 208 V, 60 Hz

98 W, 0.51 A @ 230 V, 50 Hz

Breaker Size: T2.5 A, 350 V

Certifications / Qualifications:

Certifications: CE, MET, FCC, RoHS

IP Rating: IP20 (dry location)

Ambient Temperature: −4 °F to 113 °F (−20 °C to 45 °C)

What’s Included:

Ovation 2WL

Seetronic Powerkon power cable

Omega bracket with mounting hardware

Optional Accessories:

Professional Clamps: CTC-50HC, CTC-50HCN

Construction / Physical:

Exterior Color: Black

Dimensions: 17.51 × 11.06 × 5.47 in (445 × 281 × 139 mm)

Weight: 10.2 lb (4.6 kg)

Shipping Weight: 15 lbs.

Shipping Dimensions: 22 × 15 × 9 inches
