Description

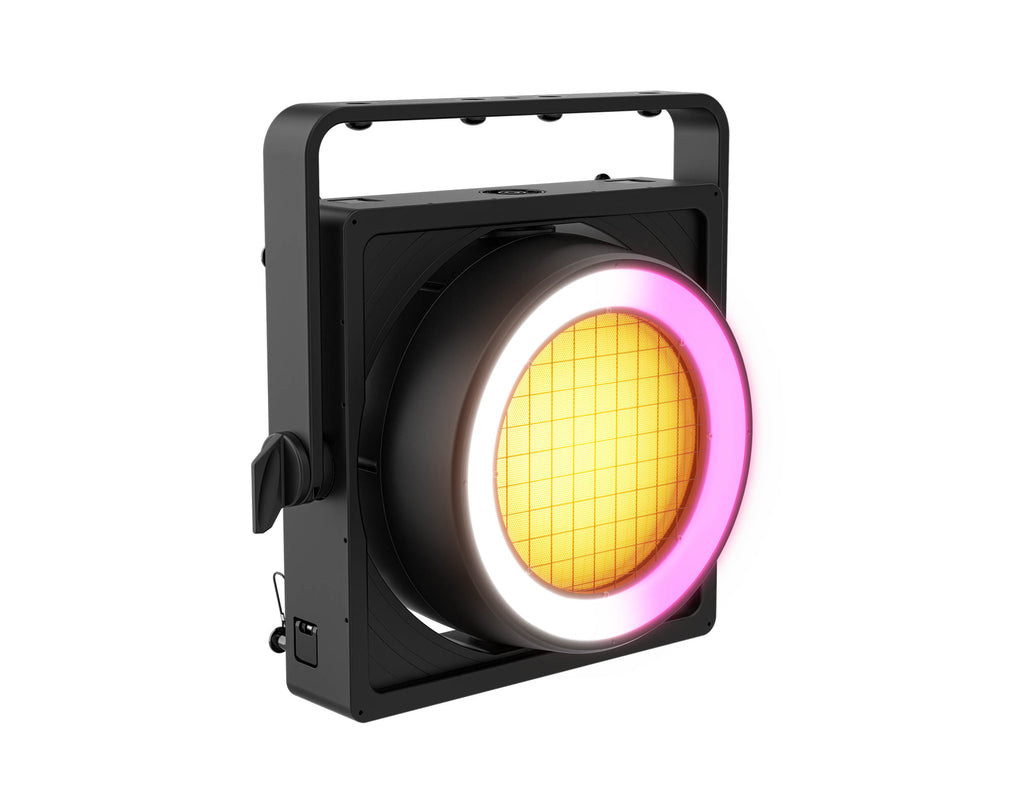

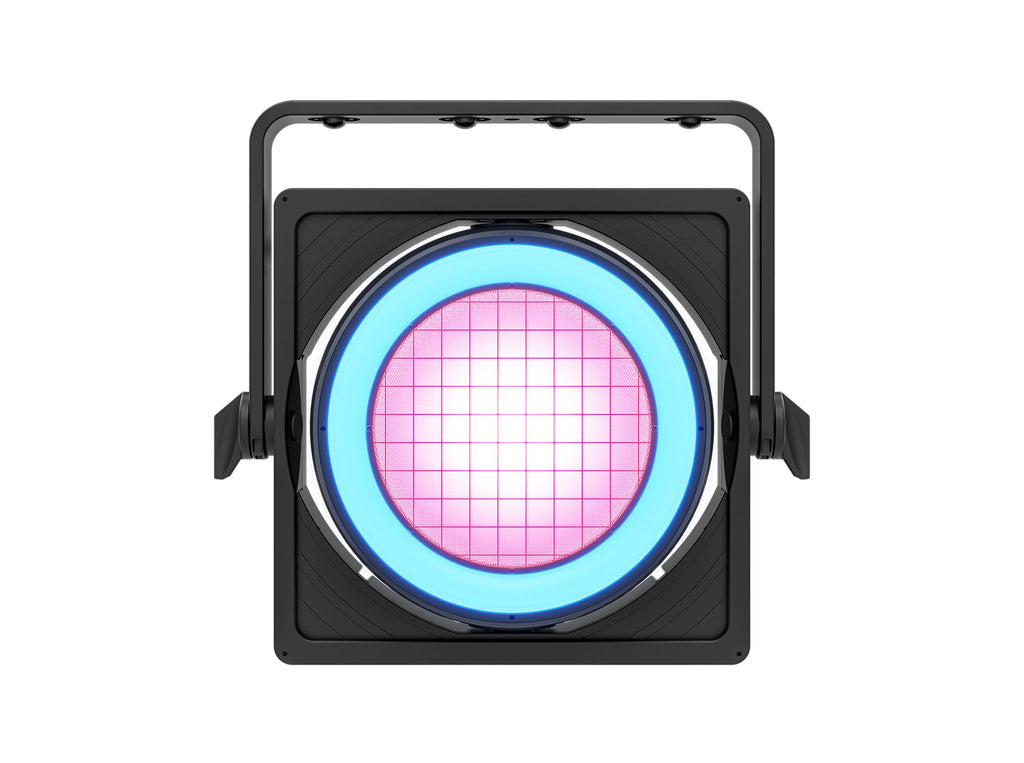

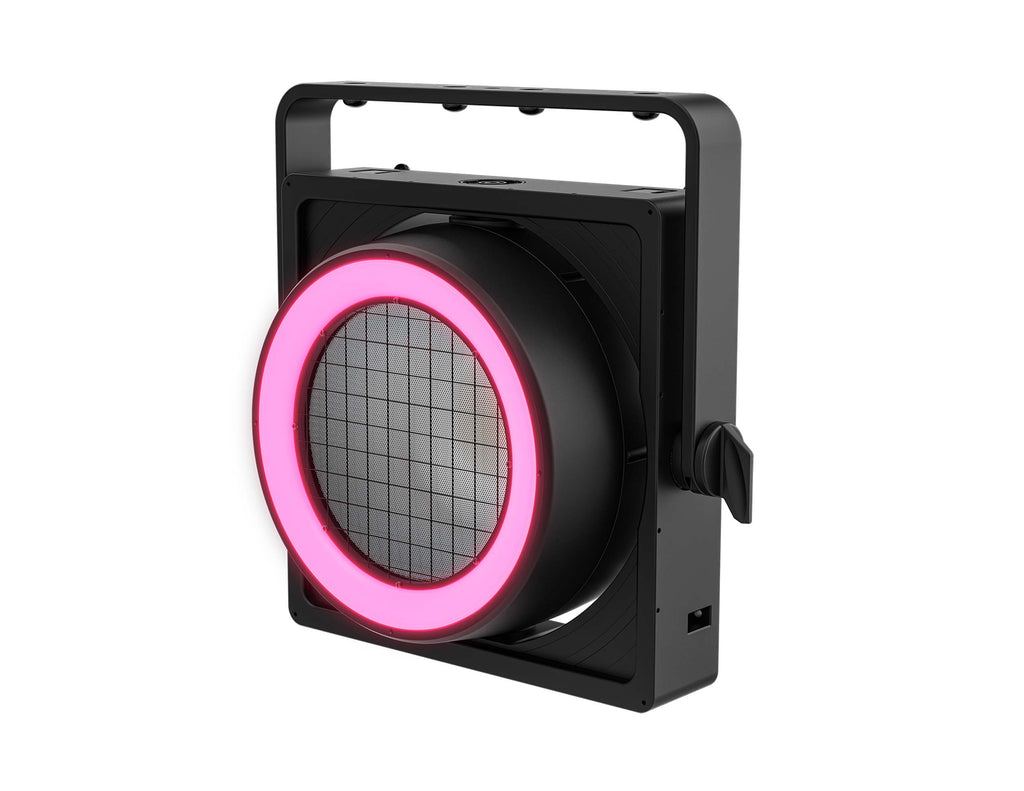

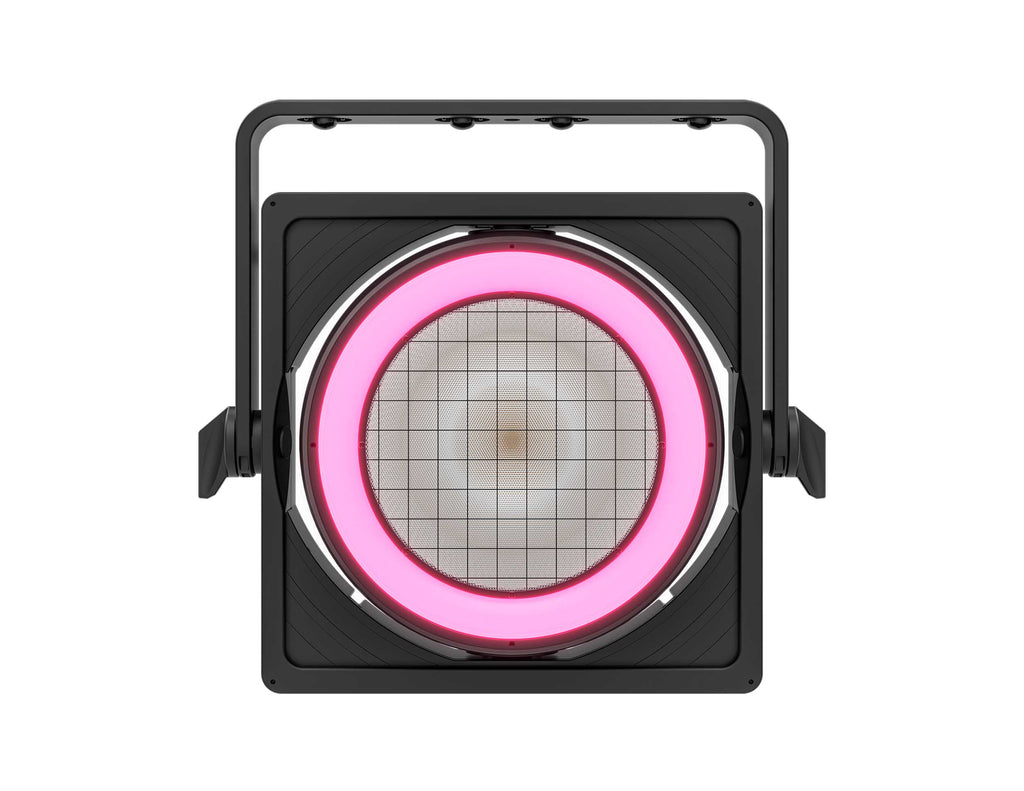

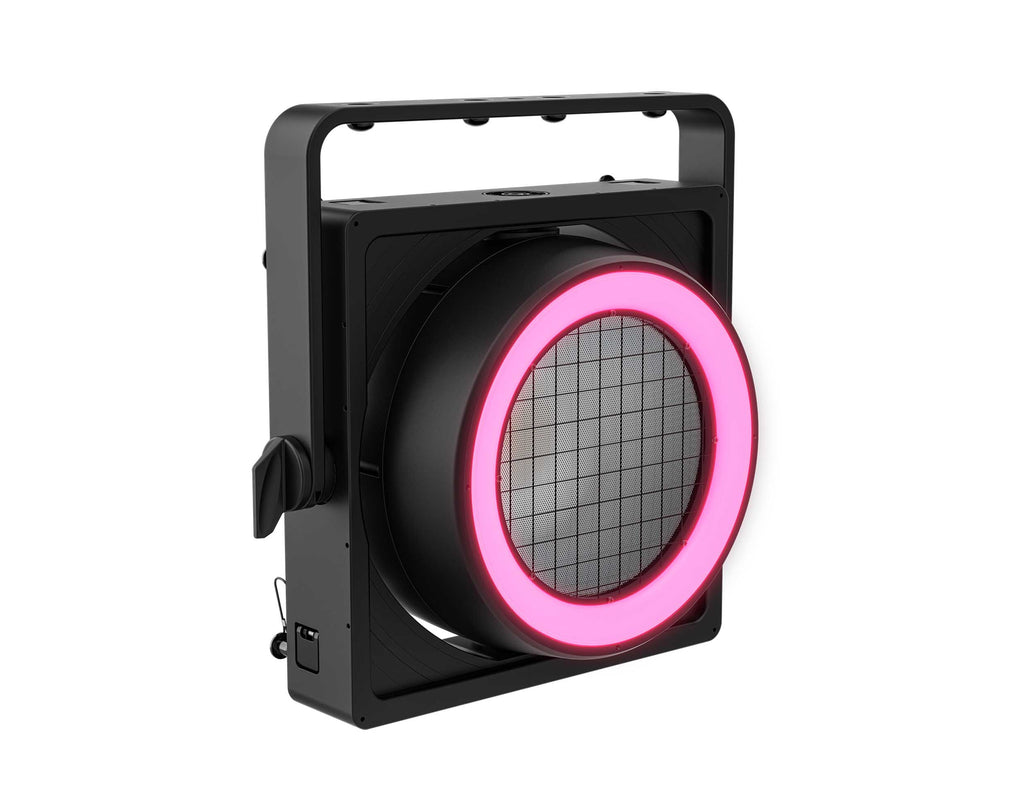

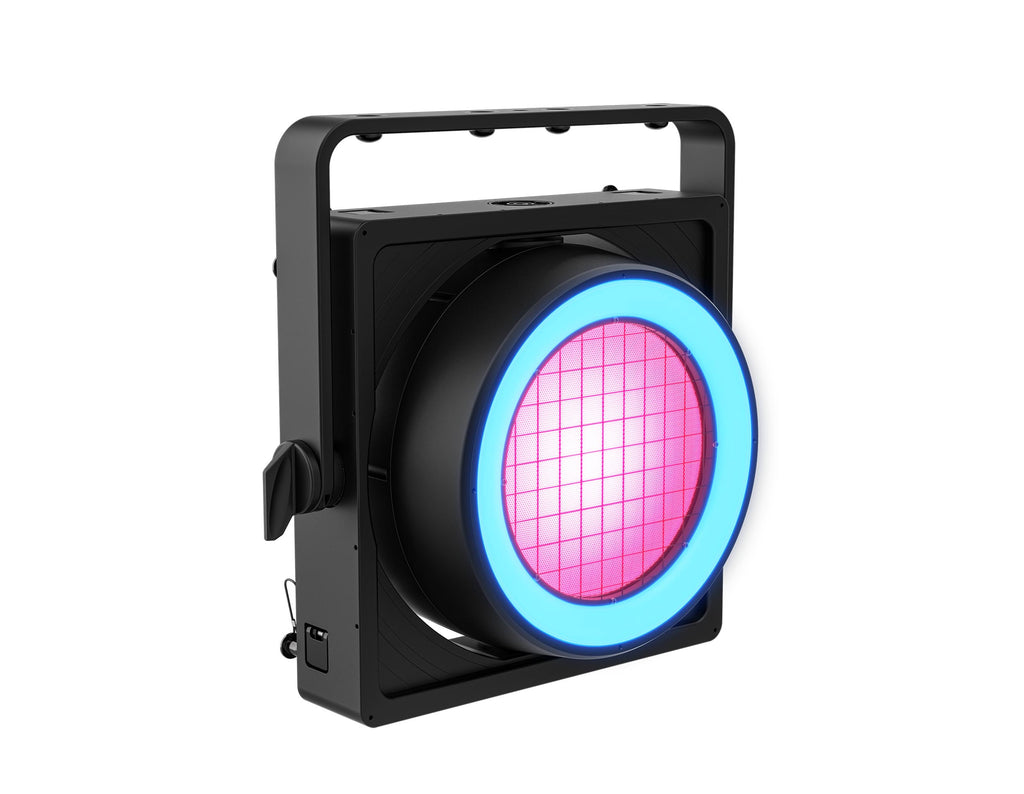

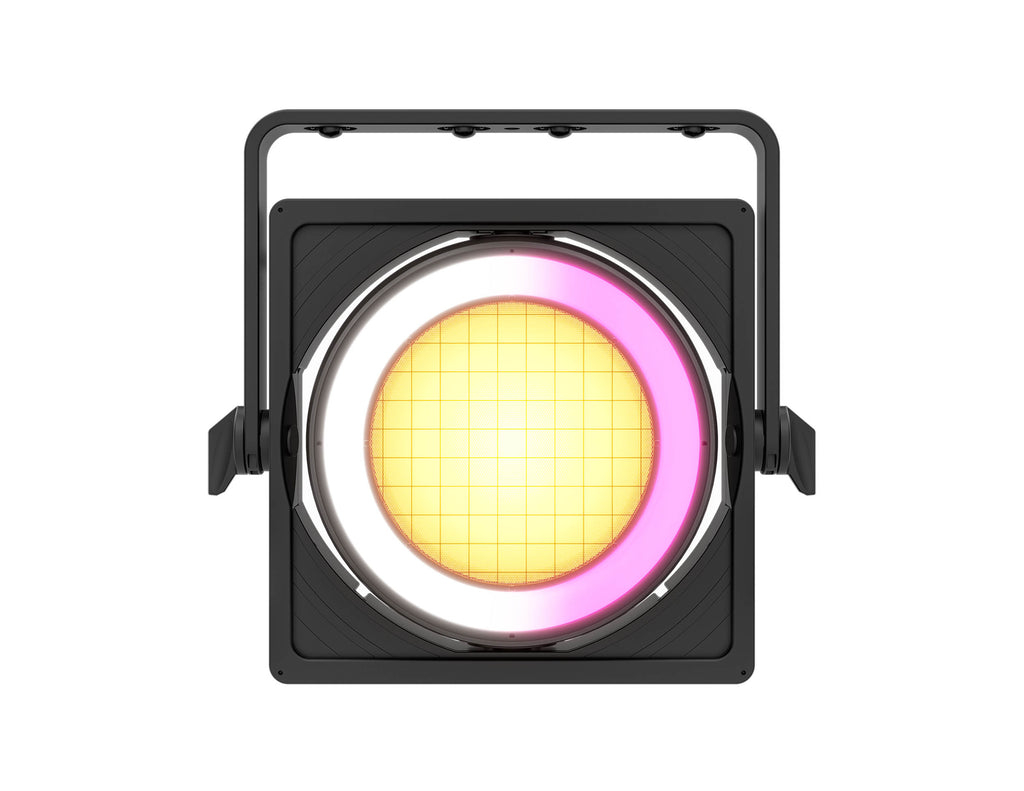

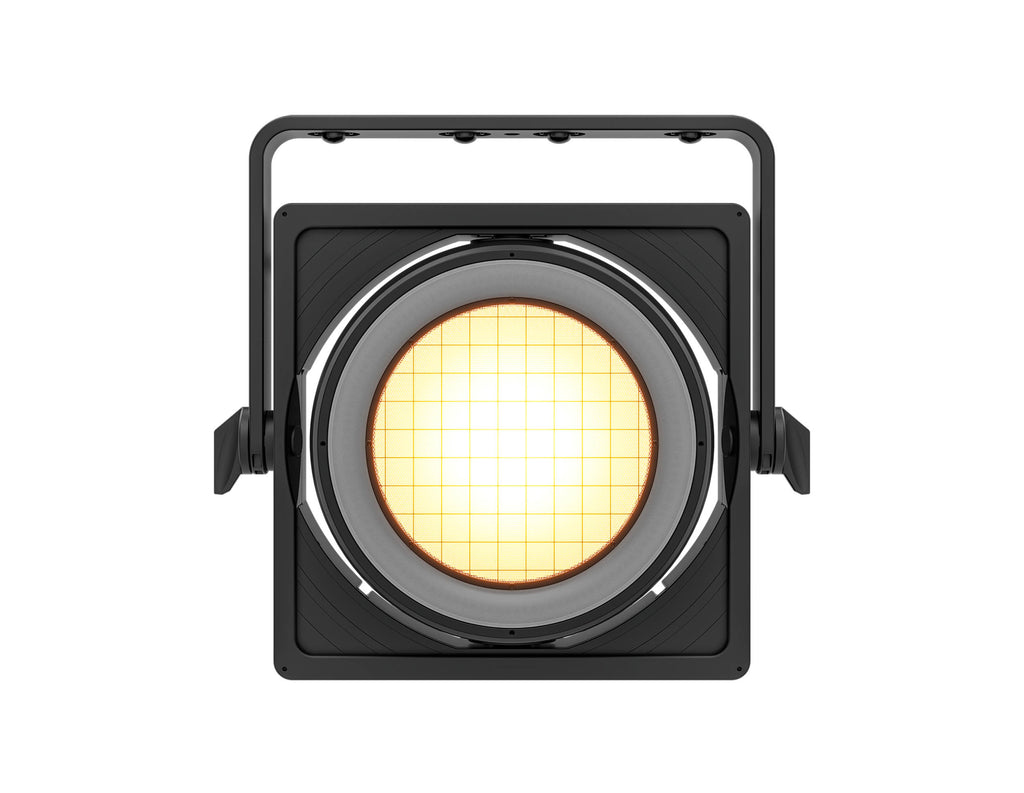

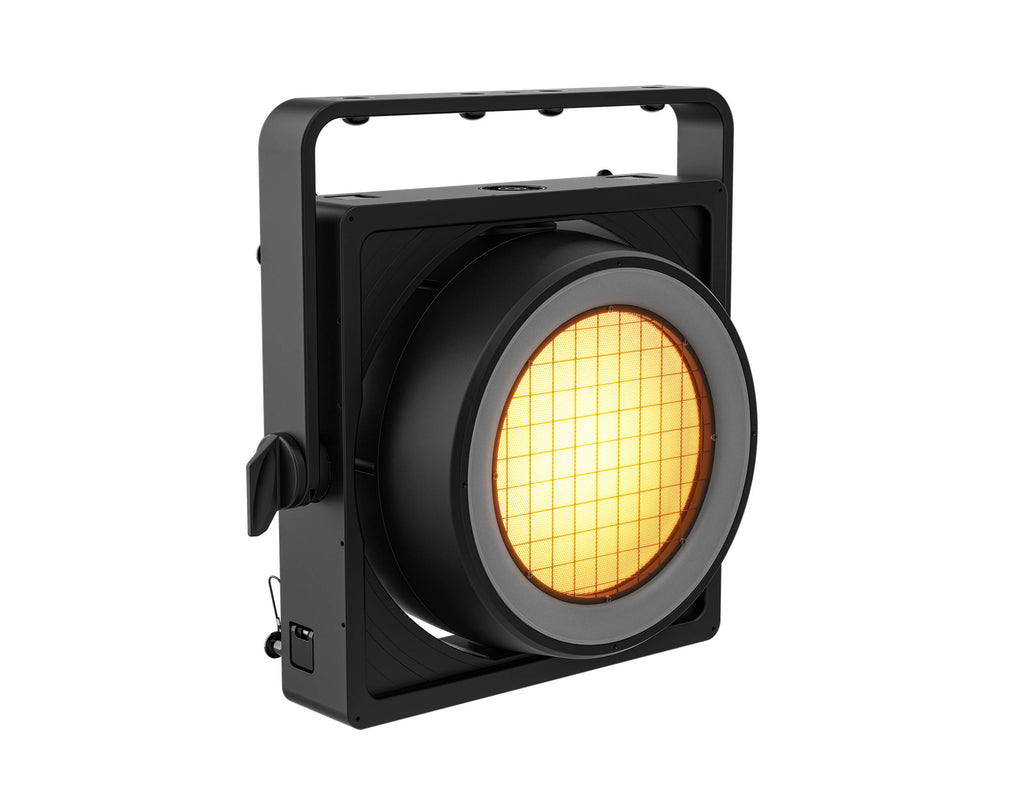

The Chauvet Professional STRIKE Array Ultra is a next-generation IP65-rated audience blinder engineered to deliver exceptional brightness and versatility for live events, touring productions, and broadcast environments. Featuring a single high-output pod capable of producing more than 60,000 lumens, it creates intense blinder effects that remain impactful on camera while providing the reach needed for everything from intimate venues to large-scale festival stages.
Advanced RGBA-WW Color and Broadcast-Ready Performance
Equipped with a sophisticated RGBA-WW LED engine, the fixture offers vibrant color mixing alongside clean, high-CRI white light for natural-looking illumination. Its red-shift dimming technology ensures warm, organic fades that closely resemble traditional incandescent sources, while an optional filter enhances skin tones and overall image quality for television, film, and live-streamed productions.
Dynamic Motion and Creative Halo Effects

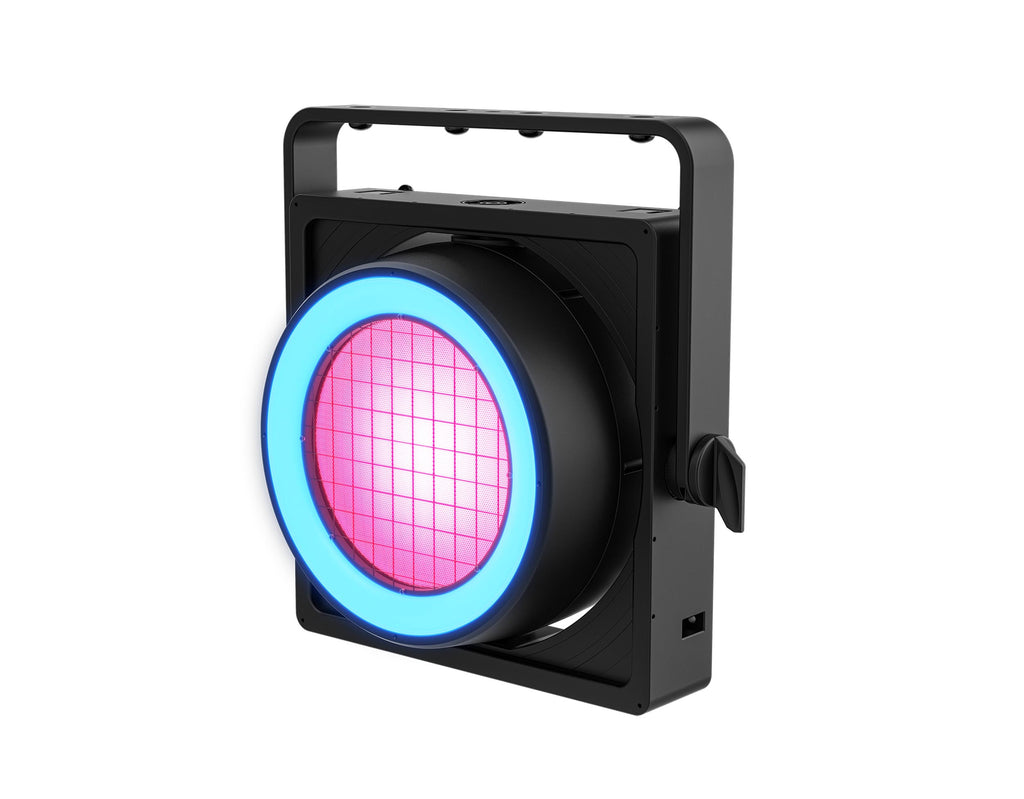

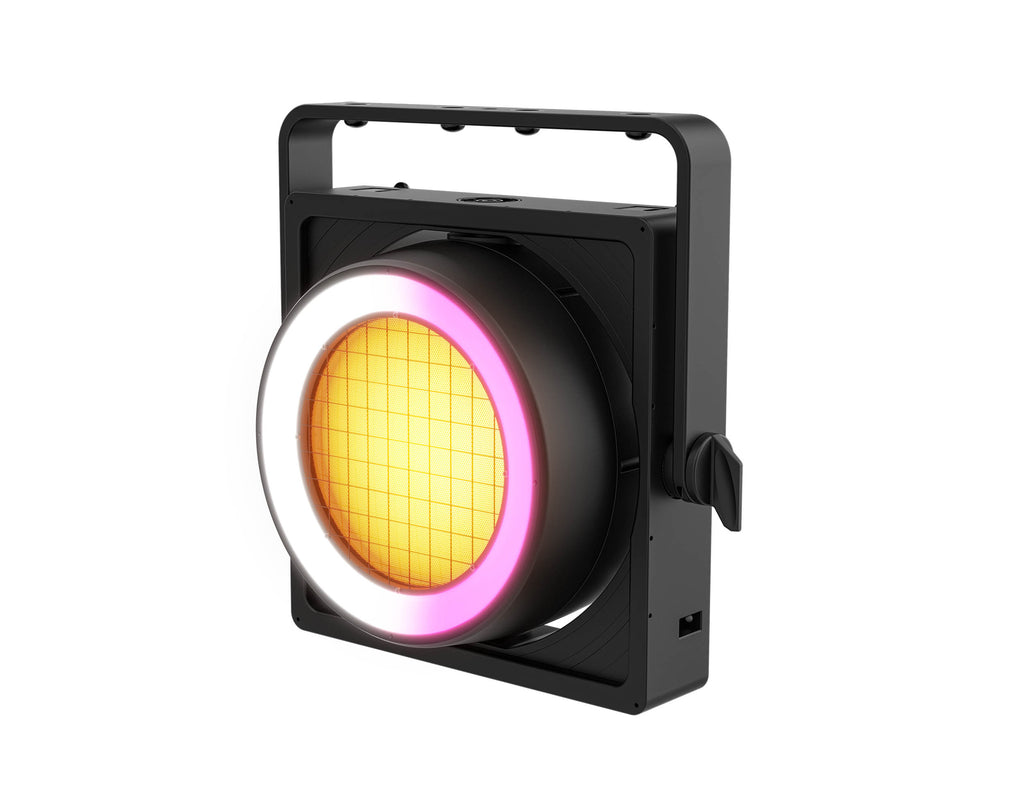

Beyond conventional blinder functionality, the STRIKE Array Ultra introduces a single motorized movement axis that can operate as either pan or tilt, enabling dynamic lighting effects and greater creative flexibility. Complementing the main light source is a distinctive 12-section RGB halo ring, capable of producing eye-catching pixel effects, chases, and animated visuals that add depth and excitement to any lighting design.
Flexible Integration and Scalable Design
Designed as part of the STRIKE Array family, the STRIKE Array Ultra offers full mounting compatibility with other STRIKE Array and STRIKE Bolt fixtures, allowing for seamless integration into existing rigs. Its unified rigging approach and scalable architecture make it equally suitable for clubs, concert tours, broadcast studios, and large festival productions, providing a consistent and efficient deployment experience across a wide range of applications.
Product Specifications:
Optical:
Light Source: Pod 1 LEDs (RGBWA)
Light Source: Ring 120 LEDs (RGB)
Dynamic Effects:
Pan: +-25°
Pan Ranges: 50°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Connections:
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
Cable Length (power): 5 ft (1.5 m)
Software Update: USB-C
Control:
Control Protocol: Art-Net, sACN, DMX, RDM
DMX Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
Art-Net Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
Modes/Personalities: 11 personalities (4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV)
Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V;
Power and Current: 1024 W, 8.54 A @ 120 V, 60 Hz
Power and Current: 995 W, 4.81 A @ 208 V, 60 Hz
Power and Current: 995 W, 4.34 A @ 230 V, 50 Hz
Certifications / Qualifications:
Compliance: CE, MET, FCC
MET Listing Number: [E113093-1110, E113093-1125]
US Safety: [UL 60950-1]
Canadian Safety: [CSA C22.2 No. 60950-1]
Thermal Dissipation @ 120V: 819 BTU per hour
Thermal Dissipation @ 208V: 819 BTU per hour
Thermal Dissipation @ 230V: 819 BTU per hour
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s Included:
STRIKE Array Ultra
Seetronic Powerkon IP65
2 Omega brackets with mounting hardware
Stealth Filter
Optional Accessories:
STRIKE Array Flush Bracket
Fauxnel Optical Effect Filter
Dome Optical Effect Filter
RIGLINK POWERKON CABLES
RIGLINK etherKON cables
RIGLINK IP65 DMX CABLES
CTC-50HC
CTC-50HCN
SC-08 Safety Cable
Construction / Physical:
Exterior Color: Black
Housing Material: Aluminum Profile, Die-casting magnesium
IP Rating: IP65
Dimensions: 19.13 x 17.79 x 11.02 in (486 x 452 x 280 mm)
Weight: 39.6 lb (18 kg)
Shipping Weight: 45 lbs.
Shipping Dimensions: 24 × 22 × 15 inches
