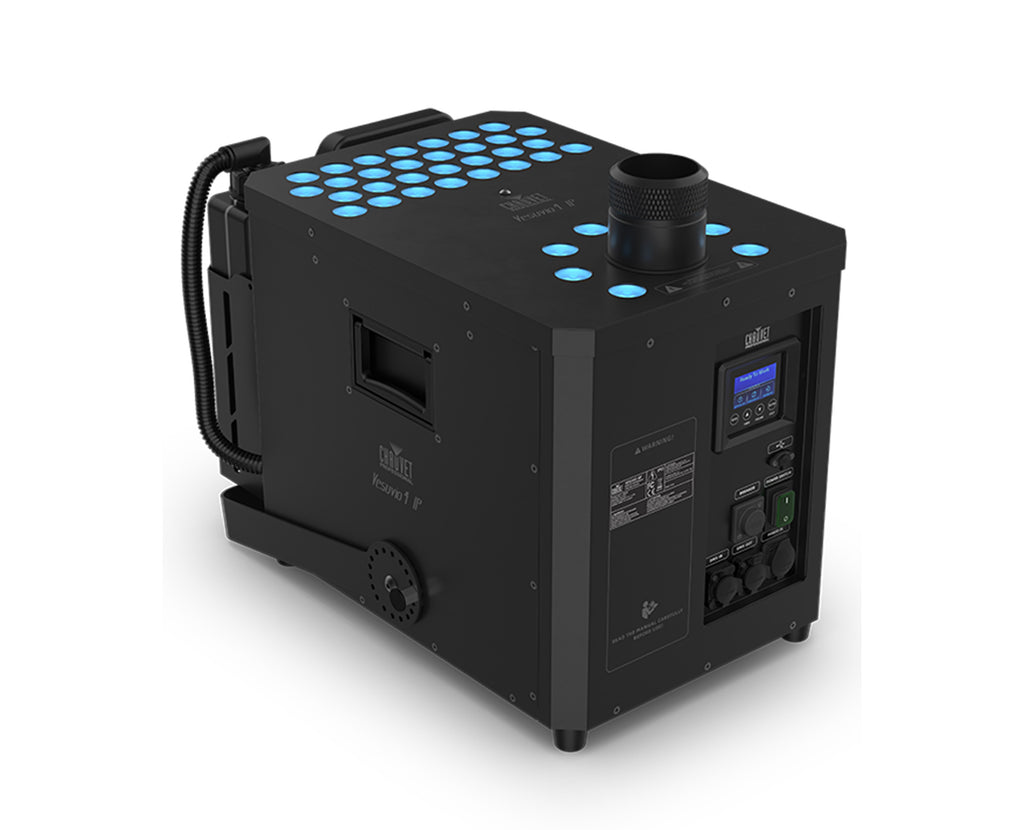

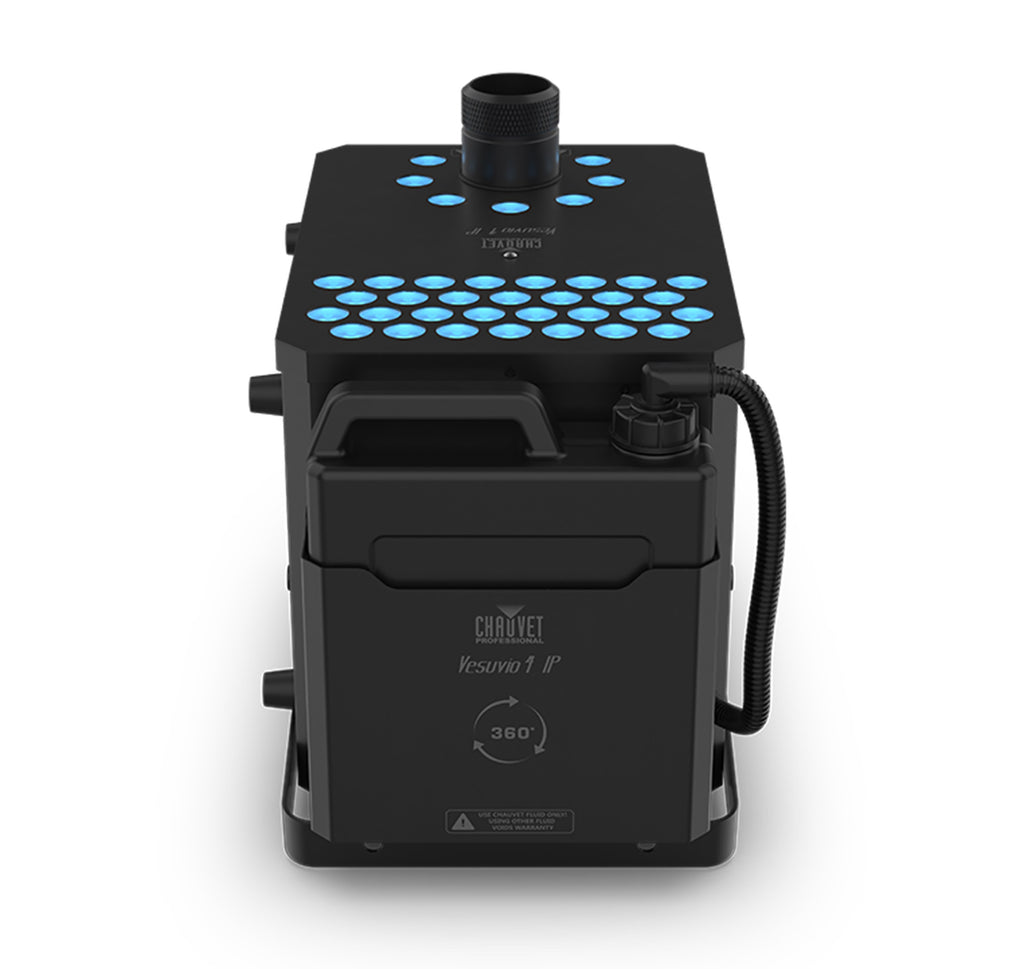

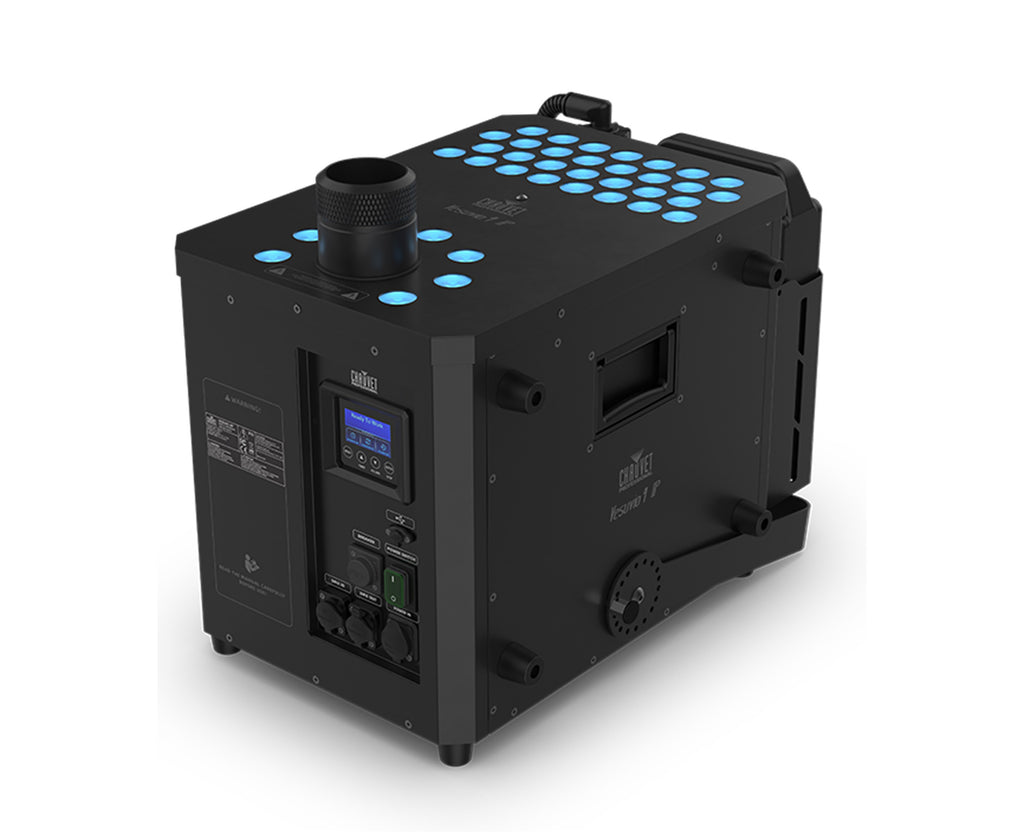

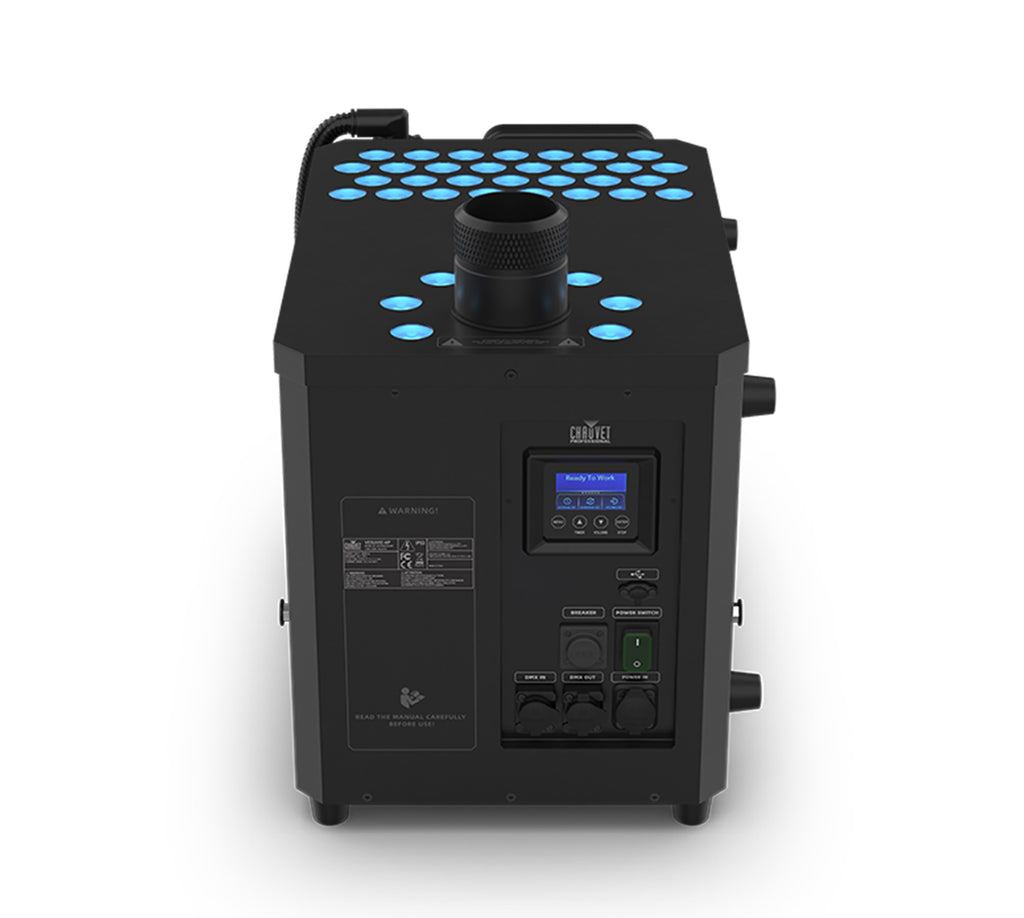

Chauvet DJ Professional Vesuvio 4 IP IP53 Pro Fog Machine High-Output

The Chauvet Professional Vesuvio 4 IP Punch up high-impact illuminated fog bursts with an IP53-rated tour-grade unit that delivers both extreme vertical or horizontal throw and dual-zone RGBA control to create dynamic color effects bright enough for the largest outdoor festivals and indoor environments. Operate via its full-color onboard display, included wireless RF handheld remote, or DMX. Remotely address and monitor via RDM. Vesuvio 4 IP ships in a durable custom road case built for easy transportation and the rigors of touring and rental. Use QDF Quick Dissipating Fluid for optimal performance. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets.

Product Specifications:

Optical:

Light Source: 37 LEDs (RGBA)

Dynamic Effects:

Dimmer: Electronic

Shutter/Strobe: Electronic

Low Fluid Shutdown: No

Standalone Color Mixing: No

Built-in Automated Programs: Yes / No

Exterior Color: Black

Housing Material: Aluminum alloy, stainless steel

Tank Capacity: 1.4 gal (5.3 l)

Fluid Consumption: 22 ml/min

IP Rating: IP53

Heat-up Time: 13 min

Maximum Runtime: 45-second bursts

Connections:

Power Input: Seetronic Powerkon IP65

Data Connectors: 5-pin IP65 XLR

Power Cable Length: 5 ft (1.5 m)

Firmware Upgrades: USB Type-C

Control:

Control Protocol: DMX, RDM, RF Remote

DMX Channels: 14

Modes / Personalities: 1 personality (14)

On-Board Control: Yes

Included Remote: Ye

Electrical:

Input Voltage: 208 VAC, 60 Hz

Power and Current: 2167 W, 10.43 A @ 208 V, 60 Hz

Breaker Size: 16 A, 250 V

What’s Included:

Vesuvio 4 IP

Seetronic Powerkon cable

2 × Omega brackets

Controller: RF remote

Required Accessories:

Quick Dissipating Fluid (QDF)

Compatible Mounting Options: 140DX Omega bracket, M12 bolt

Optional Accessories:

CTC-50G

CTC-50HCN

RIGLINK Powerkon cables

RIGLINK DMX cables

Construction / Physical:

Dimensions: 20.79 × 13.82 × 17.32 in (528 × 351 × 440 mm)

Weight: 72.2 lb (32.75 kg)

Shipping Weight: 90 lbs.

Shipping Dimensions: 26 × 20 × 22 inches
