Description

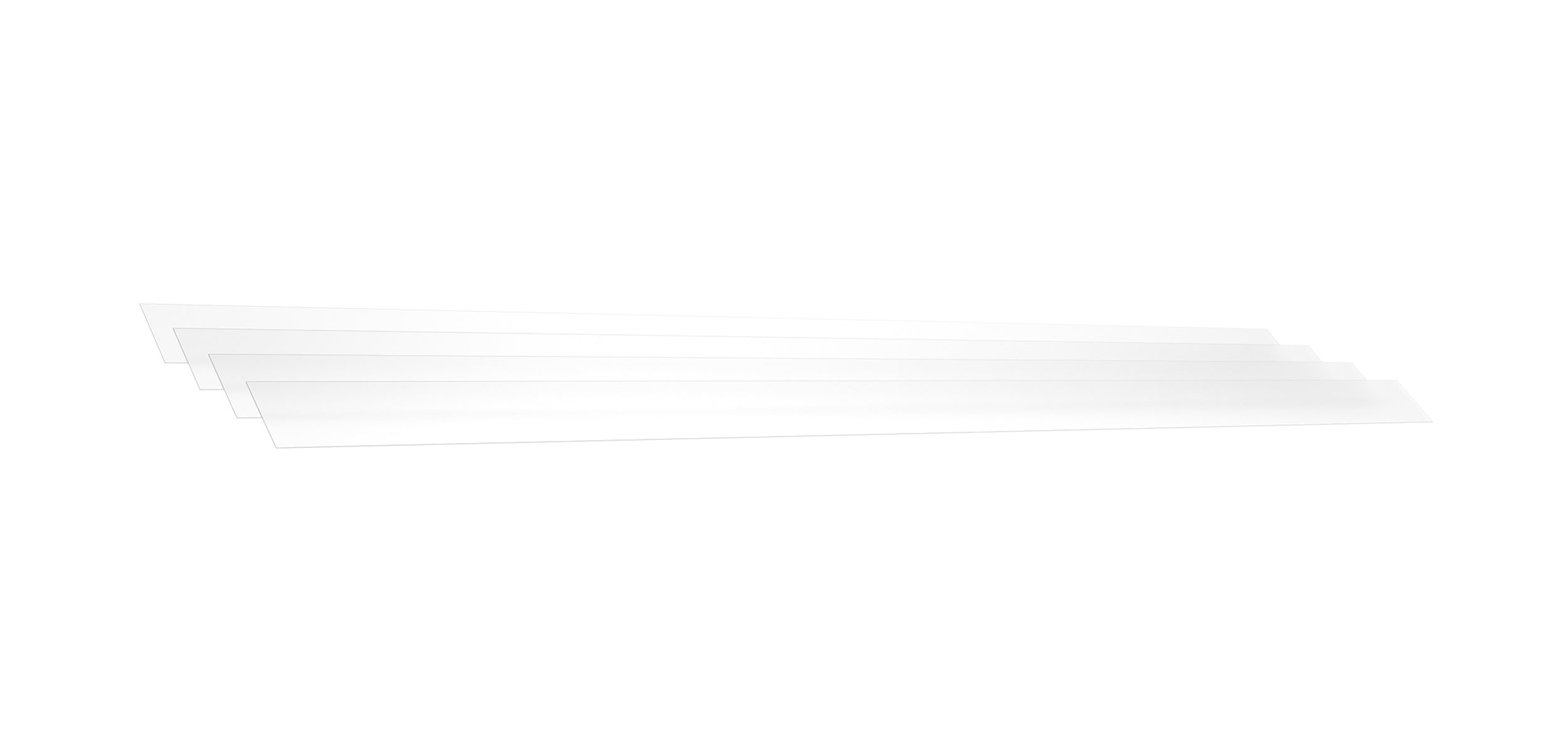

The Chauvet Professional WELL Batten 14 60° x 10° Filter Pack is designed to transform the fixture’s native 16° beam into a wider 25° x 42.8° elliptical beam. This creates broad, linear coverage for scenic, architectural, and event lighting applications. The filter helps spread light more evenly across large surfaces. It is particularly useful for walls, cycloramas, and other vertical elements. The elliptical output provides greater coverage while maintaining a smooth appearance. This makes it a practical beam-shaping accessory for professional lighting setups.
The filters are designed as slide-in lens accessories for the WELL Batten 14. They can be installed without tools, allowing lighting technicians to make fast beam adjustments on site. The straightforward installation design reduces setup time during productions. Filters can be changed quickly when different coverage requirements arise. This makes the accessory suitable for touring and event environments. Its practical design supports efficient fixture configuration.
With the filter installed, the WELL Batten 14 can deliver up to 3,007 lumens of output in AC operation. The optical design produces a broad 25° x 42.8° beam for smooth coverage. Battery operation provides different output levels depending on the selected runtime. At a 5-hour runtime, the fixture produces 1,789 lumens, while 8-hour operation provides 1,105 lumens. Longer runtimes of 12 and 18 hours provide 687 and 428 lumens respectively. These options allow output to be balanced against required battery runtime.
Product Specifications:
Product Type: 60° x 10° Elliptical Filter Pack
Compatible Fixture: WELL Batten 14
Filter Quantity: 4 Pieces
Native Beam Angle: 16°
Beam Angle With Filter: 25° x 42.8°
AC Illuminance: 216 lux @ 5 m
AC Lumens: 3,007
Battery Curve Off Illuminance: 123 lux @ 5 m
Battery Curve Off Lumens: 1,691
5-Hour Illuminance: 131 lux @ 5 m
5-Hour Lumens: 1,789
8-Hour Illuminance: 79 lux @ 5 m
8-Hour Lumens: 1,105
12-Hour Illuminance: 50 lux @ 5 m
12-Hour Lumens: 687
18-Hour Illuminance: 30 lux @ 5 m
18-Hour Lumens: 428
Installation: Tool-Free Slide-In
Filter Shape: Elliptical
Filter Identification: Double Notch
Construction: Flexible
Primary Application: Wide Linear Wash
Recommended Uses: Walls, Cycloramas, Scenic, and Architectural Lighting
Product Weight: 0.06 lbs.
Product Dimensions (L × W × H): 38.91" × 1.84" × 0.04".
