Description

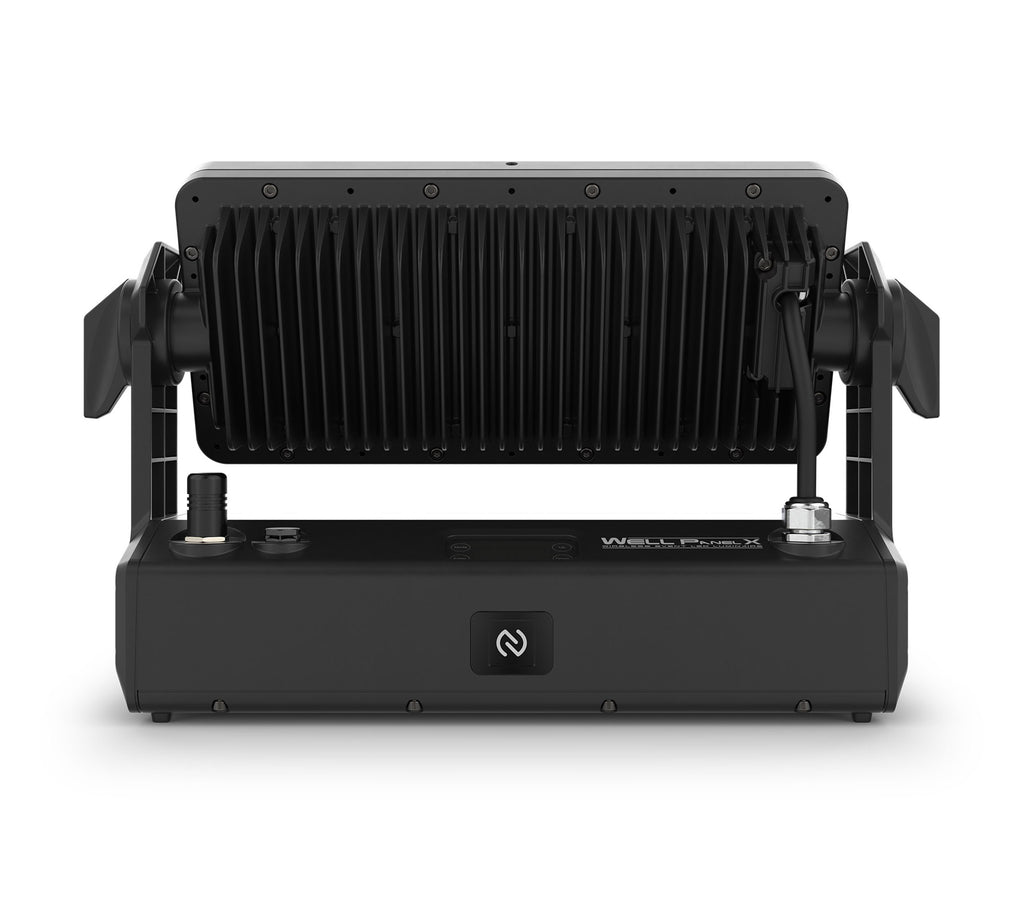

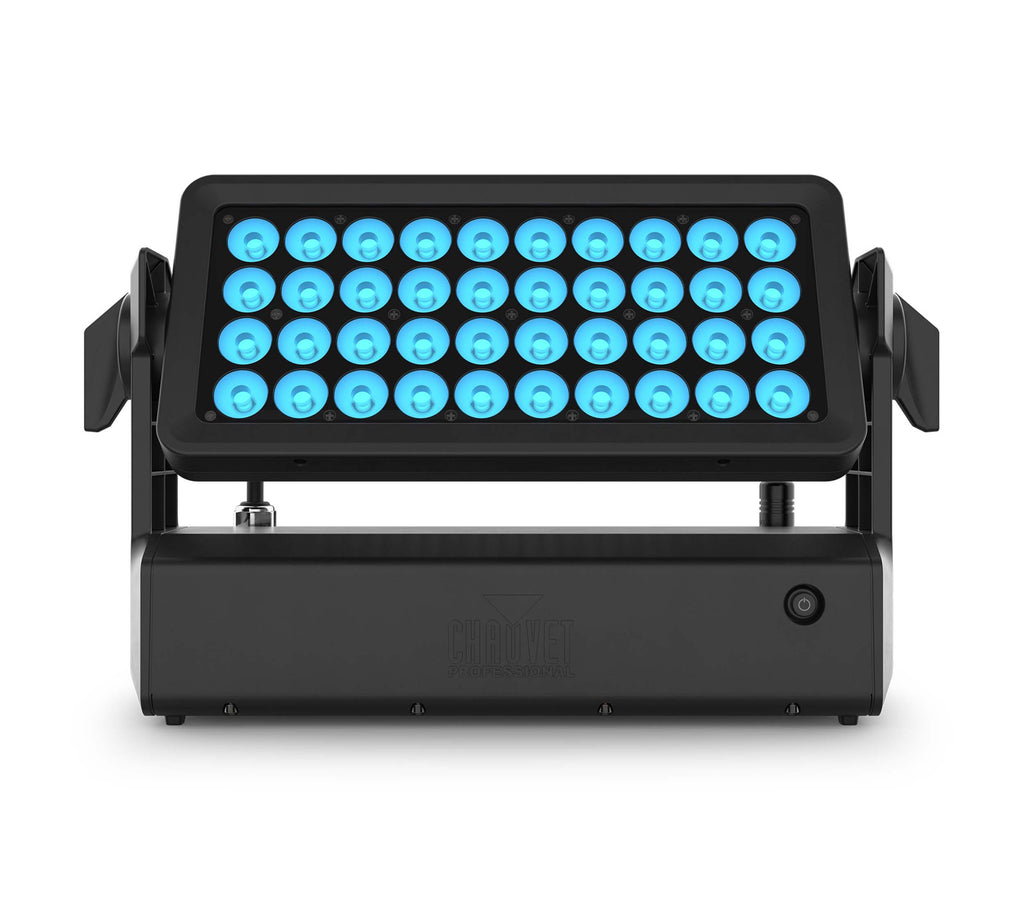

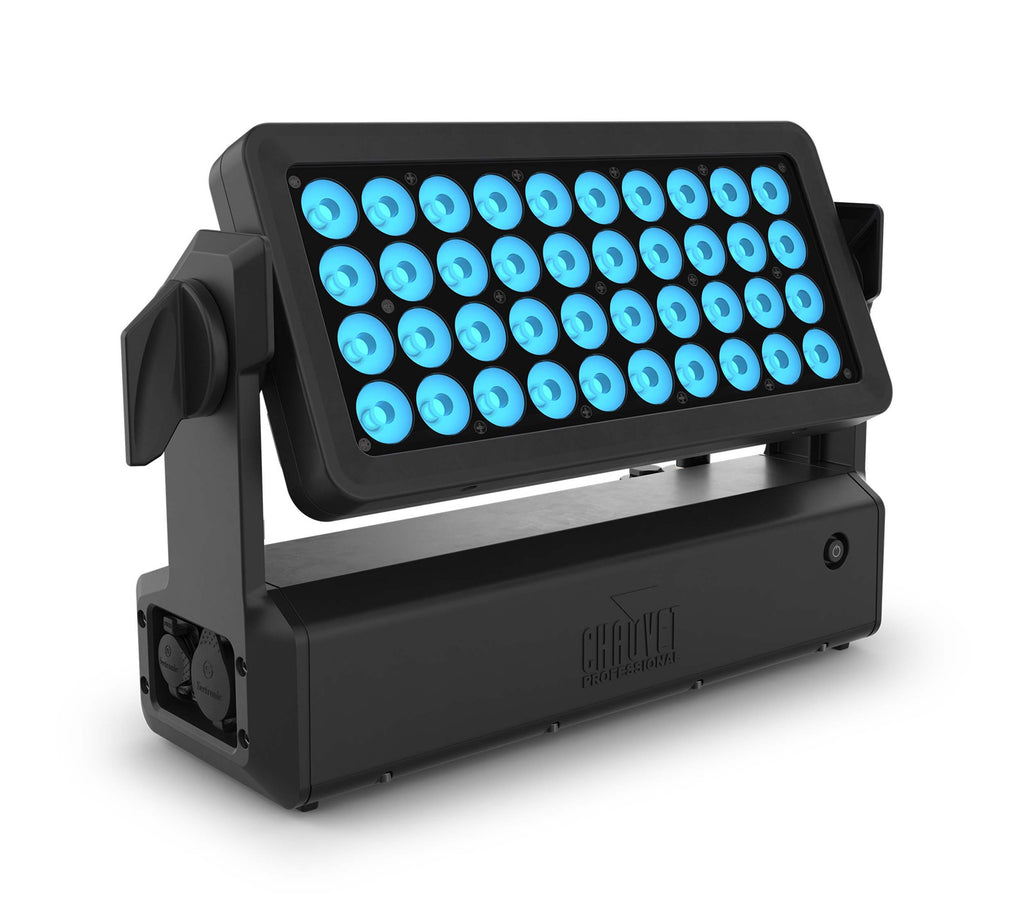

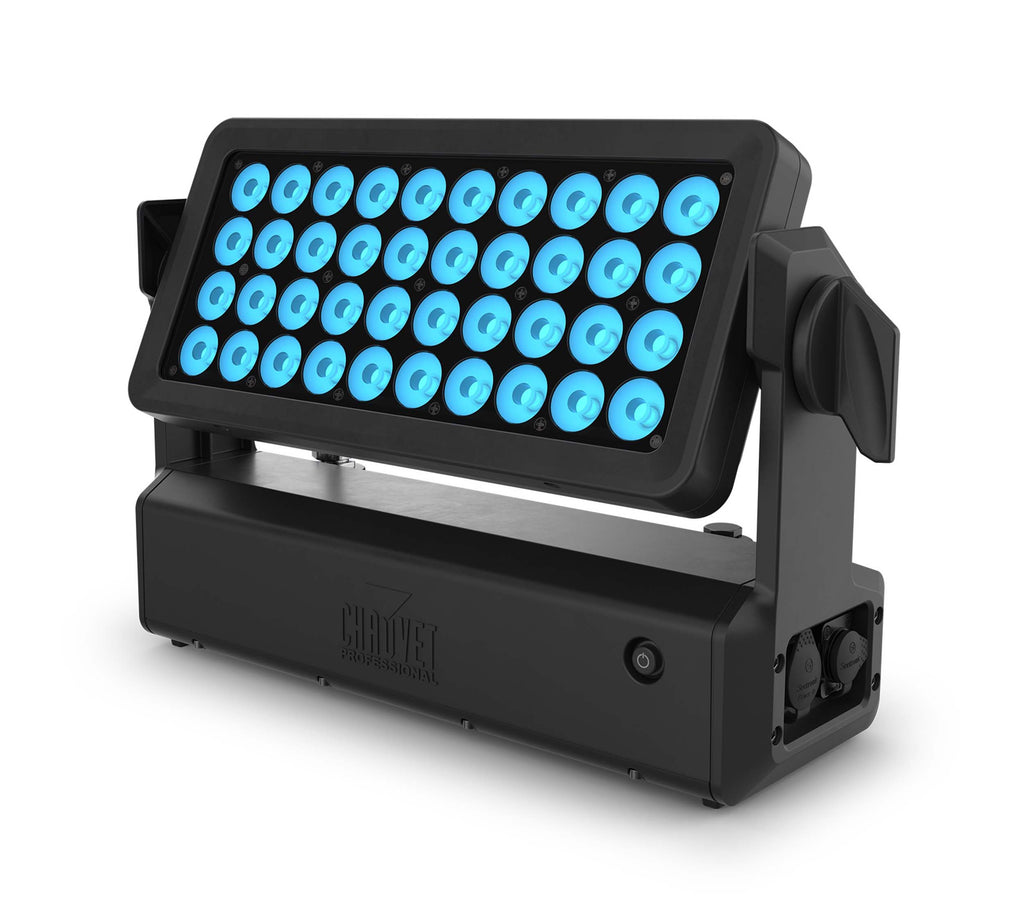

The Chauvet Professional WELL Panel X: 4-Pack is a complete, road-ready lighting solution designed for rental inventories, live productions, broadcast environments, and special events that demand speed, flexibility, and exceptional light quality. The kit includes four battery-powered, IP65-rated LED panel fixtures housed in an integrated charging road case, making deployment and transportation remarkably efficient. Each fixture utilizes 40 RGB warm white LEDs with a narrow 10.8-degree beam angle and high CRI output that renders skin tones beautifully, making the WELL Panel X an outstanding choice for key lighting applications both indoors and outdoors.
Engineered to meet the needs of lighting professionals, the fixtures offer selectable battery runtimes of 5, 8, 12, or up to 18 hours, allowing users to match performance to the duration of any event. A higher quantity of smaller LEDs delivers superior color mixing for smooth, natural-looking output, while adjustable PWM ensures flicker-free operation for broadcast, livestream, and on-camera productions. The fixtures can also continue operating while connected to power and charging, providing uninterrupted performance when extended runtime is required. A built-in M12 Gore pressure-equalizing valve further protects internal components, enhancing reliability in demanding environments.
Versatile control options make the WELL Panel X: 4-Pack adaptable to virtually any workflow. Integrated IP65-rated 5-pin DMX ports and Seetronic PowerKon input/output connectors support dependable wired operation and power linking, while CRMX, RDM, RF, and DMX compatibility enable seamless integration into professional lighting systems. Wireless control through the WELL CONNECT box and ConnectFX app allows convenient operation from a mobile device, and the included RF remote provides simple standalone functionality without a DMX controller. Completing the professional feature set are a high-contrast OLED display for intuitive configuration and integrated safety attachment points for secure installation, making the WELL Panel X: 4-Pack an ideal lighting package for productions where quality, mobility, and efficiency are essential.
What’s in the Box:
(4) WELL PANEL X

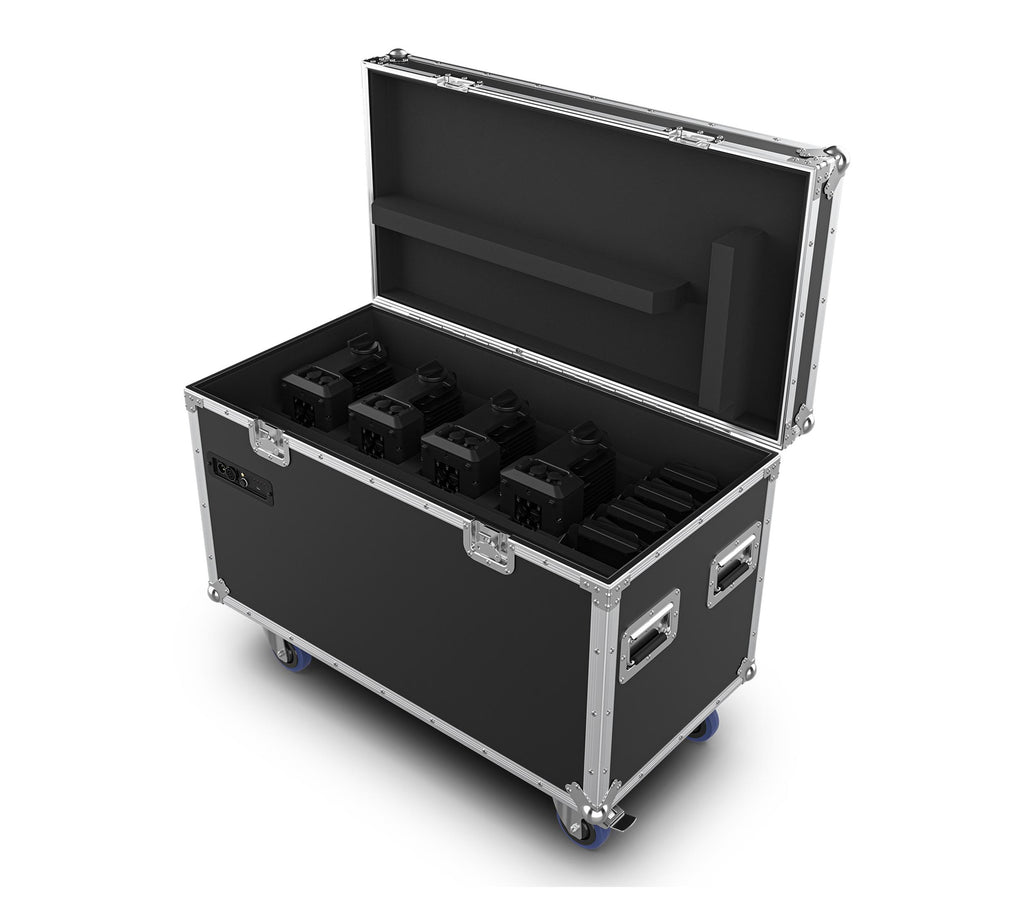

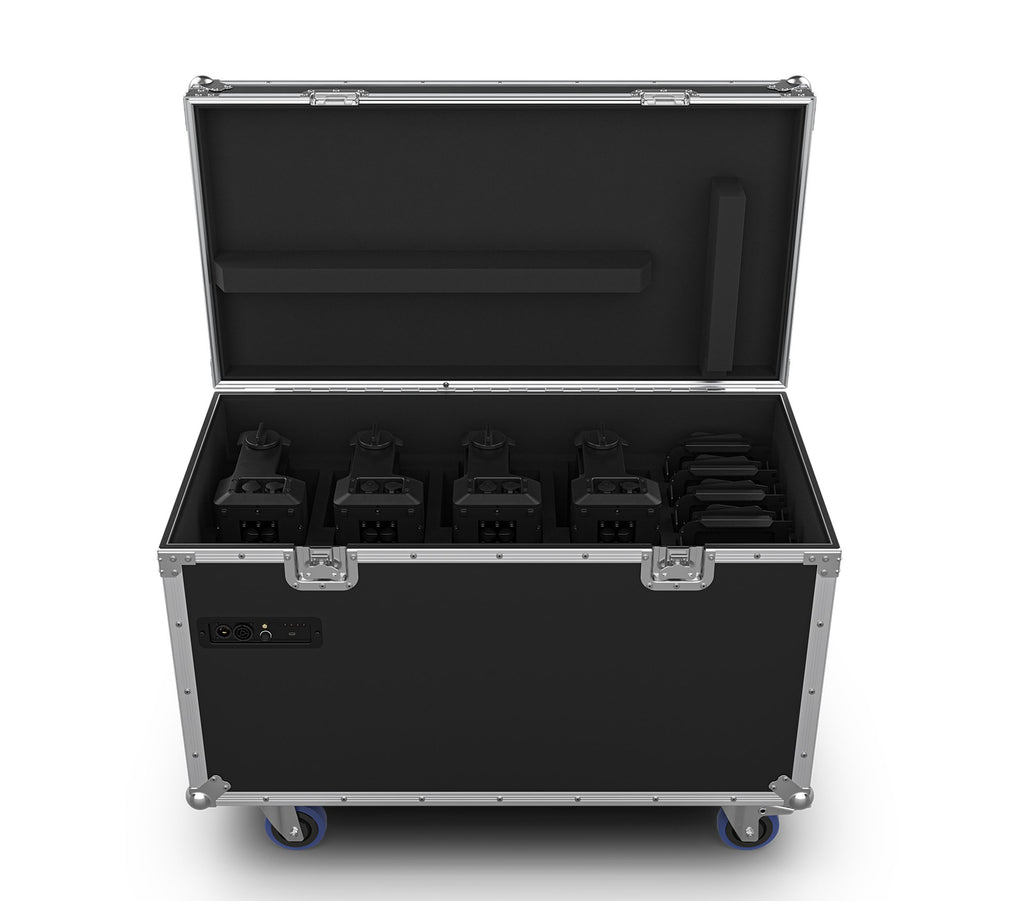

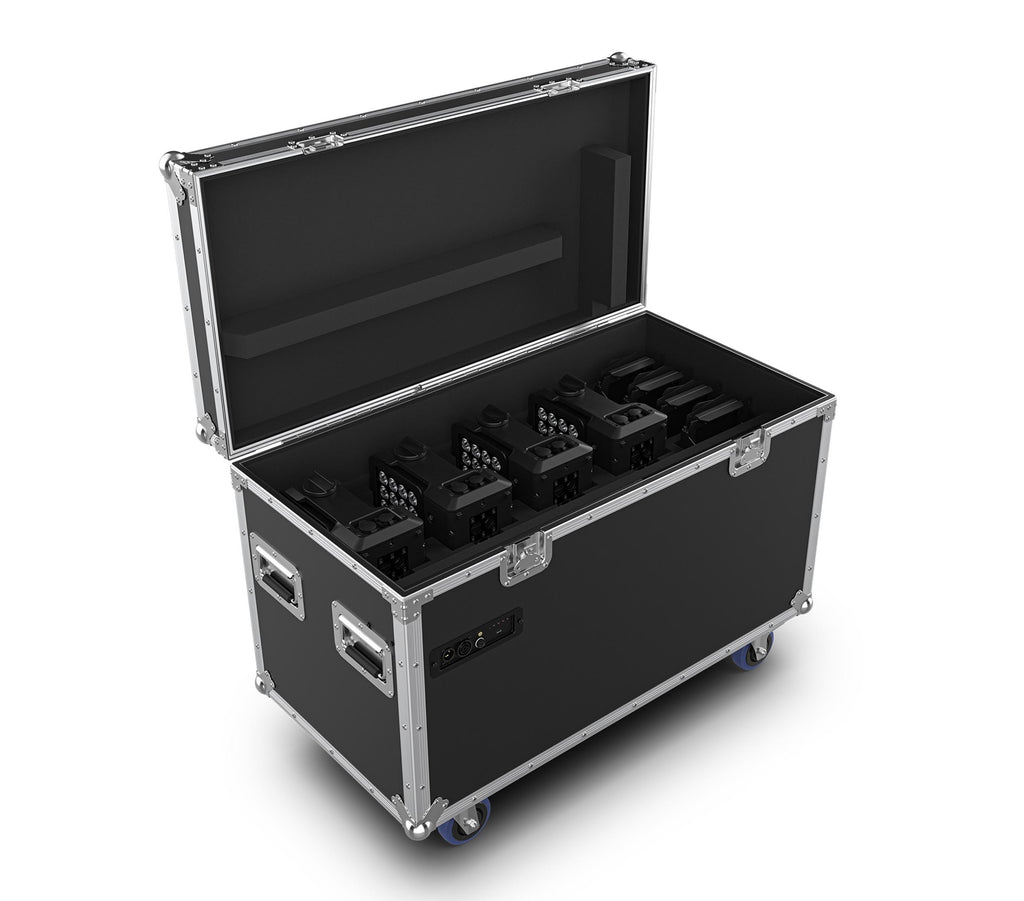

(1) 4 slot charging case
(1) basic RF controller
(4) Seetronic PowerKon IP 65 power cords
(4) Omega Brackets
(1) QRG
Product Specifications:
Light Source: 40 x RGBWW LEDs, 13.2 W Each, 50,000-Hour Life Expectancy
Color Temperature Range: 2800 K To 6500 K
Installed Optics: 11.6°
Beam Angle: 21.4°
Field Angle: 31.7°
Lumens (AC Power): 6865 lm
Illuminance (AC Power): 4575 Lux @ 5 m
Lumens (Battery Off Setting): 6615 lm
Illuminance (Battery Off Setting): 4269 Lux @ 5 m
Lumens (5-Hour Battery Setting): 2886 lm
Illuminance (5-Hour Battery Setting): 1867 Lux @ 5 m
Lumens (8-Hour Battery Setting): 1807 lm
Illuminance (8-Hour Battery Setting): 1194 Lux @ 5 m
Lumens (12-Hour Battery Setting): 1189 lm
Illuminance (12-Hour Battery Setting): 769 Lux @ 5 m
Lumens (18-Hour Battery Setting): 851 lm
Illuminance (18-Hour Battery Setting): 548 Lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 To 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-In Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Exterior Color: Black
Housing Material: Aluminum Diecast
Power Connection: Edison Plug to Seetronic PowerKON IP65
Power Input: Seetronic PowerKON IP65
Power Output: Seetronic PowerKON IP65
Data Connectors: 5-Pin XLR
Cable Length: 1.5 m (5 Ft)
Control Protocol: RDM, CRMX, NFC, RF
DMX Channels: 5, 8, 9, 12, 16
Modes/Personalities: 5 (5CH, 8CH, 9CH, 12CH, 16CH)
Wireless WDMX Compatibility: G4S
Wireless Lumen Radio Compatibility: CRMX
Input Voltage: 100 To 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 12 Units @ 120 V; 21 Units @ 208 V; 23 Units @ 230 V
Single Unit Power Consumption: 120 W, 0.99 A @ 120 V, 60 Hz
Single Unit Power Consumption: 113 W, 0.56 A @ 208 V, 60 Hz
Single Unit Power Consumption: 115 W, 0.51 A @ 230 V, 50 Hz
4-Pack Case Power Consumption: 550 W, 4.60 A @ 120 V, 60 Hz
4-Pack Case Power Consumption: 536 W, 2.62 A @ 208 V, 60 Hz
4-Pack Case Power Consumption: 522 W, 2.31 A @ 230 V, 50 Hz
Fuse: T6.3A, 250 V
Battery Type: Lithium-Ion
Rechargeable: Yes
Battery Charge Time: 4 Hours
Battery Life: 5, 8, 12, Or 18 Hours
Battery Capacity: 44.4 V, 6600 mAh
Certifications: CE, FCC, UKCA
IP Rating: IP65
Operating Temperature: -20 °C To 45 °C (-4 °F To 113 °F)
Fixture Height: 436 mm (17.17 In)
Fixture Width: 135 mm (5.31 In)
Fixture Depth: 260 mm (10.24 In)
Fixture Weight: 9.43 kg (20.8 Lbs)
Case Height: 925 mm (36.4 In)
Case Width: 525 mm (20.7 In)
Case Depth: 545 mm (21.5 In)
Case Weight: 83.5 kg (184 Lbs)
