Description

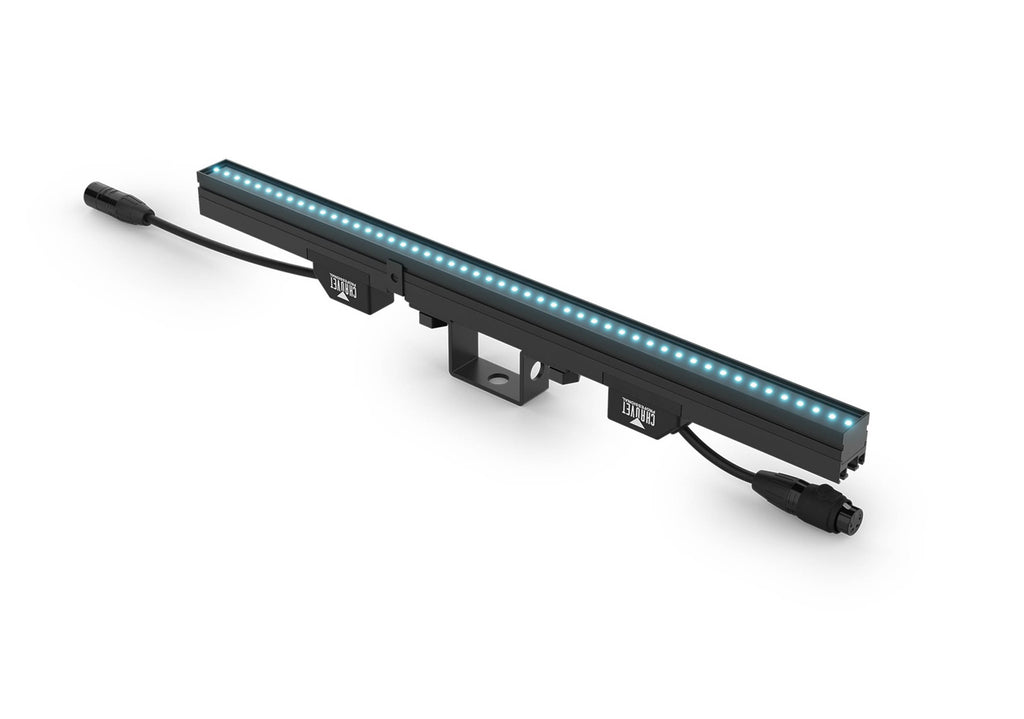

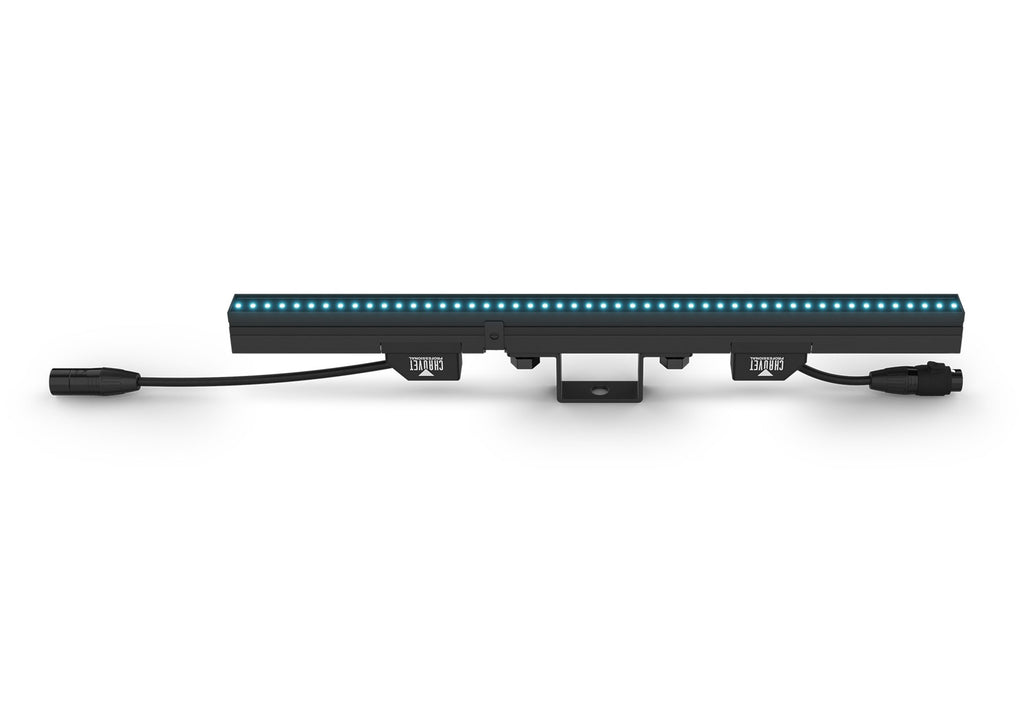

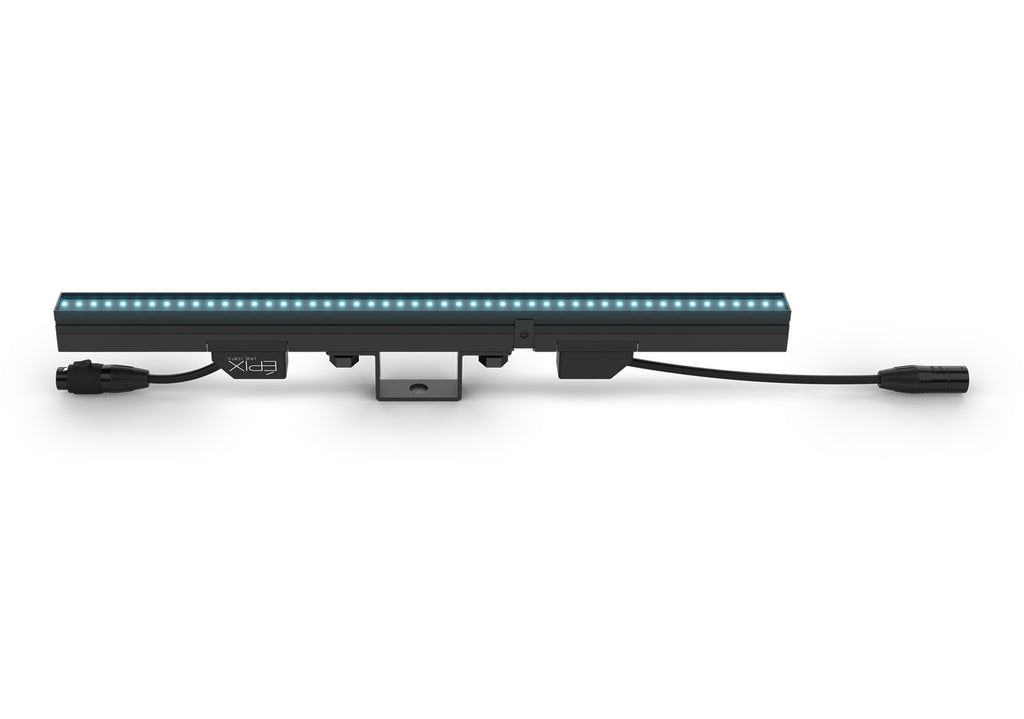

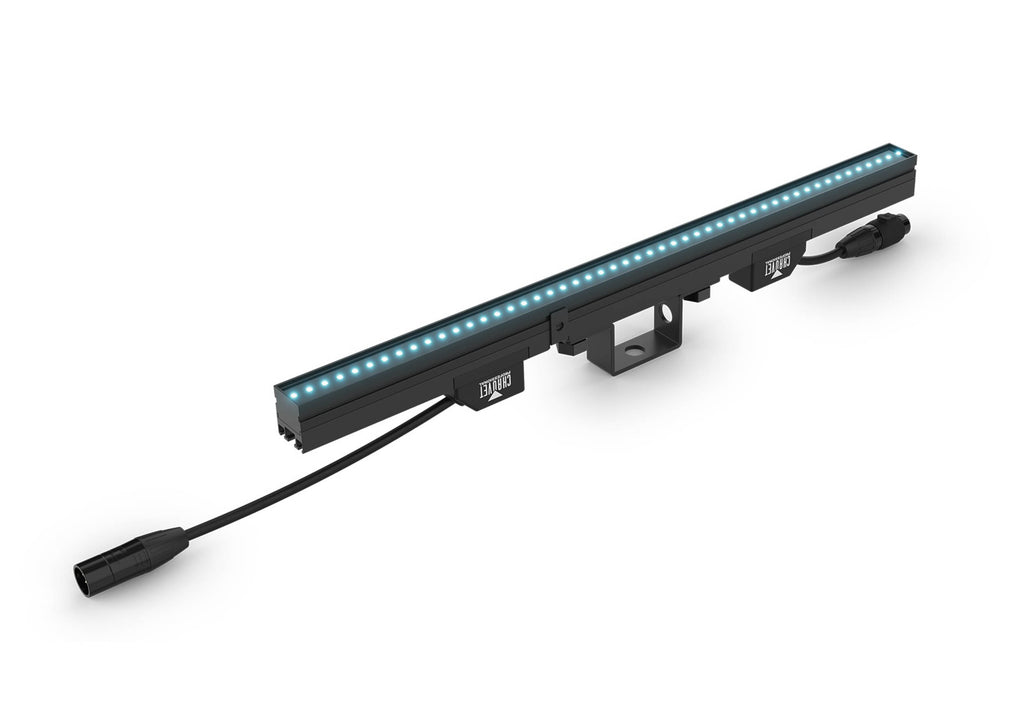

The Chauvet Professional ÉPIX Line 10 IP S is a compact 0.5-meter, IP65-rated linear pixel strip designed to deliver vivid, wide-gamut RGB color for architectural, touring, and entertainment applications. Its rugged outdoor-rated housing and 10 mm pixel pitch allow it to produce bright, detailed pixel effects that enhance scenic elements, façades, and immersive stage environments. Despite its compact size, it maintains strong visual impact and consistent performance in both indoor and outdoor installations.
Engineered for flexibility, the ÉPIX Line 10 IP S includes three optical filters that allow designers to easily adjust viewing angles and overall visual appearance depending on the application. Combined with standard 4-pin XLR connectivity, the fixture supports a wide range of installation layouts and system configurations, making it highly adaptable for creative lighting designs in tight or complex spaces. This versatility ensures smooth integration into both temporary setups and permanent installations.
Built for efficient deployment and long-term reliability, the slim and serviceable design simplifies installation while supporting full repairability to reduce maintenance costs and extend operational life. Native compatibility with the ÉPIX Mapping System, along with MVR file support and automatic fixture detection, enables fast and intuitive system setup. Powered by the ÉPIX D4 IP Drive, the ÉPIX Line 10 IP S delivers streamlined video mapping, scalable configuration, and dependable performance for demanding professional environments.
What's Included
ÉPIX LINE 10 IP S
Interlocking Bracket
Milky White Square Filter (Installed)
Black Stealth Square Filter (Included)
Milky White Round Filter (Included)
1X Mounting Brackets (Installed)
Product Specifications:
Light Source: 50 x SMD 2727 Tri-Color RGB LEDs
LED Life Expectancy: 50,000 hours
Beam Angle: 114.6°
Field Angle: 161.9°
Viewing Angle: 170°
Lumens: 581.2 lm
Pixel Pitch: 10 mm
Display Refresh Rate: 4900 Hz
Strobe Rate: 0 – 30 Hz
Exterior Color: Black
Housing Material: Aluminum Alloy, Aluminum Die-Cast, High-Impact Flame-Retardant Polymer, Stainless Steel
IP Rating: IP65
Power Supply: ÉPIX D4 IP Remote Driver
Physical Linking (Standard Mode): Up to 20 ÉPIX Line 10 IP S Units
Physical Linking (Hi Power Mode): Up to 13 ÉPIX Line 10 IP S Units
Data Connectors: 4-pin IP65 XLR
Minimum Cable Size: 4-Conductor (2 x 14 AWG, 2 x 16 AWG)
Maximum Cable Length (Shielded, Total): 210 ft (64 m)
Maximum Cable Length (Shielded to First Fixture): 65 ft (20 m)
Maximum Cable Length (Shielded Between Fixtures): 60 ft (18 m)
Maximum Cable Length (Unshielded, Total): 300 ft (91 m)
Maximum Cable Length (Unshielded to First Fixture): 150 ft (45 m)
Maximum Cable Length (Unshielded Between Fixtures): 100 ft (30 m)
Control Protocols: Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System
DMX Channels: 2, 18, Groups of 5 / 10 / 50 / 255 / 300
Video Refresh Rate: 60 Hz
Input Voltage: 48 VDC
Power Consumption (Standard): 11W
Current Draw (Standard): 0.223A @ 48 VDC
Power Consumption (Hi Power): 16W
Current Draw (Hi Power): 0.328A @ 48 VDC
Compliance: CE, MET, FCC, ETL, UKCA
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Weight: 1.644 lbs (0.746 kg)
Dimensions (No Filter): 19.685 x 1.161 x 2.862 in (500 x 29.5 x 72.7 mm)
Dimensions (Square Filter): 19.685 x 1.228 x 2.862 in (500 x 31.2 x 72.7 mm)
Dimensions (Round Filter): 19.685 x 1.969 x 2.862 in (500 x 50 x 72.7 mm)
