Description

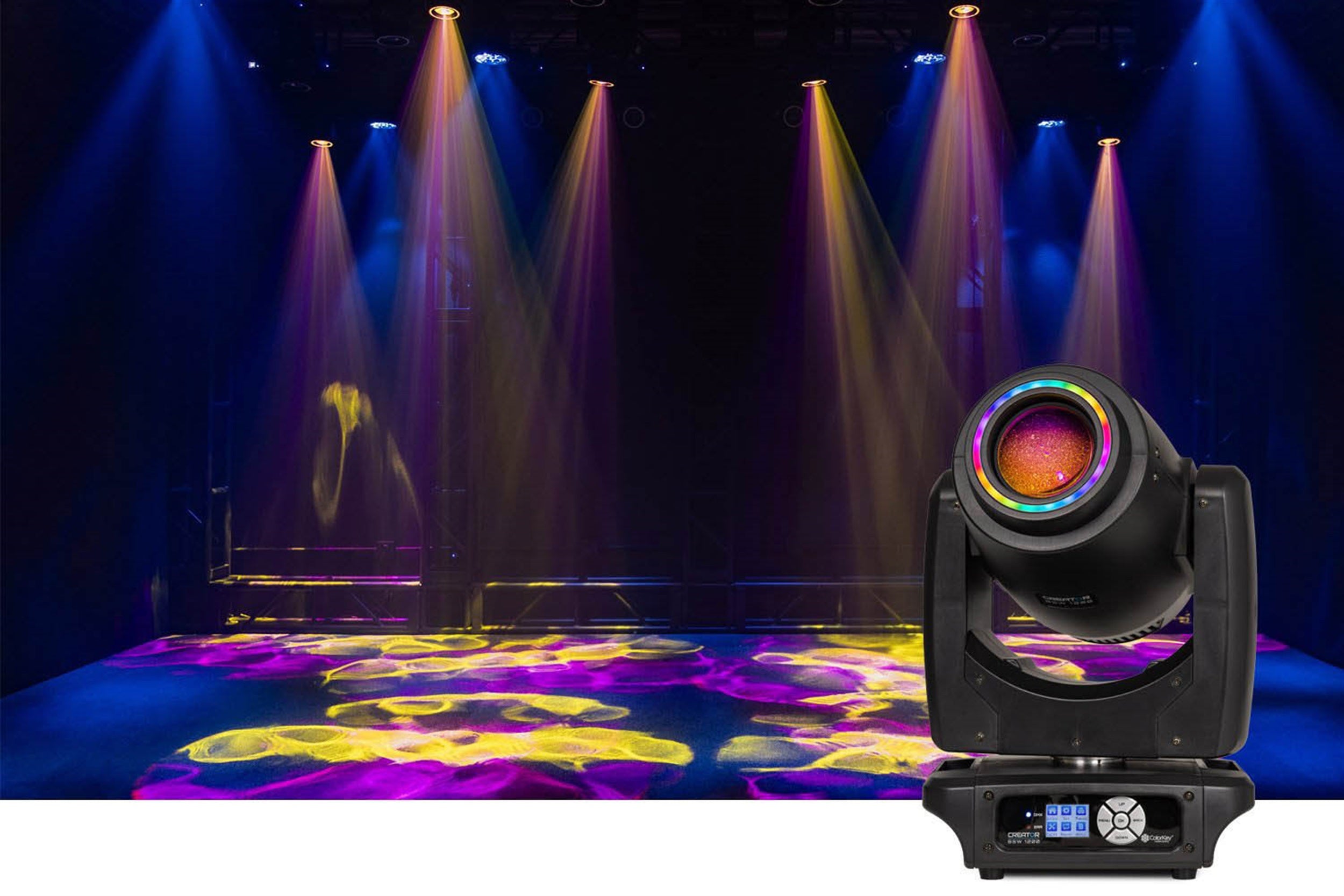

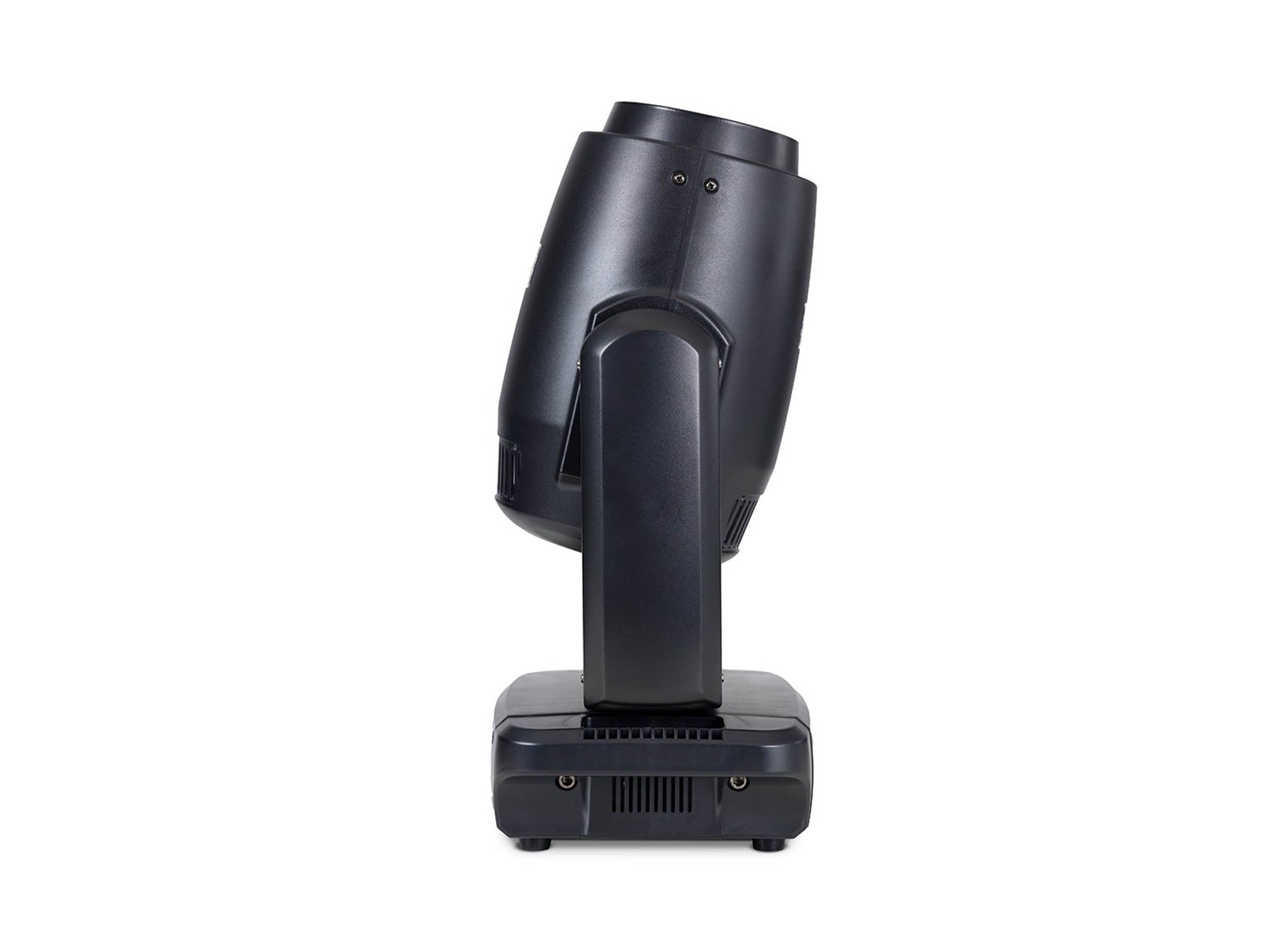

The ColorKey CKU-5100 Creator BSW 1200 is a powerful 200W LED hybrid moving head that combines beam, spot, and wash functionality in a single versatile fixture. Designed to deliver a wide range of lighting effects, it can replace multiple fixture types while providing flexible creative control for events, productions, and permanent installations.
Advanced Effects and Beam Control
The CKU-5100 features 10 colors plus split-color options, two gobo wheels with 12 static gobos and seven rotating gobos, including a textured glass gobo, and a three-facet prism. Its motorized zoom adjusts the beam angle from a tight 7° beam to a wider 19° spot, while motorized focus provides sharp gobos and smooth wash transitions at various distances.
UHX Halo and Creative Control

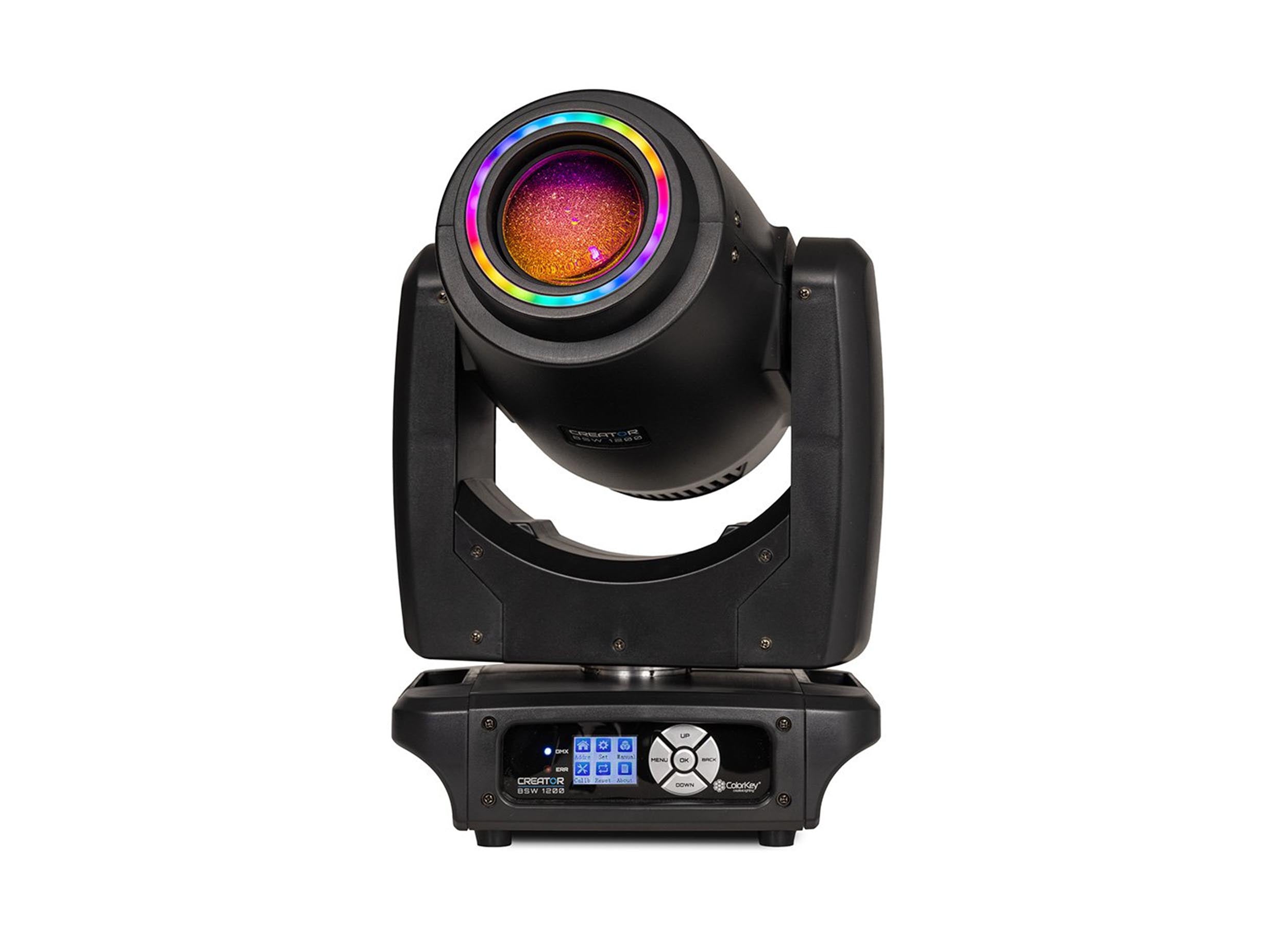

A multicolor RGB halo surrounds the main beam and can synchronize with other compatible Creator Series fixtures using pre-programmed chases and patterns. Independent dimmer and strobe control for the beam and halo allows lighting designers to create layered effects, while the frost filter diffuses the beam for softer, less intense output. Frame Set position control helps direct beams precisely and keeps unwanted light away from walls and audiences.
Professional Setup and Operation

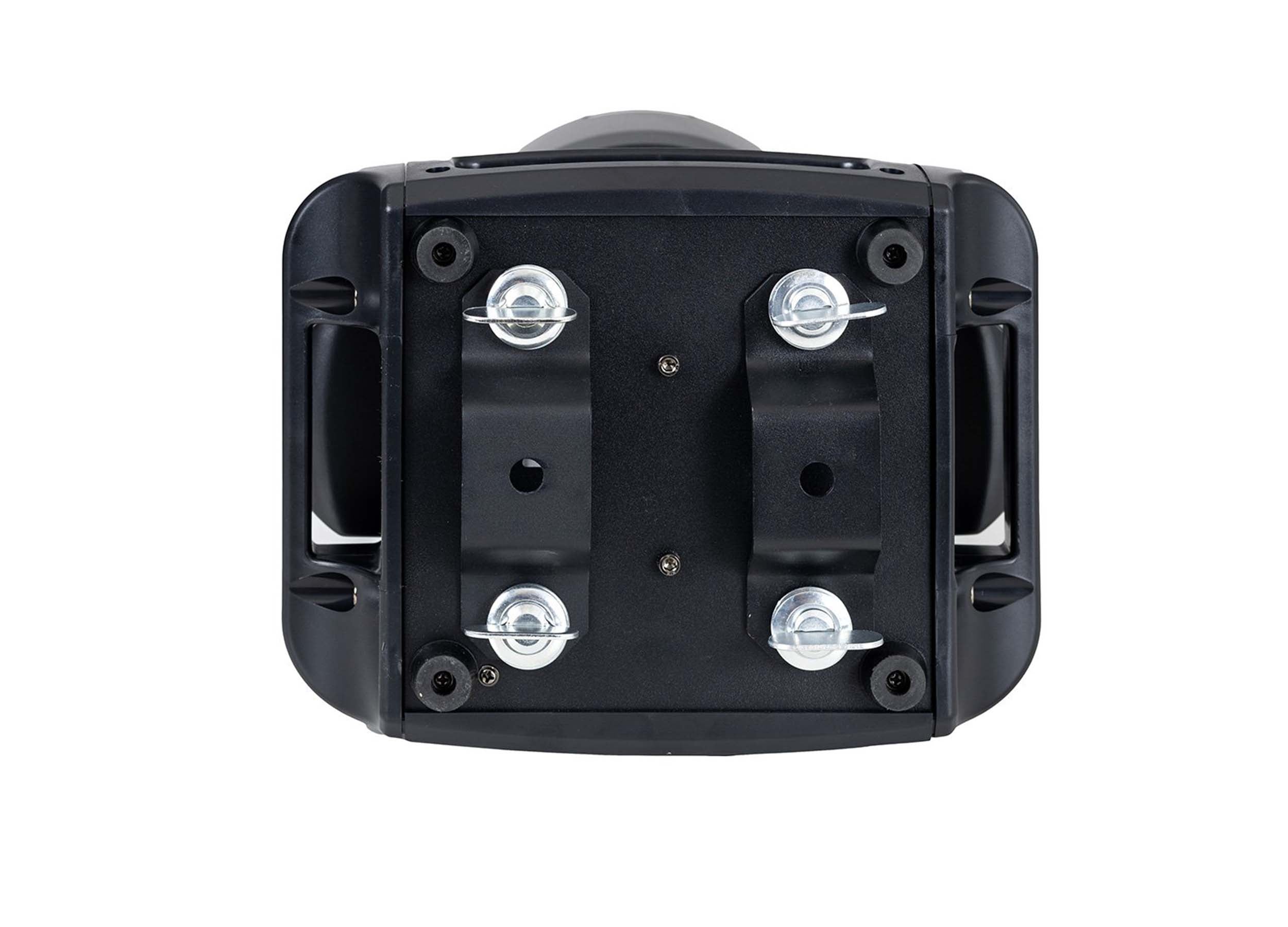

Built for efficient event and installation use, the ColorKey CKU-5100 includes dual quick-release brackets and PowerCON power linking for faster setup and teardown. A full-color LCD provides intuitive navigation, while DMX Hold maintains the current values in the event of signal loss. Together, its powerful output, flexible optical system, advanced halo effects, and professional control features make the Creator BSW 1200 a highly adaptable moving head solution.
Product Specifications:
Light Source: 200W White LED
Halo: 20 RGB LEDs
Color Temperature: 8,000K
Beam Angle: 7°–19°
Brightness: 66,500 Lux @ 2m (7°) / 9,100 Lux @ 2m (19°)
Color Wheel: 10 Colors + Open, Split Colors
Static Gobo Wheel: 12 Gobos + Open

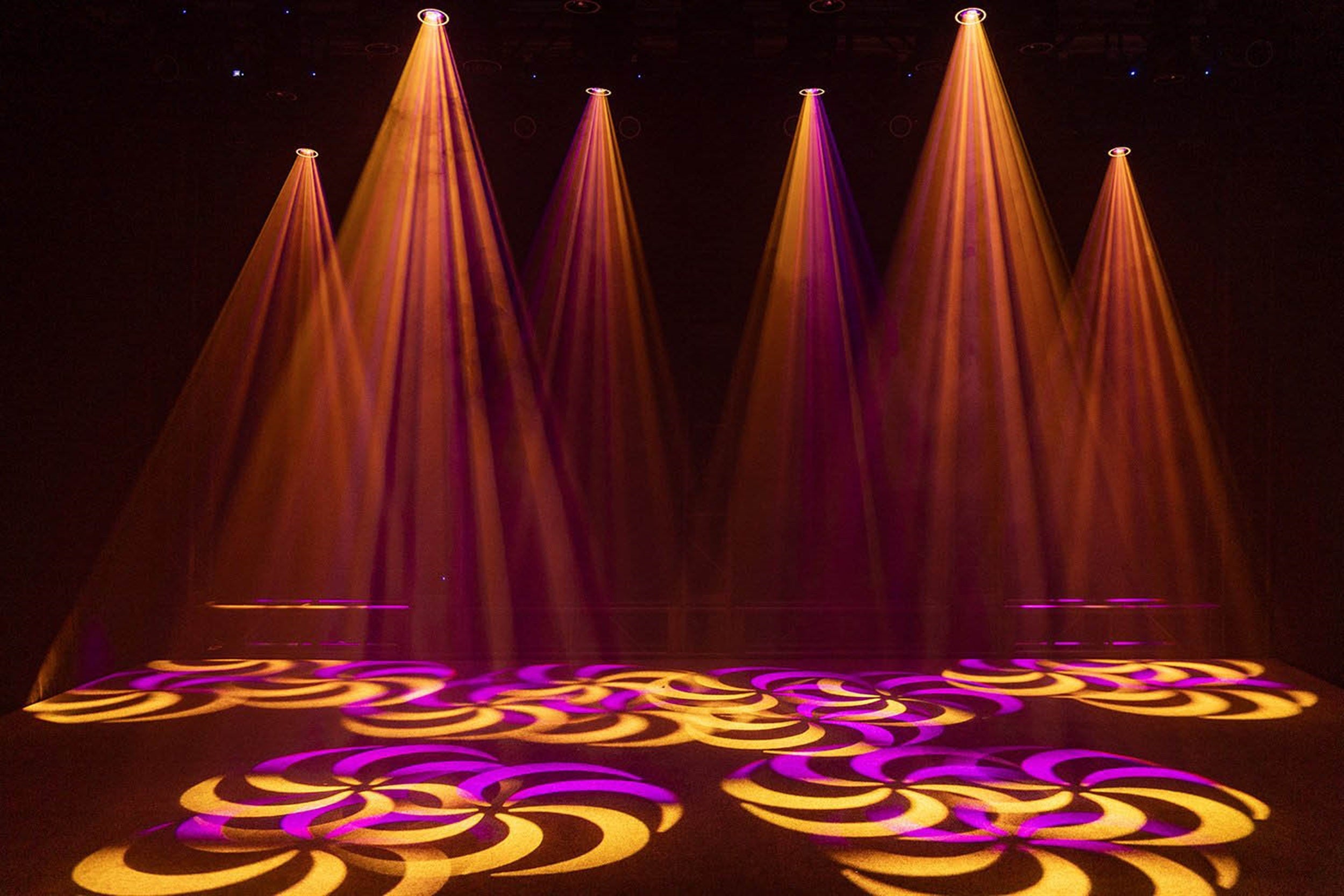

Rotating Gobo Wheel: 7 Gobos + Open, Textured Glass Gobo
Prism: 3-Facet
Focus: Motorized
Frost Filter: 0–100%
Strobe: 1–25 Hz, Random, Pulse
Dimmer: 0–100% Linear
Pan: 540° with Fine Adjustment
Tilt: 270° with Fine Adjustment
DMX Channels: 24 CH
Control Modes: DMX512, Master-Slave, Auto, Sound Active
Display: 1.77" LCD

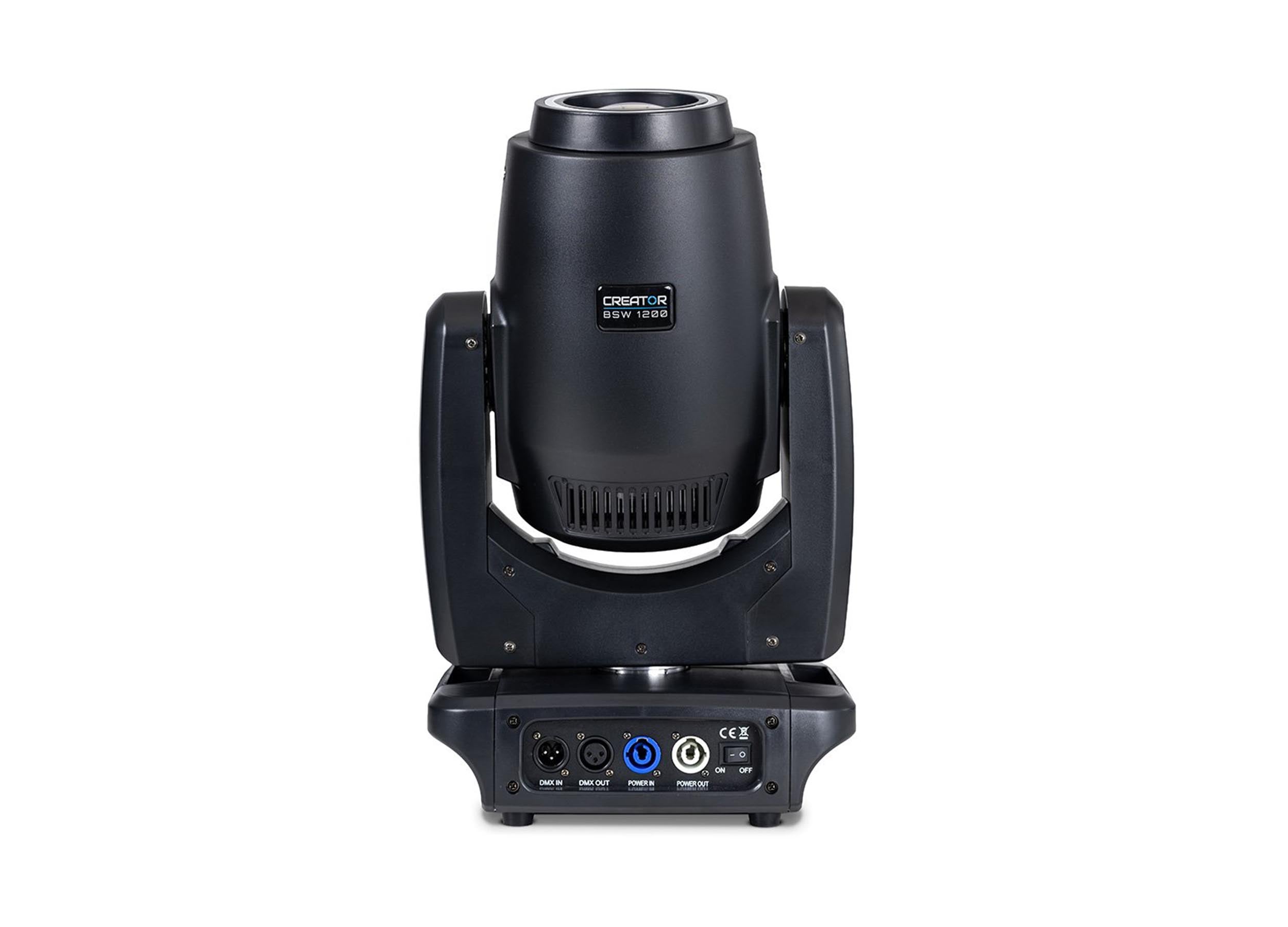

Power Connection: PowerCON Locking In/Out
DMX Connectors: 3-Pin DMX In/Out
LED Lifetime: 50,000 Hours
Maximum Power Consumption: 250W
Voltage: AC 100–240V, 50/60Hz
Dimensions: 28 x 21 x 47 cm / 11 x 8.3 x 18.5 in
Weight: 9.5 kg / 20.9 lbs
