Description

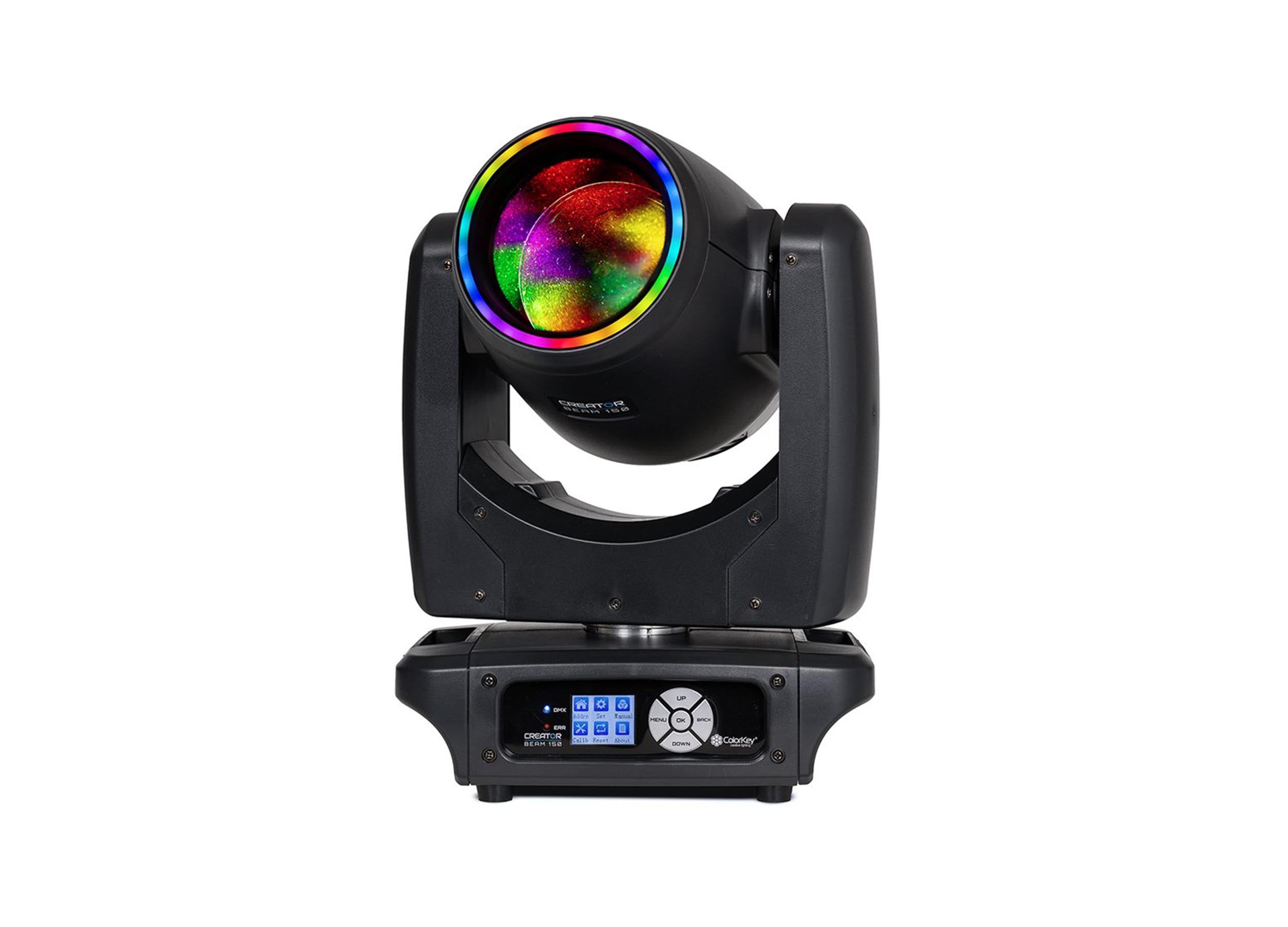

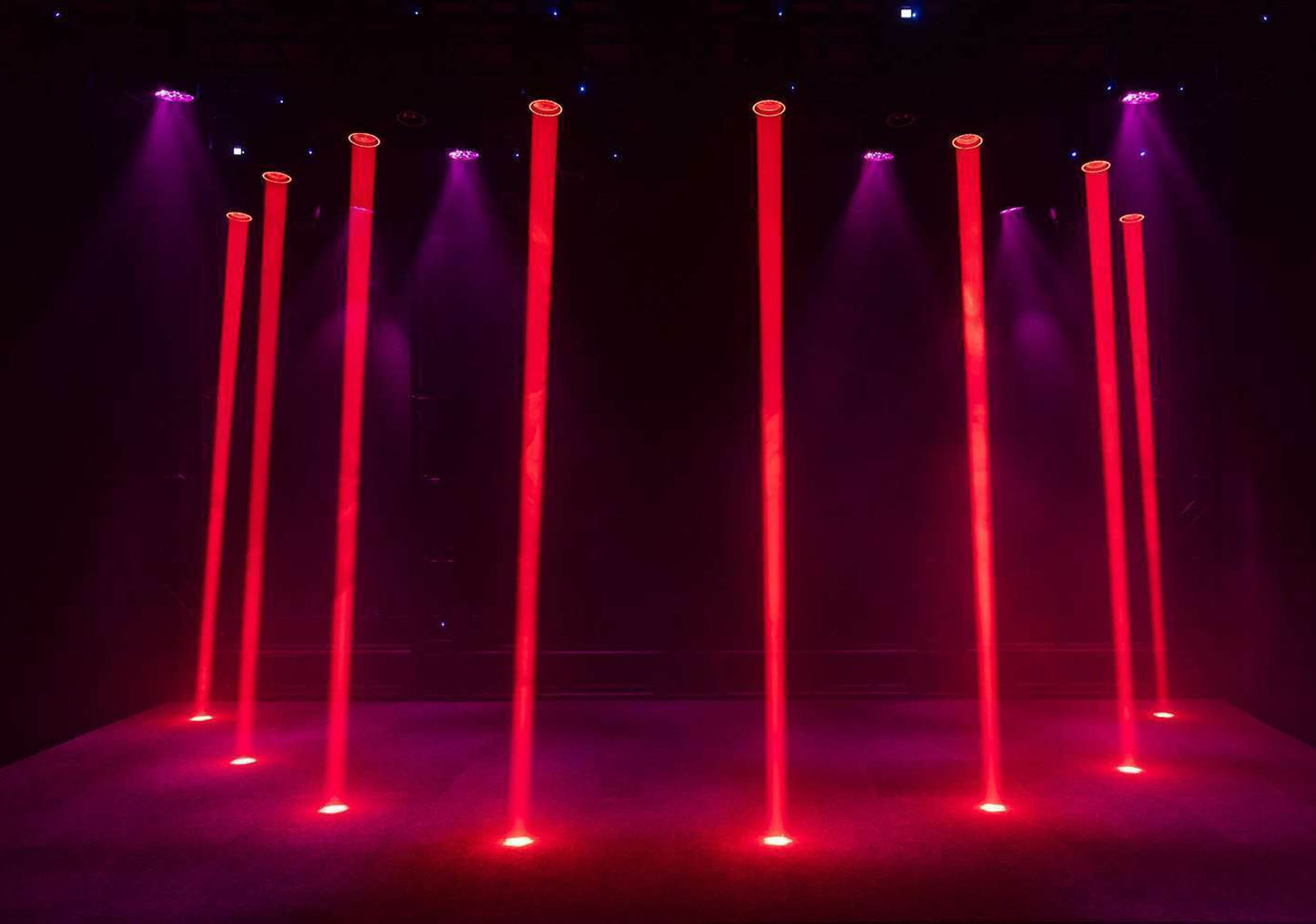

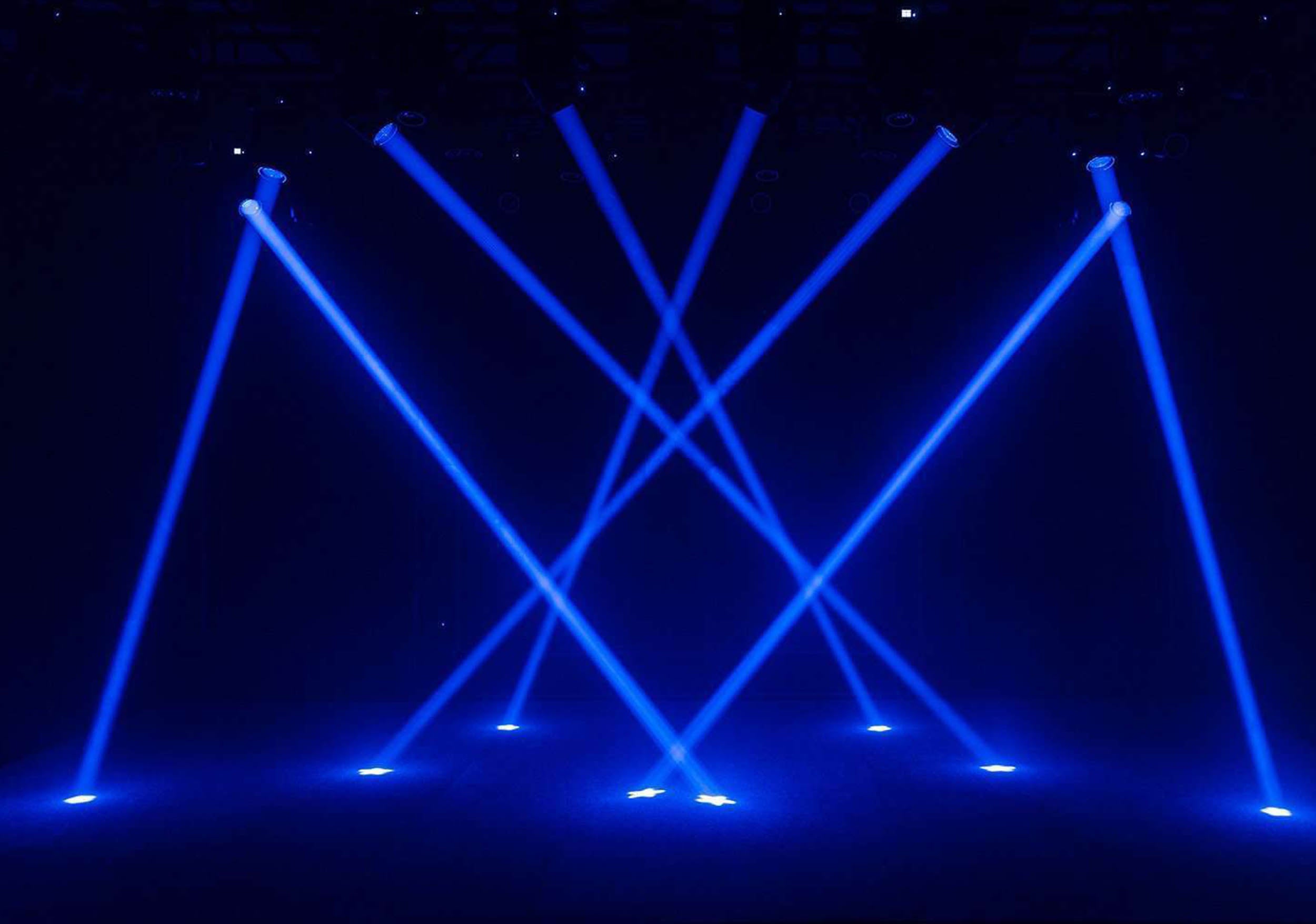

The ColorKey Creator Beam 150 is a professional moving head beam luminaire designed to produce intense, sharply defined beams for stages, dance floors, events, and permanent installations. Its 100W cool-white LED produces a tight 2.1° beam angle with an impressive output of up to 630,000 lux at 2 meters. The narrow beam creates strong aerial effects and allows the fixture to cut through atmospheric haze with ease. Its 8,000K color temperature provides a crisp, cool-white appearance. The fixture combines high output with versatile movement and effects in a compact professional design.
Color and Gobo Effects

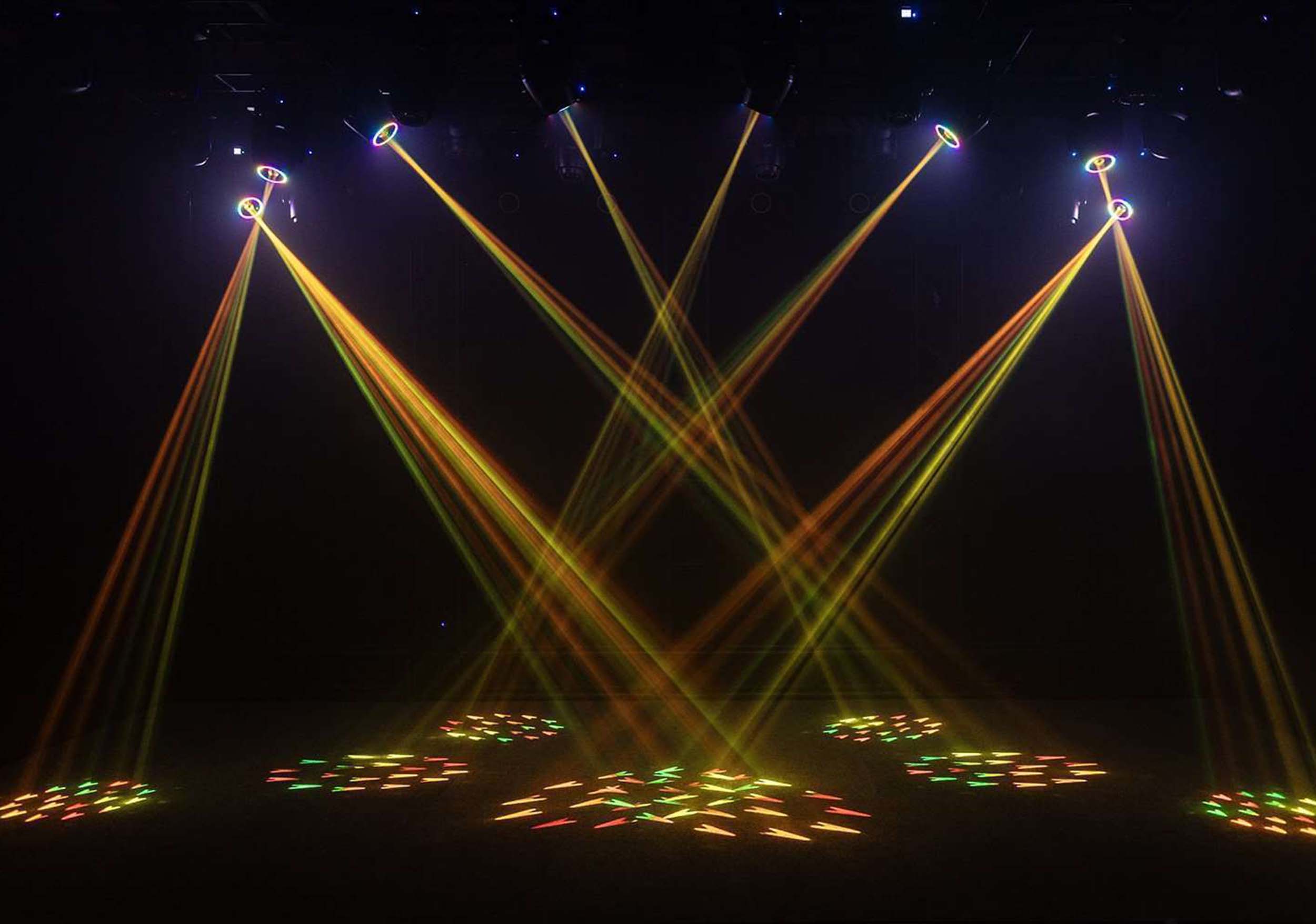

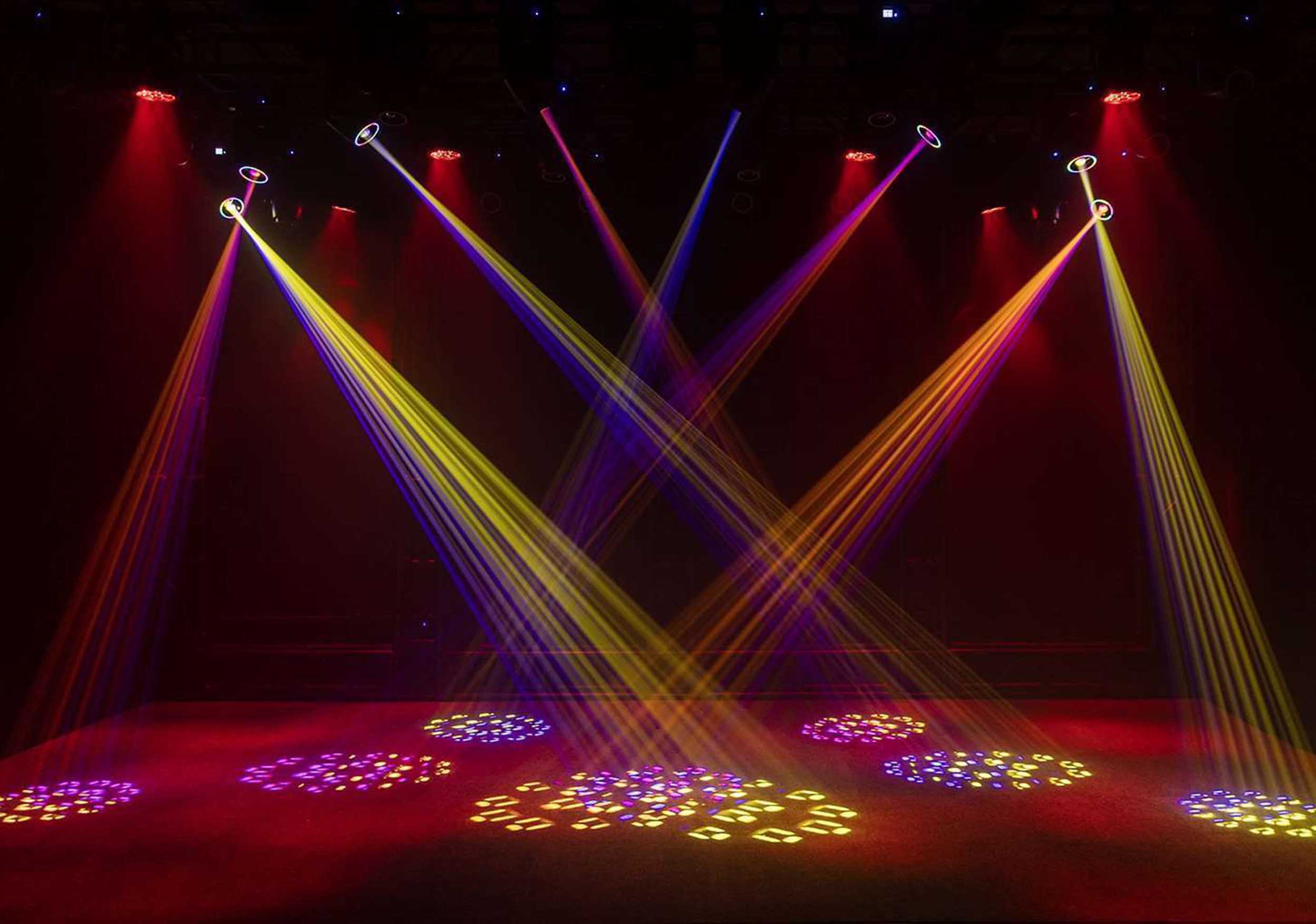

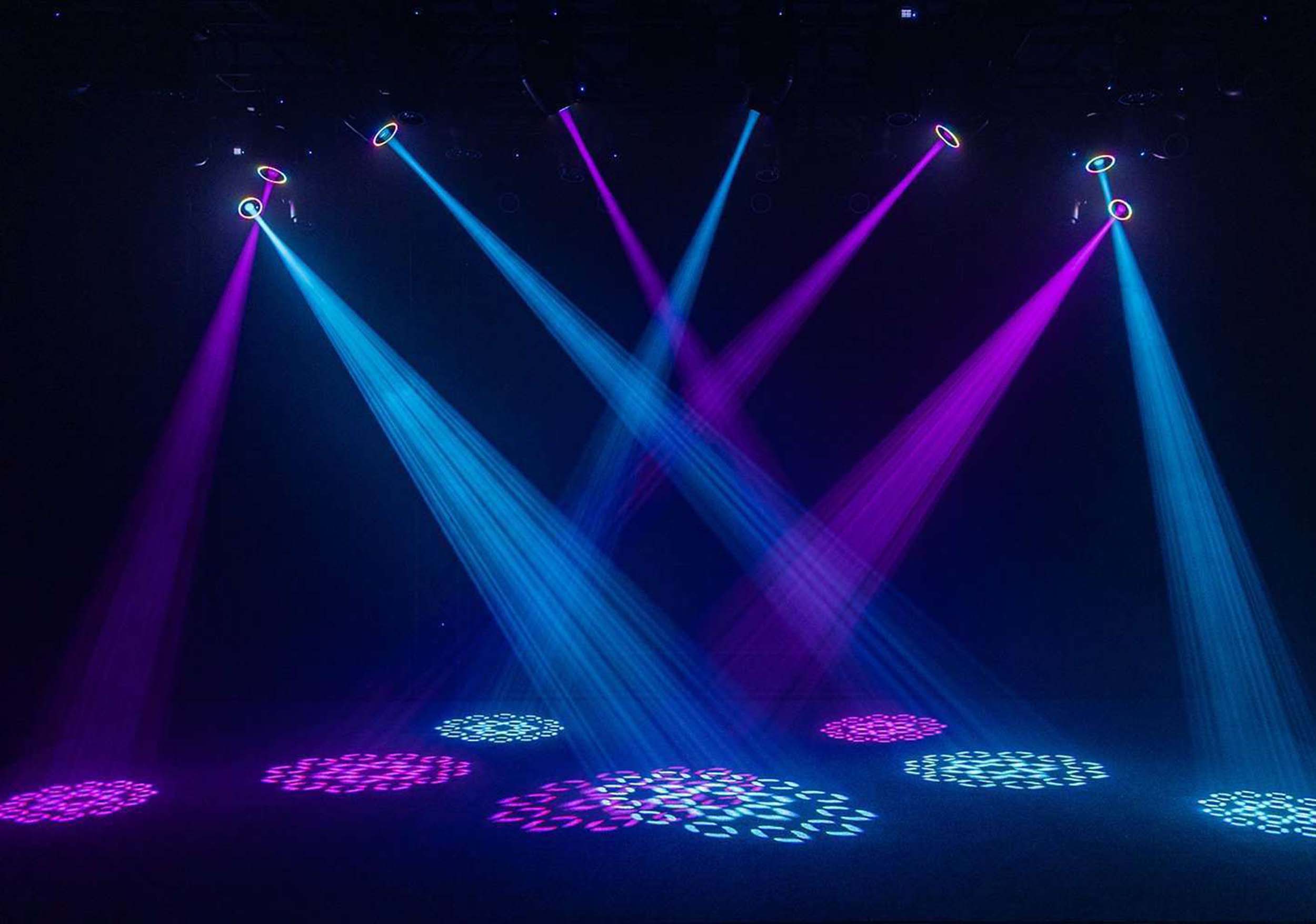

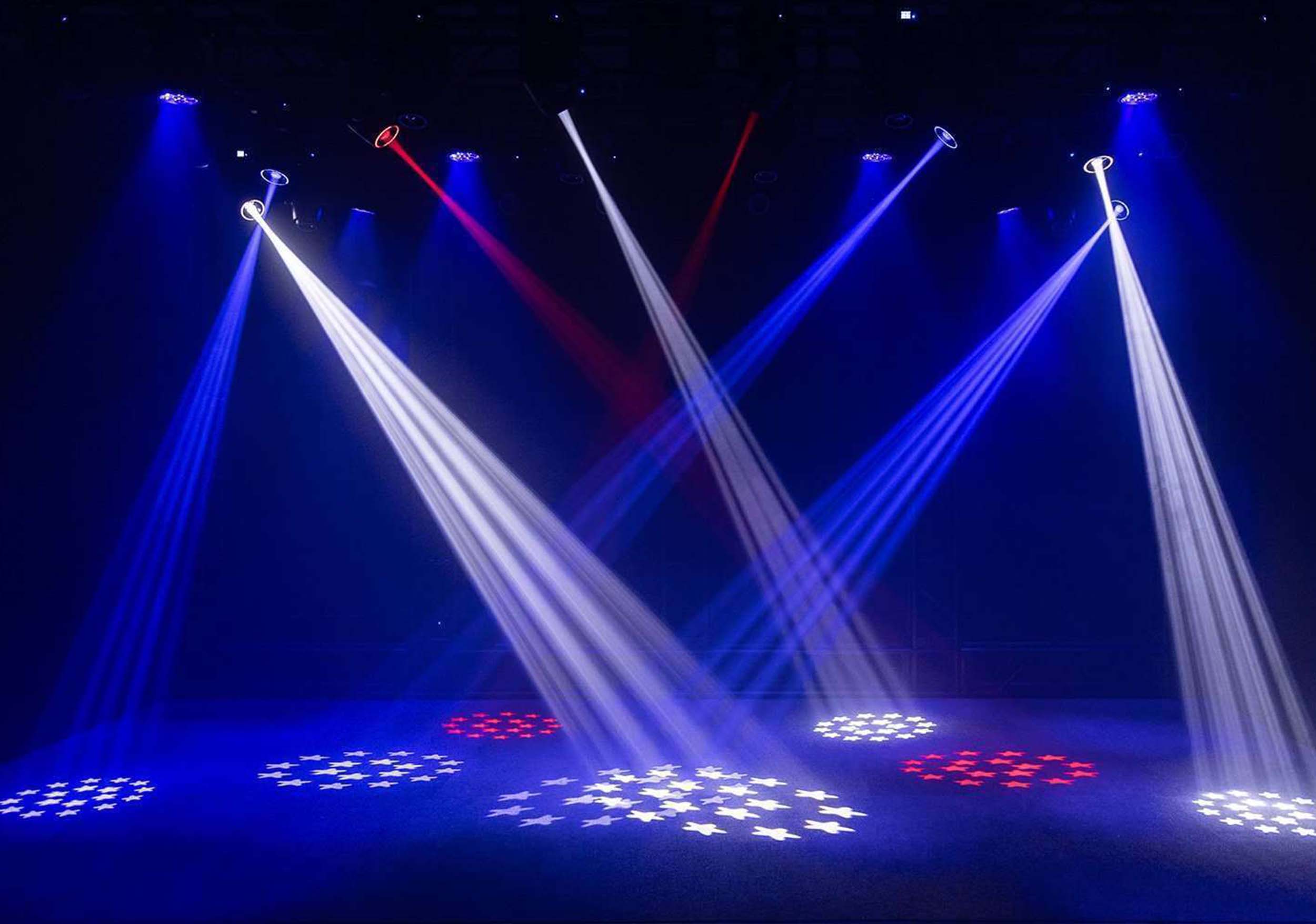

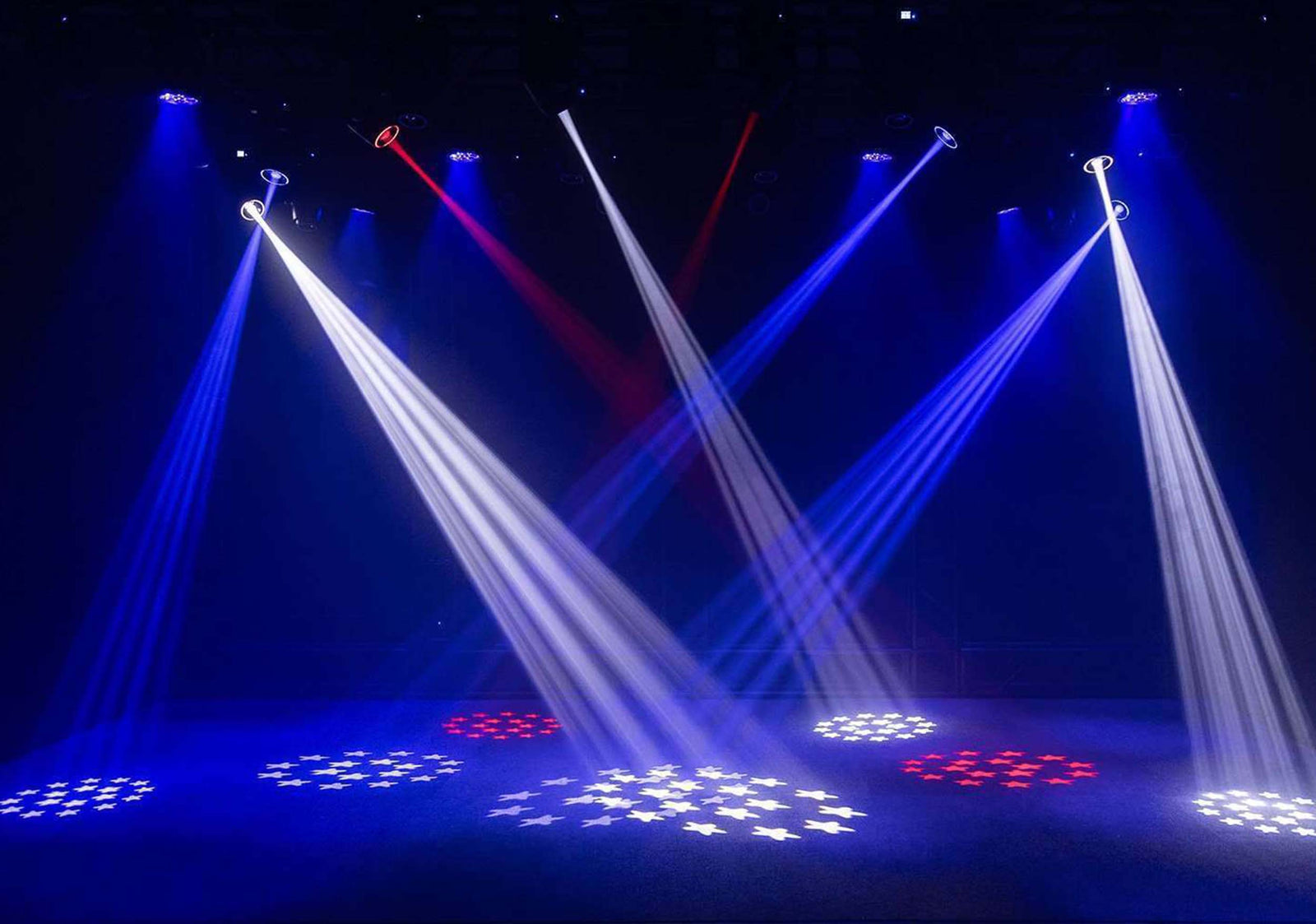

The Creator Beam 150 provides an extensive selection of visual effects for creating dynamic lighting shows. Its color wheel includes 11 colors plus open and split-color options, while the static gobo wheel provides 18 gobos plus open. Gobo shake functionality adds movement and visual variety to projected patterns. An 18-facet prism with rainbow filter further expands the available effects. The motorized focus keeps projected gobos sharp at different distances. A frost filter is also included to soften and diffuse the beam when a less intense effect is required.
RGB Halo Effects

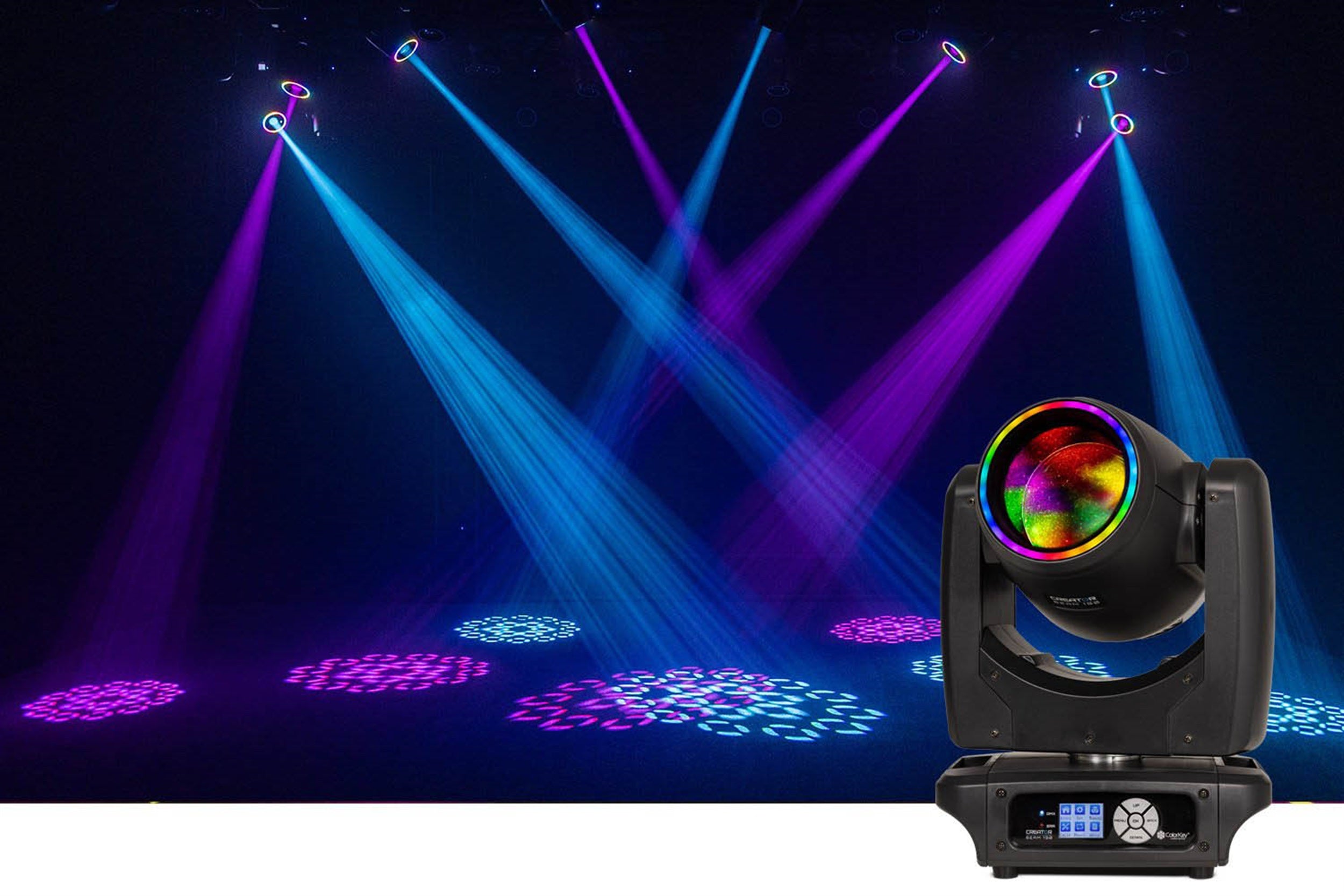

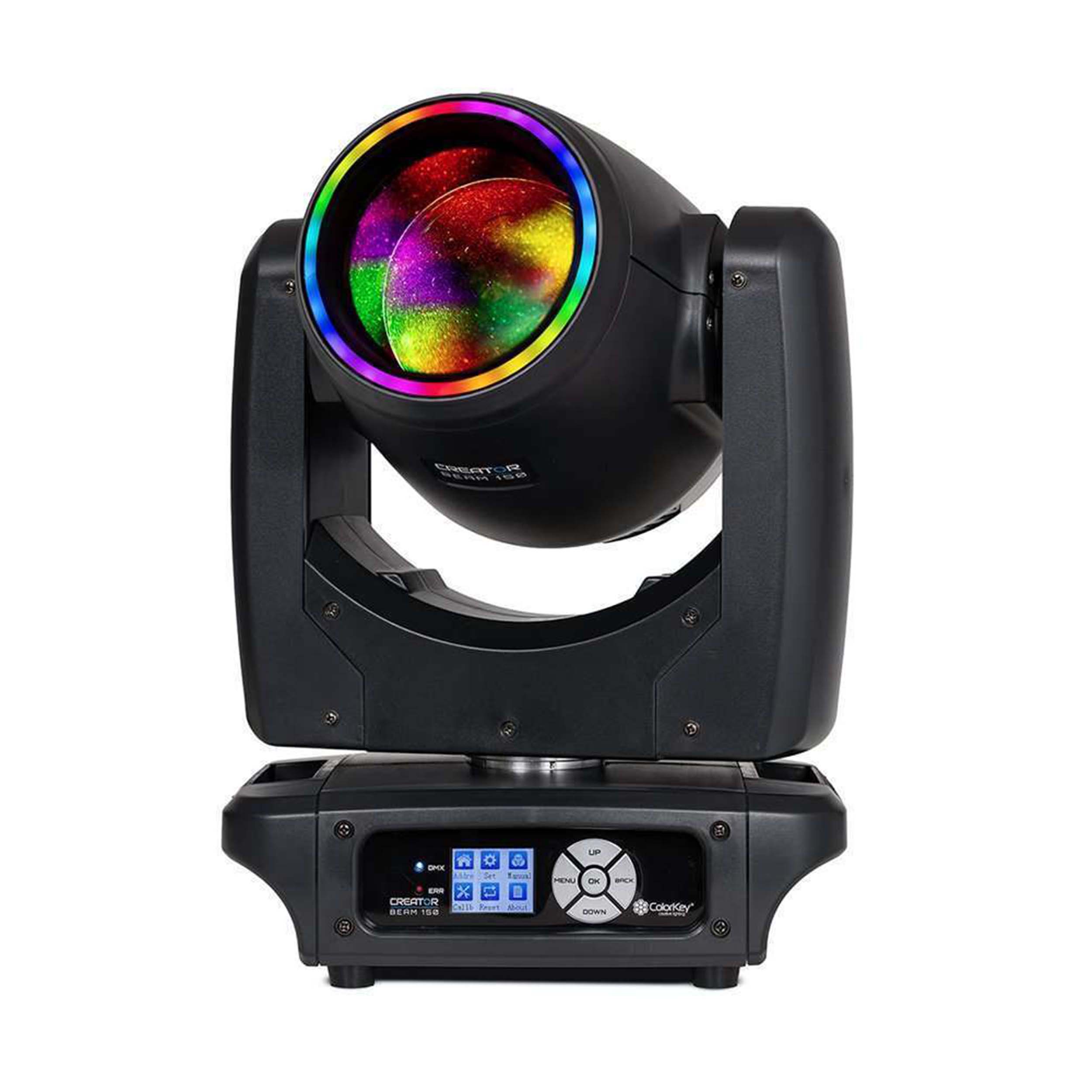

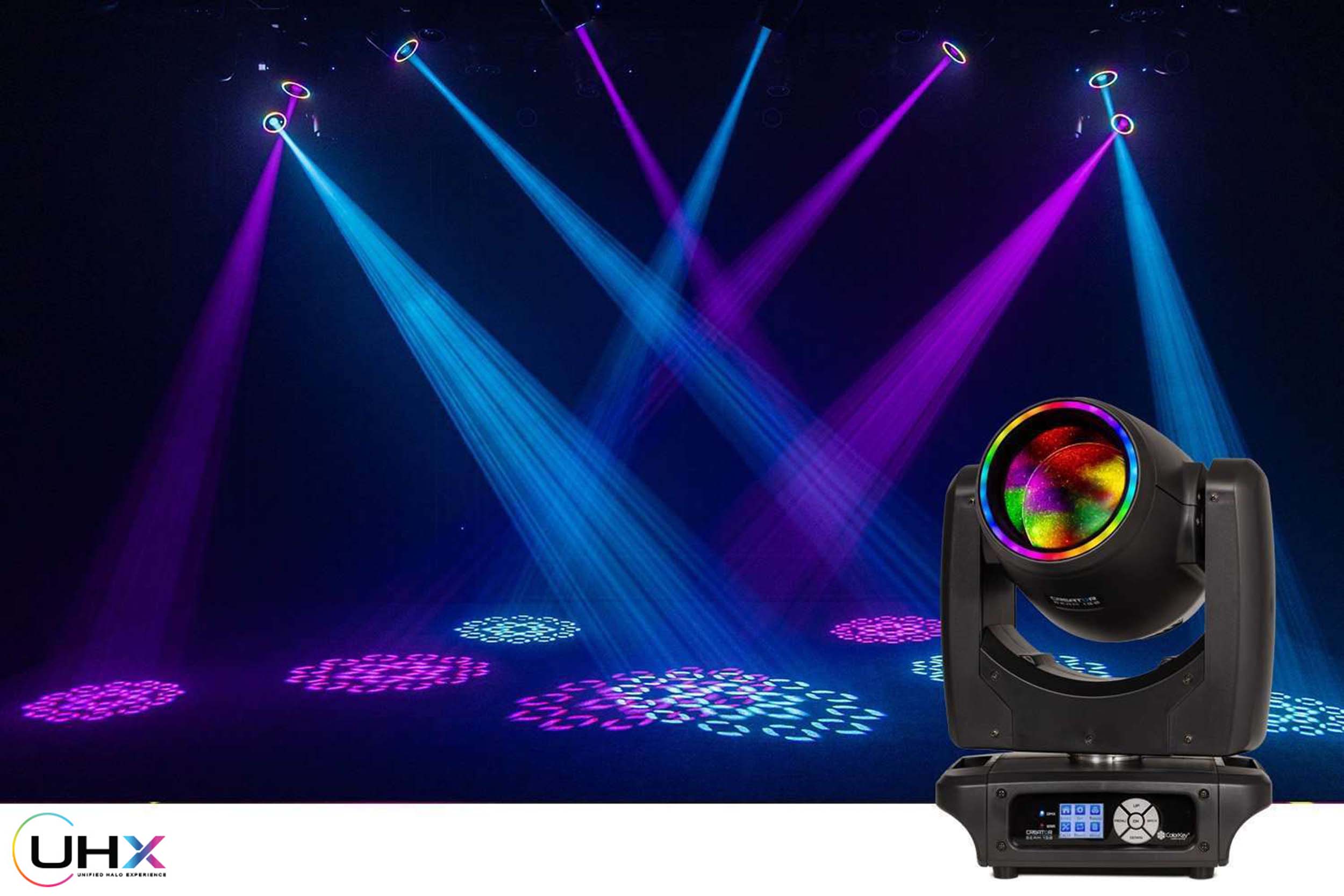

A distinctive 48-LED RGB halo surrounds the main beam and provides additional visual effects around the fixture's lens. The halo features built-in dynamic effects and can synchronize with other compatible Creator Series fixtures. Independent beam and halo dimmer and strobe control allows users to create layered lighting effects. Pre-programmed chases and patterns provide additional options for automated shows. The halo adds a secondary visual element without compromising the powerful central beam. This makes the fixture particularly effective for coordinated stage and entertainment lighting systems.
Intelligent Beam Positioning
The Creator Beam 150 incorporates Frame Set position control to simplify beam positioning and help prevent unwanted light projection. Frame Forward keeps the fixture directed toward the performance or audience area rather than the rear wall. Frame Up limits the tilt range to help keep intense beams away from audience eye level. The fixture provides 540° pan and 260° tilt movement with fine adjustments for accurate positioning. These features make it easier to achieve consistent beam placement during automated shows. They are especially useful in venues where precise lighting control is important.
Professional Control and Operation
The fixture supports 21-channel DMX512 control along with master-slave, auto, and sound-active operating modes. DMX Hold maintains the current lighting values if the DMX signal is interrupted. Independent dimmer and strobe control provides additional programming flexibility for professional lighting operators. A 1.77-inch color LCD display provides an intuitive interface for configuration and navigation. The fixture also uses 3-pin DMX input and output connections for straightforward system integration. These control options make it suitable for both advanced lighting systems and standalone entertainment applications.
Touring and Installation Ready

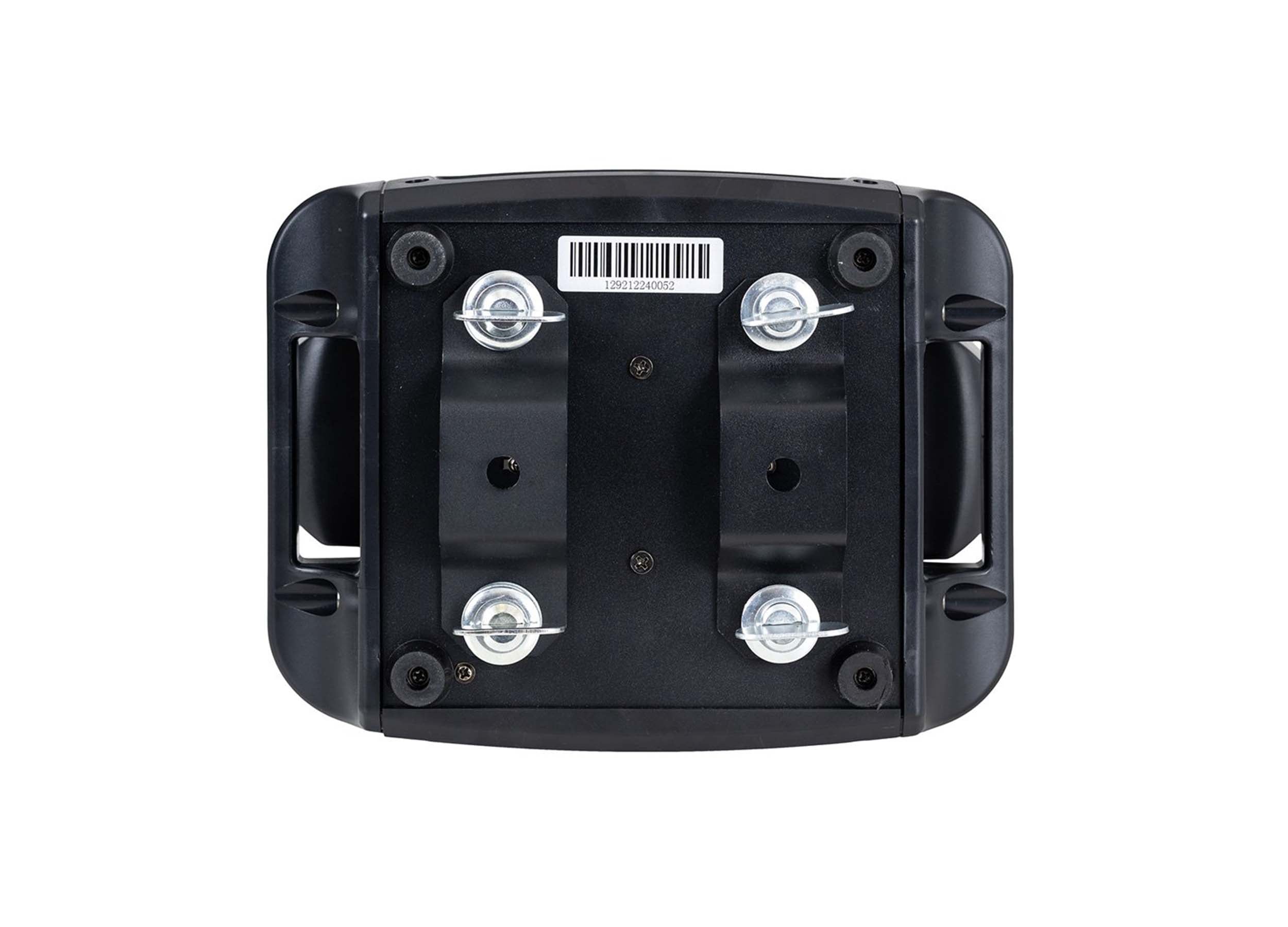

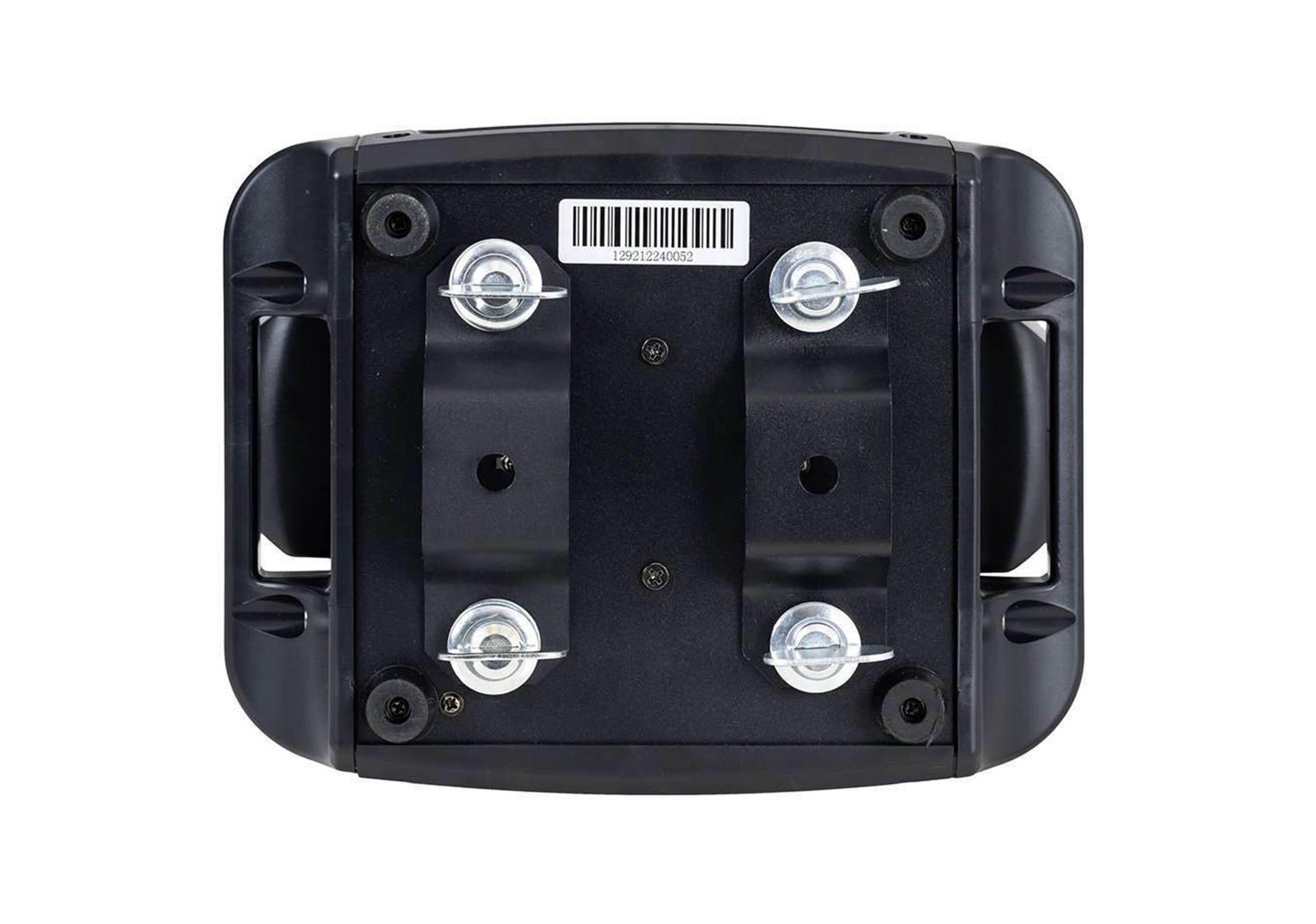

Designed for both mobile events and permanent installations, the Creator Beam 150 incorporates features that simplify setup and transportation. Dual quick-release brackets allow faster installation and removal of the fixture. PowerCon locking input and output connections support secure power distribution and power linking. Its compact 8.3 kg construction makes it practical for mobile production while maintaining a rugged professional format. The LED source is rated for up to 50,000 hours, reducing the need for frequent source replacement. The fixture is well suited to concerts, clubs, DJs, productions, events, theatres, and permanent entertainment installations.
Product Specifications:
Product Type: LED Moving Head Beam Luminaire
Model: Creator Beam 150
Light Source: 100W White LED
LED Lifetime: 50,000 Hours
Halo: 48 RGB LEDs
Color Temperature: 8,000K
Brightness: 630,000 Lux @ 2 m
Beam Angle: 2.1°
Color Wheel: 11 Colors + Open, Split Colors
Static Gobo Wheel: 18 Gobos + Open
Gobo Function: Gobo Shake
Prism: 18-Facet Prism with Rainbow Filter
Rainbow Effect: 7-Color Rainbow Prism Effect
Focus: Motorized
Strobe: 1–25 Hz, Random, Pulse
Dimmer: 0–100% Linear
Pan: 540° with Fine Adjustment
Tilt: 260° with Fine Adjustment
DMX Channels: 21
Control Modes: DMX512, Master-Slave, Auto, Sound Active
DMX Hold: Yes
Position Control: Frame Set
Display: 1.77-Inch Color LCD

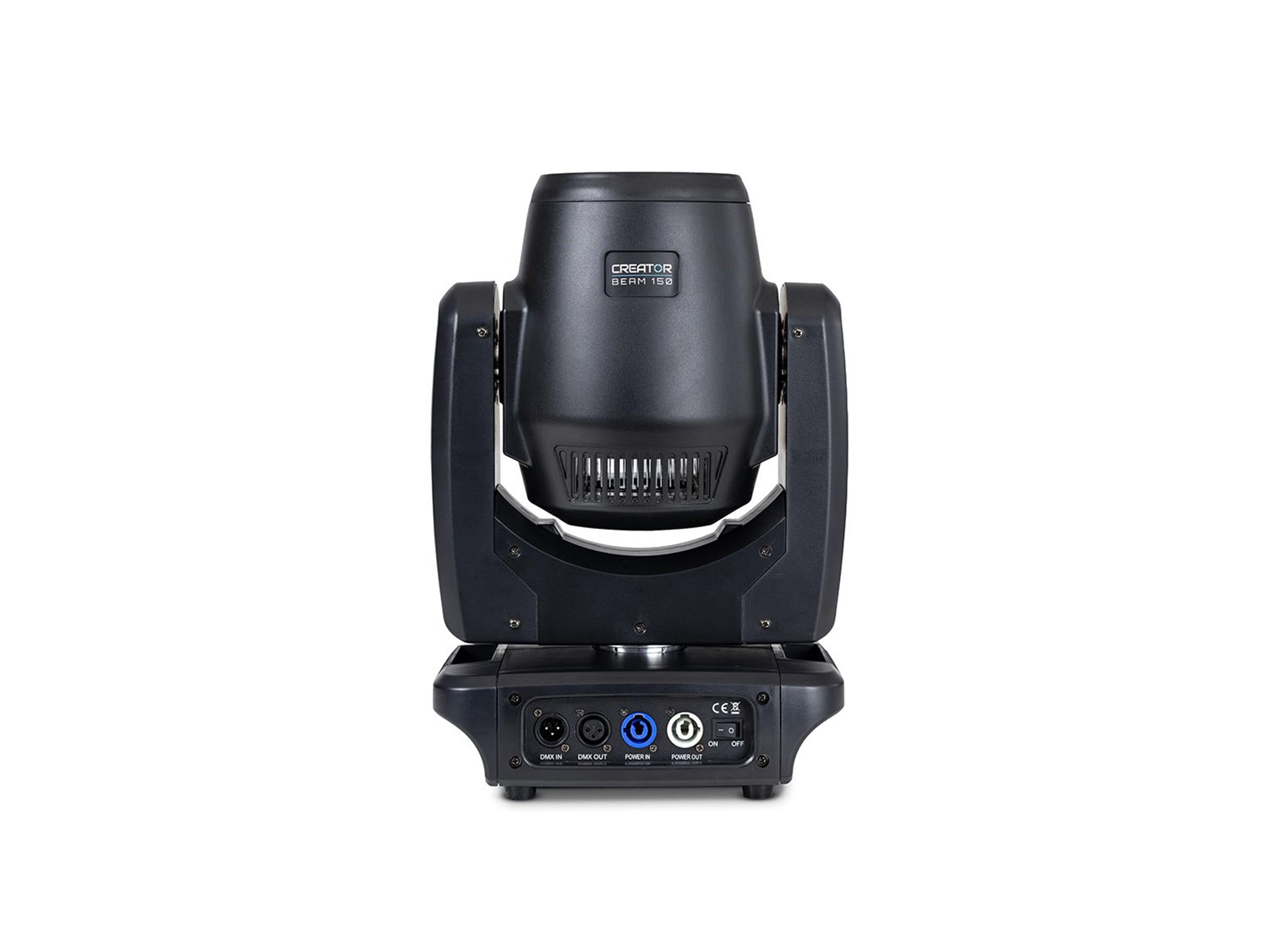

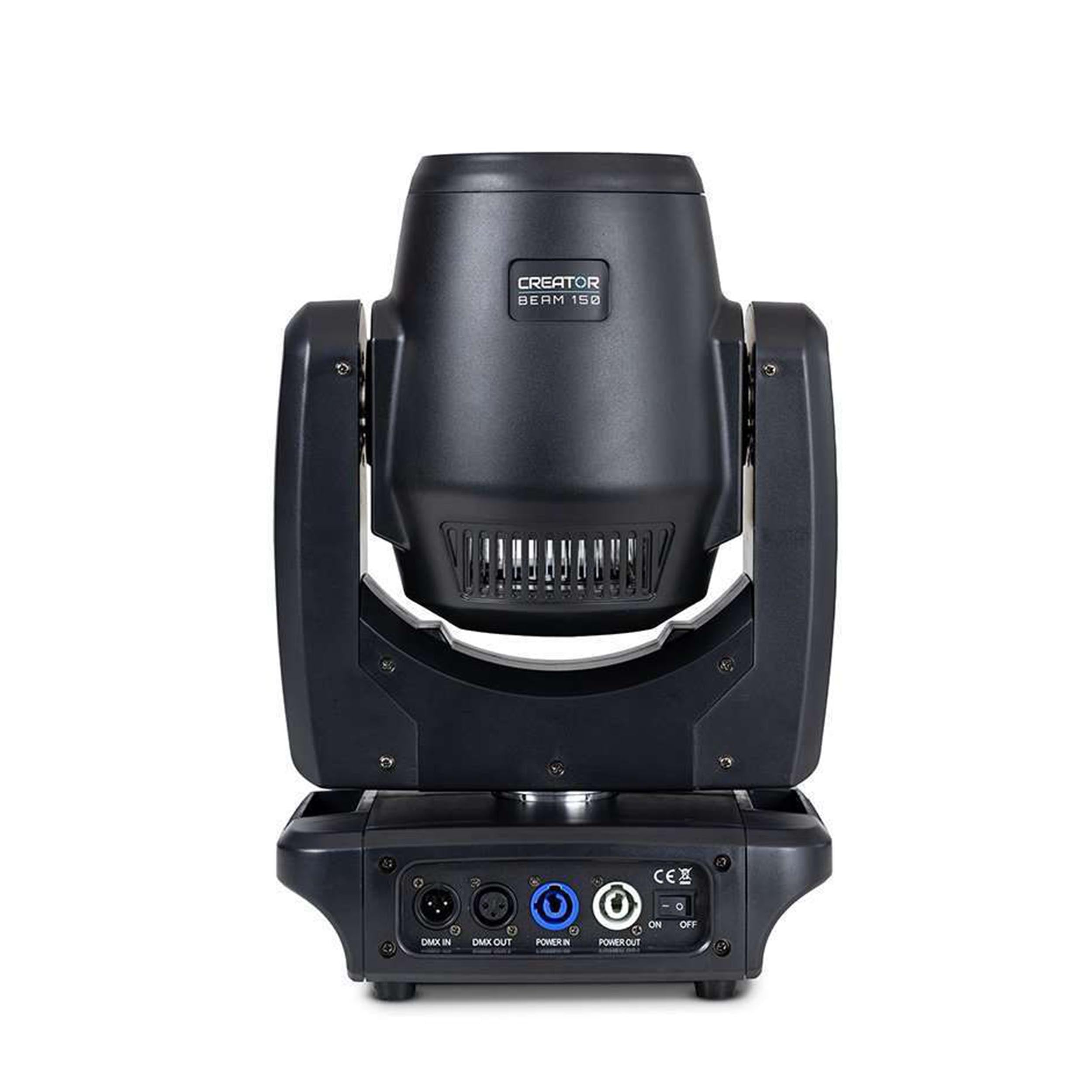

Power Connection: PowerCon Locking In/Out
DMX Connectors: 3-Pin DMX In/Out
Maximum Power Consumption: 150W
Operating Voltage: AC 100–240V
Operating Frequency: 50/60 Hz
Quick-Release Brackets: Dual
Product Weight: 18.3 lbs
Product Dimensions: 16.1 x 11 x 7.9 in
