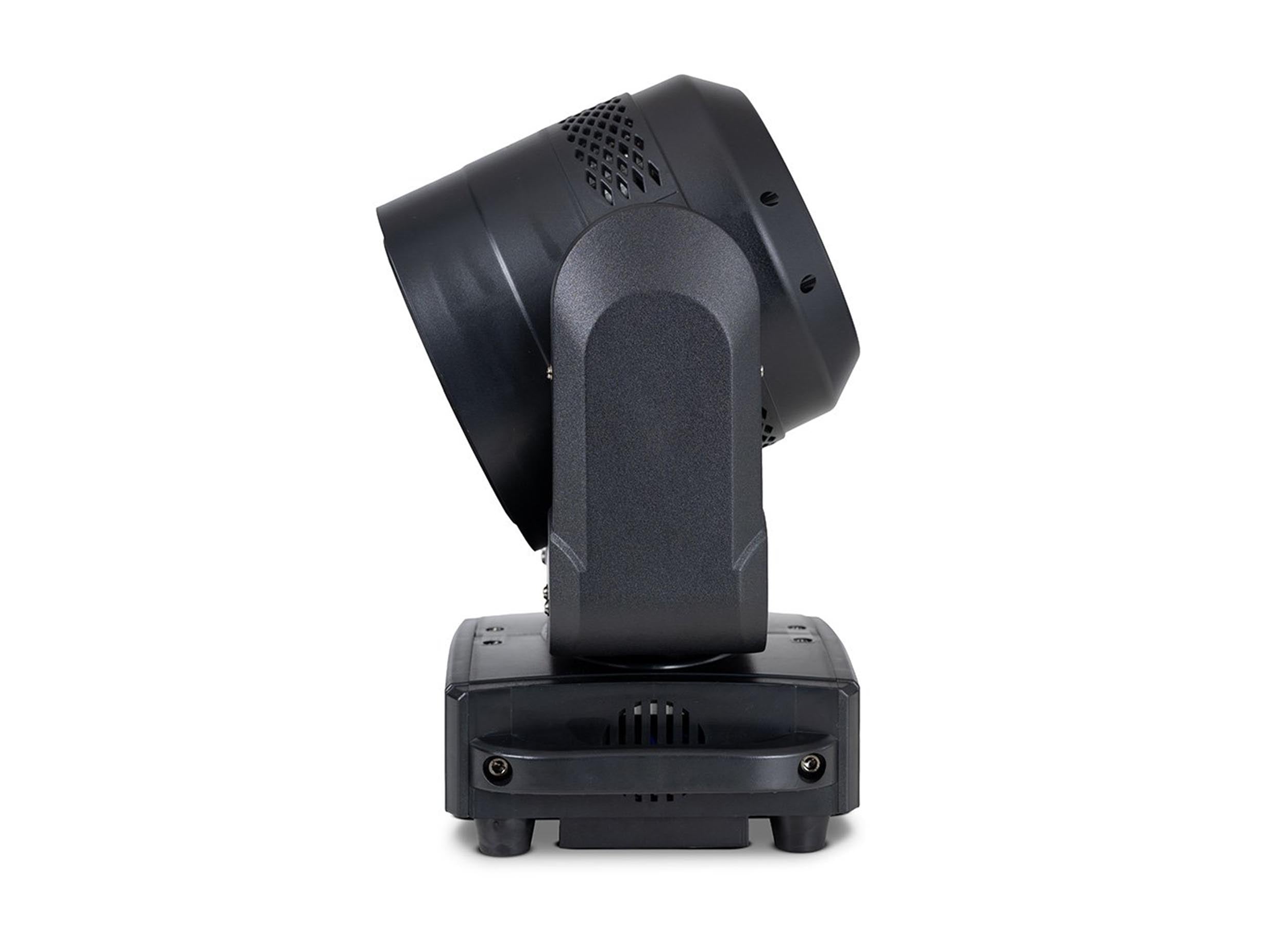

ColorKey CKU-5160 Creator BX7 Wash Moving Head - Black

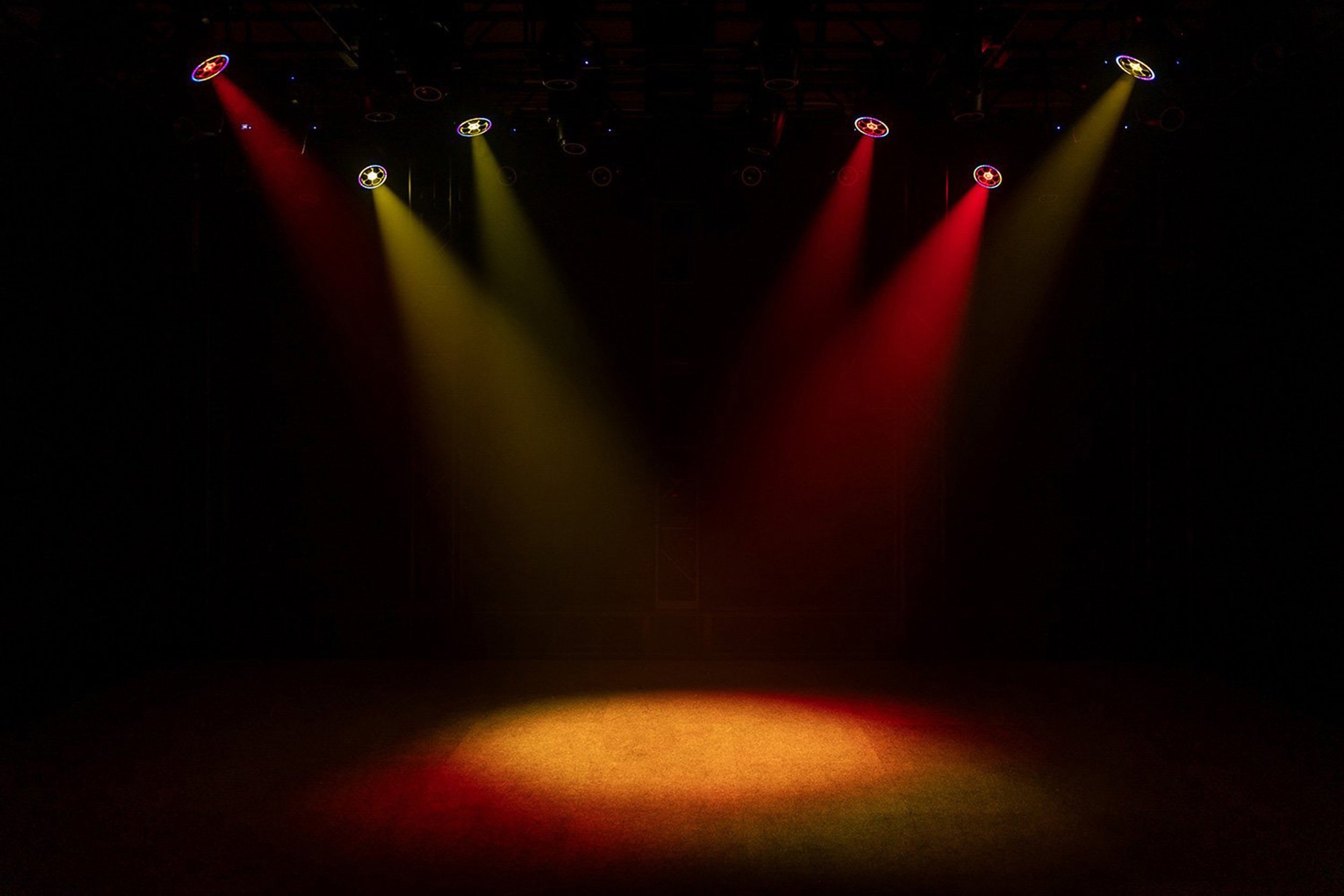

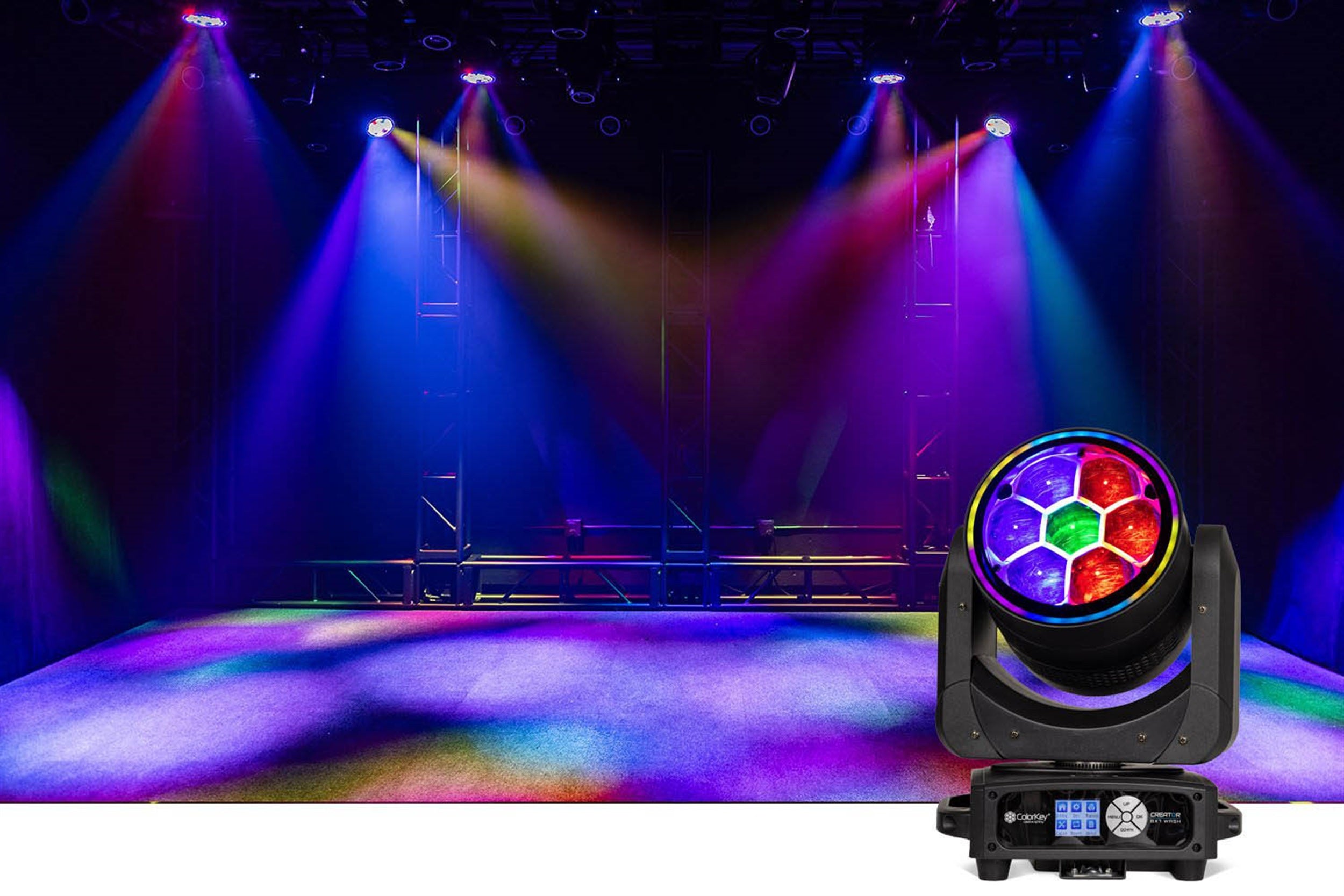

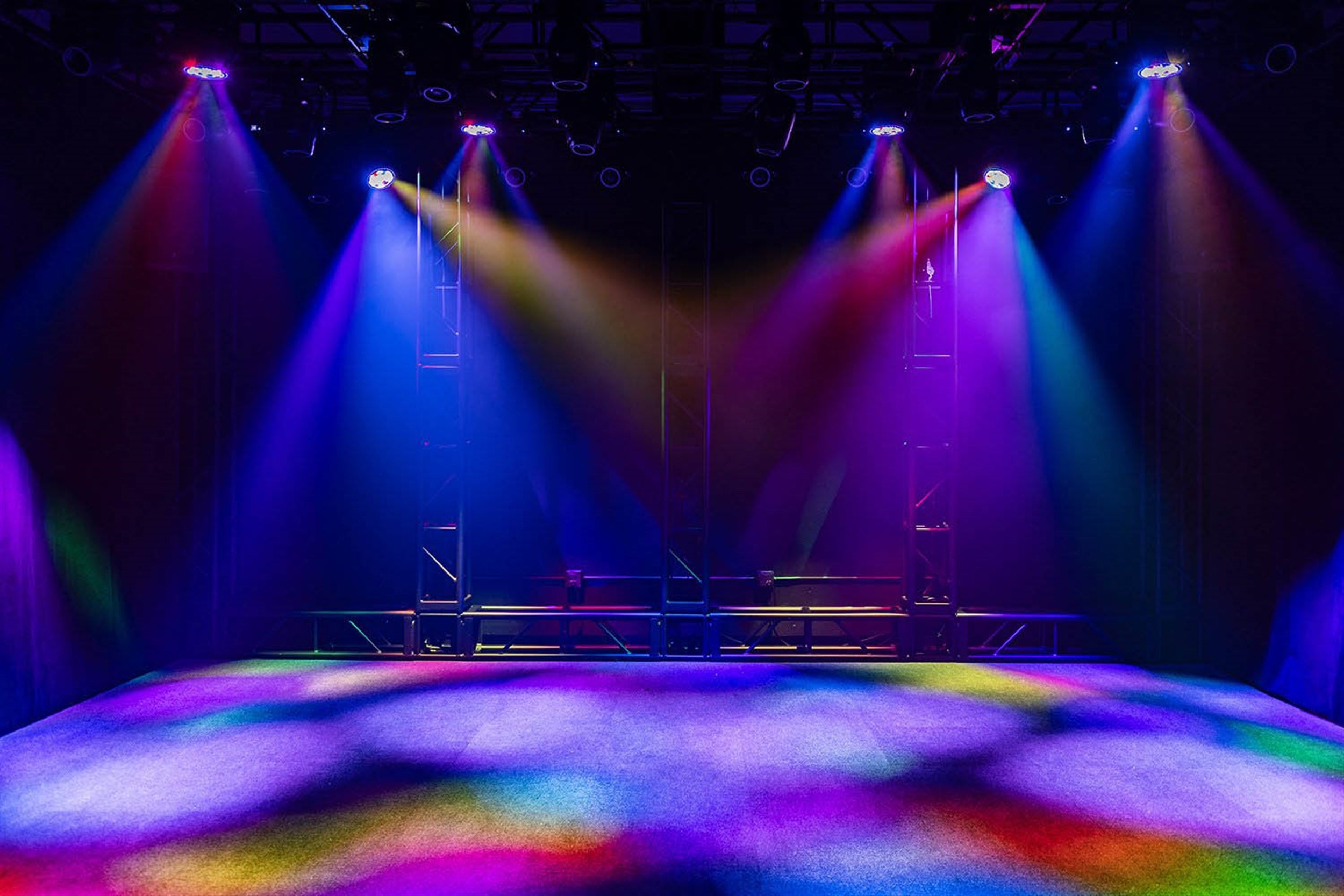

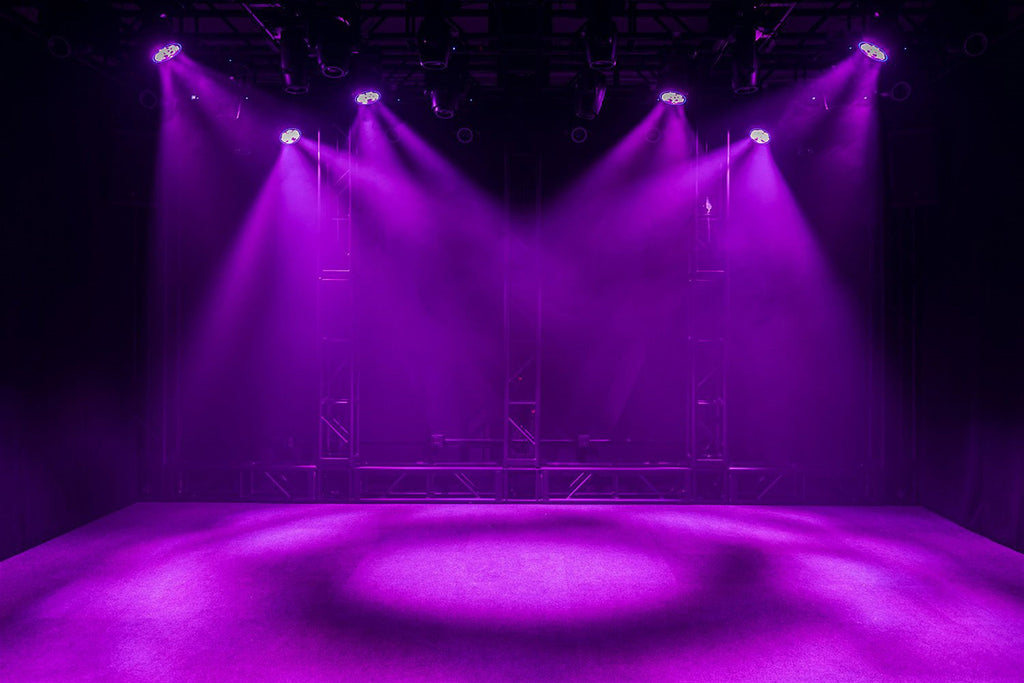

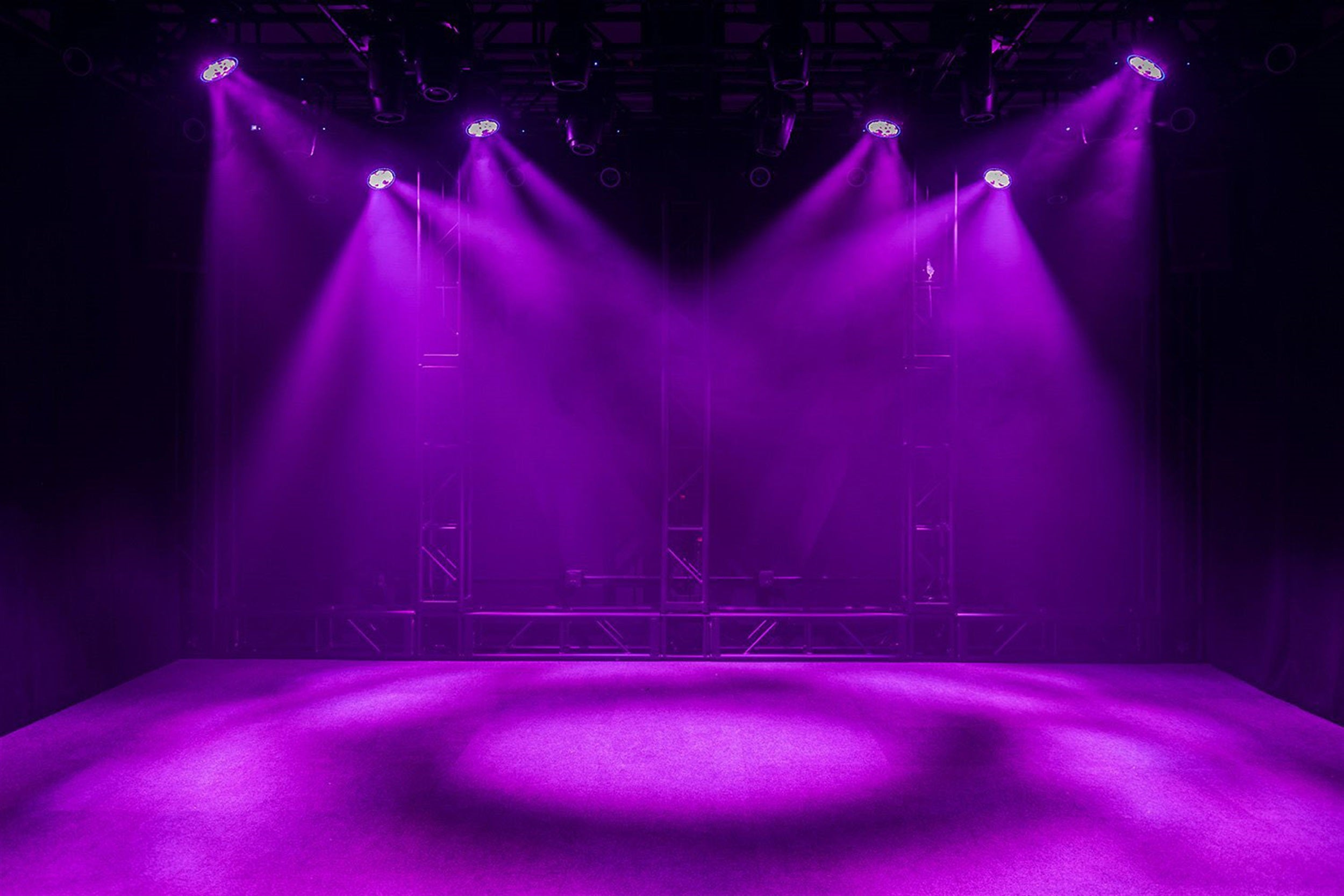

The ColorKey Creator BX7 Wash is a versatile 280W Bee-Eye moving head designed for stages, events, clubs, and permanent installations. Its seven 40W RGBW LEDs deliver bright, even color coverage across a flexible zoom range. The wide zoom setting produces a soft wash suitable for illuminating stages and audiences. Tightening the zoom transforms the fixture into a dynamic multi-beam effect. Its powerful output and compact design make it suitable for professional entertainment lighting.

RGBW Wash and Pixel Effects

The BX7 Wash combines seven individually controlled RGBW LED sources for versatile lighting effects. Each LED segment can be assigned its own color and intensity to create chases, waves, patterns, and animated effects. With a 5–25° beam angle, the fixture can produce both broad washes and tighter concentrated rays. Its 30° field angle provides additional coverage for wash applications. The fixture includes 50 preset patterns for quick access to dynamic effects.

Rotating Lens Effects

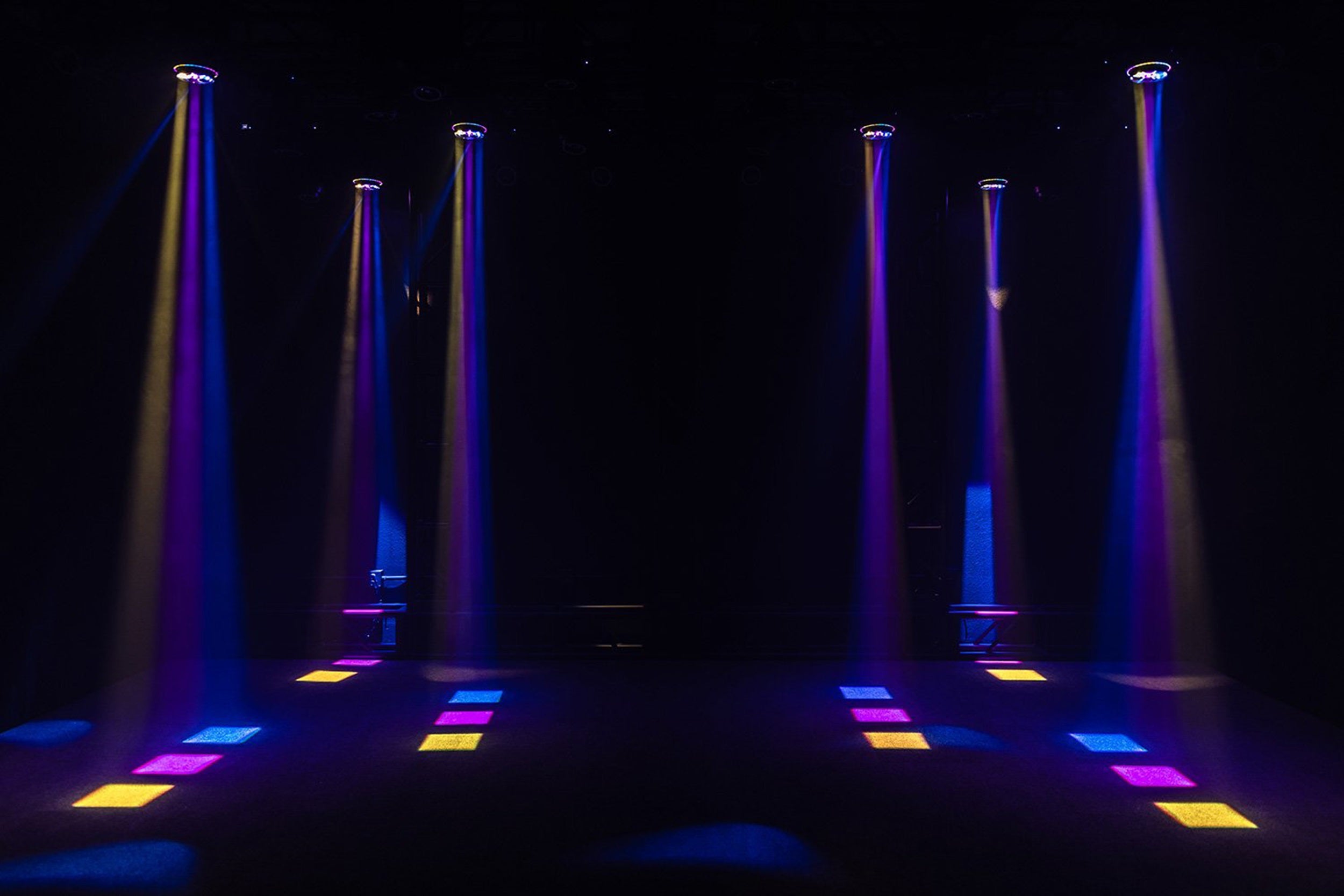

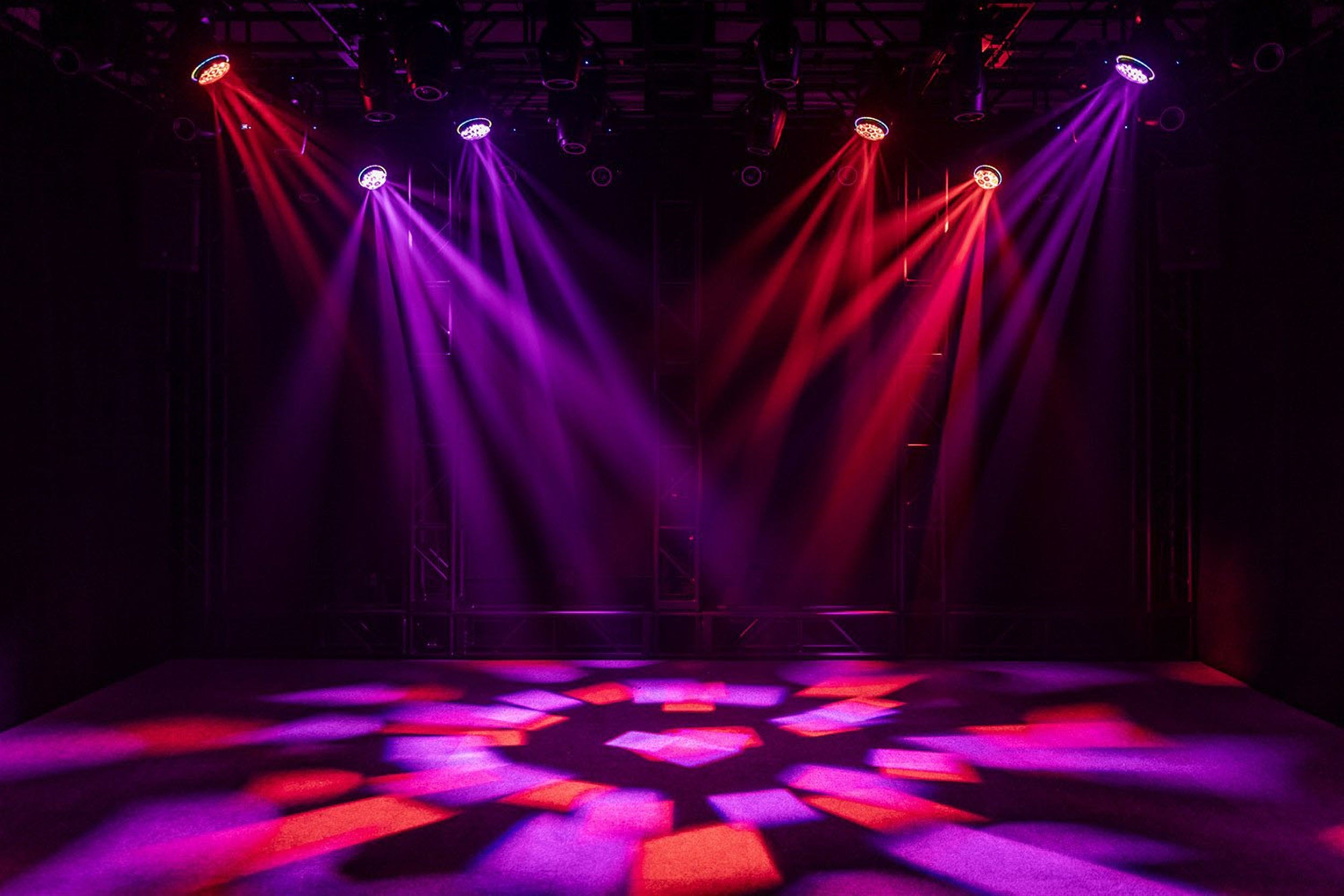

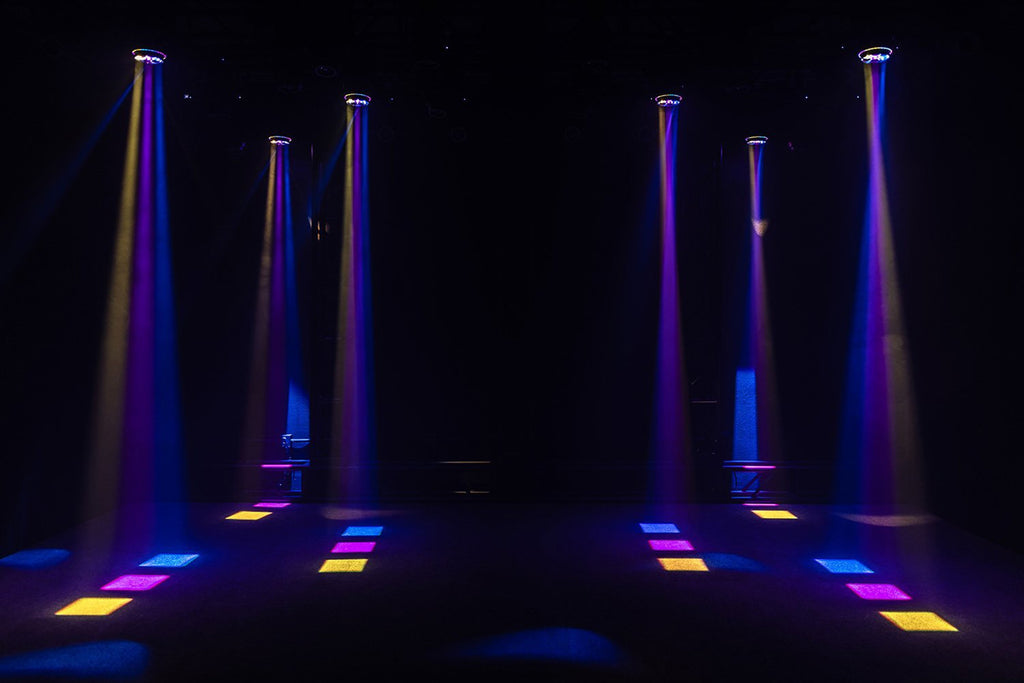

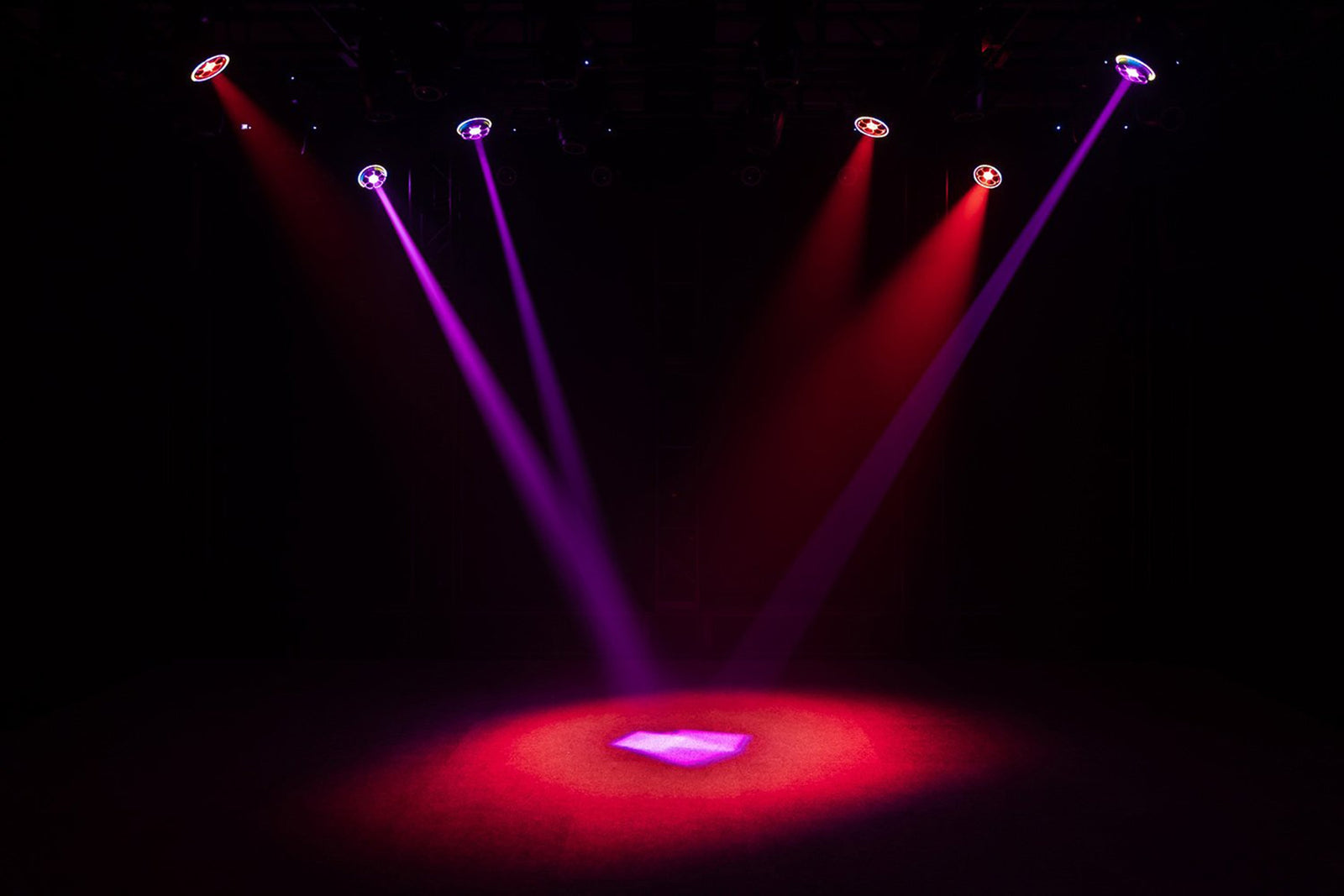

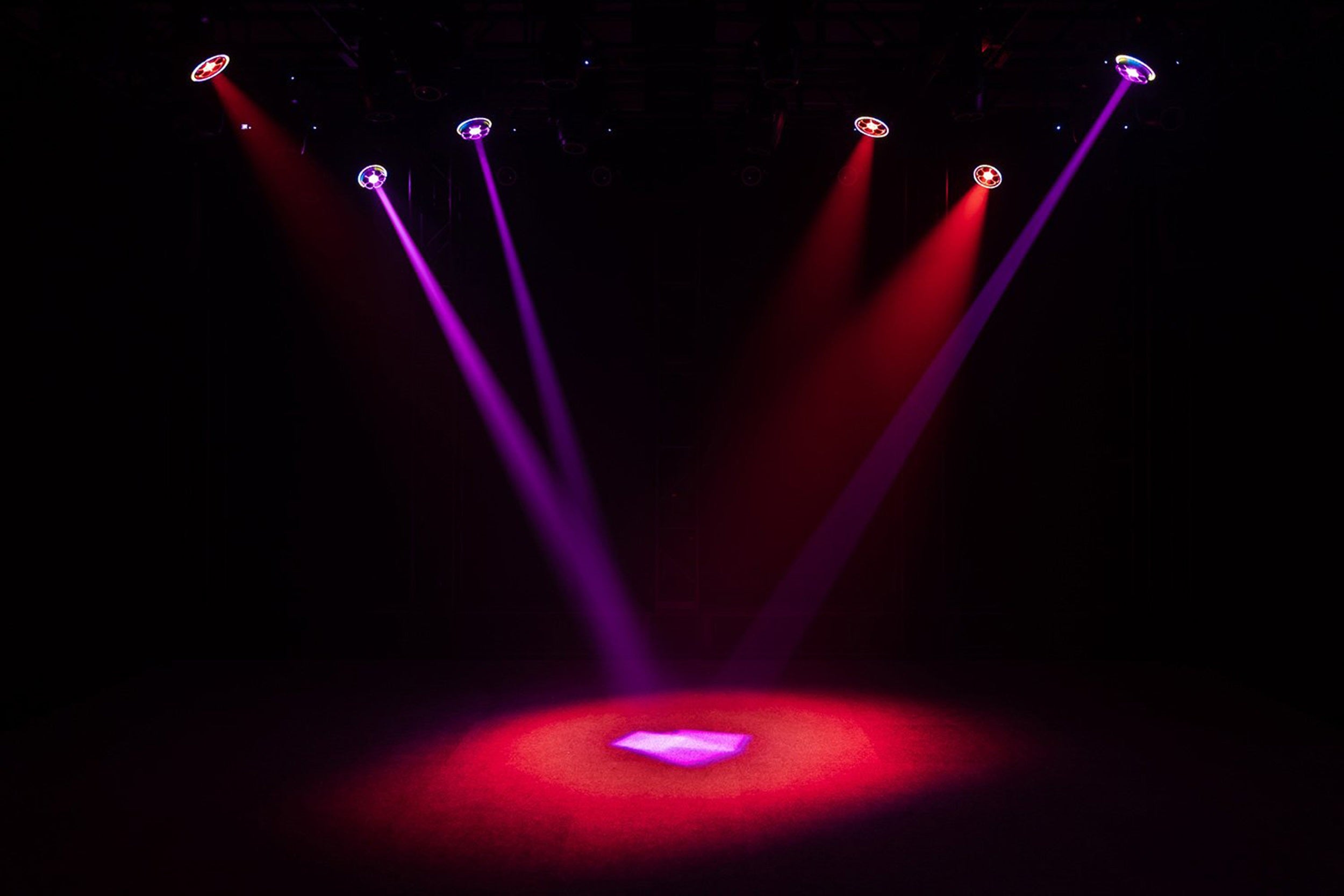

The front lens cluster can rotate continuously in both directions to create distinctive visual effects. Combined with individual pixel control, the rotating lenses produce flower-like and kaleidoscope-style patterns. When zoomed in, individual LED pixels form concentrated rays that can spin, chase, and move independently. This creates striking aerial effects when used with haze or atmospheric effects. The rotating lens system adds motion and depth to both static and programmed lighting scenes.

RGB Halo Effects

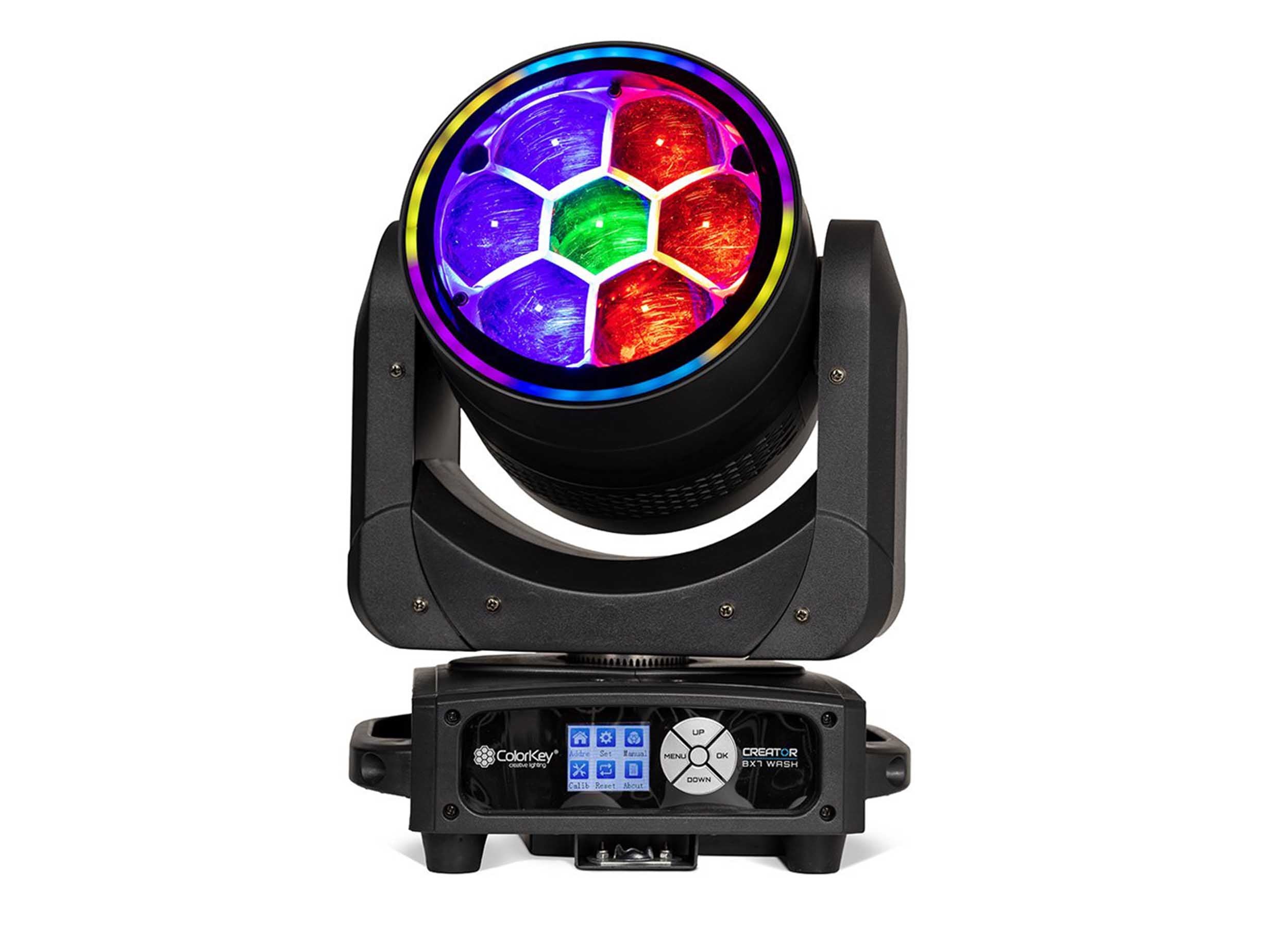

A 54-LED RGB halo surrounds the main beam and adds another layer of visual impact. The halo includes built-in dynamic effects and can synchronize with other compatible Creator Series fixtures. Independent beam and halo dimmer and strobe controls allow operators to create layered lighting looks. Pre-programmed chases and patterns provide additional automated effects. The UHX™ halo design also helps maintain a consistent visual identity across compatible fixtures.

Intelligent Beam Positioning

Frame Set position control helps keep the BX7's intense beams directed where they are needed. Frame Forward helps prevent unwanted projection toward rear walls, while Frame Up limits tilt to keep beams away from audience eye level. The fixture provides 540° pan and 250° tilt movement with fine adjustment. These positioning features make automated beam placement more precise and predictable. They are especially useful for professional stages, clubs, and event installations.

Professional Control and Installation

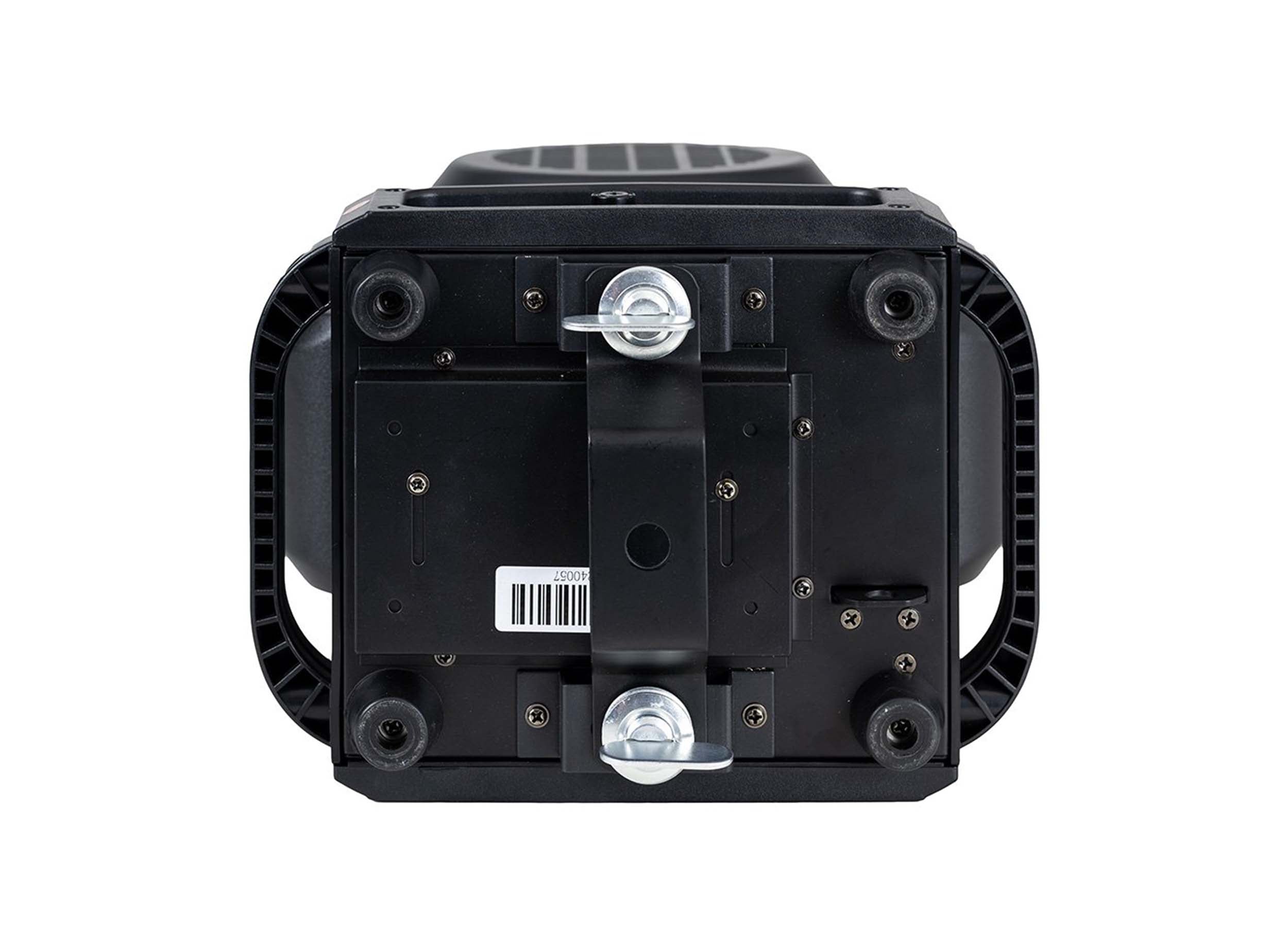

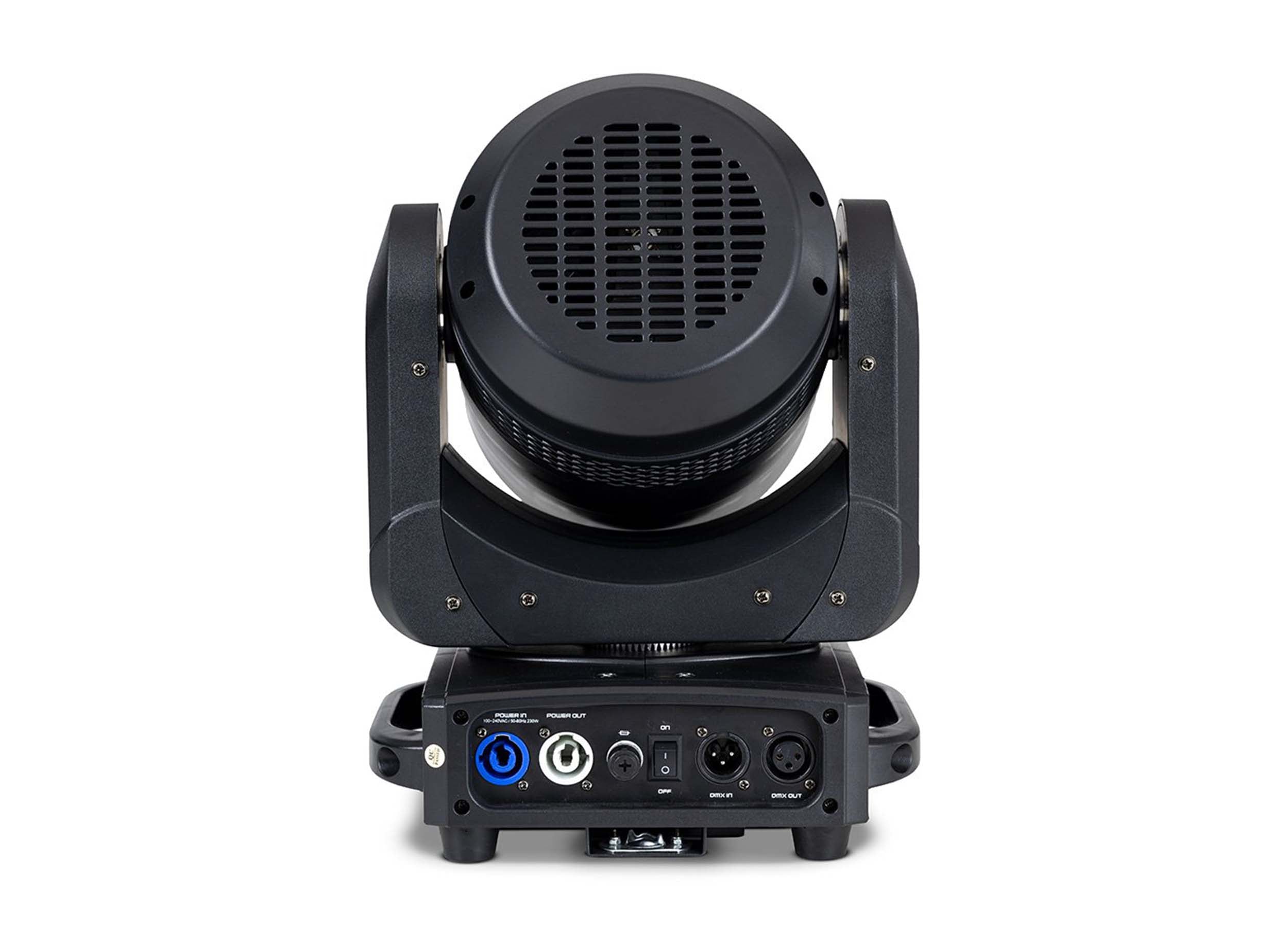

The Creator BX7 Wash supports 25- and 53-channel DMX modes along with DMX512, RDM, auto, master-slave, and sound-active control. DMX Hold maintains the current values if the control signal is lost. A 1.77-inch LCD display provides straightforward fixture navigation and setup. PowerCon locking input and output connections support secure power linking. Quick-release brackets simplify setup and teardown for touring applications and permanent installations.

Product Specifications:

Product Type: RGBW Bee-Eye Moving Head Wash

Light Source: 7 x 40W RGBW LEDs

Total LED Power: 280W

Halo: 54 RGB LEDs

Color Temperature: 2800 to 8500K

LED Lifetime: 50,000 Hours

Brightness: 60,900 Lux @ 2 m (5°); 5,100 Lux @ 2 m (25°)

Beam Angle: 5 to 25°

Field Angle: 30°

Strobe: 1 to 30 Hz

Dimmer: 0 to 100% Linear

Pan: 540° with Fine Adjustment

Tilt: 250° with Fine Adjustment

DMX Channel Modes: 25 / 53

Control Modes: DMX512, Auto, Master-Slave, Sound Active, RDM

Display: 1.77-Inch LCD

Position Control: Frame Set

Lens Rotation: Continuous Bidirectional Rotation

Preset Patterns: 50

Power Connection: PowerCon Locking In/Out

DMX Connectors: 3-Pin DMX In/Out

Maximum Power Consumption: 350W

Operating Voltage: AC 100 to 240V

Operating Frequency: 50/60 Hz

Product Weight: 13.9 lbs

Product Dimensions (L x W x H): 10.2 x 7.5 x 14.2 in
