Description

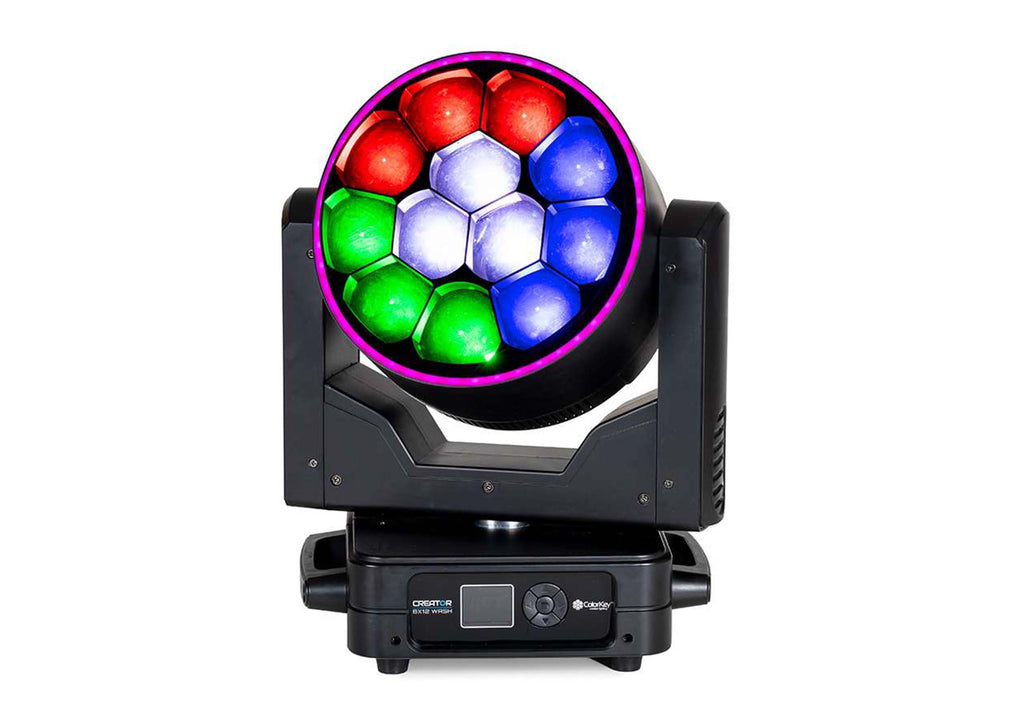

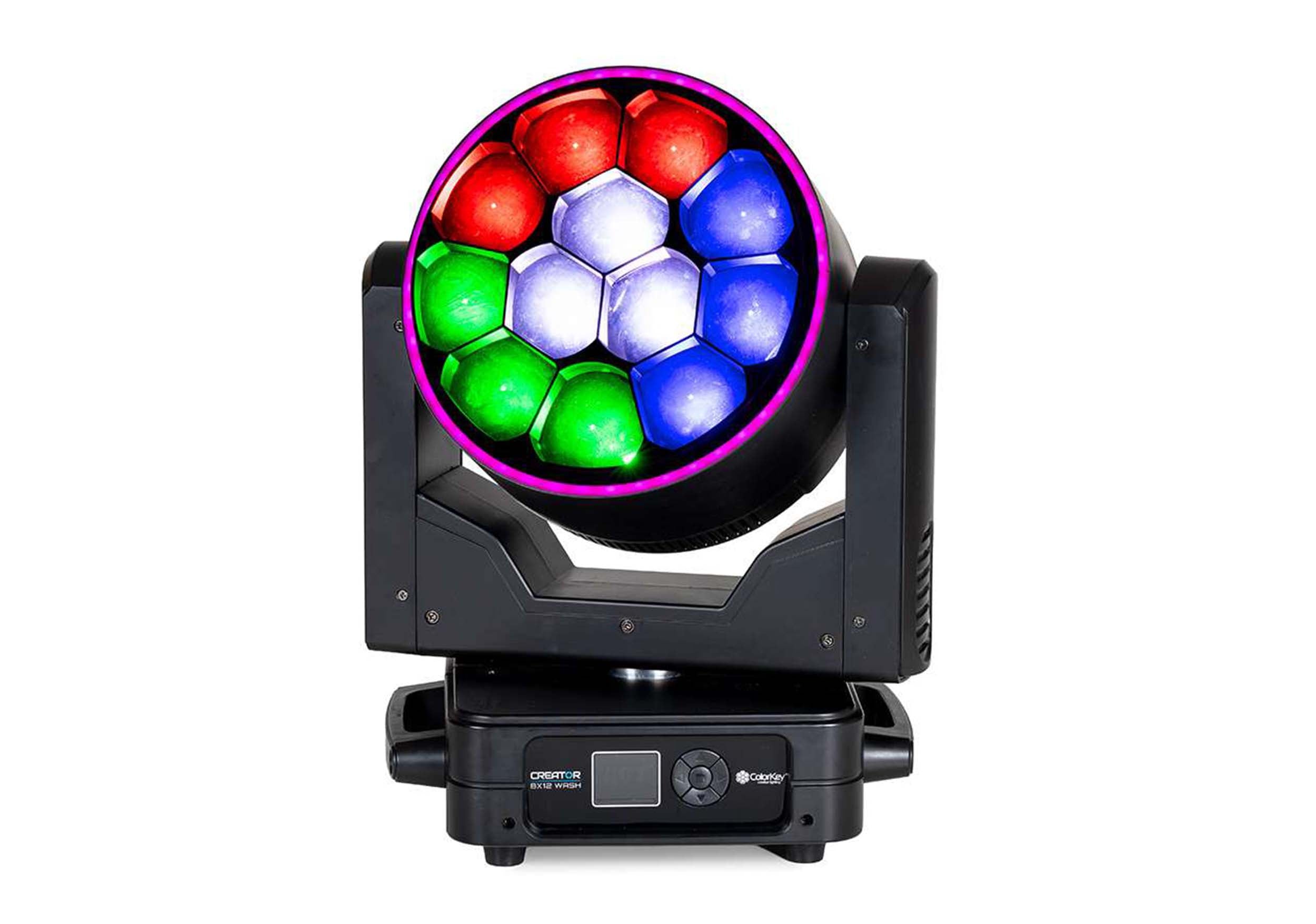

The ColorKey Creator BX12 Wash is a powerful 480W Bee-Eye moving head fixture designed to deliver high-impact stage washes and dynamic aerial effects in professional lighting environments. Built for versatility, it combines strong RGBW wash output with advanced pixel control and rotating optics, making it suitable for concerts, clubs, touring productions, and immersive stage designs where both color and movement are essential.
High-Power RGBW Wash Output
At its core, the BX12 uses twelve 40W RGBW LEDs to produce rich, vibrant color with smooth blending and consistent coverage across the entire stage or audience area. When used in wide zoom mode, it functions as a soft, immersive wash light capable of filling large spaces with even, atmospheric color, making it ideal for both subtle mood lighting and high-energy performance environments.
Advanced Pixel Control & Dynamic Effects
Each LED segment features individual pixel control, allowing every light source to be assigned its own color and intensity for highly creative programming. This enables complex effects such as chases, color waves, and animated patterns. Combined with the rotating front lens cluster, the fixture produces mesmerizing flower-like and kaleidoscope-style visuals that add depth, motion, and visual drama to any lighting show.
Zoom, Beam Effects & UHX Integration
The BX12 transforms dramatically when zoomed in, shifting from a wide wash into a tight beam-style effect where individual pixels generate sharp, concentrated rays that can spin, chase, or move independently through the air. It also features a multicolor UHX™ halo system, ensuring consistent control and visual identity across compatible Creator Series fixtures, while Frame Set positioning helps prevent unwanted spill into sensitive areas.
Product Specifications:
Light Source: 12 x 40W RGBW LEDs
Halo: 84 x 0.2W RGB LEDs
Beam Angle (Zoom): 5° – 25°
Field Angle: 30°
Color Temperature: 2800K – 8500K
Illuminance: 111,700 lux @ 2m (5°), 17,600 lux @ 2m (18°)
Strobe: 1 – 30 Hz
Dimmer: 0 – 100% Linear
Movement: Pan 540° + fine, Tilt 250° + fine
LED Lifespan: 50,000 hours
Pixel Control: Individual LED Segment Control
Preset Programs: 50 Built-in Pixel Patterns
UHX™ System: Unified Halo Experience Compatible
Frame Control: Frame Set Position Control (Forward / Up)
DMX Hold: Yes
Control Modes: DMX512, Auto, Master/Slave, Sound Active, RDM
DMX Channels: 25 / 73 CH
Display: 1.77" LCD Display

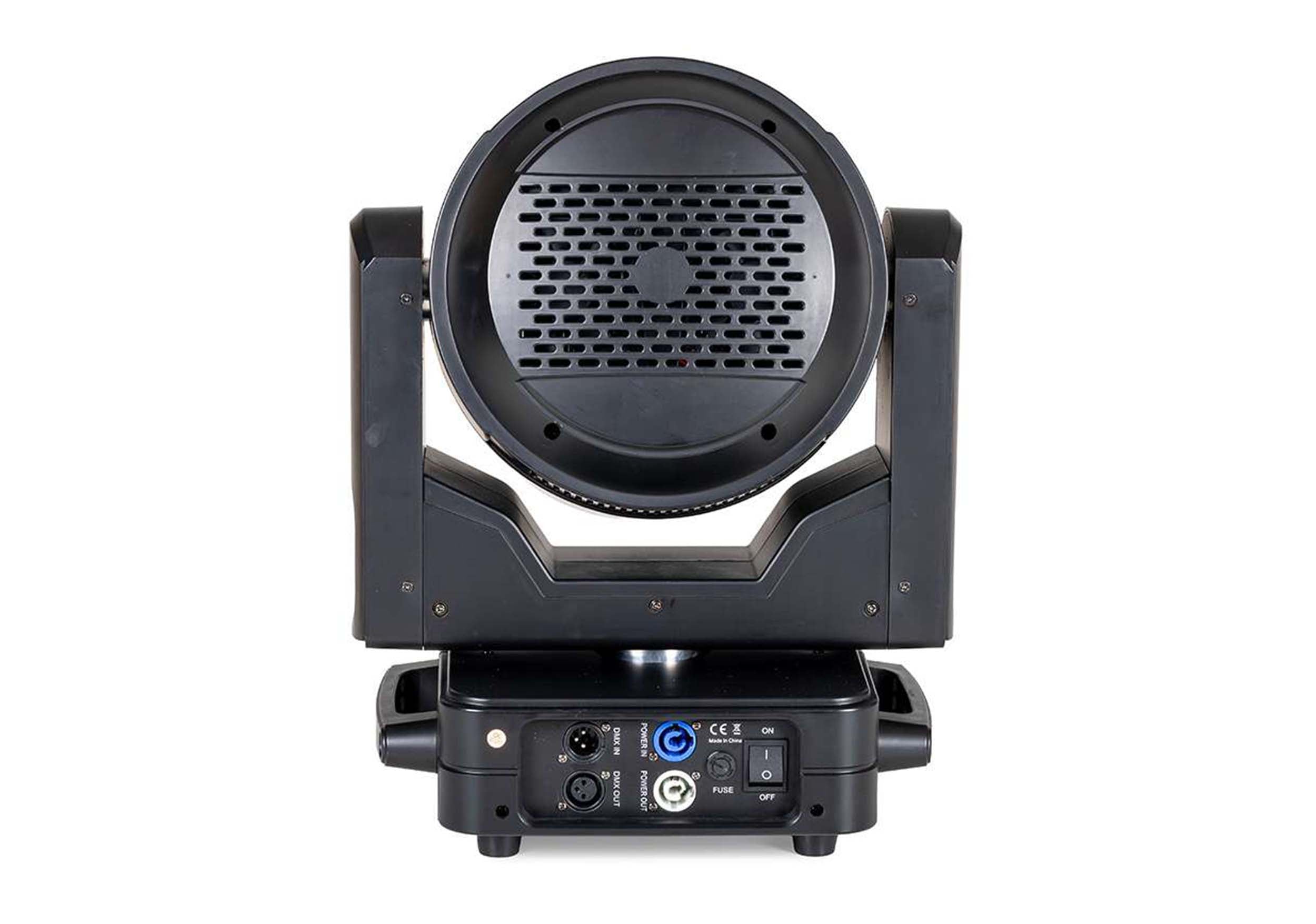

Power Input/Output: PowerCON Locking In/Out
DMX I/O: 3-Pin In/Out
Voltage: AC 100–240V, 50/60Hz
Max Power Consumption: 500W
Weight: 29 lbs (13.15 kg)
Dimensions: 13.2" x 9.8" x 15.9" (33.5 x 25 x 40.5 cm)
