Description

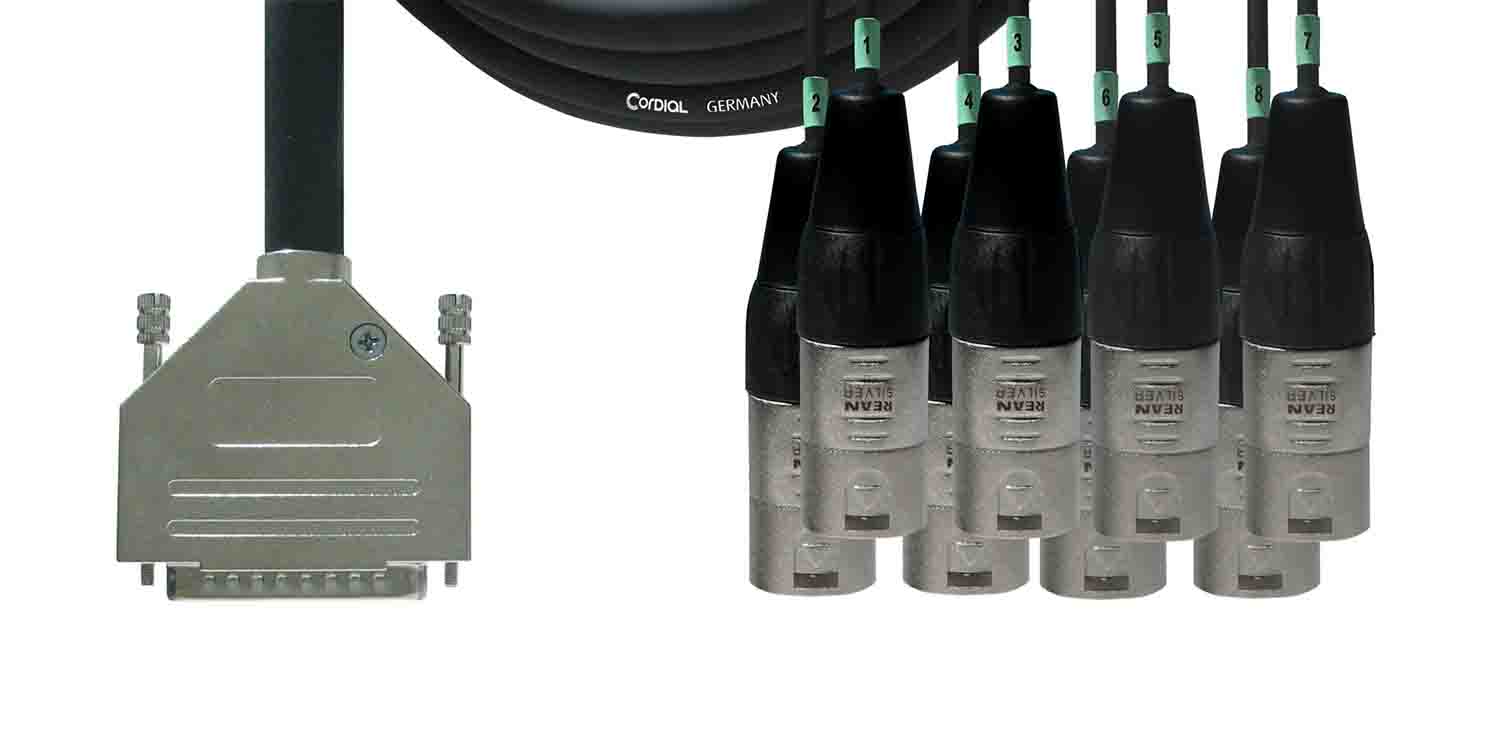

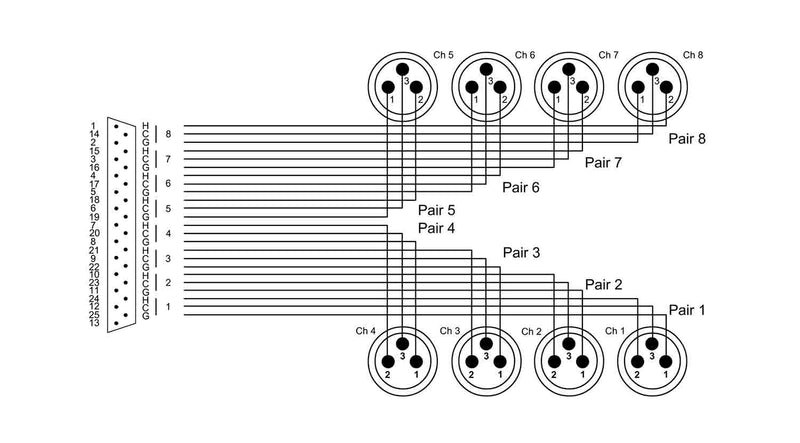

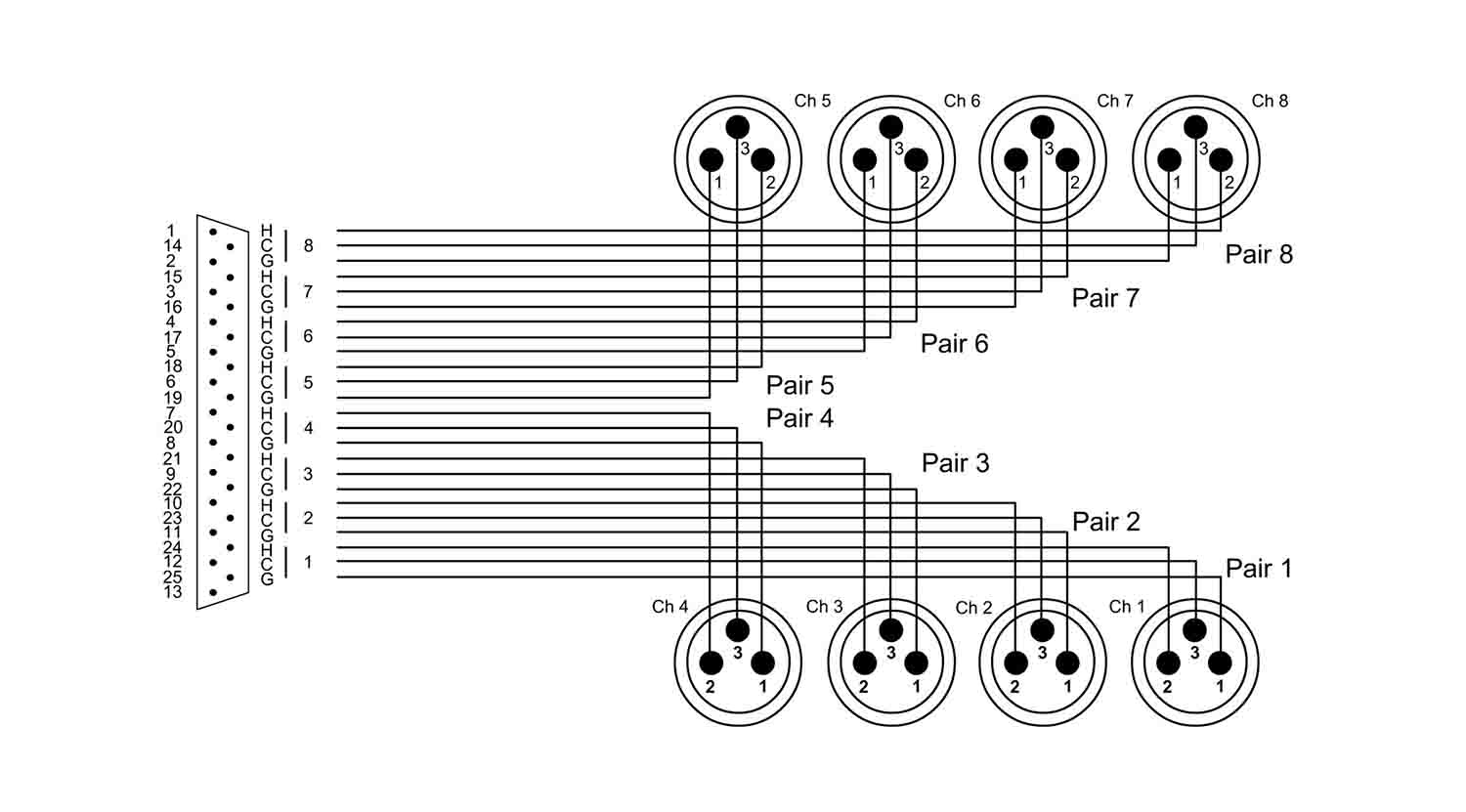

The Cordial CFD DMT is a Multicore Cable with Analog Tascam DSUB. Our CCD DMT is a high-grade multicore cable for professional studio and LIVE applications. Its pin configuration conforms with the analog Tascam DSUB 25 specification (DA 88) and features 25-pin D-Sub male to 8x 3-pin XLR male nickel-plated metal connectors. The corresponding bulk cable is CORDIAL’s CMD 8, which transmits analog as well as DMX signals excellently and features a tinned braided shield and spiral wound tinned copper pair screens.
Product Specifications:
Cable: CMD 8
Jacket: PVC
Cable Assign: DMT
Connector Brand: REAN SILVER
Plugs:
1 D-Sub
8 XLR male 3-pole
Conductor Area: 0.14 mm²
AWG: AWG 26
Composition of Conductor: 18 x 0.10 mm
Material: Tinned Copper
Conductor Resistance: 140 Ω/km
Shielding: Tinned Copper Braided Screen (>80% covering)
Capacity cond.-cond. (pF/m): 45 pF / m
Category: DMX-AES/EBU-110 Ohm
Diameter: 12.5 ± 0.5 mm
Conductor Isolation: PE
