Crown Audio DCI4X1250N 4-Channel DriveCore Install Network Amp w/ BLU

The Crown Audio DCI4X1250N, 4-Channel DriveCore Install Network Amplifier with BLU - 1250 Watt is Link network amplifier with advanced features and flexibility. The amplifier provides analog and digital inputs, network monitoring and control, programmable General-Purpose Input/output (GPIO) ports, and on-board Digital Signal Processing (DSP). The amplifier also meets EN 54-16 compliance for life safety systems to serve the needs of hospitality, large venues, and other markets.

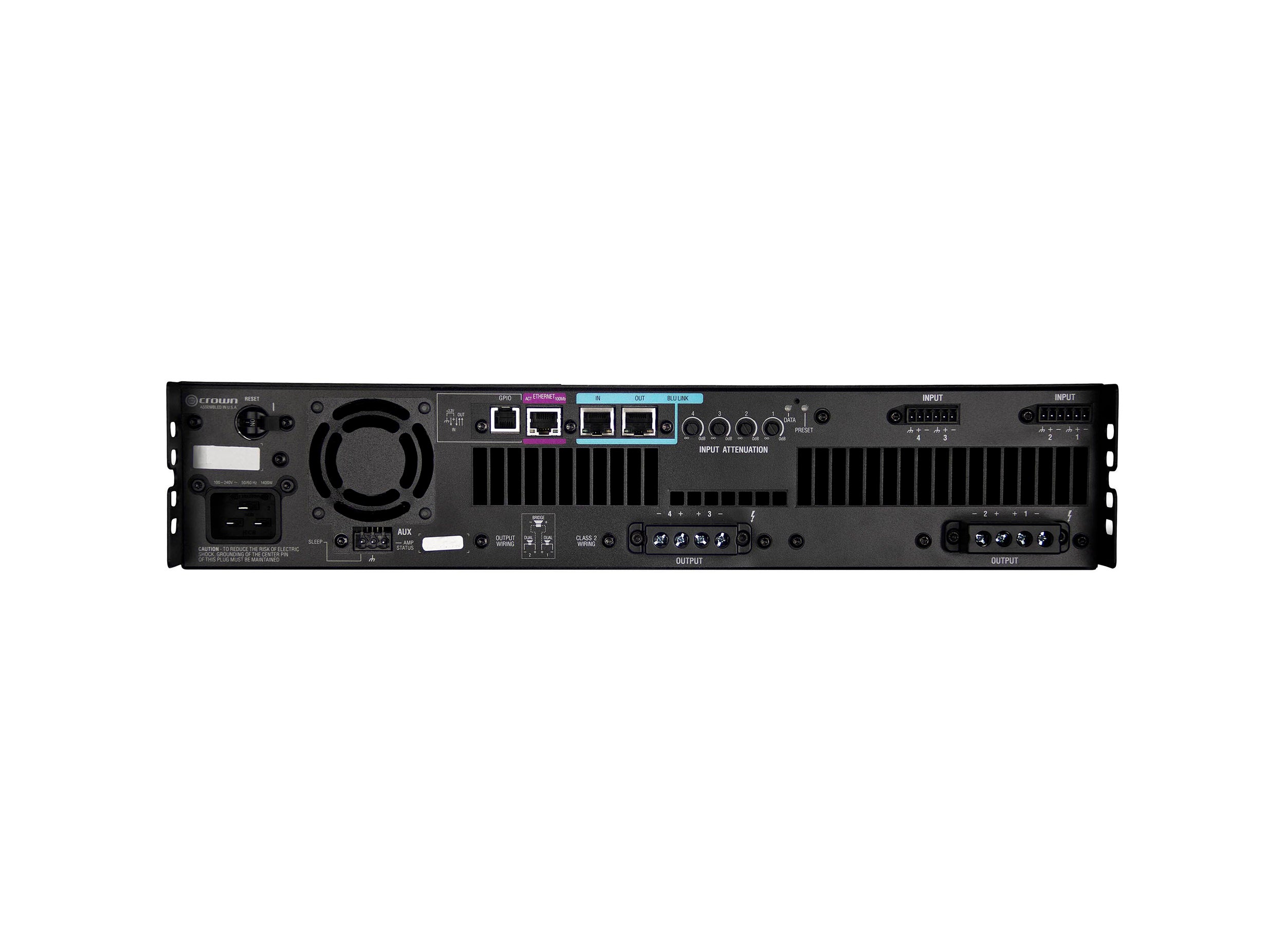

The 2 RU 4/1250N can produce up to 1250W of output per channel at 2, 4, 8, or 16 ohms or 70 or 100 Vrms. It is compatible with Harman's BLU Link digital audio transport and accepts digital inputs via its rear-panel RJ-45 connectors. This digital control allows for networked monitoring, recallable presets, and the setup of secondary inputs that engage if the primary inputs fail. The built-in DSP capabilities include limiting, input/output EQs, delay, and a matrix mixer.

Each channel pair can be bridged for powering higher power applications such as a subwoofer. The 4|1250N also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 4 channels additionally features independent attenuators with a range from 0 to -80 dB.

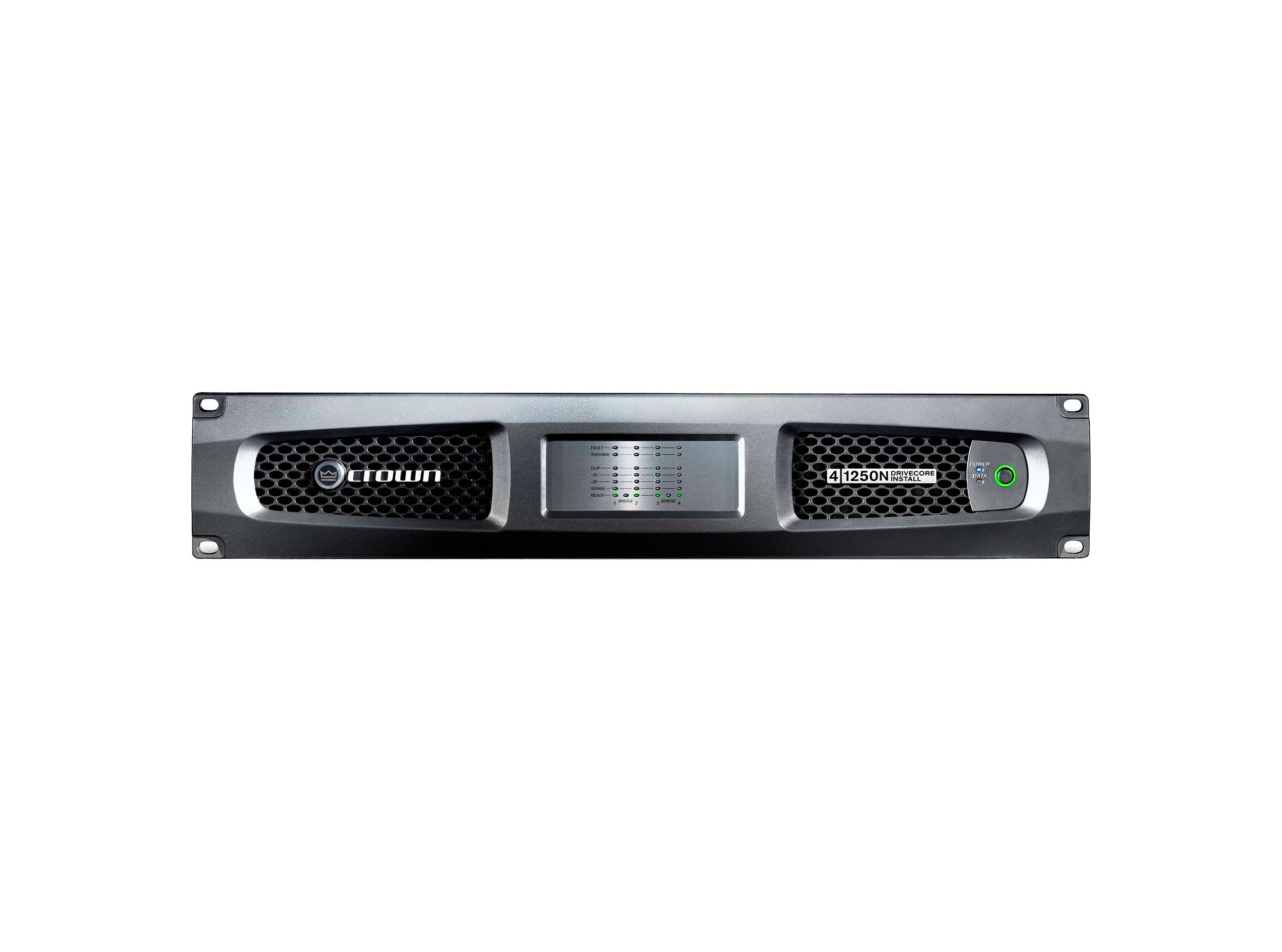

The front panel of the 4|1250N provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use.

Network Monitoring & Control

Monitoring, control, and audio manipulation are provided with the HiQnet protocol that's over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.

Programmable General-Purpose Input/Output Ports

GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.

DSP

DSP includes LevelMAX limiters, input/output EQ, delay, matrix mixer, and speaker line monitoring.

Direct Drive Constant Voltage

You can use smaller-gauge wiring to drive the speakers using either 70/100 Vrms. With no need for a step-up transformer at the output, the DCi produces audio more efficiently.

Channel-Independent Hi-Z/Low-Z Selection

Drive either one to four speakers in low-Z mode, or literally hundreds of speakers in hi-Z mode (70 or 100 Vrms). This means design flexibility since DCi powers all loads on a channel-by-channel basis.

Bridgeable Channel Pairs

The DriveCore Install Series channels are bridgeable, even in 100 Vrms mode, allowing them to be used to for higher-power applications like subwoofers.

Remote On/Off Interface

The amplifier can be integrated into a control system for remote on/off control.

Efficient Cooling Design

Efficient internal cooling fans provide airflow to the most heat-generating parts. Incorporating the fans into the amplifier brick design maximizes cooling while minimizing wasted energy and noise.

Auto Standby

The amplifier automatically goes into sleep mode after 30 minutes of no input signal.

TLC Protection

The amp has built-in protection from excessive heat by applying gain reduction when necessary.

Advanced Protection Circuits

Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, overvoltage or undervoltage, and high-frequency overload.

Product Specifications:

Number of Channels: 4

Amplifier Power Rating:

2 Ohms:

1250 W per Channel

4 Ohms:

1250 W per Channel

2500 W Bridged

8 Ohms:

1250 W per Channel

2500 W Bridged

16 Ohms:

625 W per Channel

2500 W Bridged

70 V / 100 V:

1250 W per Channel

140 V / 200 V:

2500 W Bridged

Load Impedance / Voltage:

Parallel/Stereo:

2 / 4 / 8 / 16 Ohms

70 / 100 V

Bridged/Mono:

4 / 8 / 16 Ohms

140 / 200 V

Performance:

Protections: DC Fault, Low Impedance, Overvoltage, Short Circuit, Thermal, Ultrasonic, Undervoltage

Frequency Response: 20 Hz to 20 kHz ±0.25 dB

Damping Factor: > 1000

Input Sensitivity:

2 Vrms (at 8 Ohms)

1.4 Vrms (at 70 V)

2 Vrms (at 100 V)

Input Impedance:

10 Kilohms (Balanced)

5 Kilohms (Unbalanced)

Max Gain: 34 dB

SNR:

> 104 dB (at 8 Ohms)

> 108 dB (at 8 Ohms)

THD: < 0.35% (Full Range, at Rated Power)

Intermodulation Distortion: ≤ 0.35%

Crosstalk: > 80 dB (Below Rated Power, 20 Hz to 1 kHz)

Common Mode Rejection Ratio (CMRR): > 70 dB

Signal Processing:

DSP: Yes

Crossover: Yes

Ducking/Muting: No

Limiting: Yes

Connectivity:

Analog Audio I/O:

4x Block 6-Pin Balanced Input

4x Barrier Strip 4-Pin Output

Digital I/O:

1x RJ11 (Control)

1x RJ45 (Control, Network)

2x RJ45 BLU-Link

USB I/O: No

Power:

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

AC Power Connector: 1x IEC 20 A / NEMA 5-20

Current Consumption:

120 VAC:

7.3 to 9 A (1/8 Power)

16.8 to 20.3 A (1/3 Power)

230 VAC:

3.8 to 4.5 A (1/8 Power)

8.8 to 10.6 A (1/3 Power)

Power Consumption:

120 VAC:

217 to 309 W (1/8 Power)

279 to 533 (1/3 Power)

230 VAC:

195 to 238 W (1/8 Power)

249 to 419 (1/3 Power)

Physical:

Display & Indicators: 15x LED (Bridged Mode/Clip/Fault/Level/Signal/Standby/Thermal)

Rackmount Size: 2 U

Cooling: Fan (Variable Speed)

Thermal Dissipation: 1819 BTU/hr (Maximum)

Product Dimensions: 19.0 x 3.5 x 17.0" / 48.3 x 8.9 x 43.2 cm

Product Weight: 30 lbs. / 13.6 kg
