Description

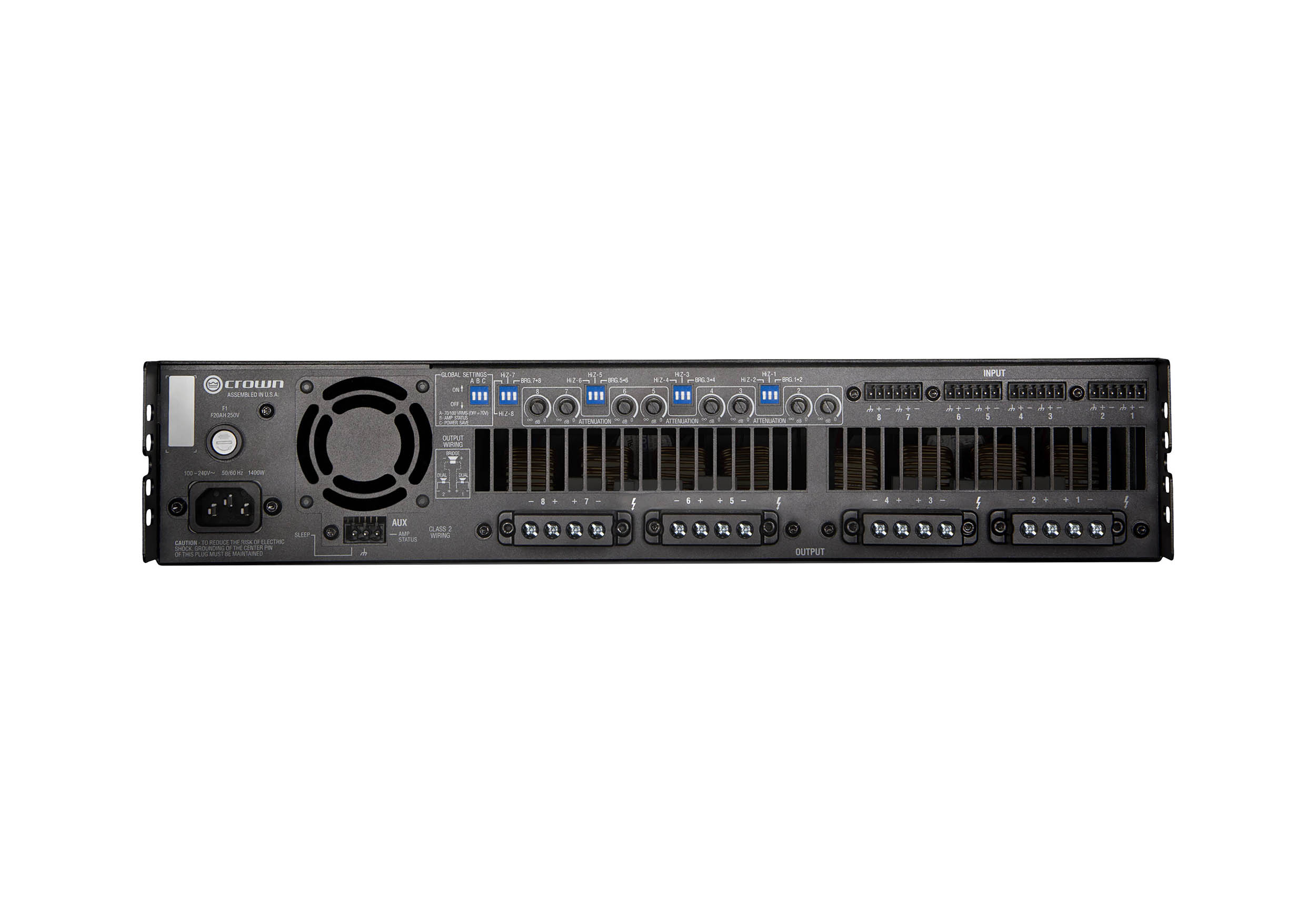

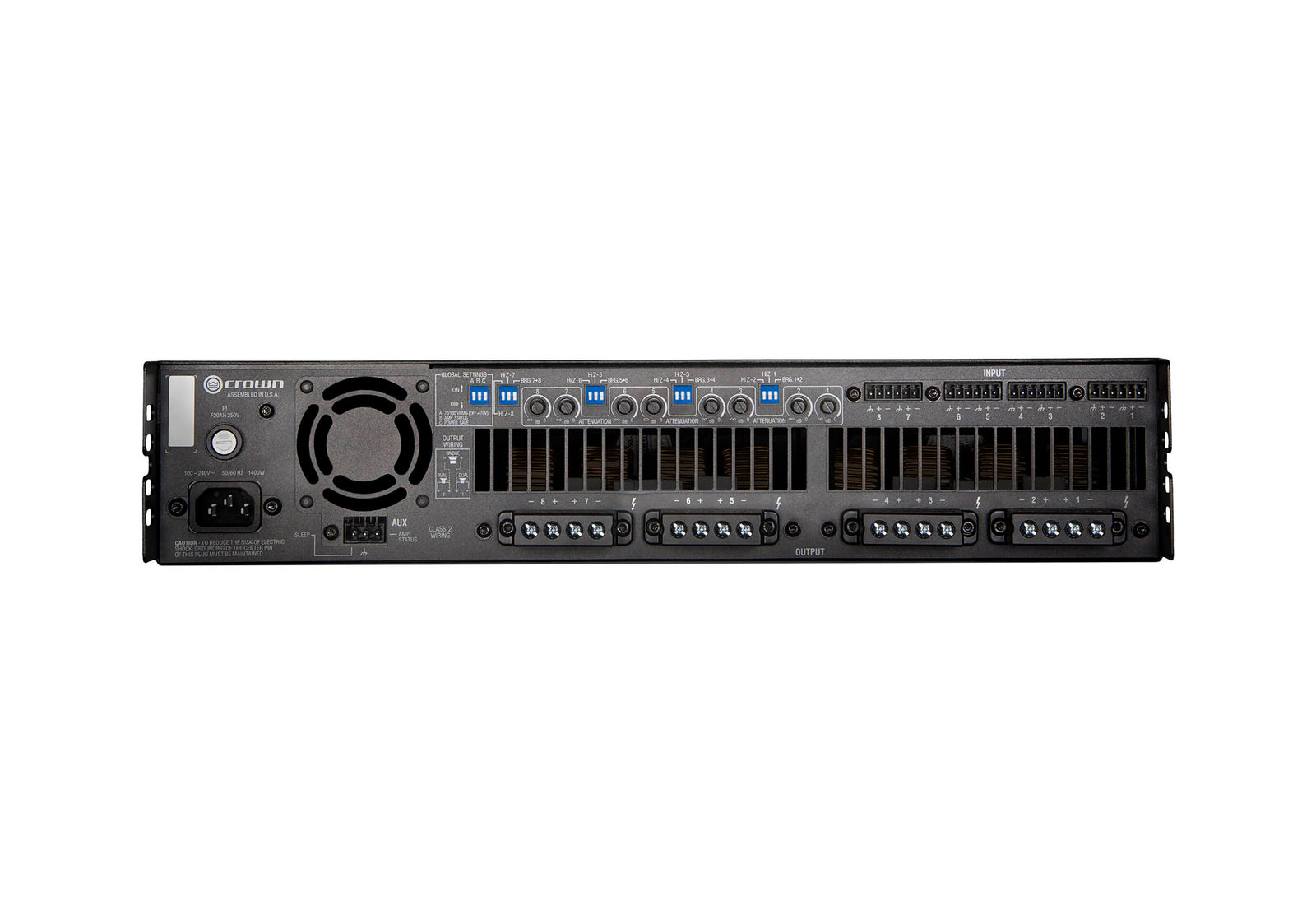

The Crown Audio DCI8X300 DriveCore Install Analog Series is an 8-channel amplifier capable of producing 300 watts of output per channel and works with 2, 4, 8, and 16 Ohms or 70 or 100 Vrms. Channels can be bridged for powering higher-power applications such as a subwoofer. The DCi 8|300 also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 8 channels additionally features independent attenuators with an attenuation range from 0 to -95 dB.

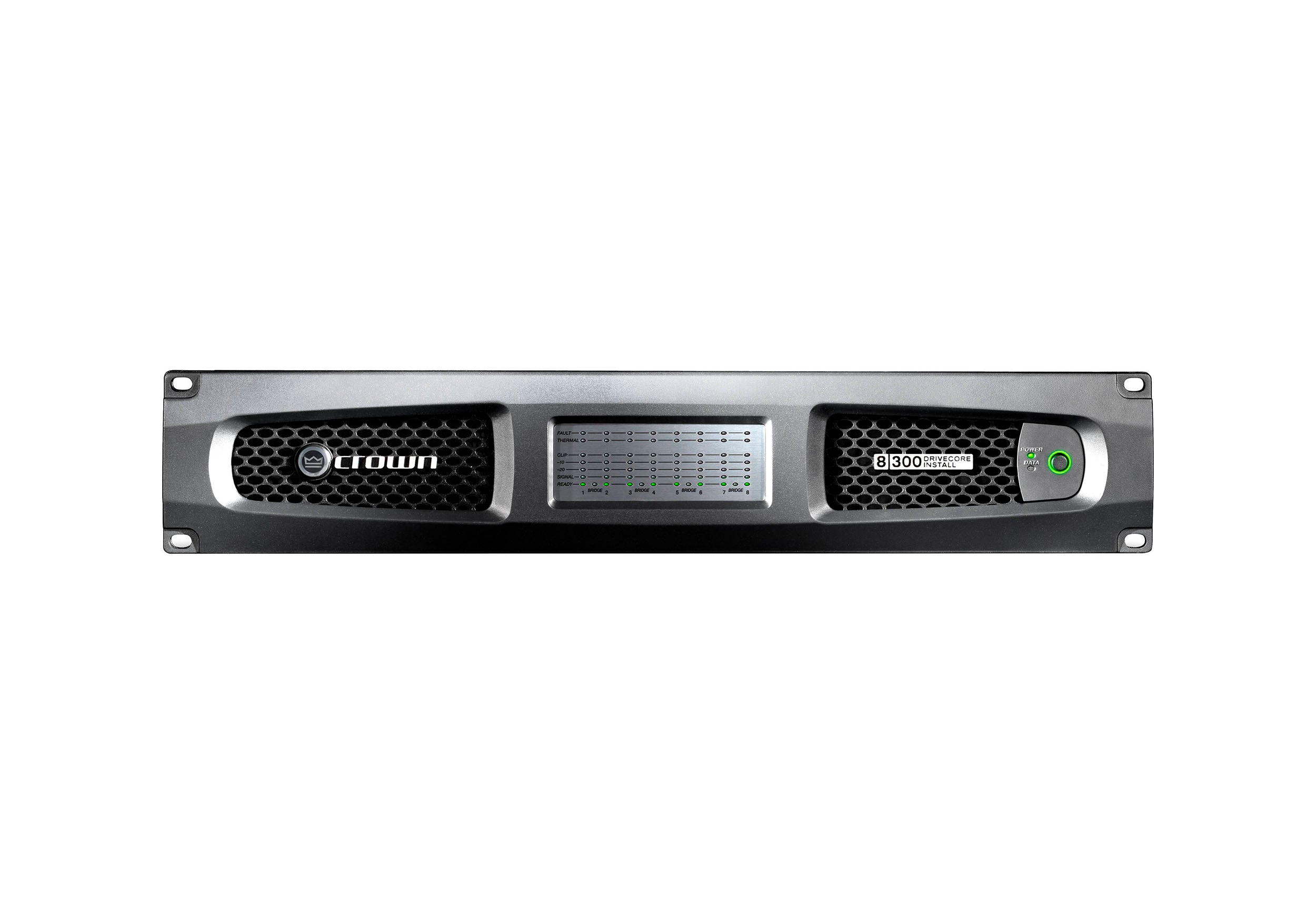

The front panel of the DCi 8|300 provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The DCi 8|300 is 2 RU rackmountable and ships an IEC power cord.
Product Specifications:
Number of Channels: 8
Amplifier Power Rating:
2 Ohms:
150 W per Channel
4 Ohms:
300 W
300 W Bridged
8 Ohms:
300 W per Channel
600 W Bridged
16 Ohms:
150 W per Channel
600 W Bridged
70 V:
300 W per Channel
140 V:
600 W Bridged
100 V:
300 W per Channel
200 V:
600 W Bridged
Amplifier Class: Class-D
Load Impedance / Voltage: 16 Ohms (Maximum)
Performance:
Frequency Response: 20 Hz to 20 kHz (8 Ohms)
Damping Factor: > 1000
Input Impedance:
10 Kilohms (Balanced)
5 Kilohms (Unbalanced)
Max Gain: 34 dB
Max Input Level: +26 dBu
SNR: > 108 dB
THD: 0.35% (at Rated Power)
Connectivity:
Analog Audio I/O:
8x Block 6-Pin Input
8x Barrier Strip 4-Pin Output
Power:
AC Input Power: Universal: 100 to 240 VAC, 50 / 60 Hz
AC Power Connector: IEC 15 A
Physical:
Display & Indicators: LED (Bridged Mode/Clip/Fault/Level/Thermal)
Rackmount Size: 2 U
Cooling: Fan (Variable Speed)
Dimensions: 19.0 x 3.5 x 14.2" / 48.3 x 8.9 x 36.1 cm
Product Weight: 23.5 lb / 10.7 kg
Shipping Weight: 28.81 lbs.
Shipping Dimensions (LxWxH): 22.2 x 20.6 x 8 Inches
