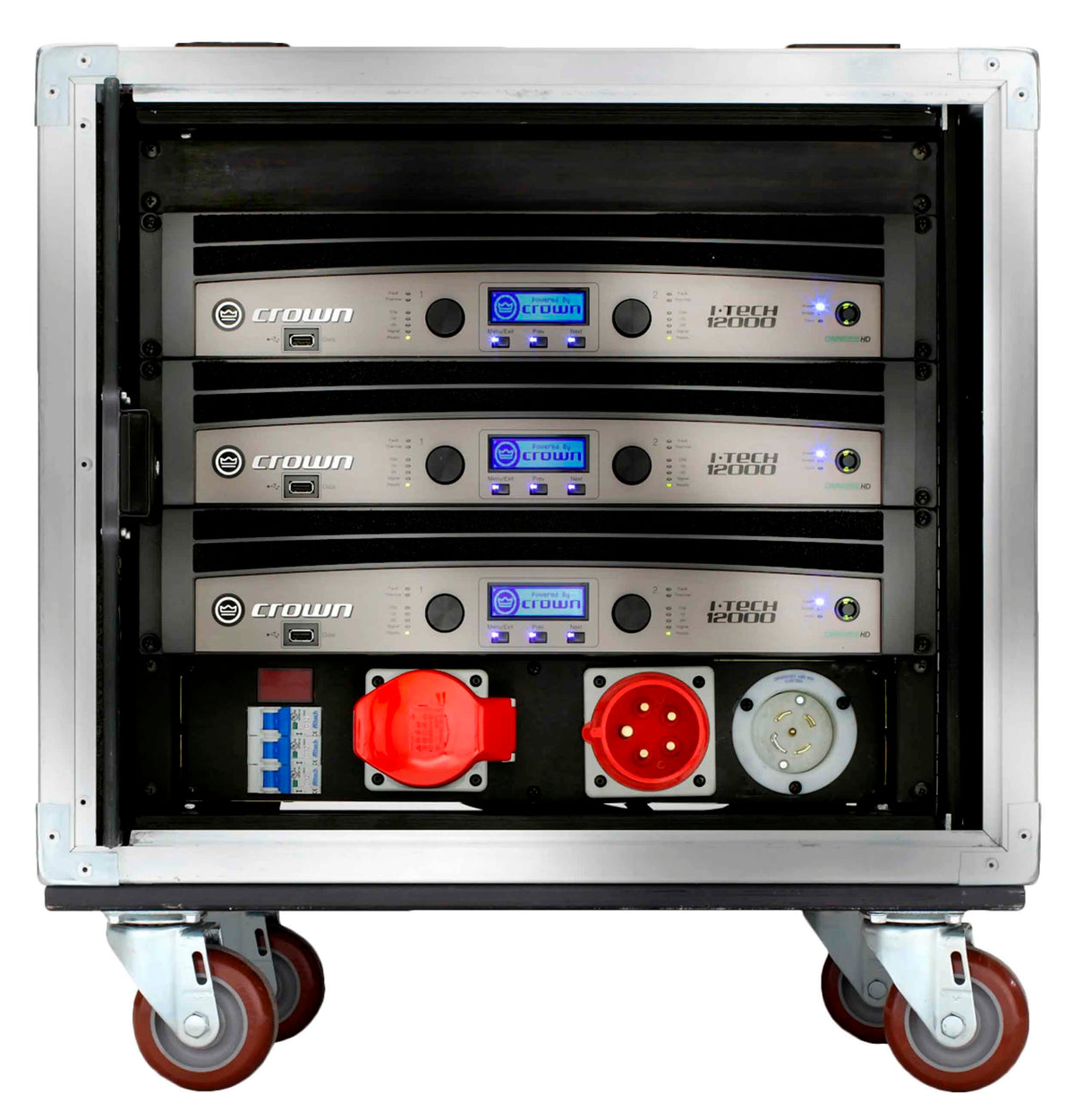

Crown VRack 12000HD Complete is a turnkey amplification system designed to simplify setup for professional sound reinforcement and touring applications. Developed in conjunction with JBL for VerTec loudspeakers, this all-in-one rack system comes with Crown-engineered components and requires no assembly, helping technical teams save time and focus on other production tasks. With optimized performance, full safety approvals, and flexible configurations, the VRack 12000HD is suitable for a wide range of venues and professional audio environments.

The VRack 12000HD features Crown OMNIDRIVEHD digital signal processing, LevelMAX limiters, and audibly superior linear-phase FIR filters to support precise audio control and speaker performance. HiQnet Performance Manager software allows users to monitor and adjust all three amplifiers through a single interface, including input and output peak and RMS metering and overall gain reduction. Built-in network and AES failover helps maintain signal continuity for connected racks, while standardized package configurations simplify system setup and operation.

Designed for international touring and flexible installations, the Crown VRack 12000HD supports AES, VDrive, analog, and network audio inputs. Its power distribution system accommodates 120V or 208V AC in the United States and 220–240V AC internationally, with a switchable configuration for different power environments.

Key Features

• Complete turnkey amplification system with no assembly required.
• Features Crown OMNIDRIVEHD DSP with advanced FIR filters.
• Includes LevelMAX limiters for enhanced system protection.
• Provides reliable power distribution across worldwide AC standards.

Ideal For

• Professional touring sound systems.
• JBL VerTec loudspeaker systems.
• Live concerts and music festivals.
• Large-scale sound reinforcement.
• Arenas and stadiums.
• Theaters and performing arts venues.
• Rental and event production companies.
• Touring audio engineers and technicians.

What's in the Box

• Crown VRack 12000HD Complete Amplification Rack.
• Three Crown Power Amplifiers (Built-In).
• Integrated Power Distribution System.
• Built-In Network and AES Connectivity.
• User Documentation.

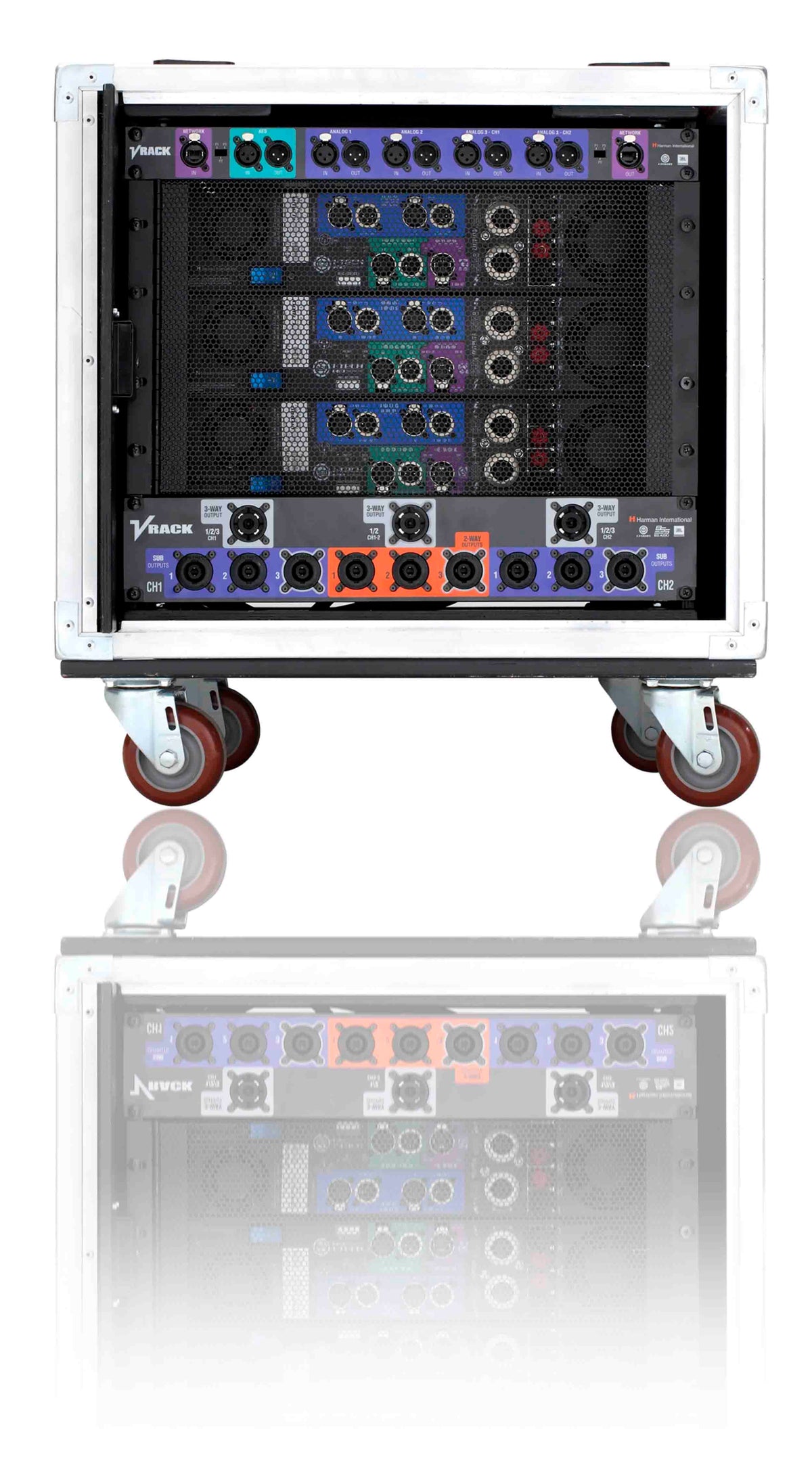

Inputs & Outputs

• AES Digital Audio Input.
• VDrive Audio Input.
• Analog Audio Input.
• Network Audio Input.
• Ethernet Network Connectivity.
• AES Signal Failover.
• Network Signal Failover.
• 5-Pin CEE-Form Power Connector.
• 5-Pin Hubbell Twist Lock Power Connector.

Frequently Asked Questions

What is the Crown VRack 12000HD Complete?

The Crown VRack 12000HD is a turnkey professional amplification rack designed to simplify setup and operation for touring sound systems and large-scale audio applications.

How many amplifiers does the VRack 12000HD support?

It features an integrated system with three amplifiers that can be monitored and adjusted through a single software interface.

What audio inputs does the VRack 12000HD offer?

It supports AES, VDrive, analog, and network audio inputs for flexible connectivity with professional sound systems.

What power sources does the VRack 12000HD support?

It supports 120V and 208V AC in the United States, as well as 220–240V AC for international operation, using a switchable configuration.

Full Technical Specifications

Audio Performance

Brand	Crown Audio
Model	VRack 12000HD Complete
Product Type	Turnkey Professional Amplification Rack System
Amplifier Configuration	Three integrated power amplifiers
Compatible Amplifier Options	Three I-Tech 12000HD or three I-Tech 4x3500HD amplifiers, depending on configuration.
Digital Signal Processing	Crown OMNIDRIVEHD DSP
Limiting	LevelMAX Limiters
Filter Technology	Linear-Phase FIR Filters
Power Technology	Power Factor Correction
Software Control	HiQnet Performance Manager
Monitoring	Input/output peak and RMS metering; gain reduction monitoring
Audio Inputs	AES, VDrive, Analog, Network
Network Control	HiQnet
Failover Protection	AES and Network Failover
Power Distribution	One amplifier per phase
US Power Options	120V AC or 208V AC
International Power Options	220–240V AC
Power Connectors	5-pin CEE Form and 5-pin Hubbell Twist Lock

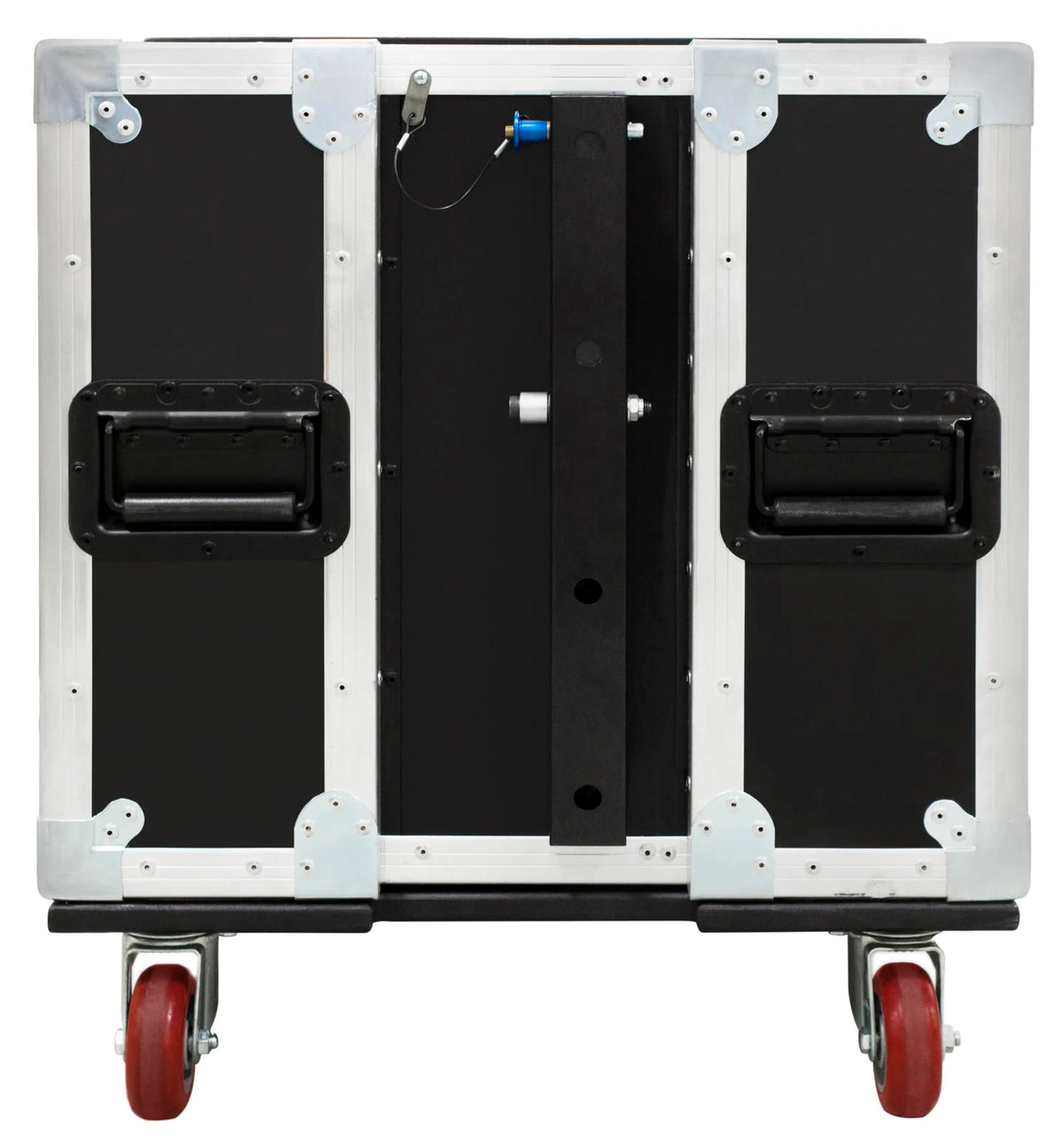

Rigging	Captive suspension system
Rack Construction	Shock-mounted rack
Safety Certification	UL/CSA/ETL listed in manufacturer documentation.

Connectors

AES Input	Digital audio input
VDrive Input	Digital audio connection
Analog Audio Input	Analog audio signal connection
Network Input	Network audio connectivity
Ethernet	Network control and monitoring
5-Pin CEE-Form	AC power connection

Power & Operation

Power System	Integrated power distribution
US Power Options	120V AC or 208V AC
International Power Options	220–240V AC
Power Configuration	Switchable voltage configuration
Power Connectors	5-pin CEE Form and 5-pin Hubbell Twist Lock
Amplifier Configuration	Three integrated amplifiers
Digital Signal Processing	Crown OMNIDRIVEHD DSP
Power Factor Correction	Integrated technology
Limiting	LevelMAX Limiters
Audio Monitoring	Input/output peak and RMS metering
Gain Monitoring	Overall gain reduction monitoring

Dimensions & Weight

Dimensions:	(L × W × H): 22.5"× 23.5"" × 31.25"
Weight	184 lbs
