Description

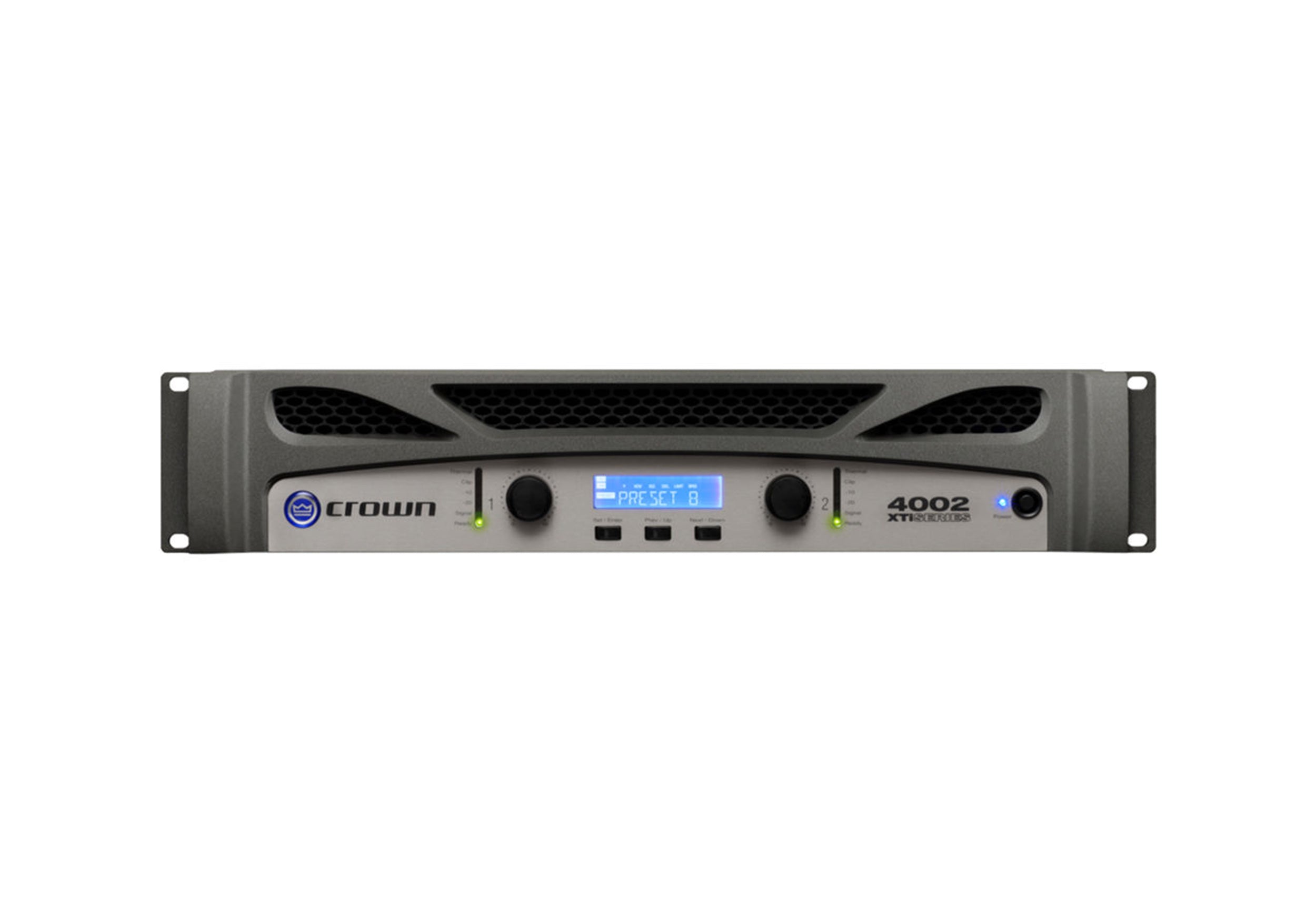

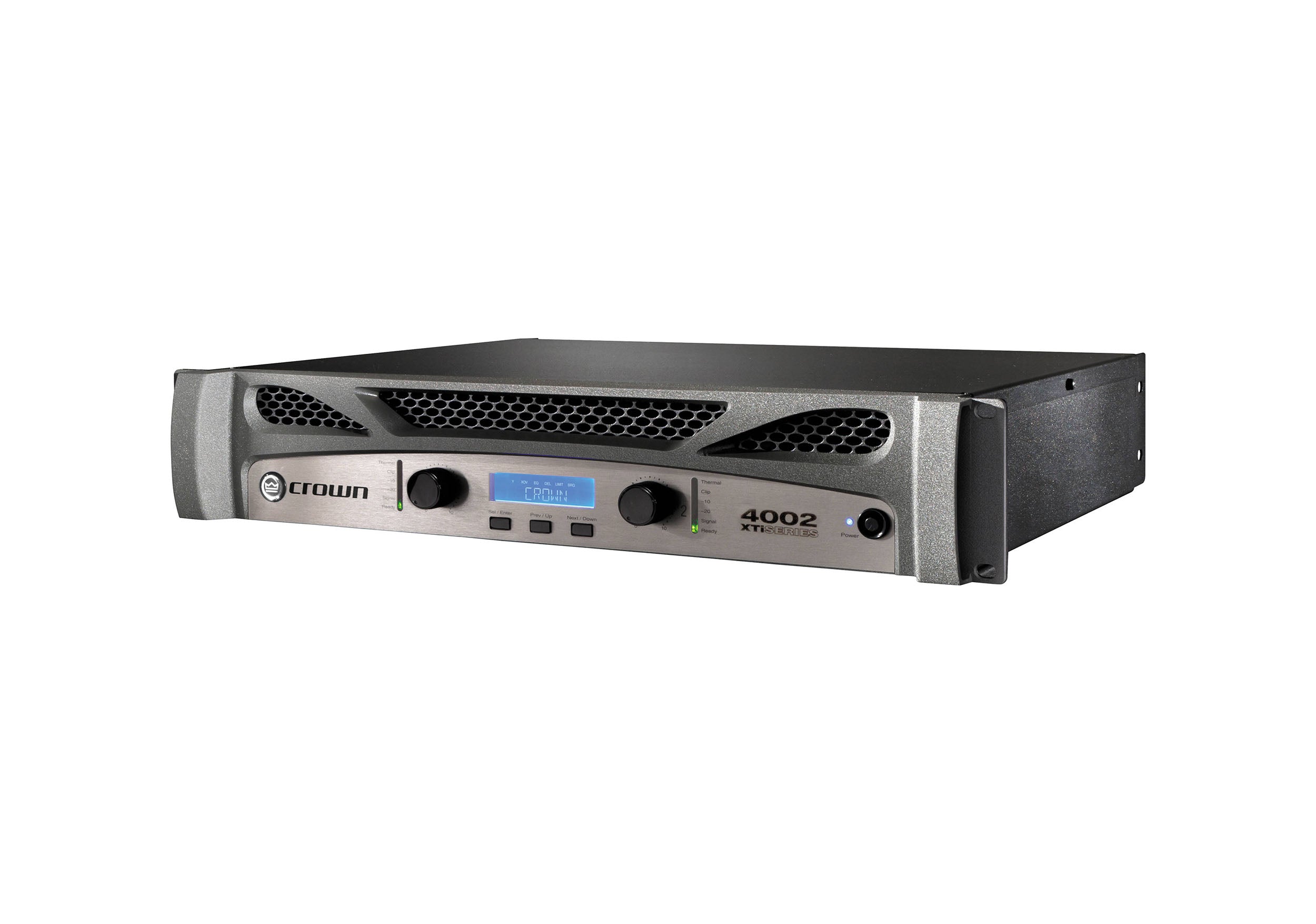

The Crown XTi 4002 Power Amplifier delivers up to 650W per channel at 8 ohms and is an ideal solution for sound reinforcement, nightclub installation, bands, theaters, DJ applications and much more. The XTi 4002 offers highly accurate sound reproduction with very low distortion, perfect for music or voice playback. It has a switch-mode universal power supply so it can be used anywhere. It handles a wide range of speaker impedances and outputs for a high degree of system compatibility.
An array of serious control features is implemented and easily accessed via the included HiQnet Band Manager & System Architect software packages. Crown's Peak Plus Limiters provide the ultimate in system performance and protection. There are 3 user-defined fan modes, adjustable EQ, adjustable crossover filters and much more.
Product Specifications:
Number of Channels: 2
Amplifier Power Rating:
2 Ohms: 1600 W per Channel
4 Ohms:
1200 W per Channel
3200 W Bridged
8 Ohms:
650 W per Channel
2400 W Bridged
Performance:
Protections: Overcurrent, Short Circuit, Thermal
Frequency Response: 20 Hz to 20 kHz +0/-1 dB
Damping Factor: > 500
Input Sensitivity: 1.4 Vrms
Input Impedance:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Max Gain: 32.9 dB (at 8 Ohms)
SNR: 100 dBA
THD: < 0.5%
Signal Processing:
DSP: Yes
Crossover: Yes

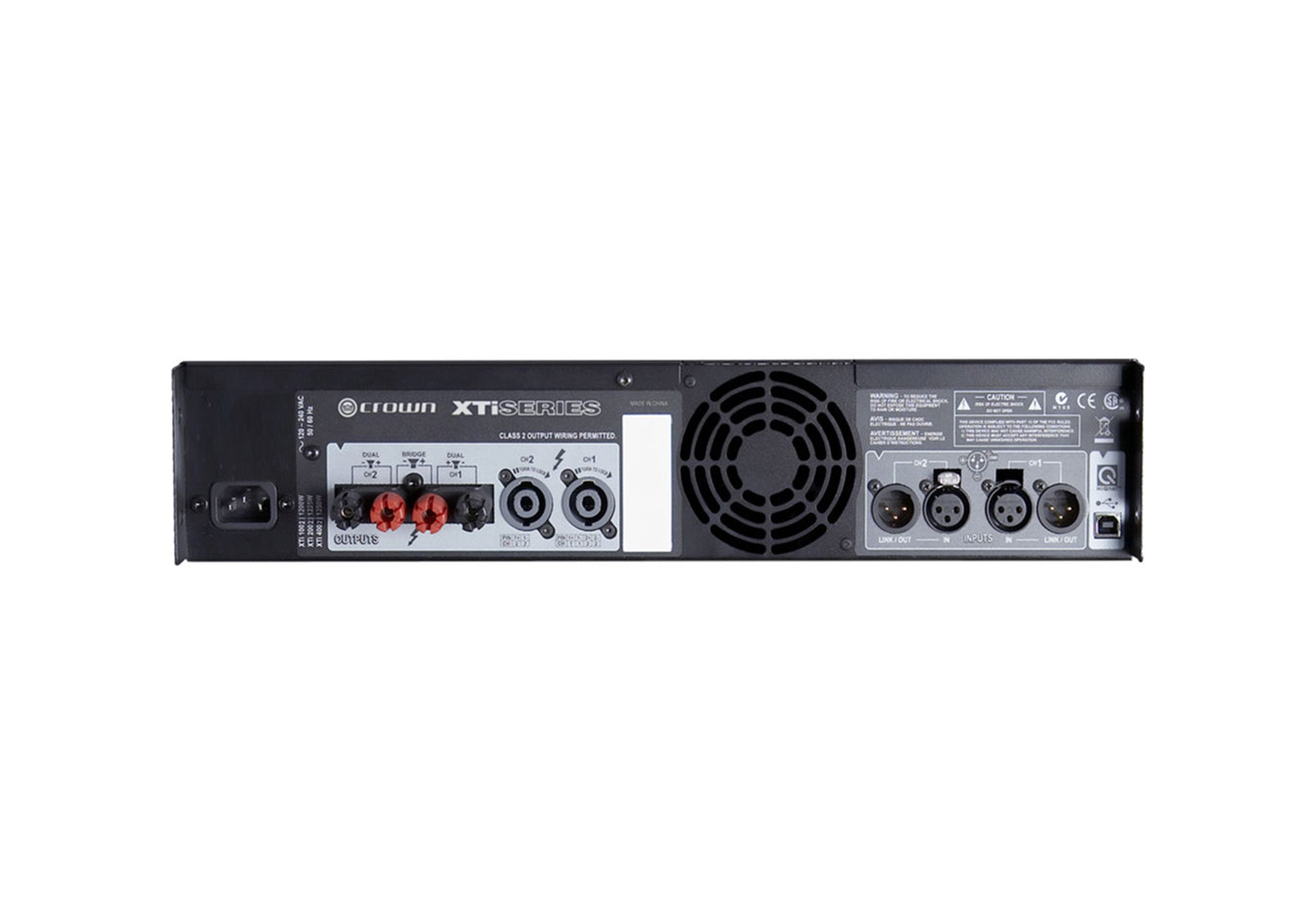

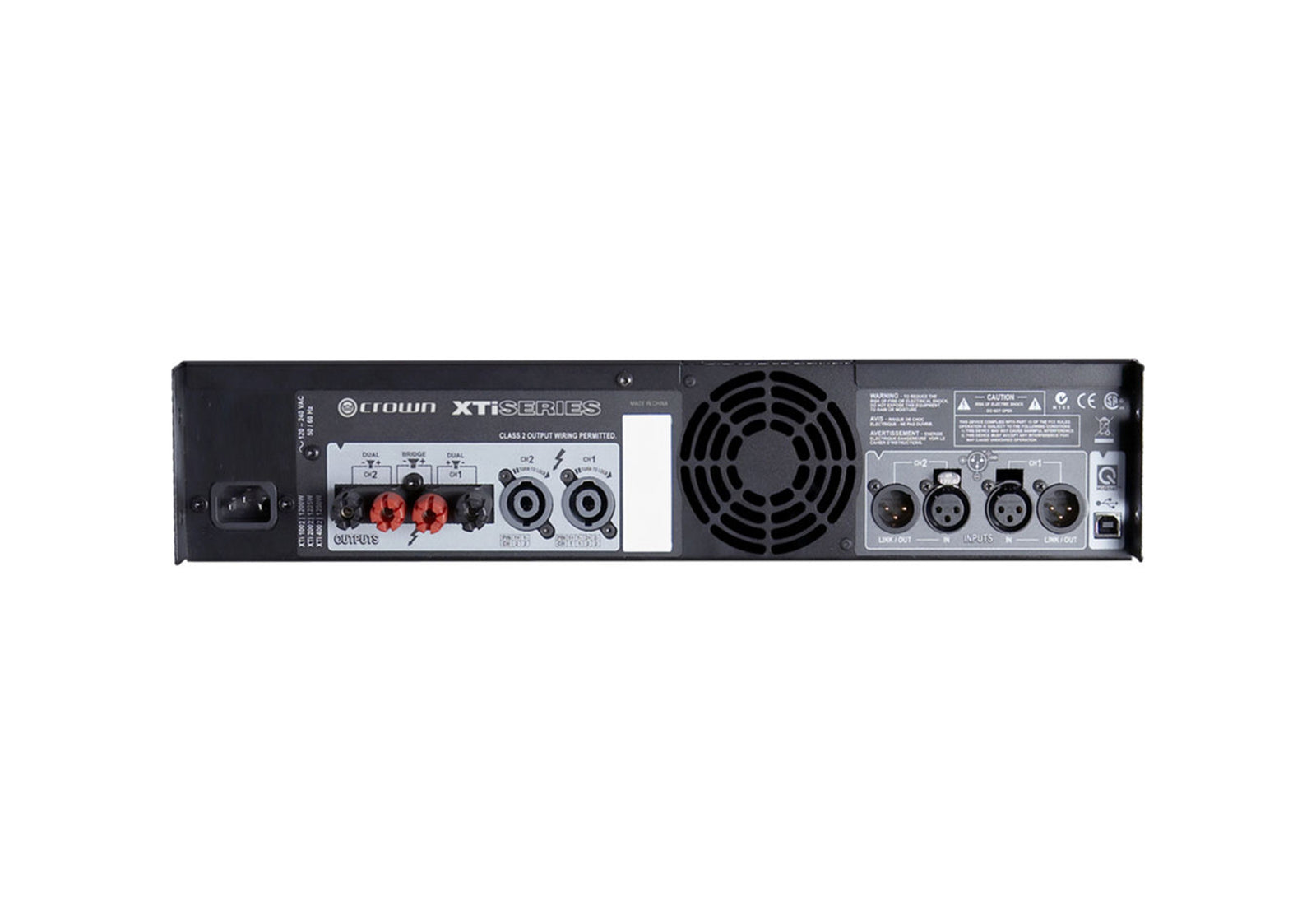

Connectivity:
Analog Audio I/O:
2x XLR Input
2x XLR Thru/Output
2x speakON NL4 Output
2x Binding Post Pair Output
USB I/O: 1x USB-B (Network)
Power:
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Current Consumption: 10.5 A
Power Consumption: 38 W (Idle)
Physical:
Display & Indicators:
1x Green LED (Clip/Level/Output/Signal, per Channel)
1x Green LED (Status, per Channel)
1x Red LED (Clip, per Channel)
1x Red LED (Temp, per Channel)
1x Blue LED (Power)
1x LCD (Backlit/Preset/Status)
Cooling: 2x Fan (Variable Speed)
Product Weight: 18.5 lb / 8.4 kg
Product Dimensions: 19.0 x 3.5 x 12.2 Inches
Shipping Weight: 23.75 lbs.
Shipping Dimensions (LxWxH): 22.5 x 19 x 6.7 Inches
