Description

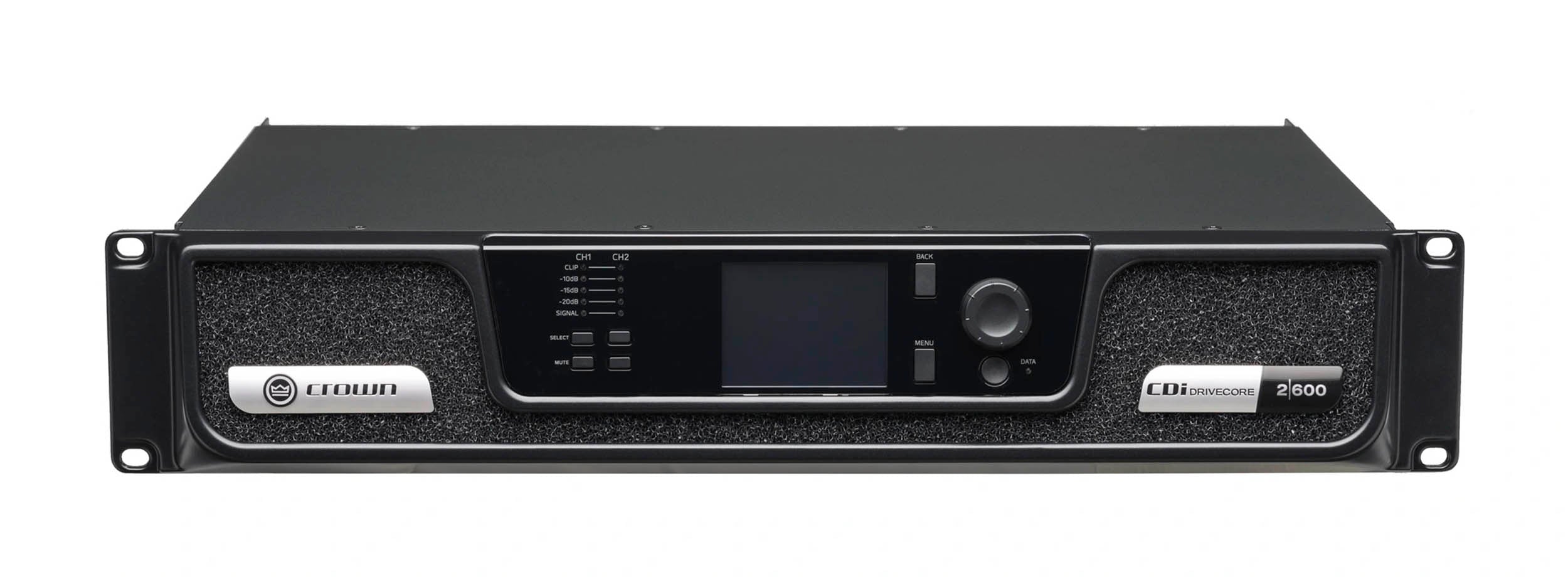

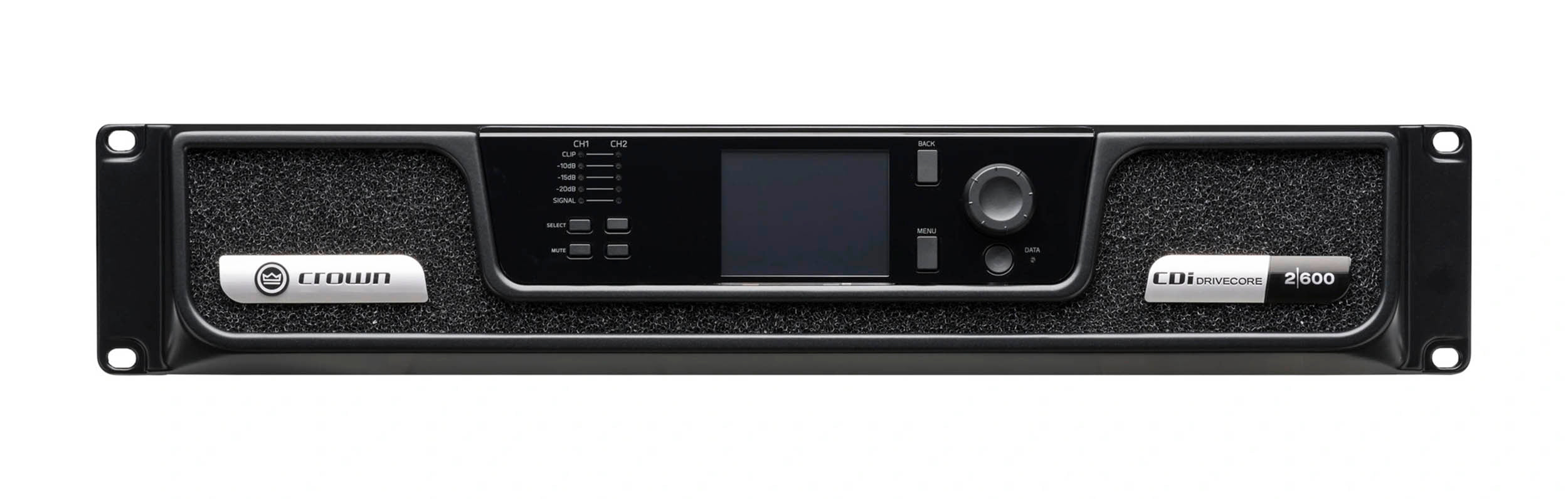

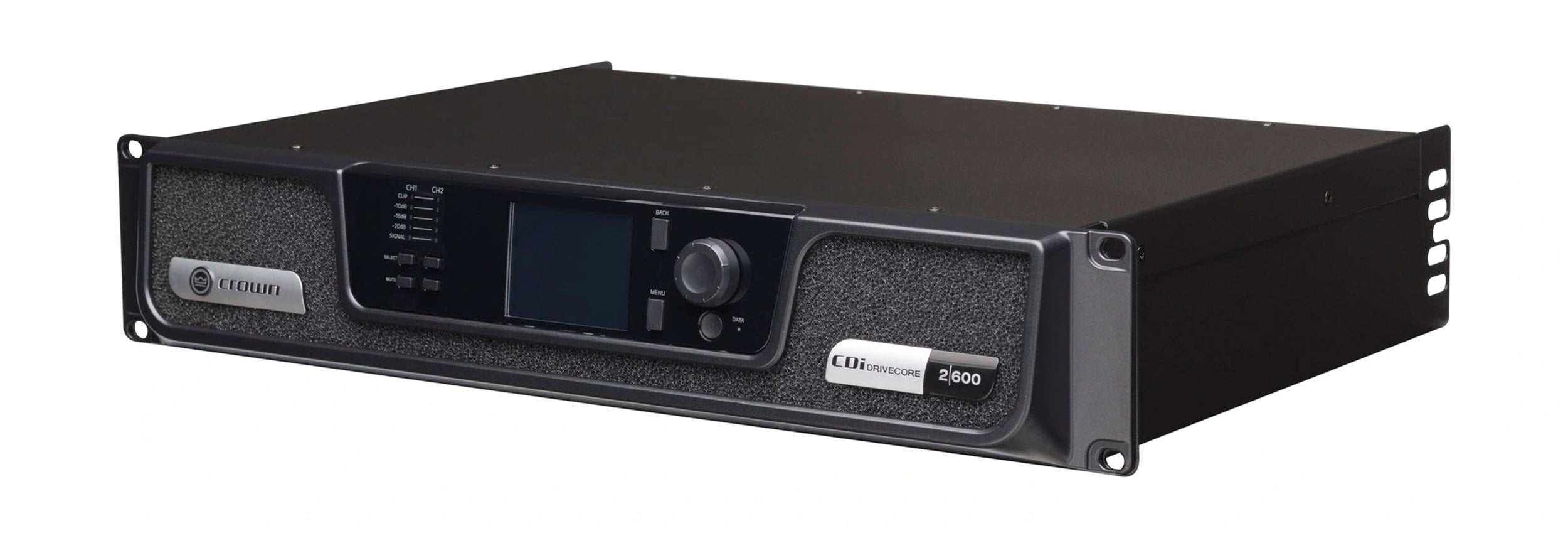

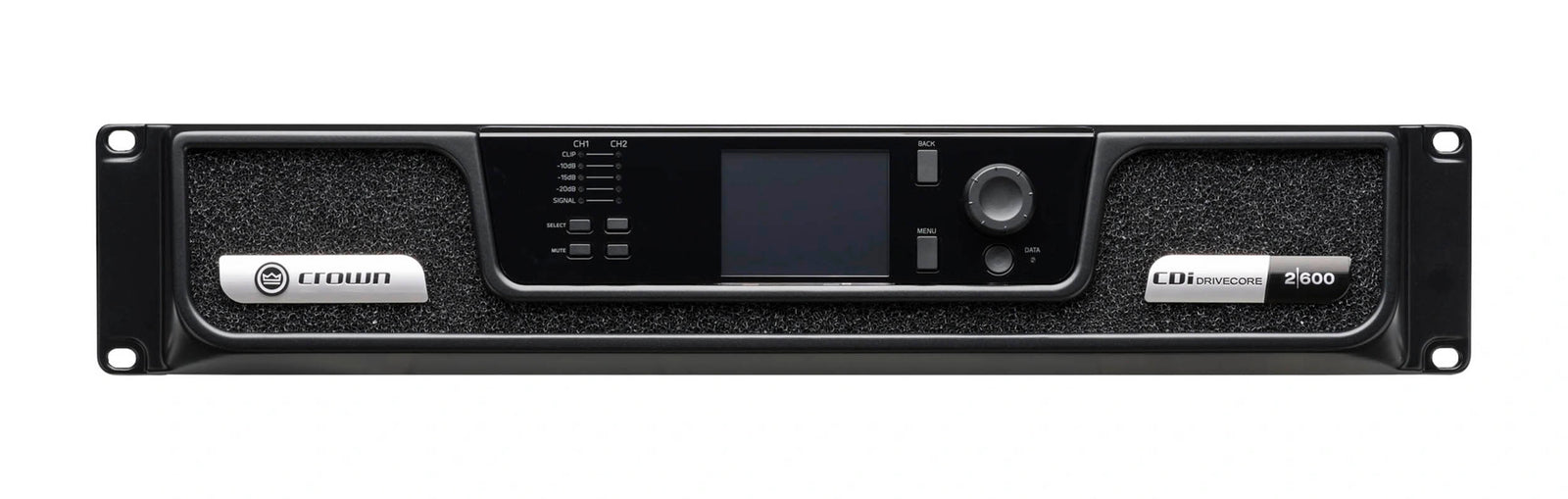

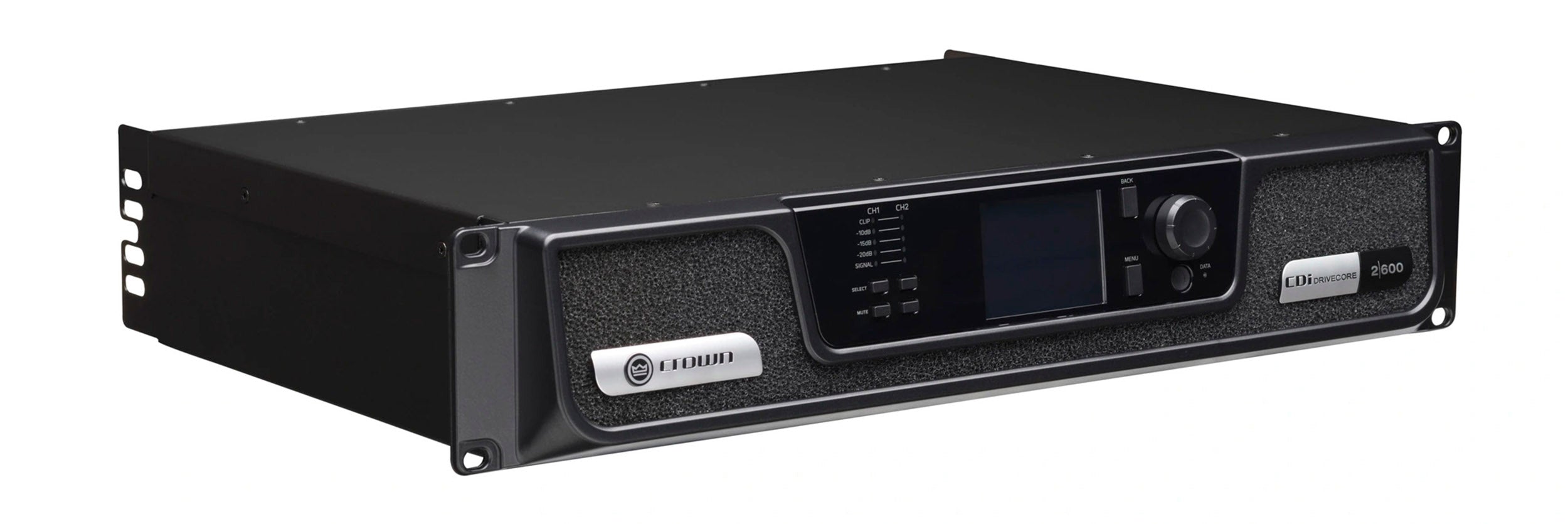

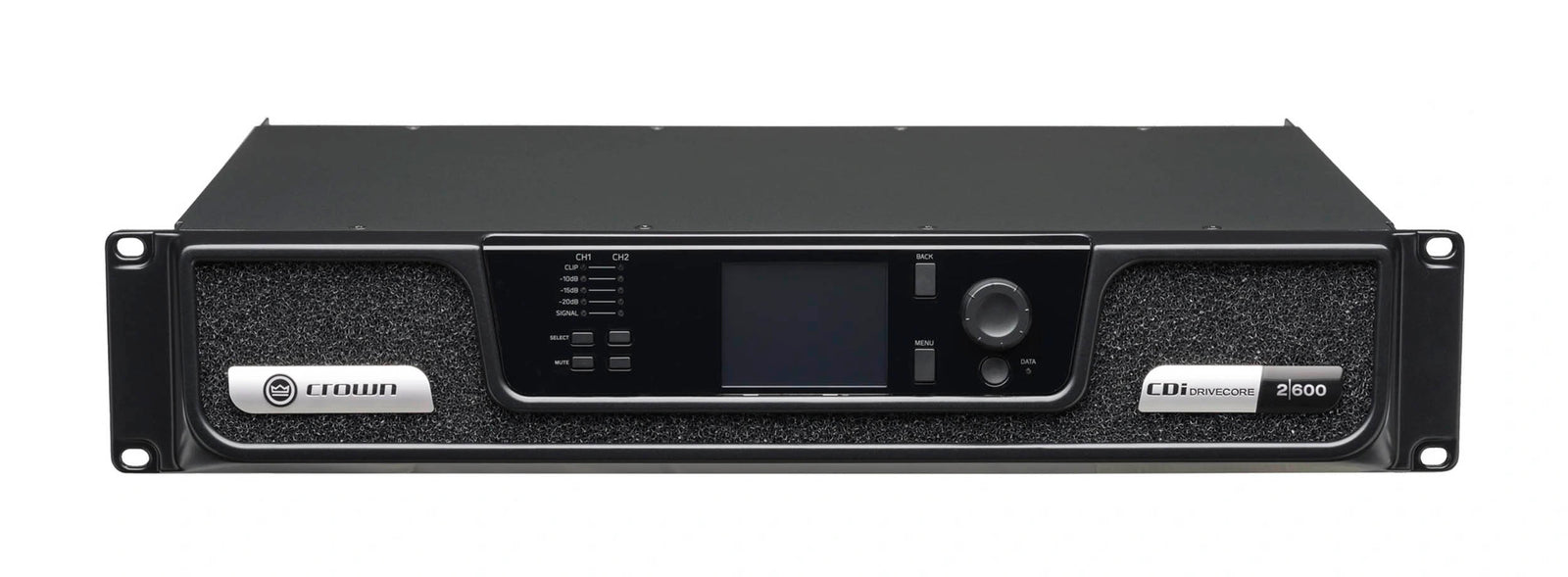

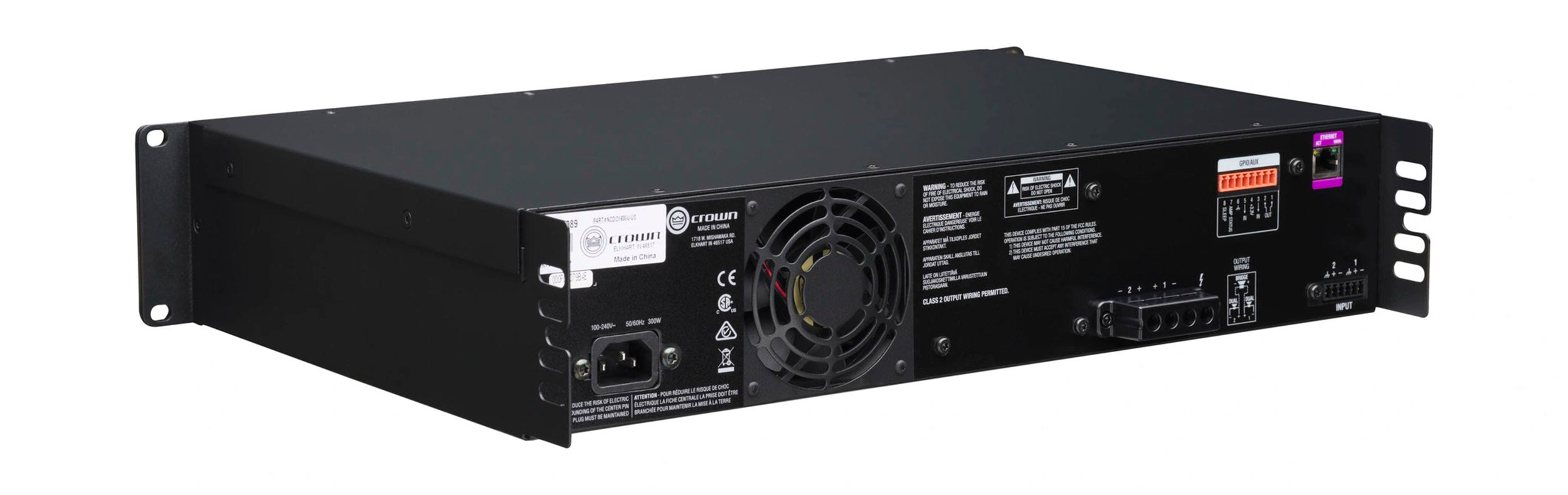

The Crown CDI2X600 2-Channel Drive Core Series Power Amplifier - 600W is represents the next evolution in installed sound amplification, combining high-performance audio, advanced features, and cost-effective design. Derived from Crown’s flagship Drive Core Install series, this 2-channel amplifier is ideal for medium-sized installations such as cinemas, houses of worship, bars, and lounges. The 2|600 supports direct 70V/100V operation without requiring a transformer, simplifying installation while providing reliable, high-fidelity audio. Pre-loaded JBL speaker tunings further streamline setup, ensuring quick and accurate system optimization.
At the heart of the 2|600 is Crown’s proprietary Drive Core technology, which reduces hundreds of internal components, enhances reliability, and delivers consistent audio performance. The amplifier features a powerful onboard DSP with 32-bit processing, allowing for input/output parametric EQ, crossovers, LevelMAX limiting, and adjustable delays up to 1000 ms. The intuitive front-panel interface provides full local control, while BLU link connectivity (BL models only) enables sending and receiving channels over HARMAN’s 256-channel fault-tolerant digital audio BUS.

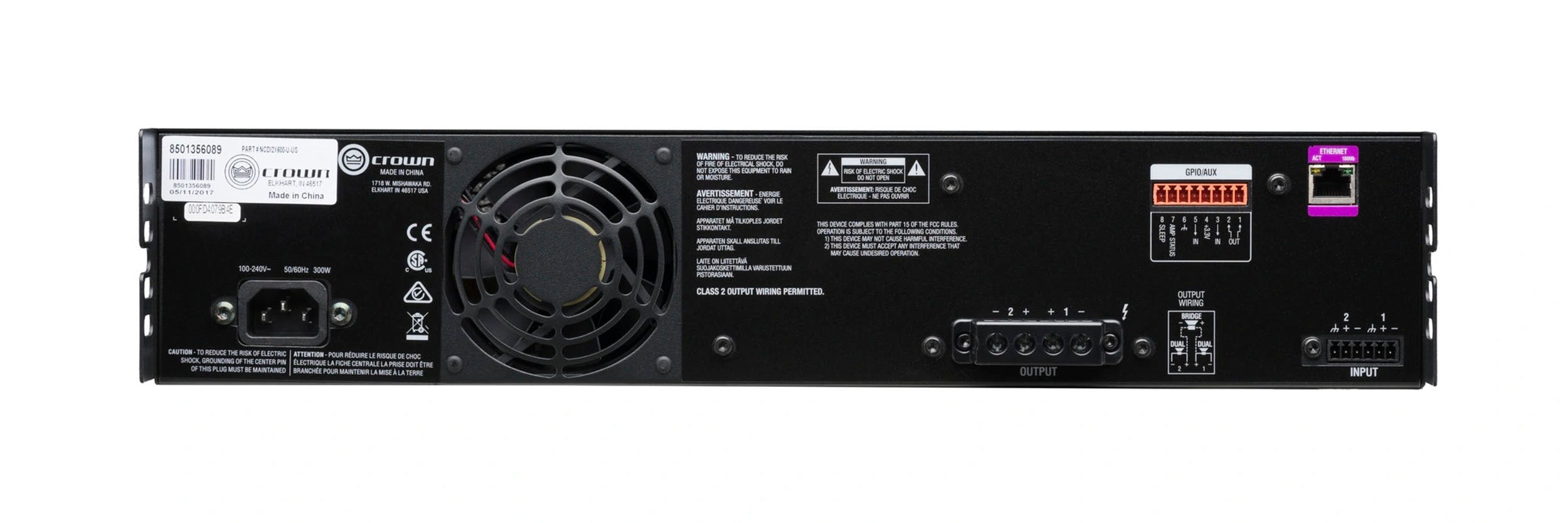

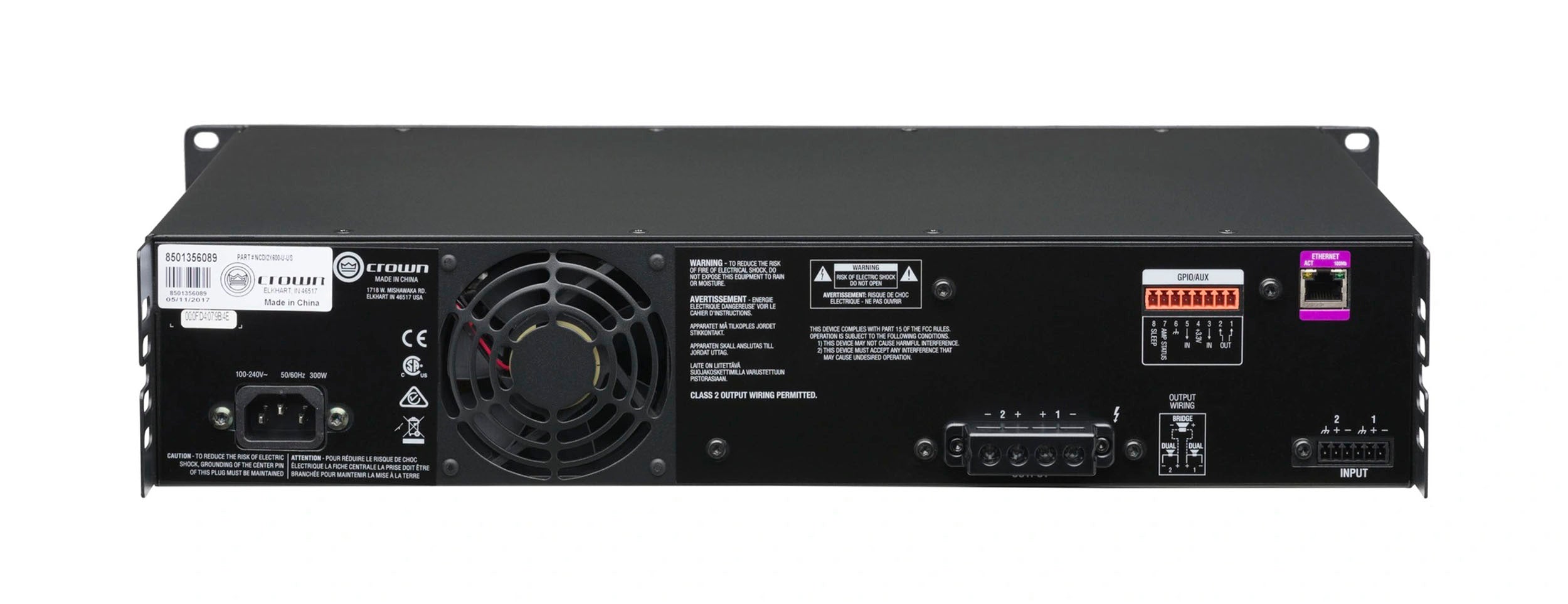

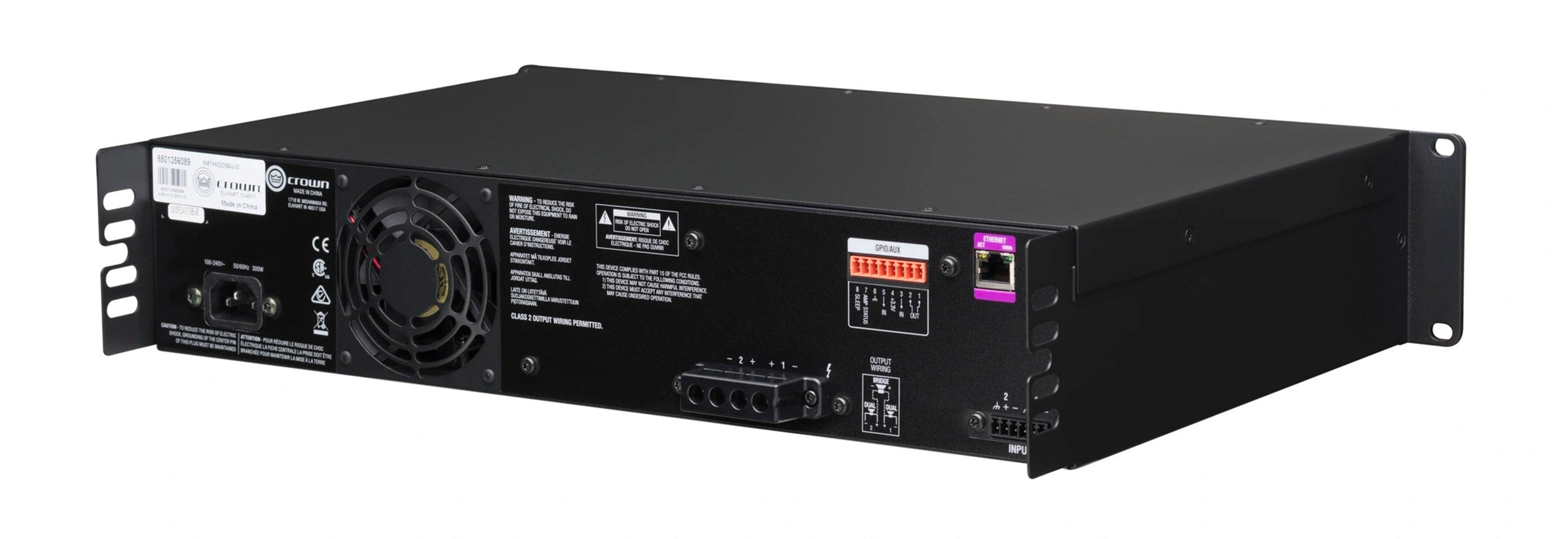

Designed for modern networked installations, the CDi Drive Core 2|600 offers full network control and monitoring via HARMAN’s HiQnet Audio Architect software over standard TCP/IP. A versatile GPIO/AUX port allows external control for recalling presets, muting channels, monitoring faults, and powering the amplifier on or off. With its combination of reliable performance, flexible connectivity, and simplified setup, the 2|600 delivers a powerful and practical solution for professional audio applications.
Product Specifications:
BLU link: No
Channels: 2
Display: Backlit LCD
Rackmount Size: 2 U
Cooling: Fan (Variable Speed)
Sensitivity (for full rated power at 8 ohms): 0.7V RMS
Rated Power Output (per channel @ 4 ohms): 600W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms): > 104dB
THD (full rated power, 20 Hz - 20 kHz): 0.0035
Damping Factor (20 Hz to 100 Hz): > 1000
Frequency Response (8Ω, 20 Hz - 20 kHz): +/-0.5dB
Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB
Input Impedance (nominally balanced, nominally unbalanced): 20 kΩ balanced, 10 kΩ unbalanced
Protections: DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic,
Undervoltage
Power Supply Connector: "Standard IEC type 320 inlet for detachable connector 100 – 240V~"
Product Weight: 14.56 lbs.
Product Dimensions (L × W × H): 12.25 in × 19 in × 3.5 in
Shipping Weight: 18.72 lbs.
Shipping Dimensions (L x W x H): 22.1 in x 20 in x 8.9 in
