Crown Audio CDI4X300 4-Channel DriveCore Series Power Amplifier - 300 Watt

The Crown CDI4X300 4-Channel DriveCore Series Power Amplifier - 300 Watt utilizes technology derived from the flagship Crown DriveCore Install series amplifiers, providing an impressive mix of high-performance, rich feature set, and competitive cost. The CDi DriveCore 4|300 offers streamlined functionality for most small- to medium-sized installation such as restaurants, retail stores, and more.

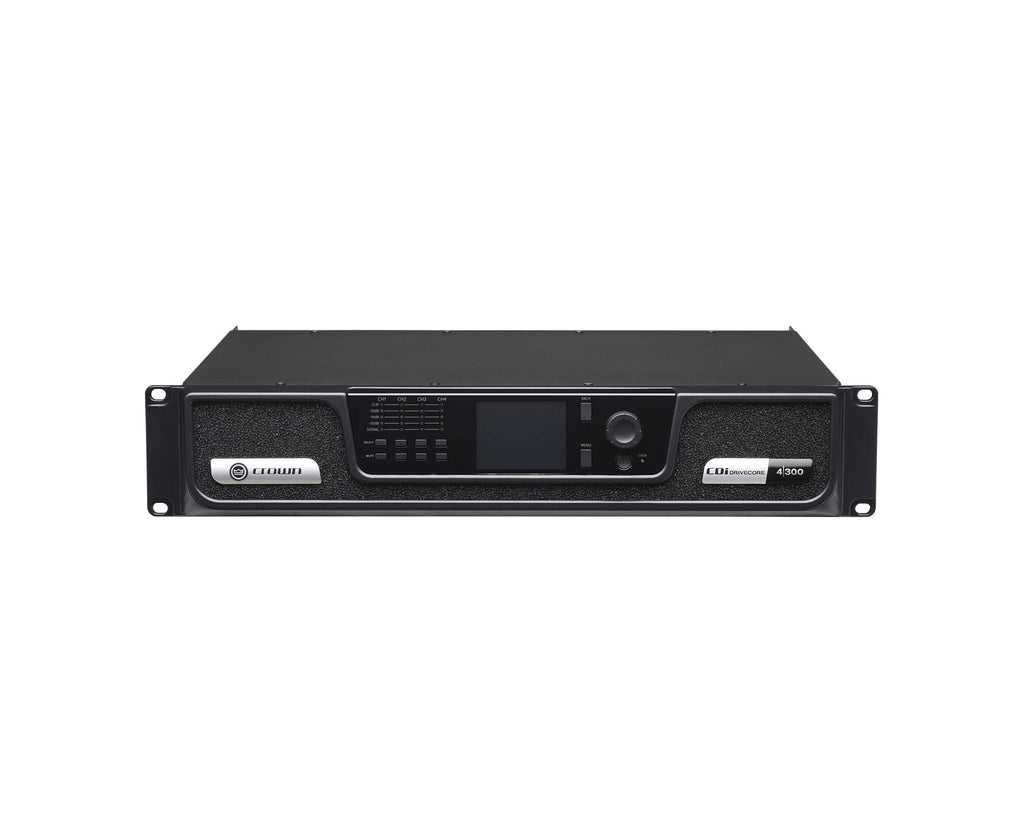

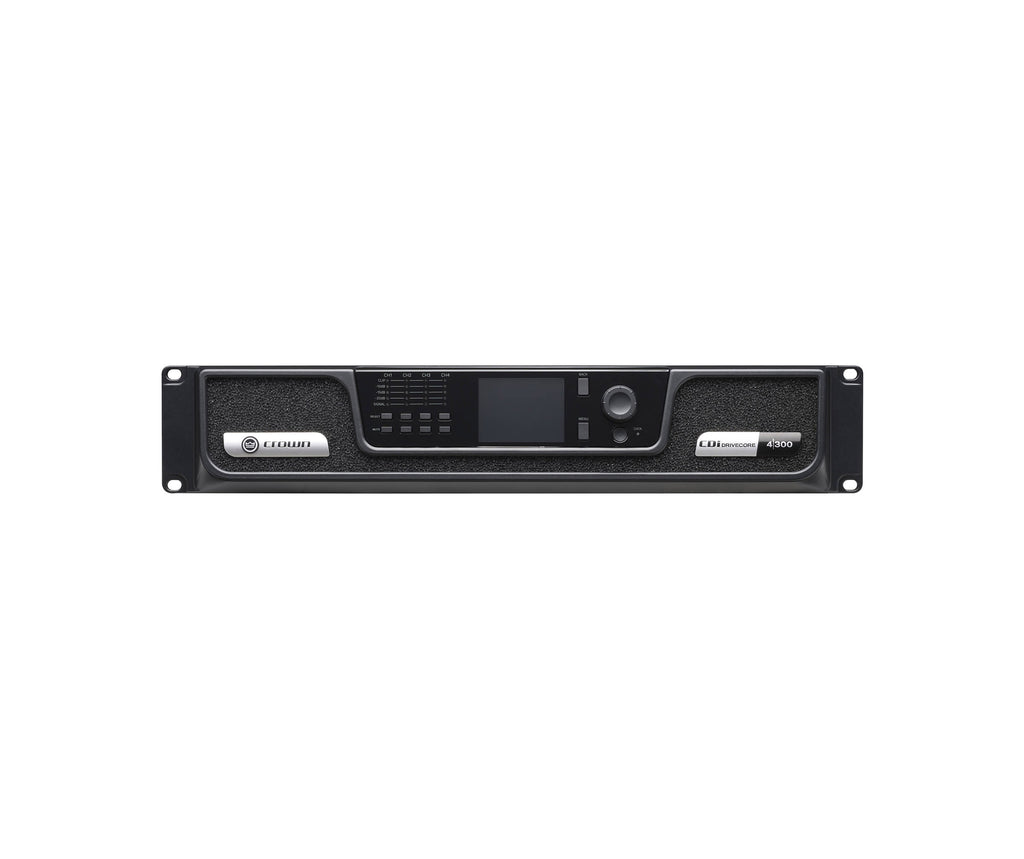

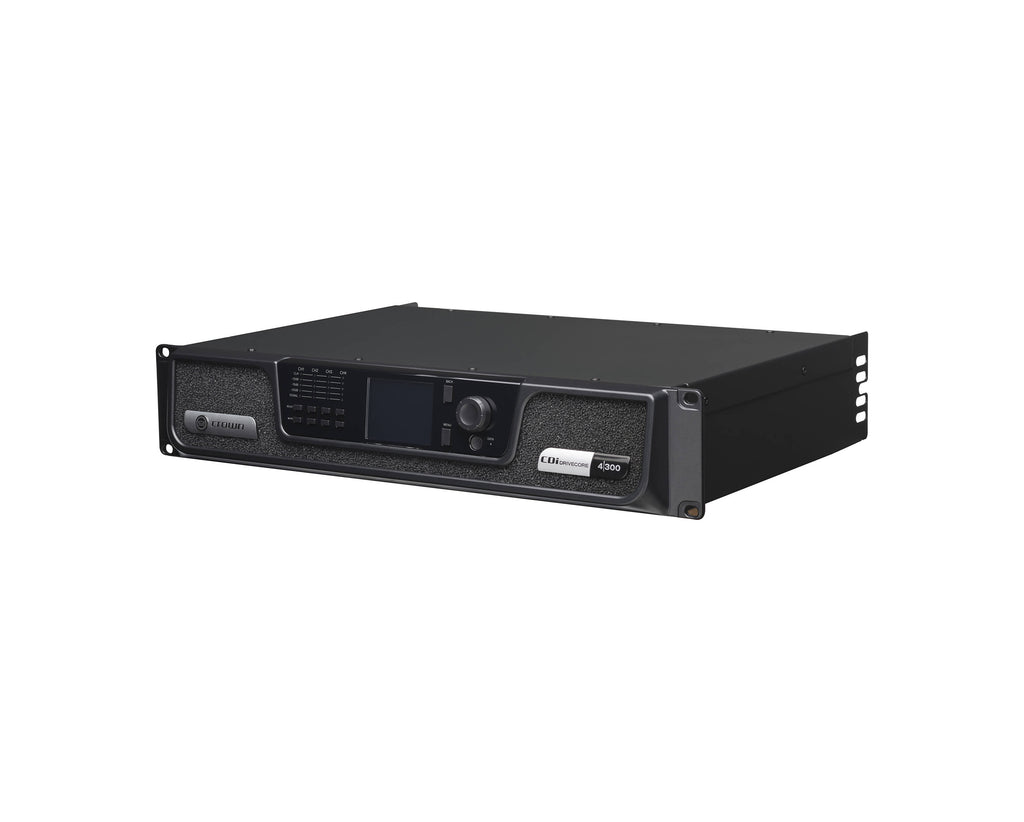

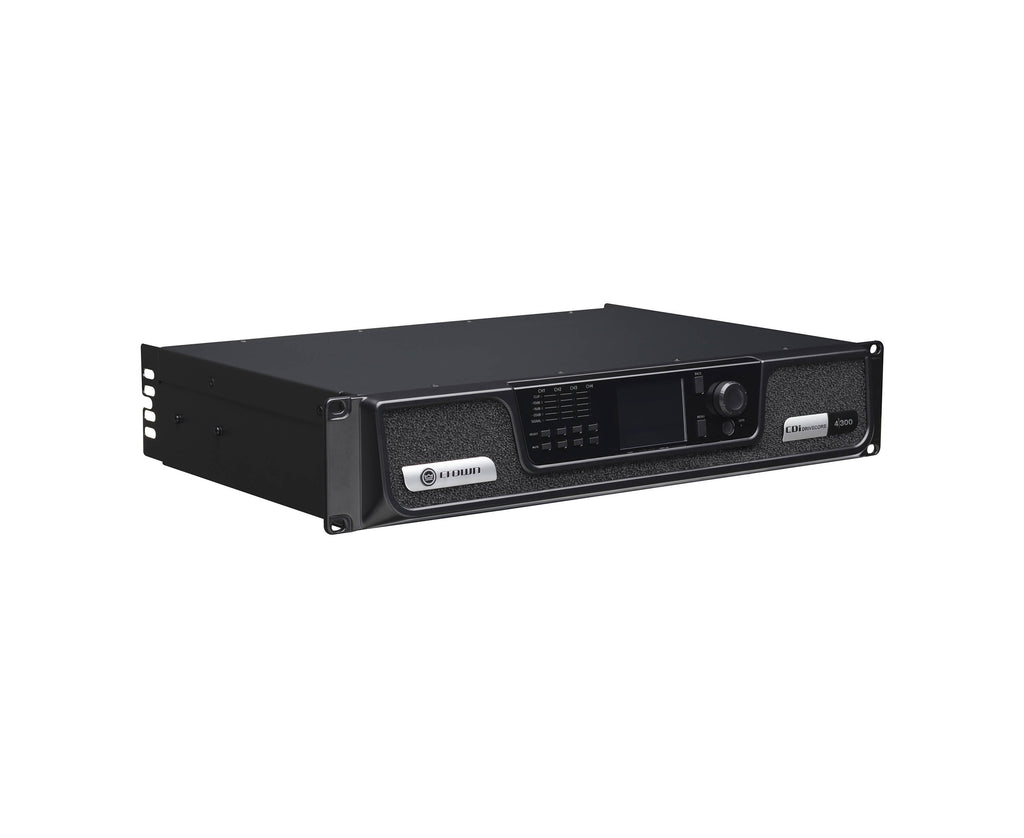

The DriveCore integrated circuit eliminates hundreds of components within the amplifier, reducing the variability of component values and increasing reliability, resulting in remarkable audio fidelity from an efficient design. The 4-channel amplifier is simple to use and includes a network control & monitoring, an advanced DSP circuit, and an easy-to-use, front-panel interface.

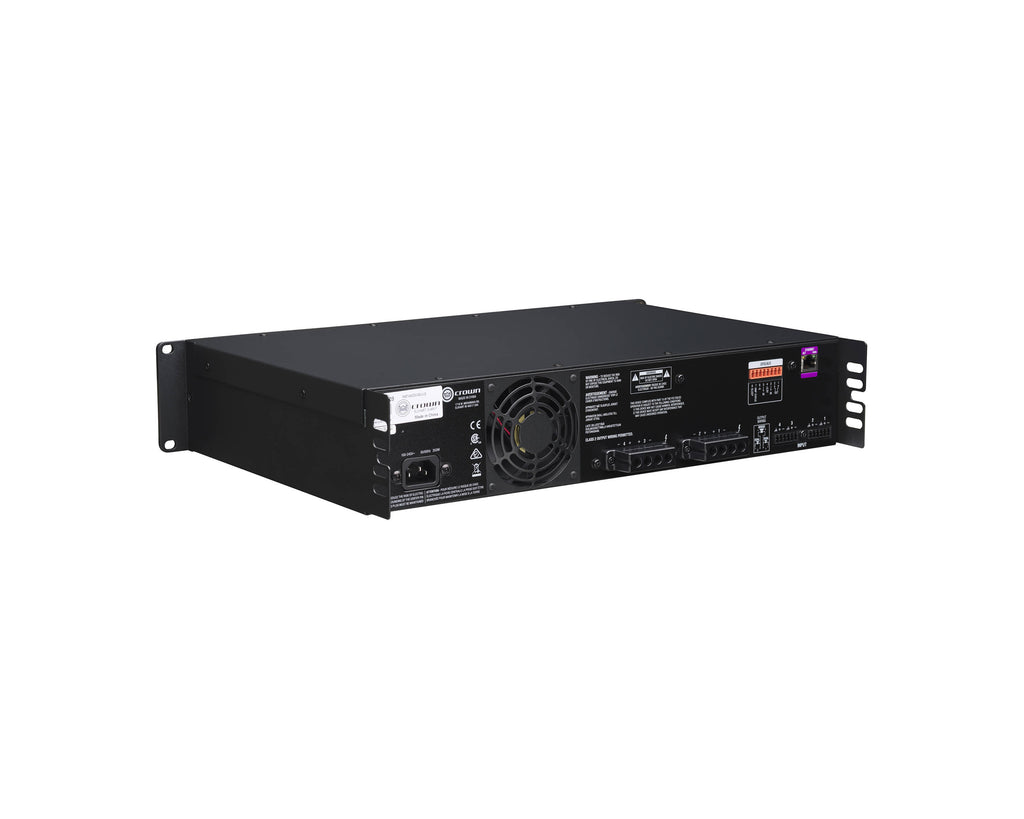

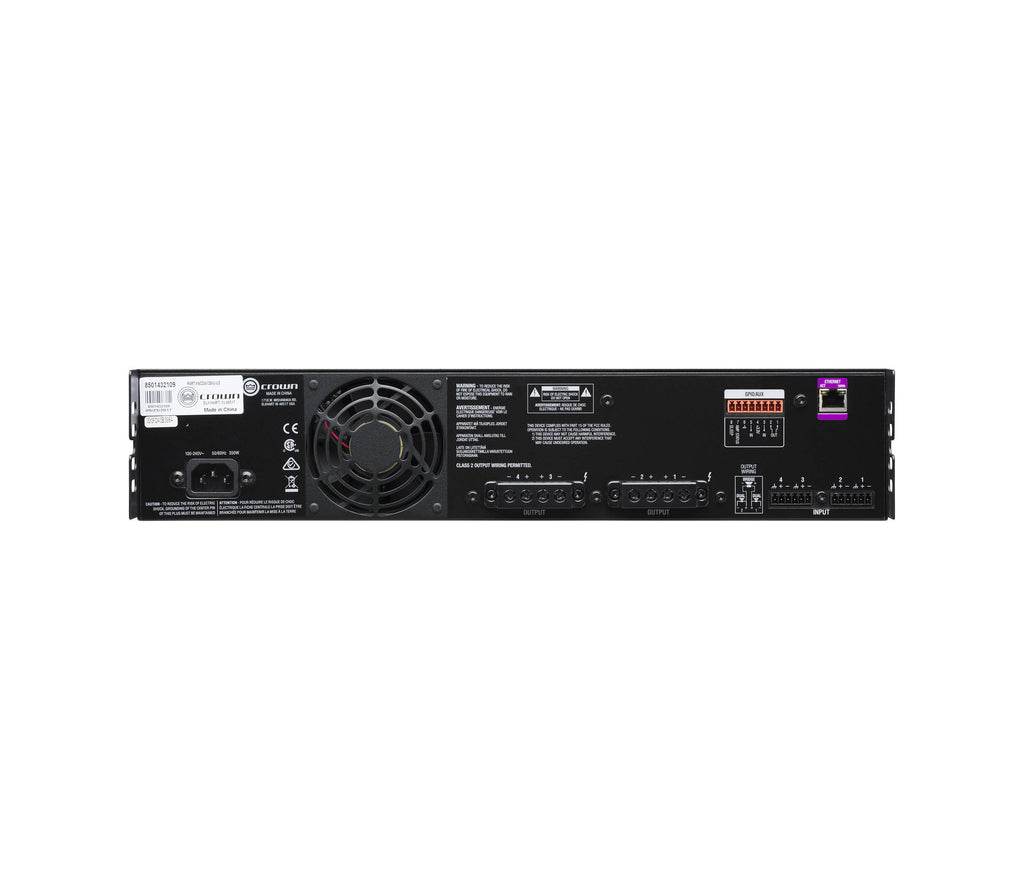

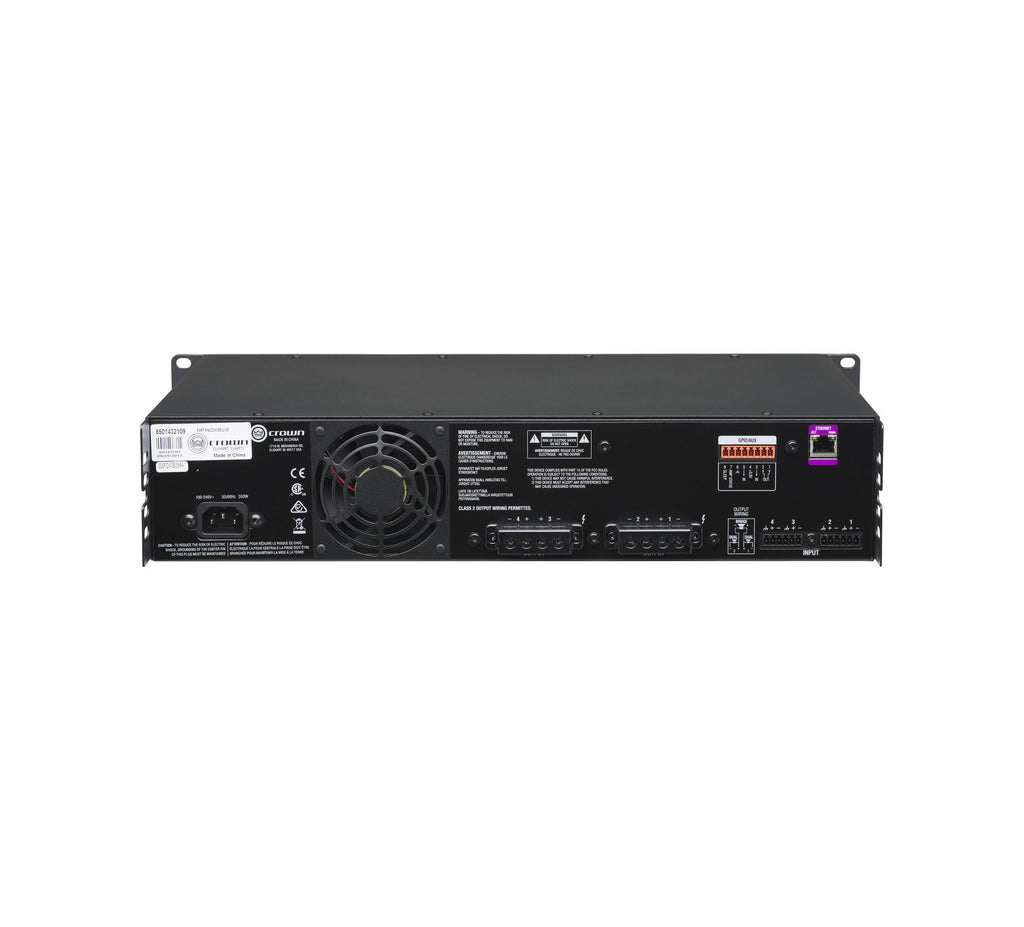

The amplifier is capable of driving up to 100Vrms speaker loads without requiring a transformer and comes pre-loaded with JBL speaker tunings to help make installations quicker and easier. The CDi 4|300 features an Ethernet port for using HARMAN's HiQnet Audio Architect software for configuration and operation over a standard TCP/IQ network. The rear panel includes terminal block inputs and barrier strip outputs. he Crown CDi 2000 Two Channel Commercial Amplifier is a rugged, lightweight commercial power amplifier designed for dual-channel or bridge-mono operation in installed audio applications such as restaurants, retail stores, warehouses, offices, and more. The CDi 2000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It delivers 800W per channel at 4 Ohms, and supports multiple low-impedance configurations, as well as 70V and 140V constant-voltage systems. The switch-mode universal power supply enables safe operation across the globe.

Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults. The CDi 2000 also has integrated DSP presets for adjustable crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer. A backlit LCD displays relevant information. The removable Euroblock inputs and barrier strip outputs accommodate a variety of system setups.

Product Specifications:

Amplifier:

Number of Channels: 4

Amplifier Power Rating:

300 W per Channel

1200 W Bridged

Load Impedance / Voltage:

Stereo:

2 / 4 / 8 / 16 Ohms per Channel

70 / 100 V per Channel

Bridged:

4 / 8 / 16 Ohms

140 / 200 V

Performance:

Protections: DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic, Undervoltage

Frequency Response: 20 Hz to 20 kHz ±0.5 dB (8 Ohms)

Damping Factor: > 1000

Input Sensitivity:

Line:

0.7 Vrms to 2.5 Vrms / -.8 dBu to 10.2 dBu (at 8 Ohms)

1 Vrms to 3.5 Vrms / 2.2 dBu to 13.2 dBu (at 70 V)

1.4 Vrms to 5 Vrms / 5.2 dBu to 16.2 dBu (at 100 V)"

Input Impedance:

20 Kilohms (Balanced)

10 Kilohms (Unbalanced)

Max Gain: 34 dB (at 4 Ohms, at 8 Ohms, at 70 V, at 100 V)

SNR: > 104 dB

THD: 0.35% (at Rated Power)

Intermodulation Distortion: ≤ 0.35%

Crosstalk: > 80 dB (Below Rated Power)

Common Mode Rejection Ratio (CMRR): > 70 dB

Signal Processing:

DSP: 32-Bit Floating Point DSP at 96 kHz

Audio Delay: Adjustable Up to 1000 ms per Channel

Crossover:

High-Pass: 16 to 20 kHz, 12/24/48 dB/Octave Bessel

High-Pass: 16 to 20 kHz, 6/12/24/48 dB/Octave Butterworth

High-Pass: 16 to 20 kHz, 12/24/48 dB/Octave Linkwitz-Riley

Low-Pass: 16 to 20 kHz, 12/24/48 dB/Octave Bessel

Low-Pass: 16 to 20 kHz, 6/12/24/48 dB/Octave Butterworth

Low-Pass: 16 to 20 kHz, 12/24/48 dB/Octave Linkwitz-Riley

EQ: 8-Band Parametric EQ per Channel

Limiting: Yes

Connectivity:

Analog Audio I/O:

2x Block 6-Pin Balanced Line Input

2x Barrier Strip 4-Pin Speaker Output

Digital I/O: 1x RJ45 Ethernet Input/Output (Control)

USB I/O: No

Power:

AC Input Power:

Universal: 100 to 240 VAC, 50 / 60 Hz

AC Power Connector: 1x IEC 15 A / NEMA 5-15

Current Consumption:

120 VAC:

1.8 to 2.6 A (1/8 Power)

3.5 to 5 A (1/3 Power)

230 VAC:

1 to 1.4 A (1/8 Power)

1.8 to 2.8 A (1/3 Power)

Power Consumption:

120 VAC:

127 to 160 W (1/8 Power)

166 to 239 (1/3 Power)

230 VAC:

141 to 173 W (1/8 Power)

180 to 239 (1/3 Power)

Display & Indicators:

Front Panel: 1x Multi-Color Graphic LCD"

Rackmount Size: 2 RU

Cooling: Fan (Variable Speed)

Thermal Dissipation: 814 BTU/hr (Maximum)

Dimensions: 19.0 x 3.5 x 12.2" / 48.3 x 8.9 x 31.1 cm

Product Weight: 16.1 lbs. / 7.3 kg

Shipping Weight: 20.05 lbs.

Shipping Dimensions (LxWxH): 22 x 18.9 x 7.8 Inches
