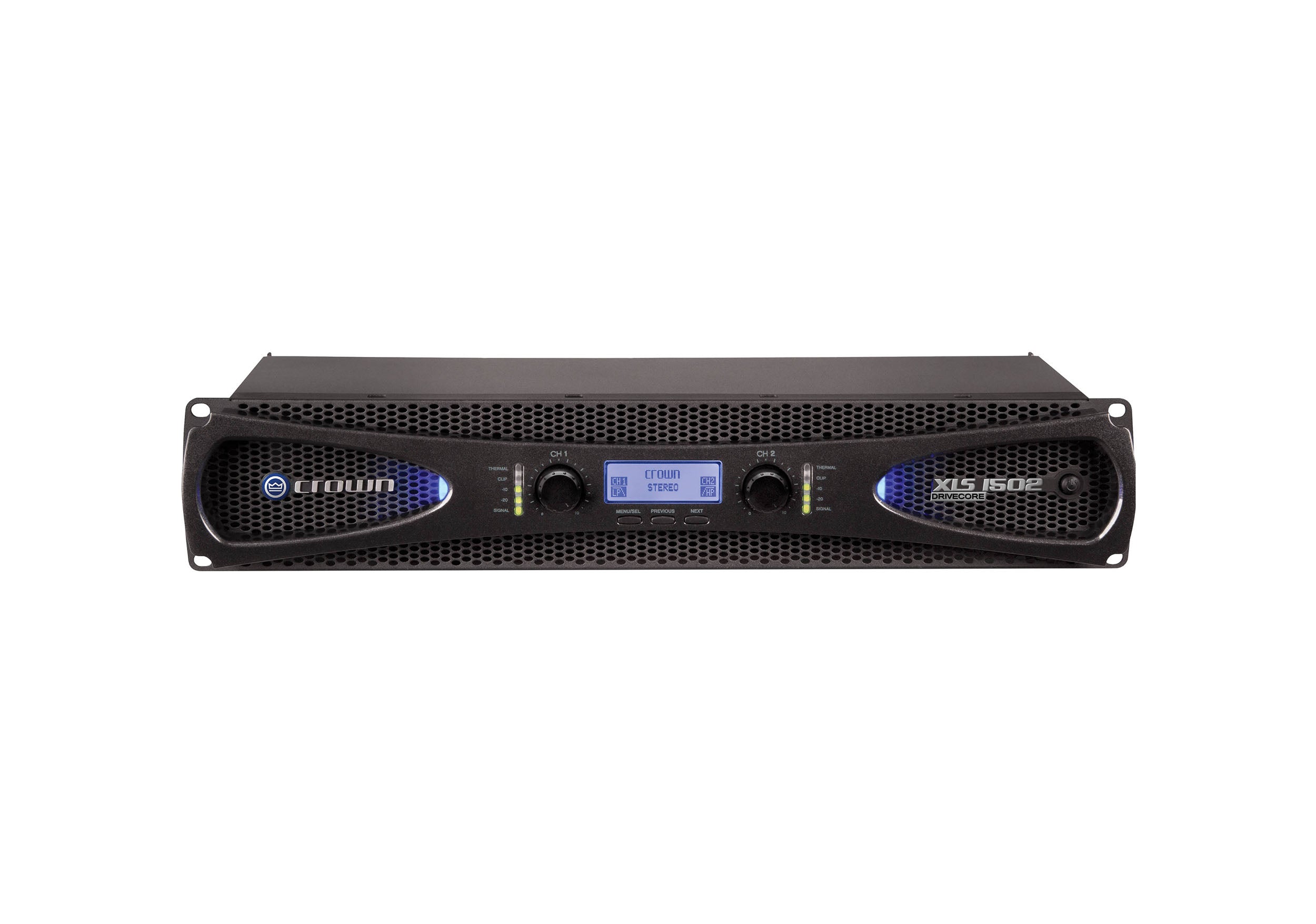

Crown XLS1502, 2-Channel Power Amplifier - 525W

The Crown XLS 1502 Stereo Power Amplifier offers 525W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.

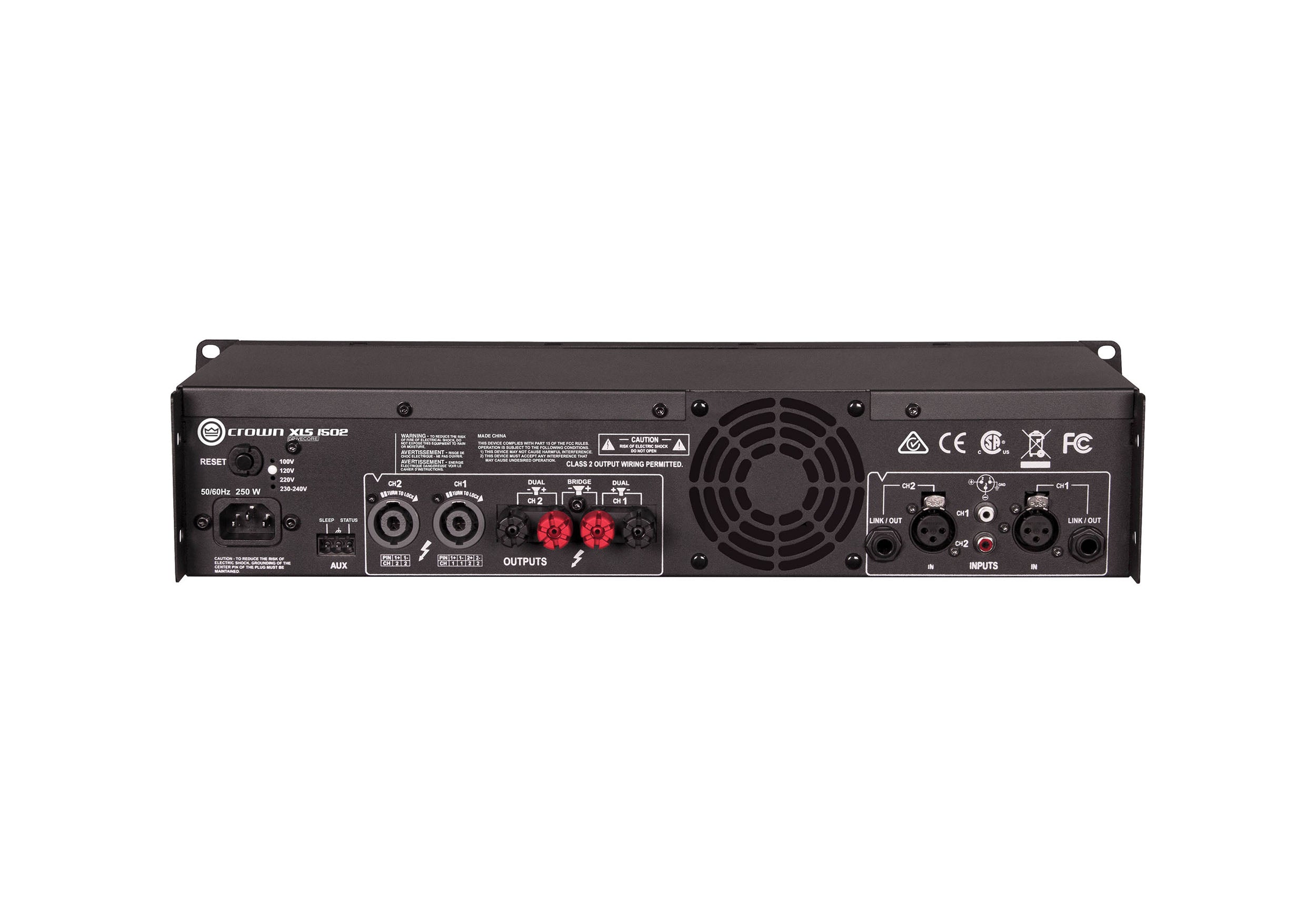

For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both speakON and binding post connectors.

You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.

Product Specifications:

Number of Channels: 2

Amplifier Power Rating:

2 Ohms:

775 W per Channel

4 Ohms:

525 W per Channel

1550 W Bridged

8 Ohms:

300 W per Channel

1050 W Bridged

Amplifier Class: Class-D

Load Impedance / Voltage:

Bridged: 4 Ohms

Performance:

Protections: Overload, Thermal

Frequency Response: 20 Hz to 20 kHz +0/-1 dB (at 1 W)

Damping Factor: > 200

Input Sensitivity: 1.4 Vrms

SNR: > 103 dB

THD: < 0.5%

Intermodulation Distortion: < 0.3%

Crosstalk:

> 85 dB (1 kHz)

> 55 dB (20 kHz)

Signal Processing:

DSP: Yes

Crossover: 24 dB/Octave Linkwitz-Riley

EQ: No

Filters:

Low-Pass, 24 dB/Octave Linkwitz-Riley

High-Pass, 24 dB/Octave Linkwitz-Riley

Notch/Band-Pass, 24 dB/Octave Linkwitz-Riley

Limiting: Yes

Connectivity:

Analog Audio I/O:

2x XLR Input

1x 2RCA Input

2x 1/4"" Thru

2x Binding Post Pair Output

2x speakON NL4 Output

Power:

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

AC Power Connector: IEC

Power Consumption: 425 W

Physical:

Display & Indicators: LCD (Backlit/Stereo Mode)

Rackmount Size: 1 U

Cooling: Fan

Product Weight: 8.6 lbs. / 3.9 kg

Product Dimensions: 19.0 x 7.7 x 3.5 Inches

Shipping Weight: 11.6 lbs.

Shipping Dimensions (LxWxH): 21 x 12 x 6 Inches
