Description

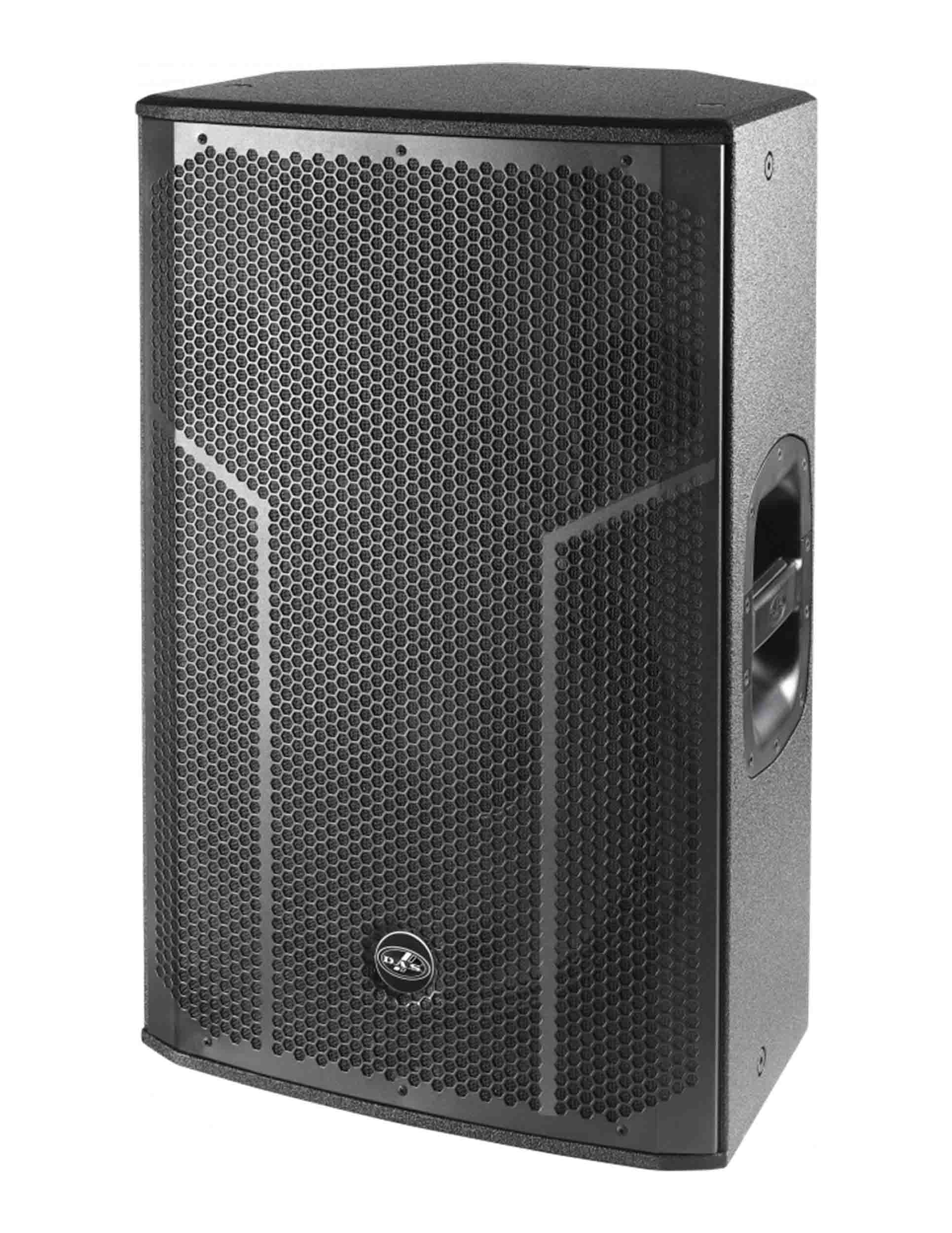

The ACTION-515A is an active system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.

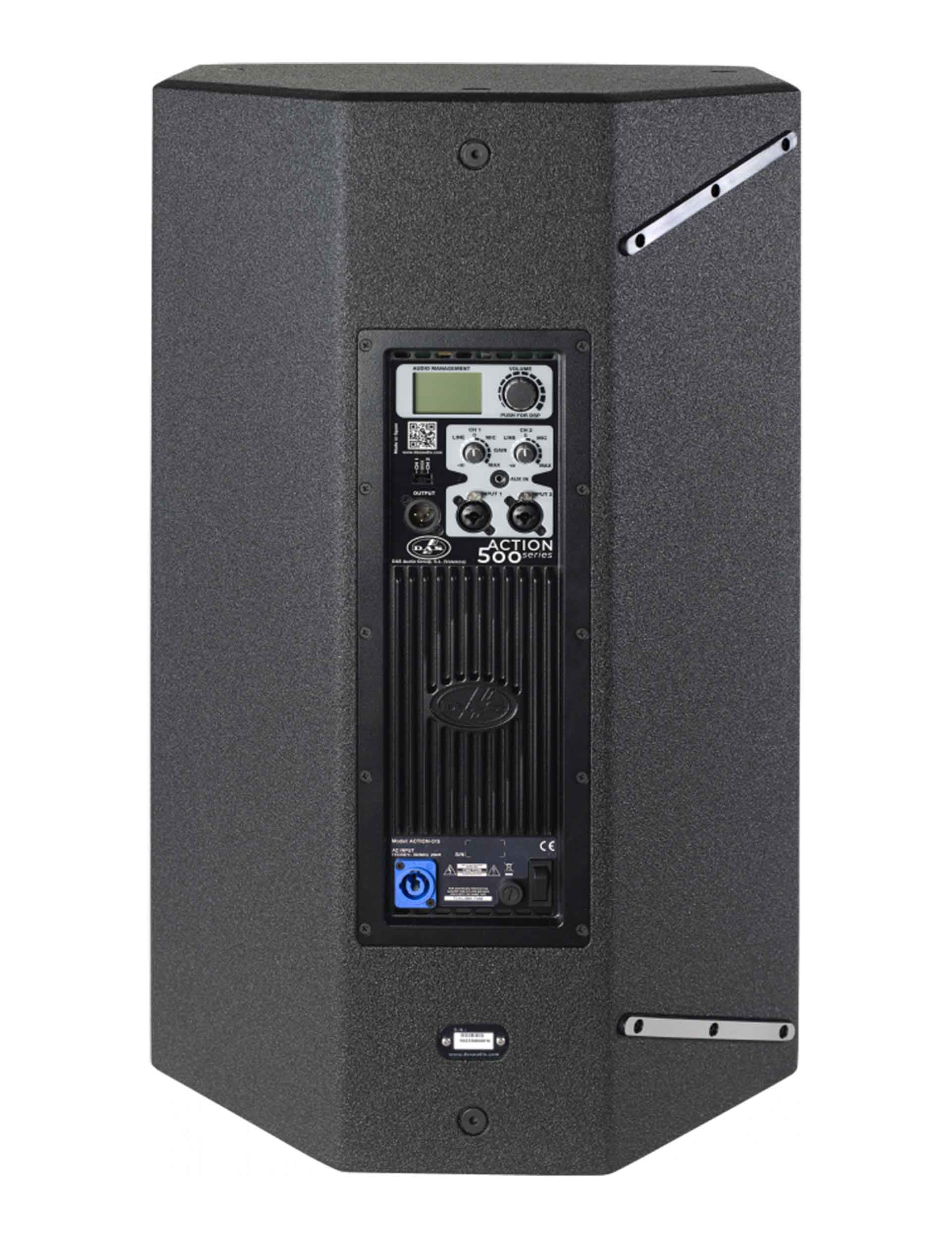

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.
The system has a 15MI4 loudspeaker for a more powerful low-frequency response than other tops in the series and an M-34 compression driver for high frequencies which, together with the 1000 W peak Class D amplifier, deliver outstanding performance. The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.
Product Specifications:
Frequency Range (-10 dB): 45 Hz – 20 kHz
Horizontal Coverage (-6 dB): 90º
Vertical Coverage: 60º
Maximum Peak SPL at 1 m: 131 dB
Nominal Amplifier Power (continuous): 500 W
Nominal Amplifier Power (peak): 1000 W
Input Type: Balanced
Input Impedance: 20 kOhms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
AUX Input: 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector: 1 x Male XLR
Control: DAScontrol
Current Draw 230 V / 115 V: 1.1 A/2.2 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Trapezoidal
Rigging: M10 Rigging Points
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 28,3 x 17,5 x 15,2 in"
Net Weight: 51,8 lbs
Components:
LF Driver: 15MI4
HF Driver: M-34
Horn/Waveguide: BC-916
Shipping Dimensions (H x W x D): 30,9 x 16,9 x 19,9 in"
Shipping Weight: 58,4 lbs
