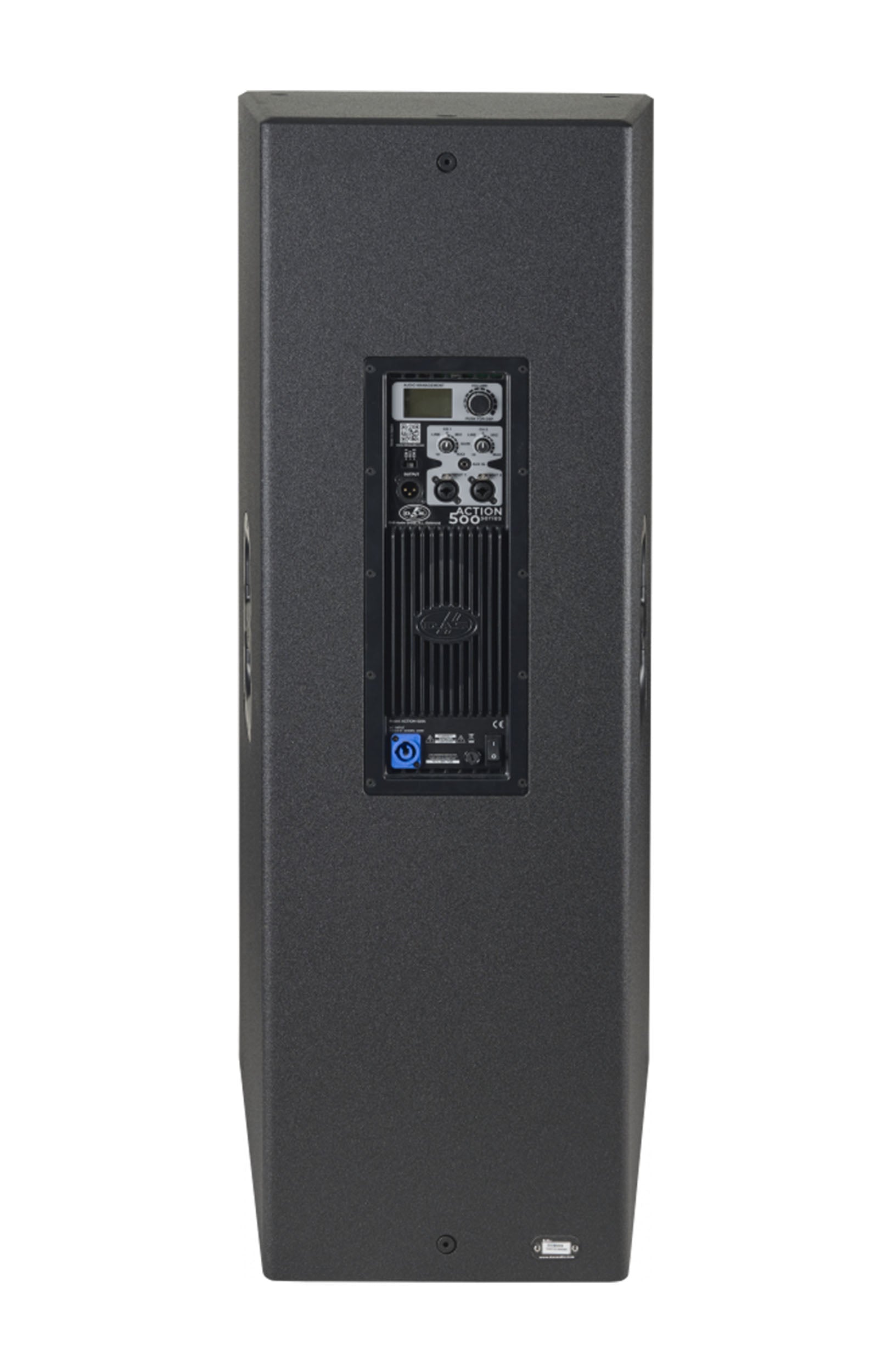

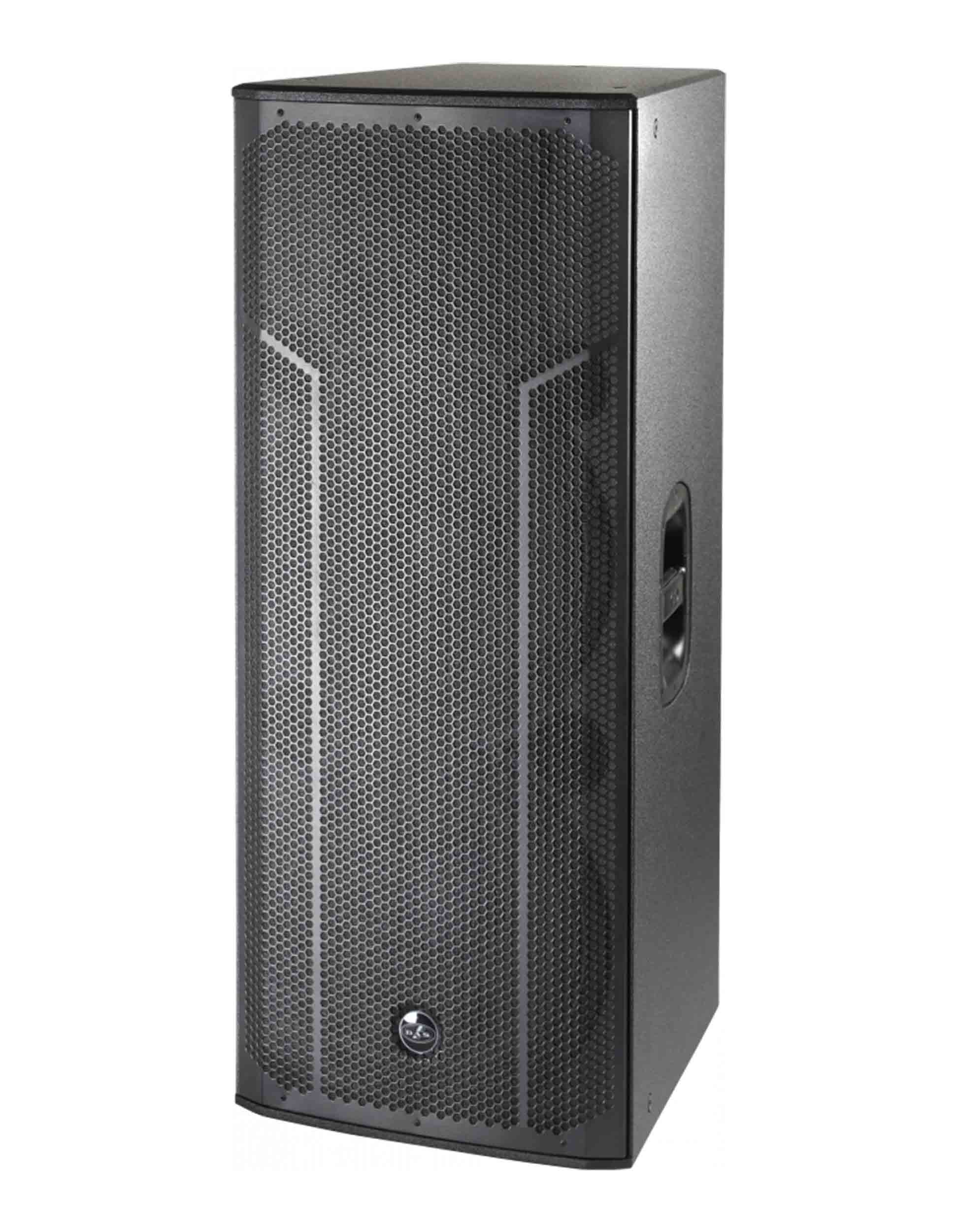

DAS Audio ACTION-525A Two-Way Dual 15" 1000W Powered Portable PA Speaker

The ACTION-525A is an active system composed of two 15MI speakers that deliver a greater SPL than the simple 15” plus enhanced bass for events that require both powerful sound and simple adjustment.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection. The DAScontrol interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Product Specifications:

Frequency Range (-10 dB): 45 Hz – 20 kHz

Horizontal Coverage (-6 dB): 90º

Vertical Coverage: 60º

Maximum Peak SPL at 1 m: 134 dB

Nominal Amplifier Power (continuous): 500 W

Nominal Amplifier Power (peak): 1000 W

Input Type: Balanced

Input Impedance: 20 kOhms

Input Sensitivity: 1.95 V (+8 dBu)

Audio Signal Input Connector: 2 x Female XLR

AUX Input: 1 x 3.5 mm Mini Jack

Audio Signal Loop Thru Connector: 1 x Male XLR

Control: DAScontrol

Current Draw 230 V / 115 V: 1.1 A/2.2 A

Enclosure Construction: Birch Plywood

Enclosure Geometry: Trapezoidal

Rigging: M10 Rigging Points

Finish: ISO-flex Paint

Color: Black

Dimensions (H x W x D): 42,9 x 17,5 x 20,3 in"

Net Weight: 39,5 kg (87,1 lb)

Components:

LF Driver: 15MI

HF Driver: M-44

Horn/Waveguide: BC-916

Shipping Dimensions (H x W x D): 45,9 x 20,3 x 22,1 in"

Shipping Weight: 43,5 kg (95,9 lb)
