Description
The AERO-20A is a compact line array system which incorporates the ALAS philosophy and draws from the astounding success of the “all purpose” capabilities of the AERO-12A, launched in 2009. The powered AERO-20A incorporates DAS´s latest technical achievements in transducer design, power electronics and system management.
The low-mid range incorporates a DAS 12″ loudspeaker optimized to provide high output and reliability. A light aluminum voice coil bonded to a new fiberglass reinforced cone, an optimized magnet circuit, and a new suspension design have contributed significantly to the exceptional performance of the 12AN4 in terms of distortion, power handling and maximum SPL.
High frequency response relies on a compression driver-waveguide assembly developed for the AERO-20A. The M-75N compression driver employs a powerful neodymium magnet structure, a titanium diaphragm and 75 mm (3″) voice coil. A reengineered mounting system which tightens internal tolerances along with a new shorting ring design have increased the power handling capacity of the driver. The M-75N is attached to a new aluminum waveguide that has been designed to be free of resonances and provide a natural sound.

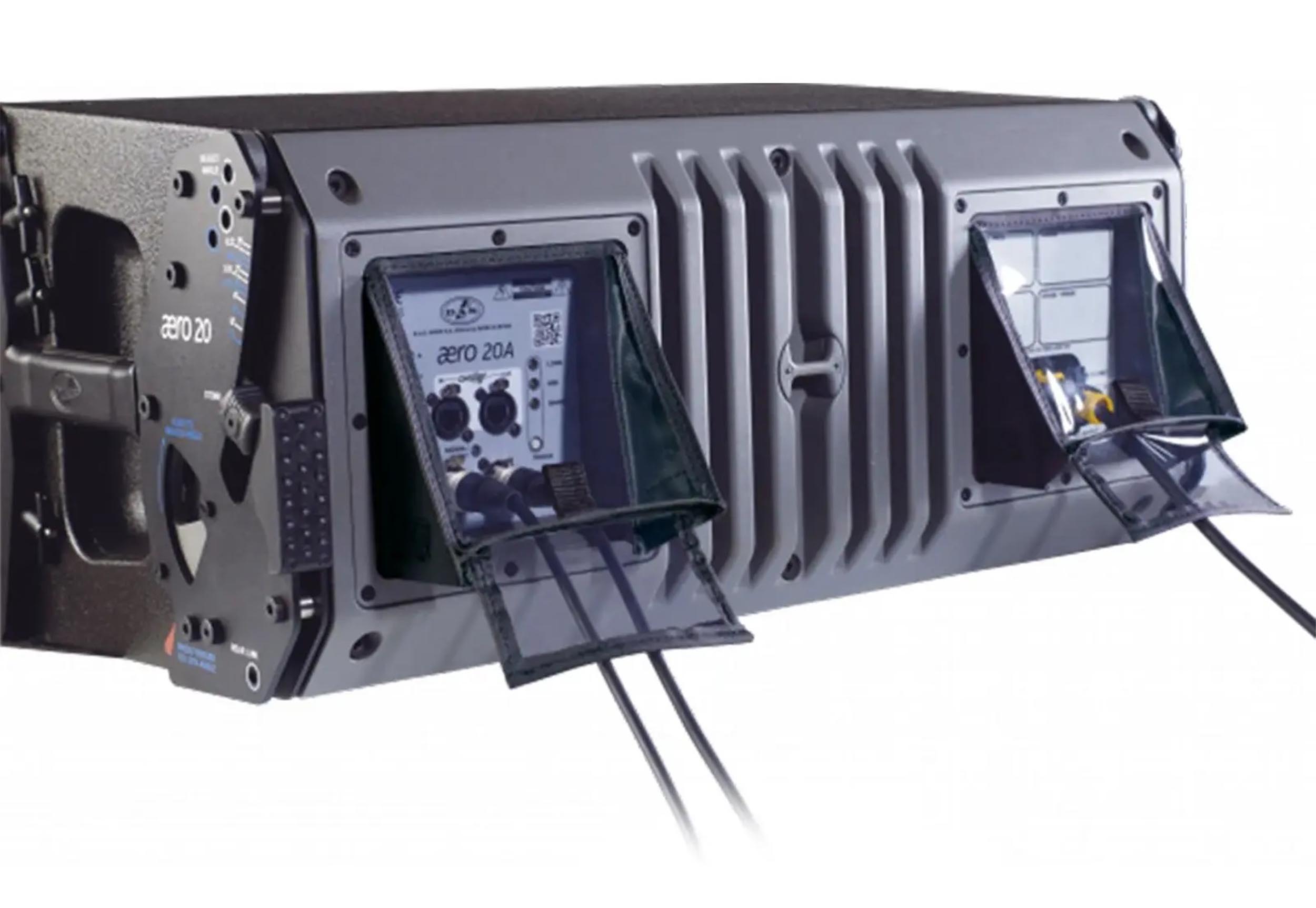

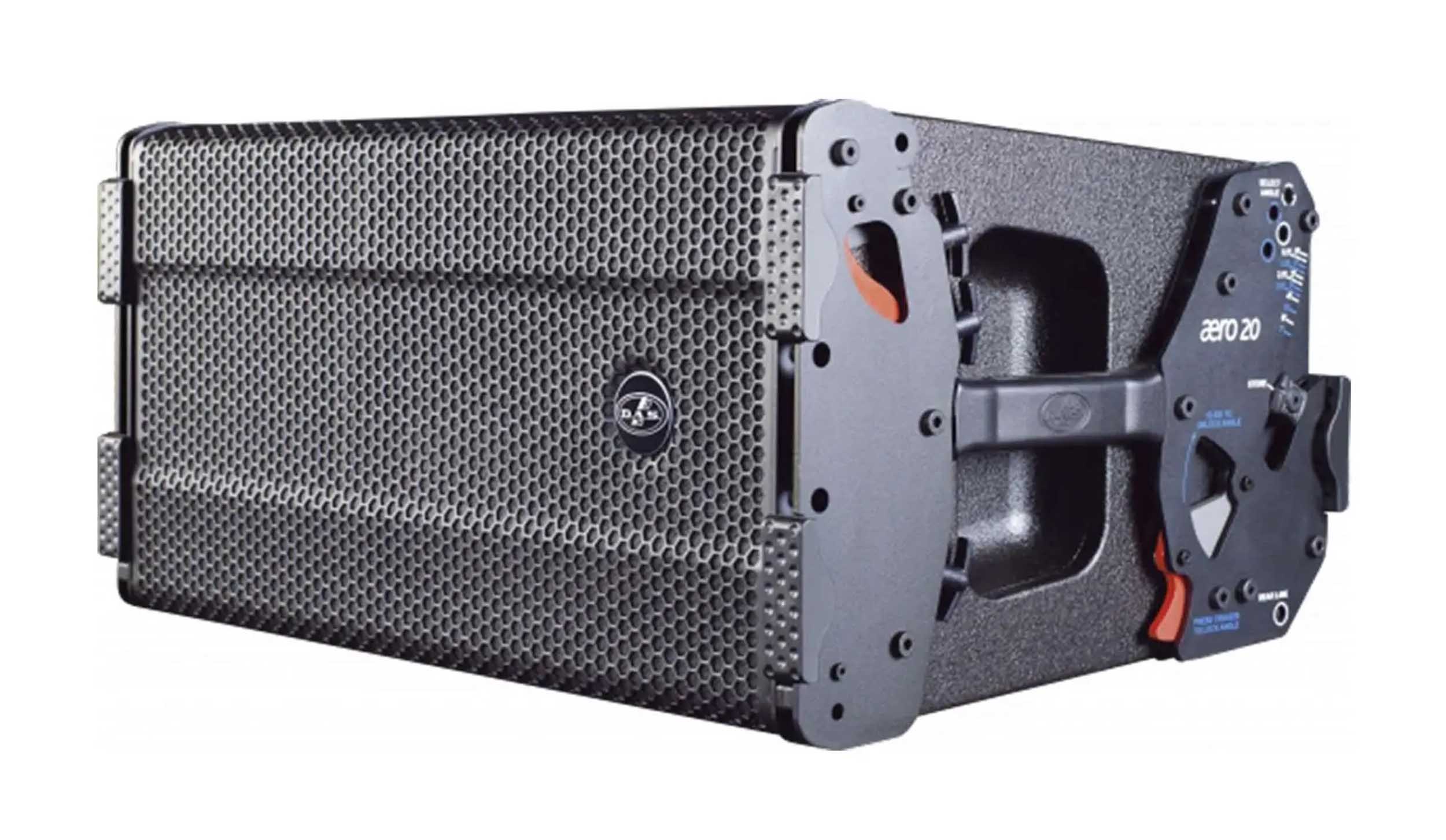

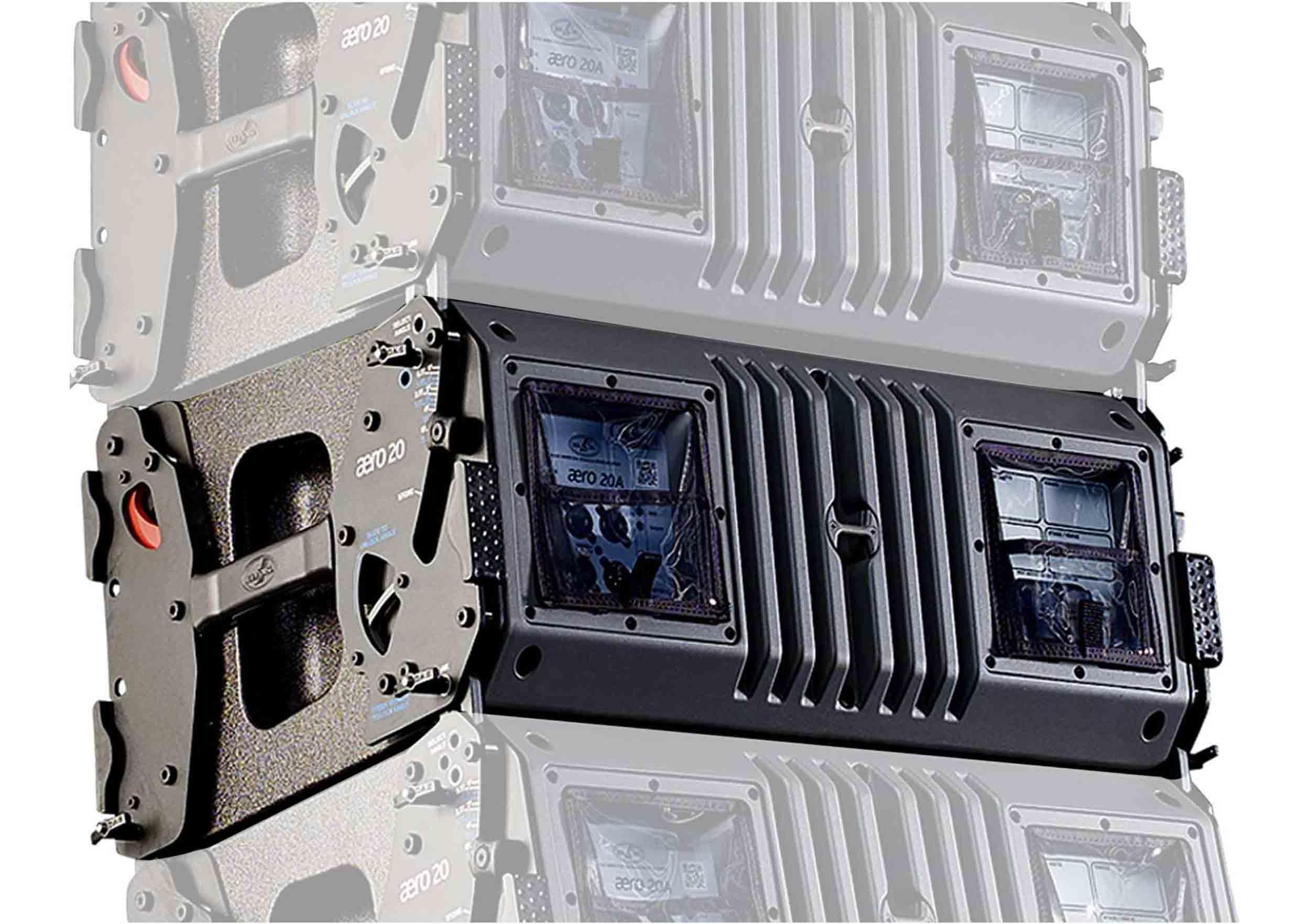

The AERO-20A is constructed using birch plywood and finished with the ISO-flex coating offering excellent protection and durability. Two injected aluminum assemblies attached to the front of the cabinet comprise the high frequency waveguide and the carrier for the 12” woofer. The assemblies also dissipate heat from the components, controlling power compression. An injected aluminum heat sink housing the amplifier and related electronics is attached to the rear of the cabinet.

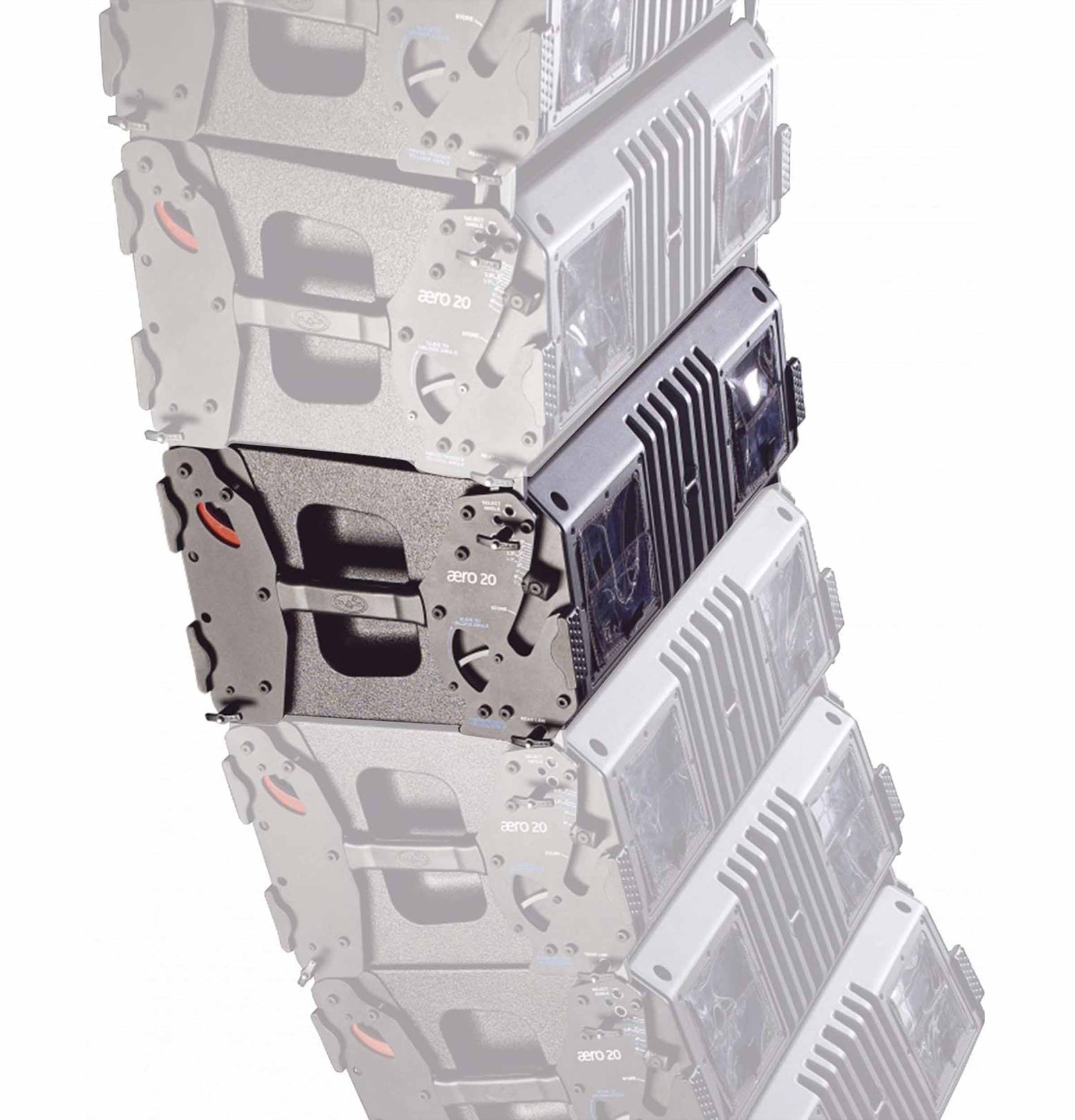

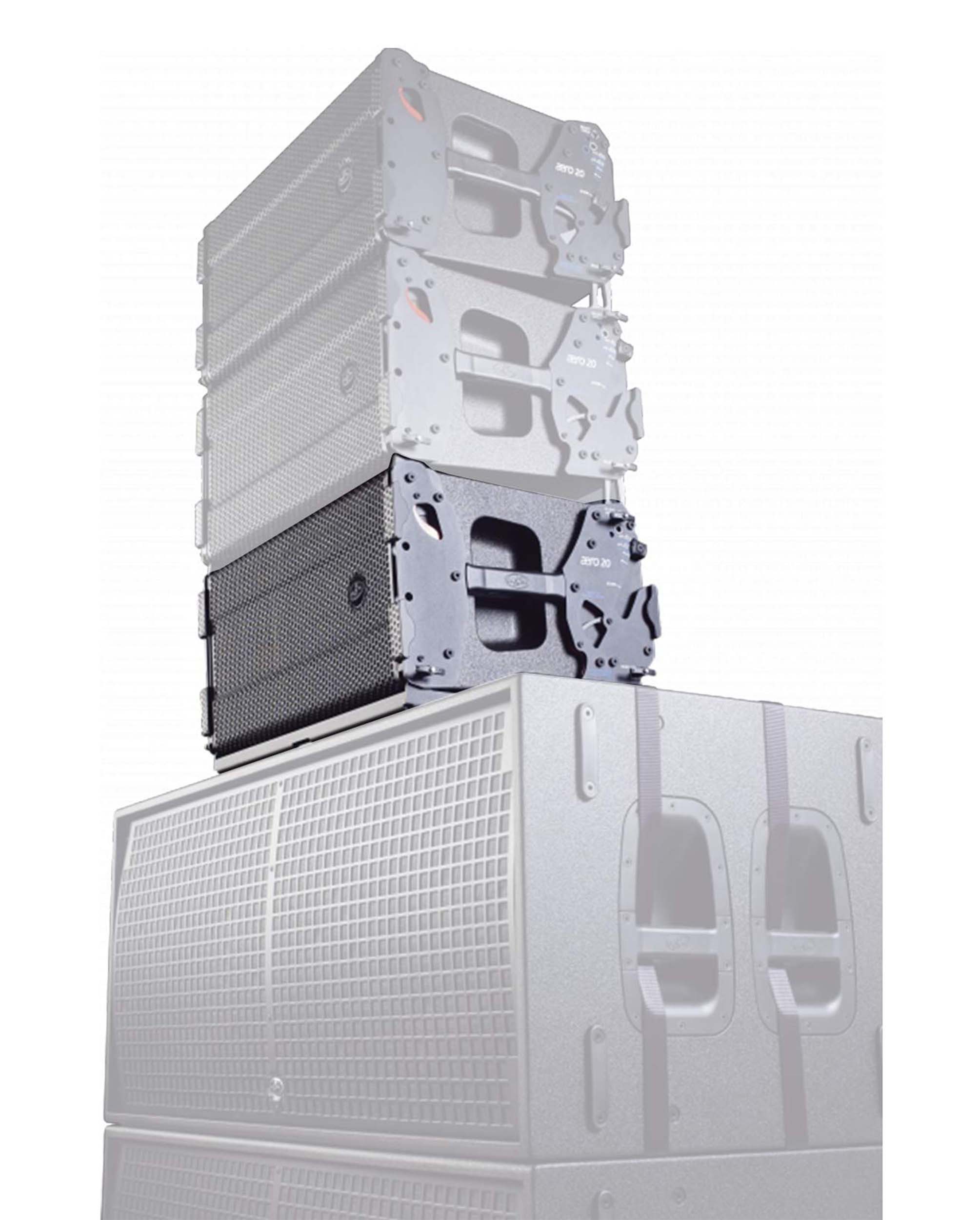

A new captive rigging mechanism enhances ease-of-use by allowing angle selection to be made while stacked on the transport dolly. A locking system can be triggered securing angles between adjacent enclosures during the stacking and lifting procedures.
Product Specifications:
Frequency Range (-10 dB): 60 Hz – 20 kHz
Horizontal Coverage (-6 dB): 90º
Vertical Coverage: Splay Dependent
Maximum Peak SPL at 1 m: 136 dB
Nominal Amplifier Power LF (continuous): 800 W
Nominal Amplifier Power LF (peak): 1600 W
Nominal Amplifier Power HF (continuous): 400 W
Nominal Amplifier Power HF (peak): 800 W
Input Type: Balanced
Input Impedance: 20 kOhms
Input Sensitivity: 4.9 V (+16 dBu)
Audio Signal Input Connector: 1 x Female XLR
Audio Signal Loop Thru Connector: 1 x Male XLR
Audio/Data Input Connector: etherCON
Control: DASnet
Audio + Data Loop Thru Connector: etherCON
Recommended Signal Processing: DSP-4080
AC Output Connector: powerCON TRUE1
Current Draw 230 V / 115 V: 1.8 A/3.6 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Trapezoidal
Rigging: Captive Rigging System
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 12,6 x 25,6 x 17,5 in"
Net Weight: 33,0 kg (72,8 lb)
Components:
LF Driver: 12AN4
HF Driver: M-75N
Horn/Waveguide: BPS-1912
Shipping Dimensions (H x W x D): 14,7 x 28,4 x 19,5 in"
Shipping Weight: 35,0 kg (77,2 lb)
