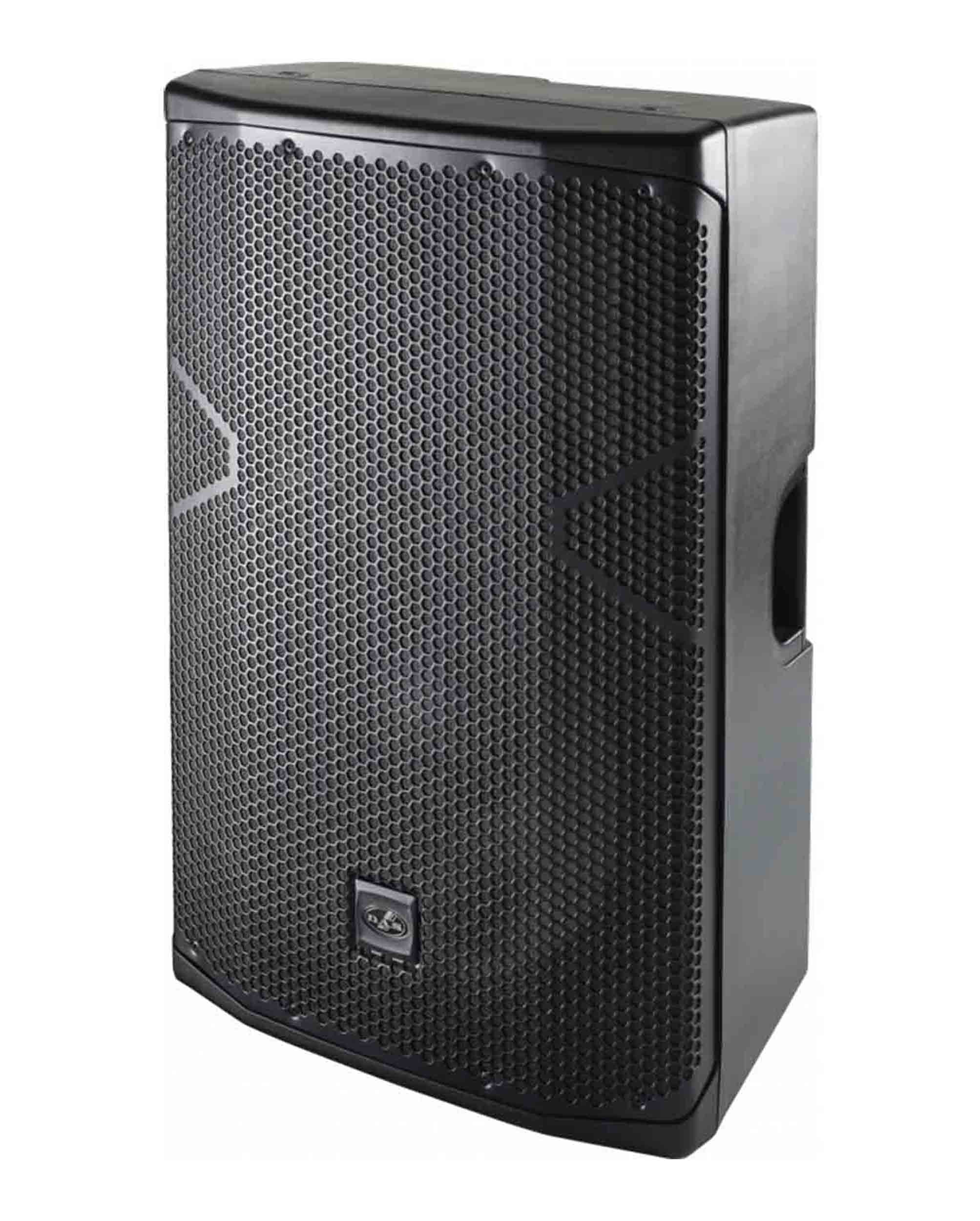

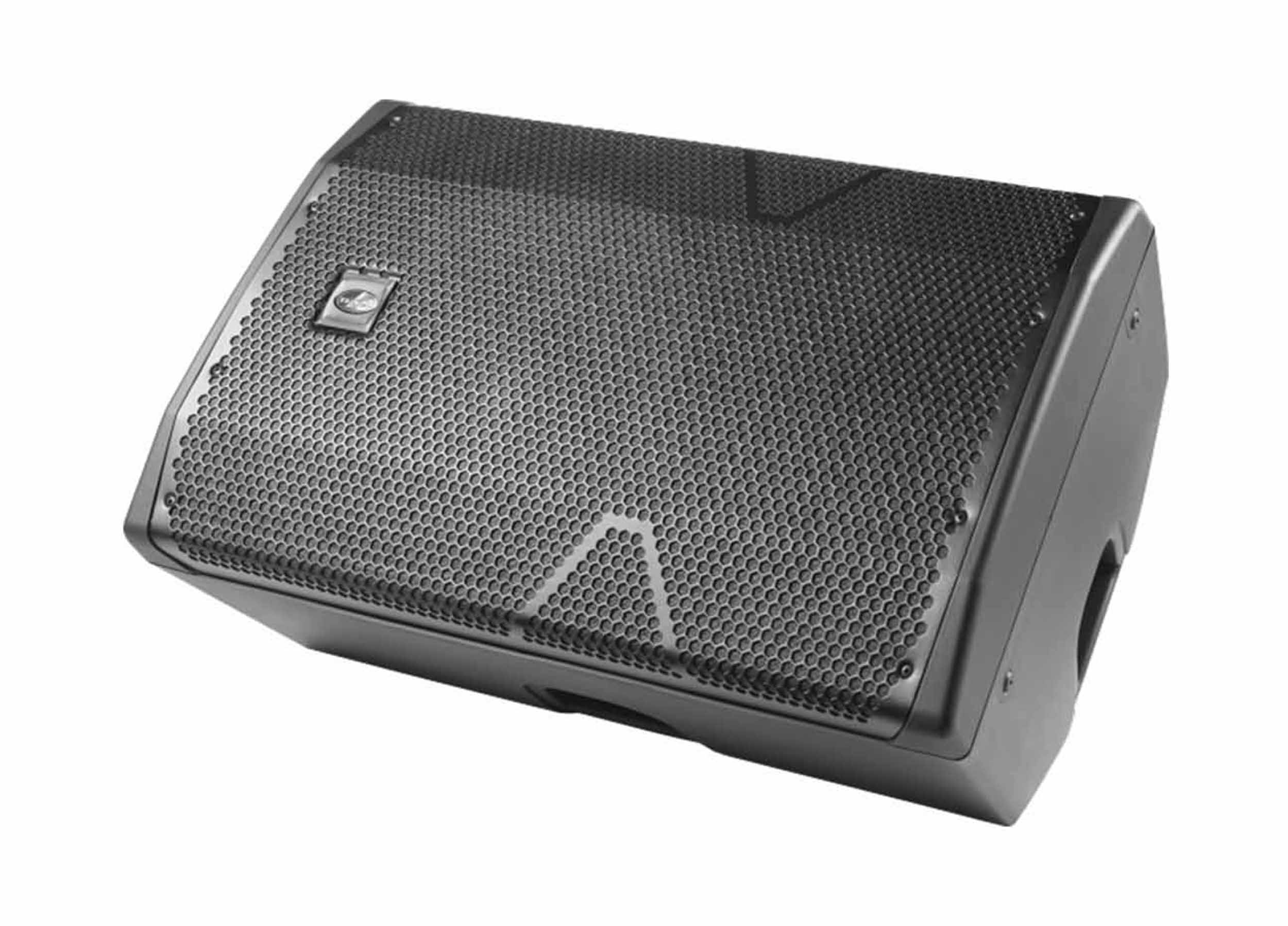

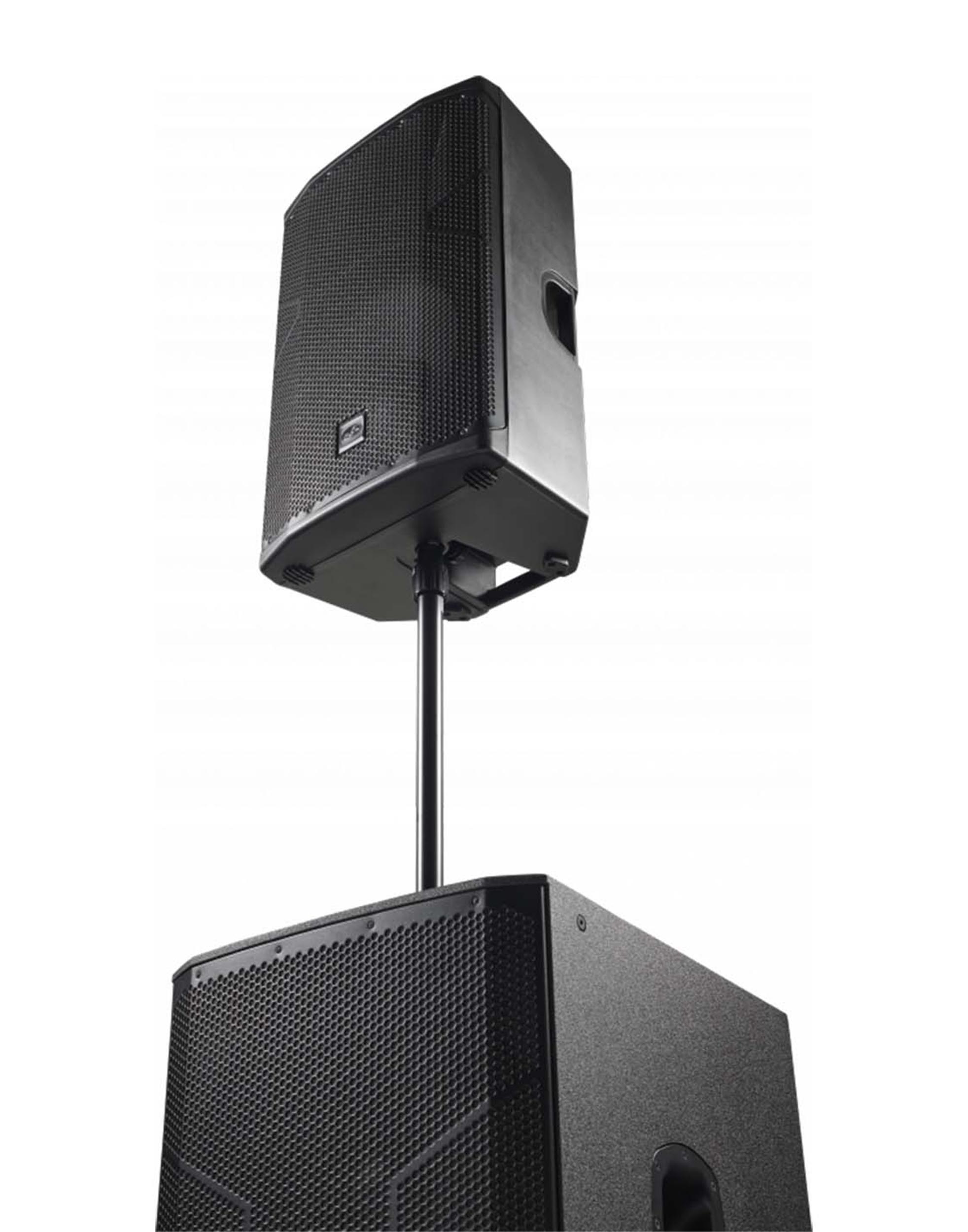

The ALTEA-415A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor. Onboard is a Class D two-channel amplifier of exceptional quality providing a total of 800 W peak power. of the provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.

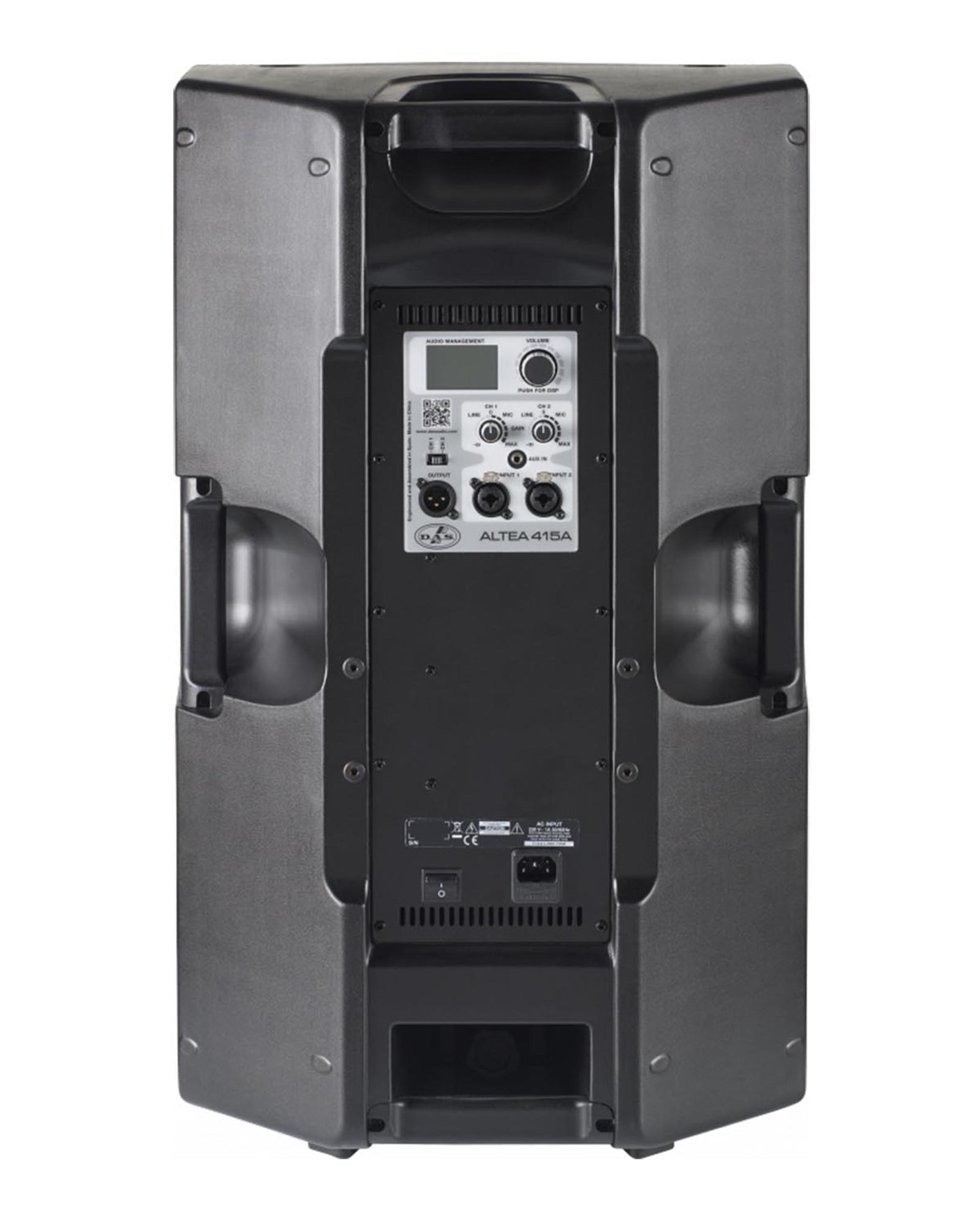

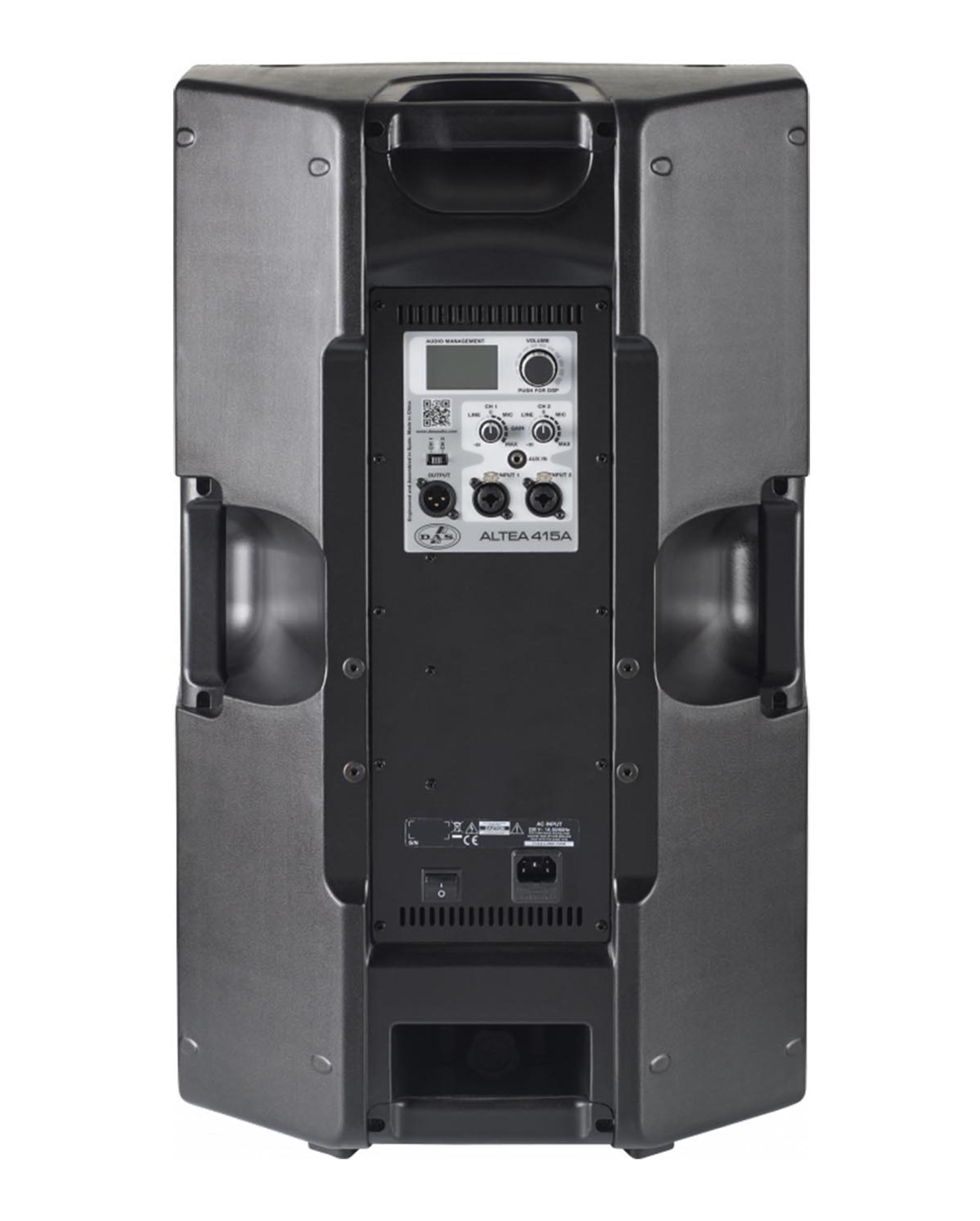

Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-415A system. User-configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 15MI4 loudspeaker provides accurate low-frequency reproduction with deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance.
Product Specifications:
Frequency Range (-10 dB): 50 Hz – 20 kHz
Horizontal Coverage (-6 dB): 90º
Vertical Coverage: 60º
Maximum Peak SPL at 1 m: 128 dB
Nominal Amplifier Power (continuous): 400 W
Nominal Amplifier Power (peak): 800 W
Input Type: Balanced
Input Impedance: 20 kohms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
AUX Input: 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector: 1 x Male XLR
Control: DAS Control
Current Draw 115 V: 2.0 A
Current Draw 230 V: 1.0 A
Color: Black
Dimensions (H x W x D ): 710 x 440 x 380 mm, 28,0 x 17,3 x 15,0 in
Net Weight: 17,5 kg (38,6 lb.)
