Description

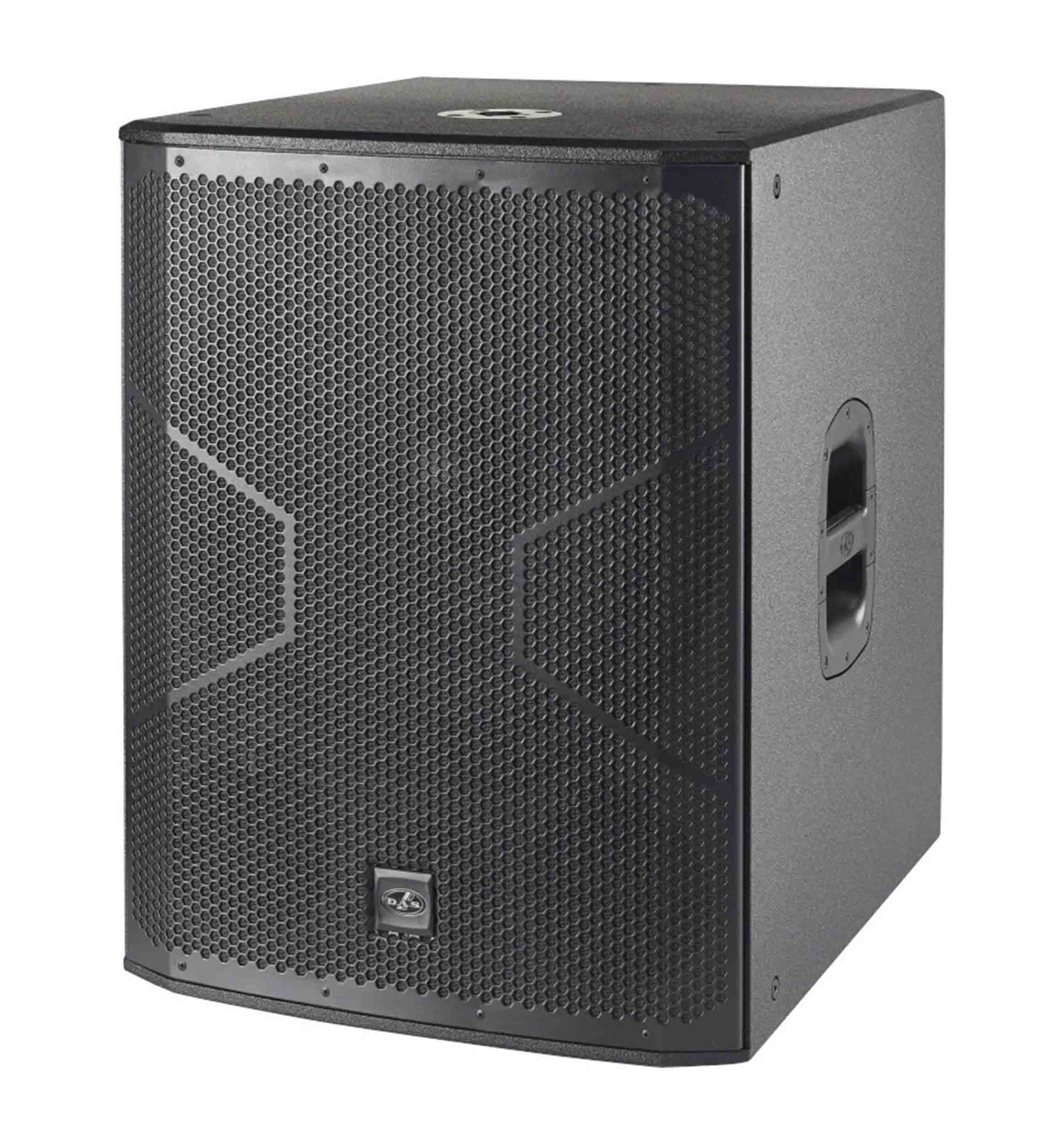

The ALTEA-718A is a powered subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW4 bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursion. Cooling is assured thanks to the 18FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

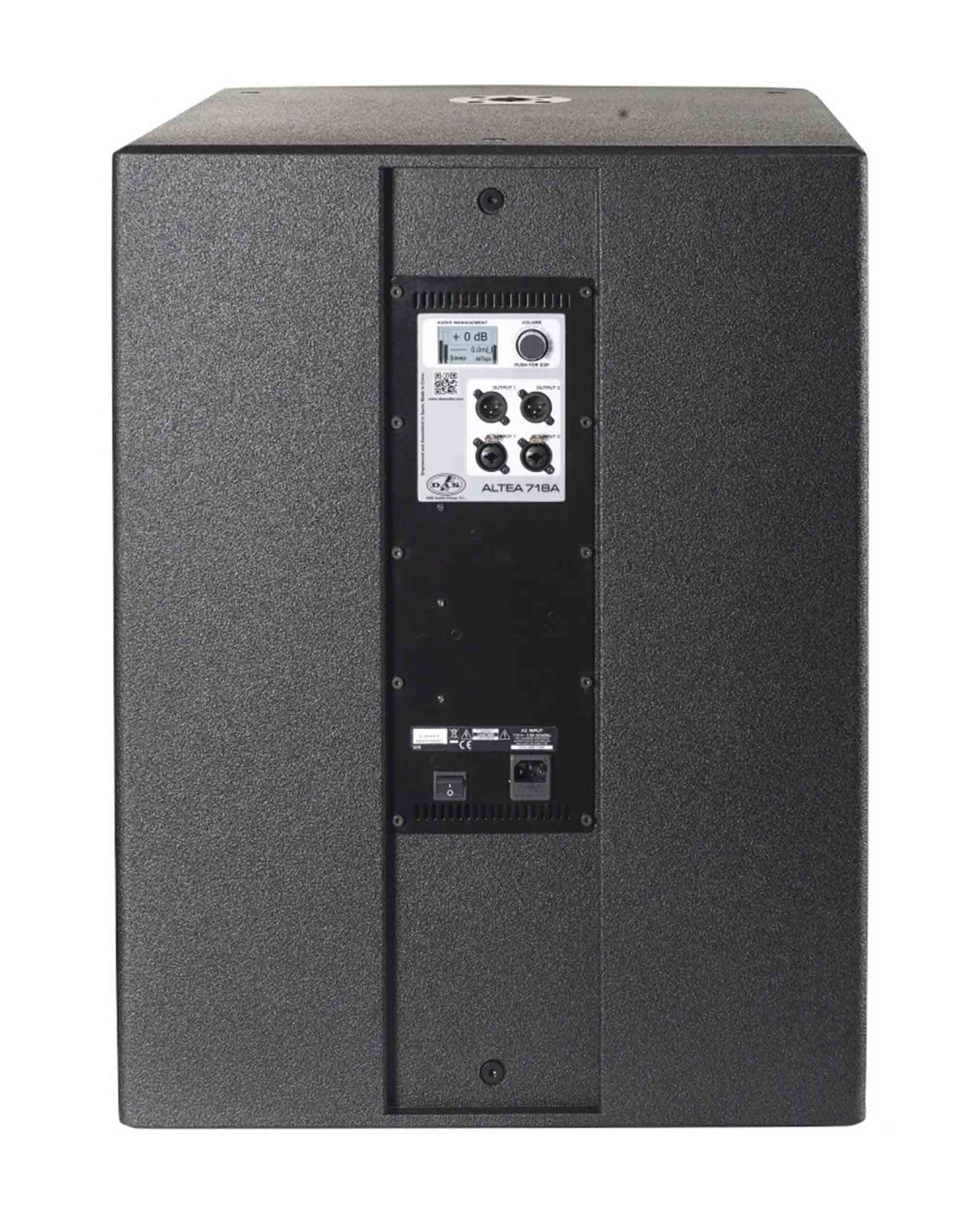

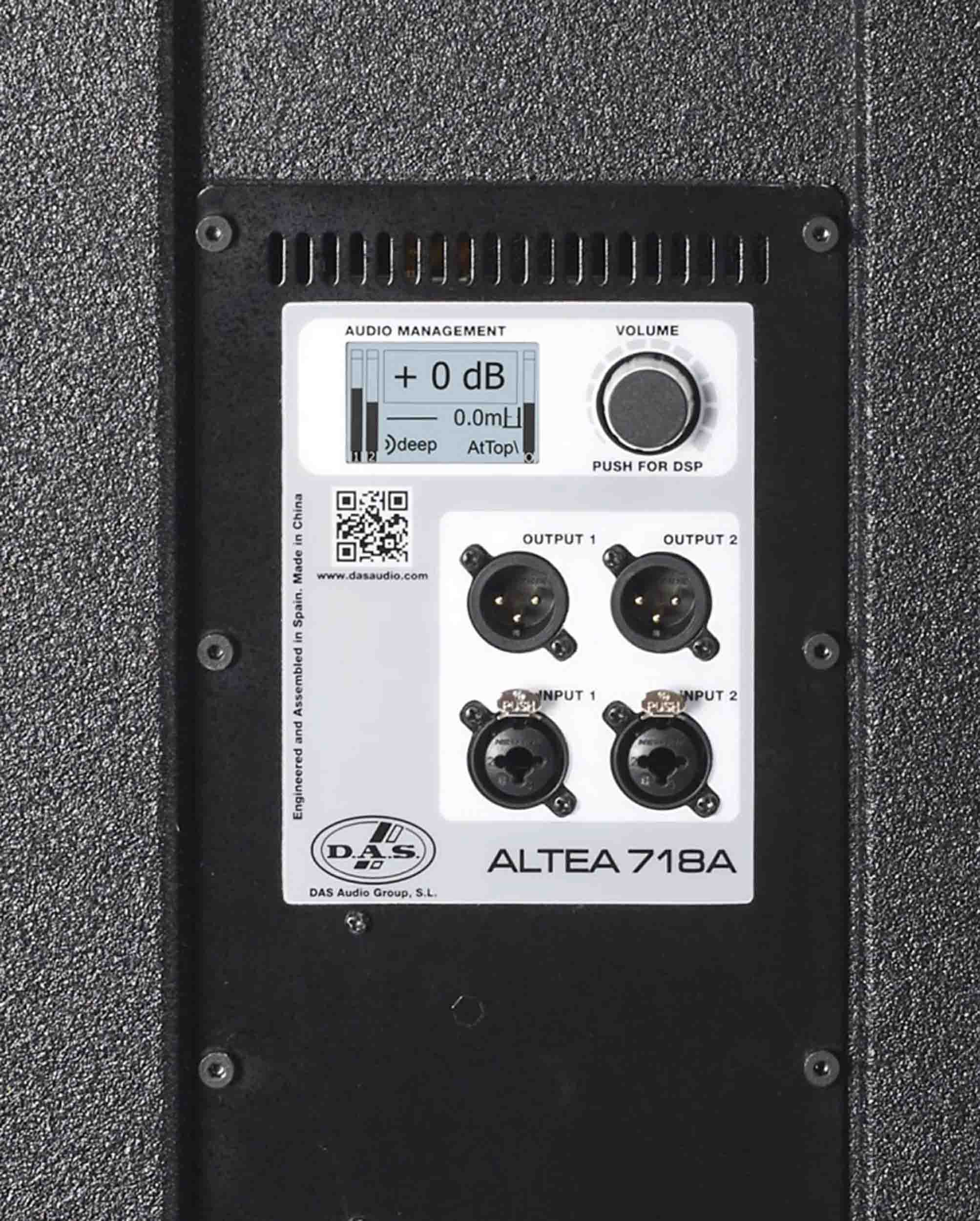

Driving the DAS 18FW4 loudspeaker is a cutting-edge 1200 W peak Class D amplifier. On the rear panel a balanced input connector and stereo “loop thru” output connections are available to provide signal for ALTEA satellite systems. Thanks to the digital presets accessible by way of a DAScontrol interface on the rear of the cabinet, setting up a combo system with ALTEA full-range systems is easy. The ALTEA-718 is the passive version for use with external amplification and outboard DSP.
Product Specifications:
Frequency Range (-10 dB): 45 Hz – 138 Hz
Maximum Peak SPL at 1 m: 134 dB
Nominal Amplifier Power (continuous): 600 W
Nominal Amplifier Power (peak): 1200 W
Input Type: Balanced
Input Impedance: 20 Kohms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
Control: DAScontrol
Current Draw 230 V / 115 V: 1.4 A/2.8 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Rigging: M10 Rigging Points
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 28,4 x 21,5 x 25,6 in"
Net Weight: 42,0 kg (92,6 lb)
Components:
LF Driver: 18FW4
Carton Dimensions (H x W x D): 32,3 x 23,6 x 27,6 in"
Shipping Weight: 46,5 kg (102,5 lb)
