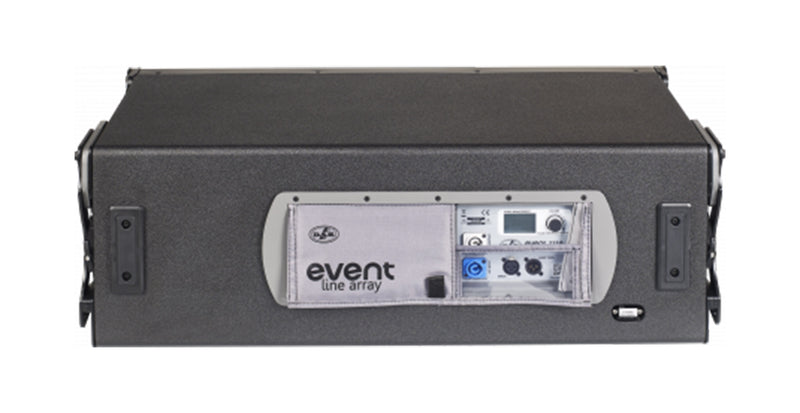

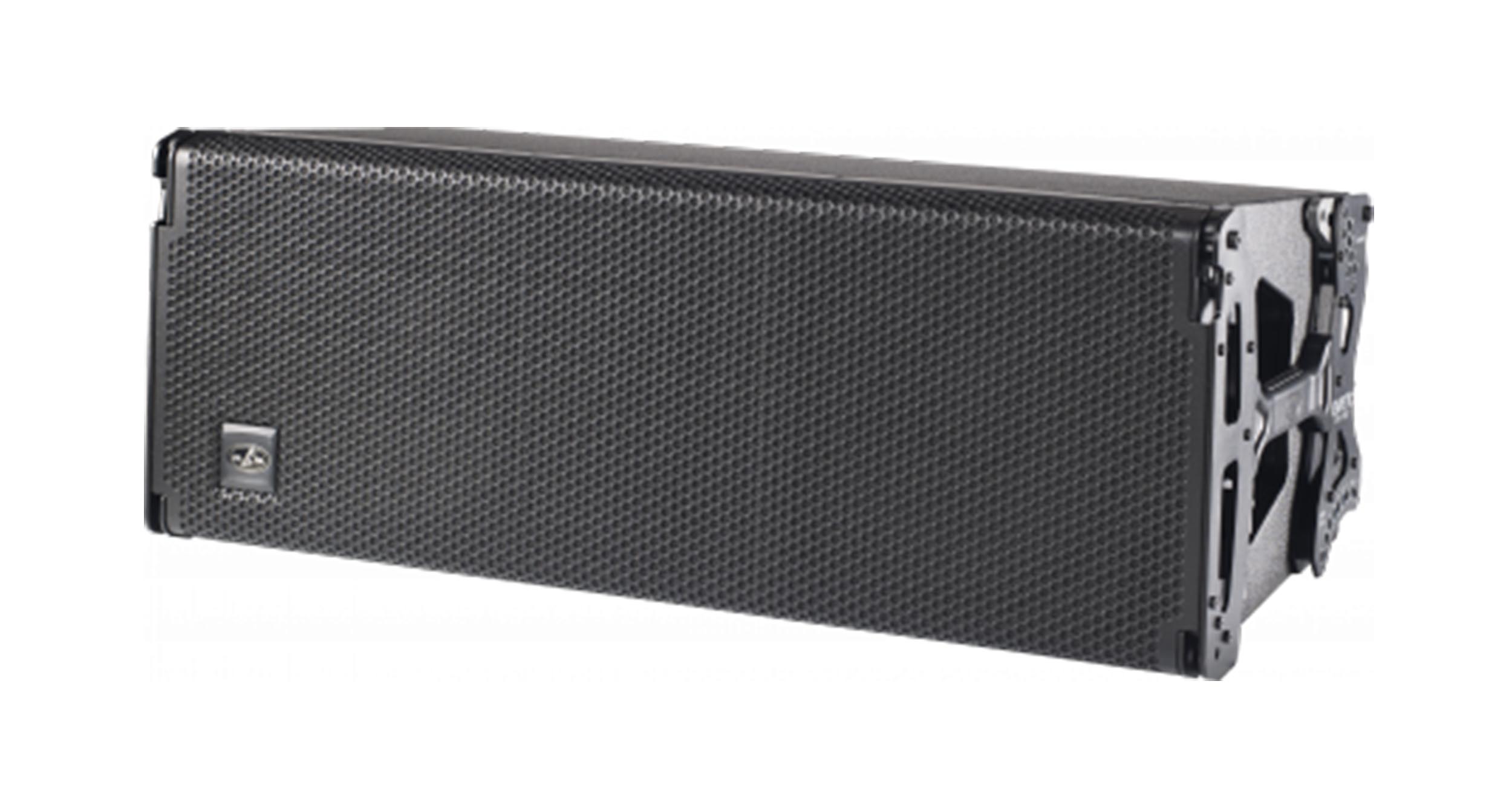

DAS Audio EVENT-212.120A, 3-Way 12-Inch 3000W Powered Line Array Speaker Module with DSP Processor - Black

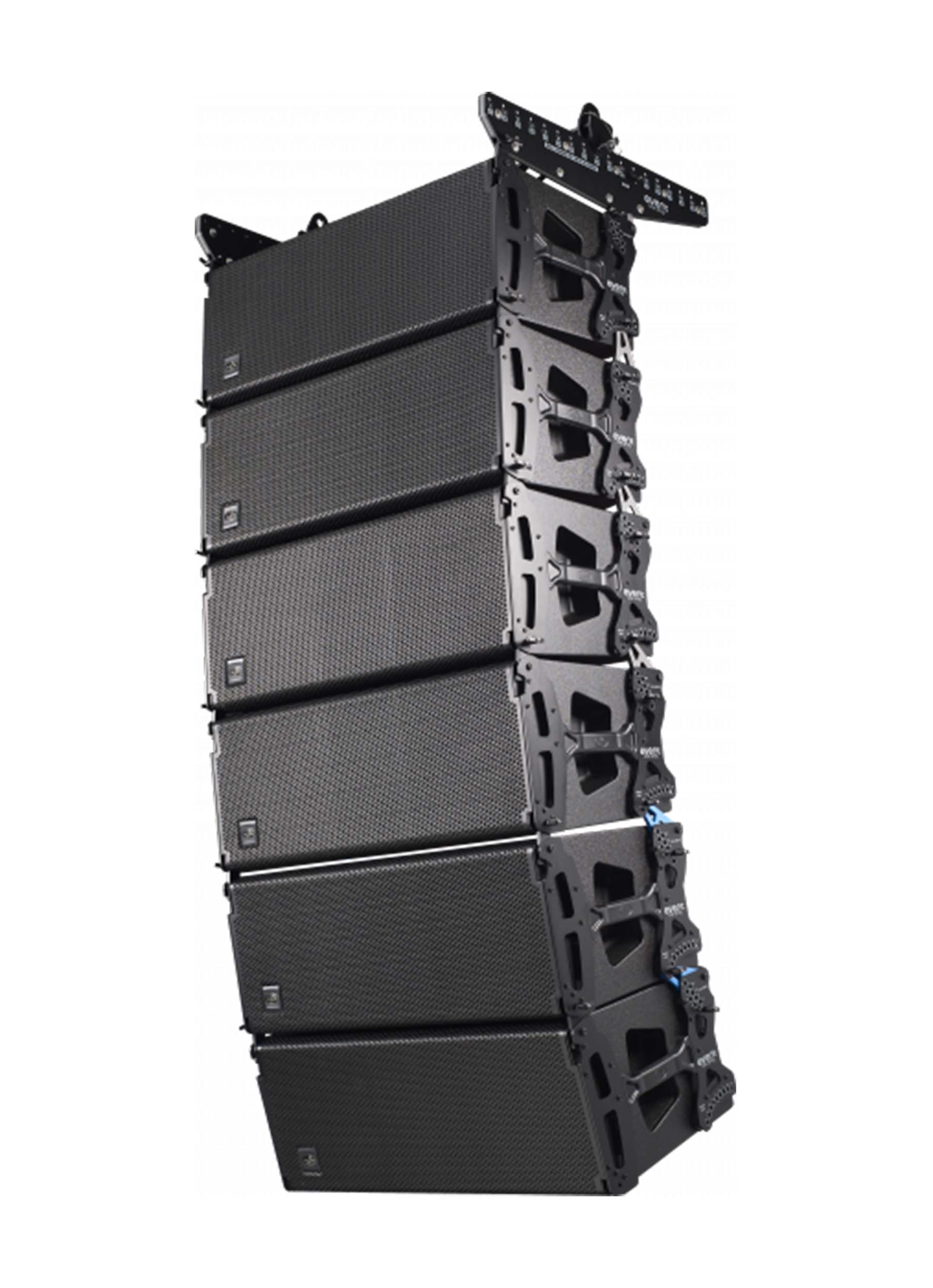

The DAS EVENT-212A is a powered, 3-way line array which employs two DAS 12″ loudspeakers in a dual band configuration where each speaker operates in a specific frequency range. At low frequencies, the speakers work in tandem for maximum power, each driven by a dedicated amplifier channel providing 1000 W peak output power. The DAS loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide to provide unmatched performance, sensitivity and coverage in both the 90º and 120º formats offered.

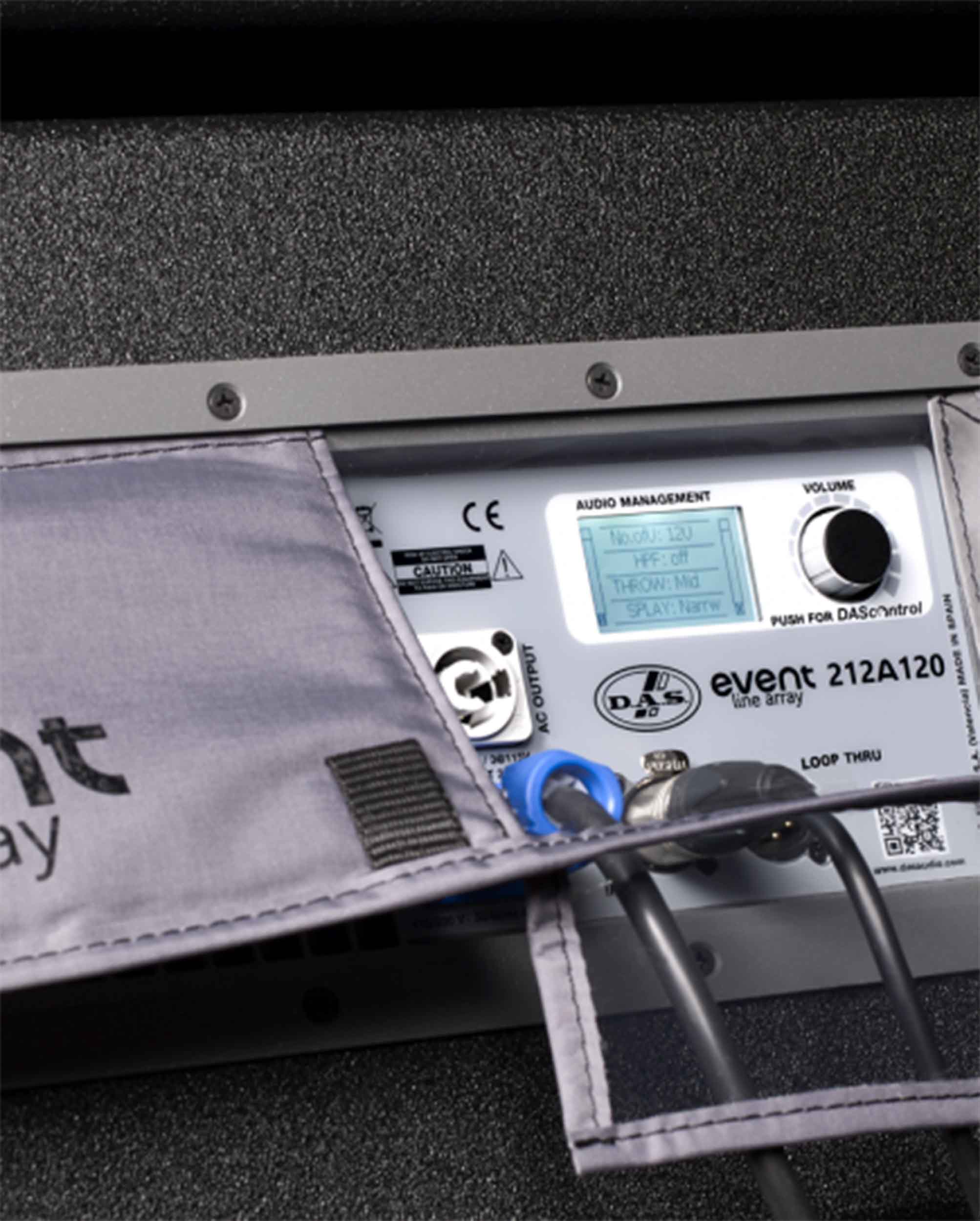

The EVENT-212A line array incorporates the DAScontrol interface which offers a quick and hassle-free set-up of the systems in arrays and easy alignment with the EVENT-218A and EVENT-121A subwoofer systems. Presets for the number of units of the array, HF compensation for throw distances, and correction for the splay angle of the array can be selected by way of DAScontrol and the LCD screen on the located on the back of the cabinet. The powerful digital signal processing of the EVENT-212A includes Finite Impulse Response (FIR) filters providing linear phase response and precise impulse response which in terms of performance, results in added clarity, defined attack in percussion and overall, a more natural sound.

Product Specifications:

Frequency Range (-10 dB): 60 Hz -20 kHz

Horizontal Coverage (-6 dB): 120º

Vertical Coverage: Splay Dependent

Maximum Peak SPL at 1 m: 134 dB

Nominal Amplifier Power LF (continuous): 500 W

Nominal Amplifier Power LF (peak): 1000 W

Nominal Amplifier Power MF (continuous): 500 W

Nominal Amplifier Power MF (peak): 1000 W

Nominal Amplifier Power HF (continuous): 500 W

Nominal Amplifier Power HF (peak): 1000 W

Input Type: Balanced

Input Impedance: 20 Kohms

Input Sensitivity: 6.2 V (+18 dBu)

Audio Signal Input Connector: 1 x Female XLR

Audio Signal Loop Thru Connector: 1 x Male XLR

AC Output Connector: powerCON NAC3FCB

Current Draw 230 V / 115 V: 1.8 A/3.6 A

Enclosure Construction: Birch Plywood

Enclosure Geometry: Trapezoidal

Rigging: Captive Rigging System

Finish: ISO-flex Paint

Color: Black

Dimensions (H x W x D): 12,8 x 33,7 x 17,1 in"

Net Weight: 41,0 kg (90,4 lb)

Components:

LF Driver: 12MI4

MF Driver: 12MI4

HF Driver: M-75

Horn/Waveguide: BPS-120EV00

Carton Dimensions (H x W x D): 18,5 x 10,8 x 18,9 in"

Shipping Weight: 43,5 kg (95,9 lb)
