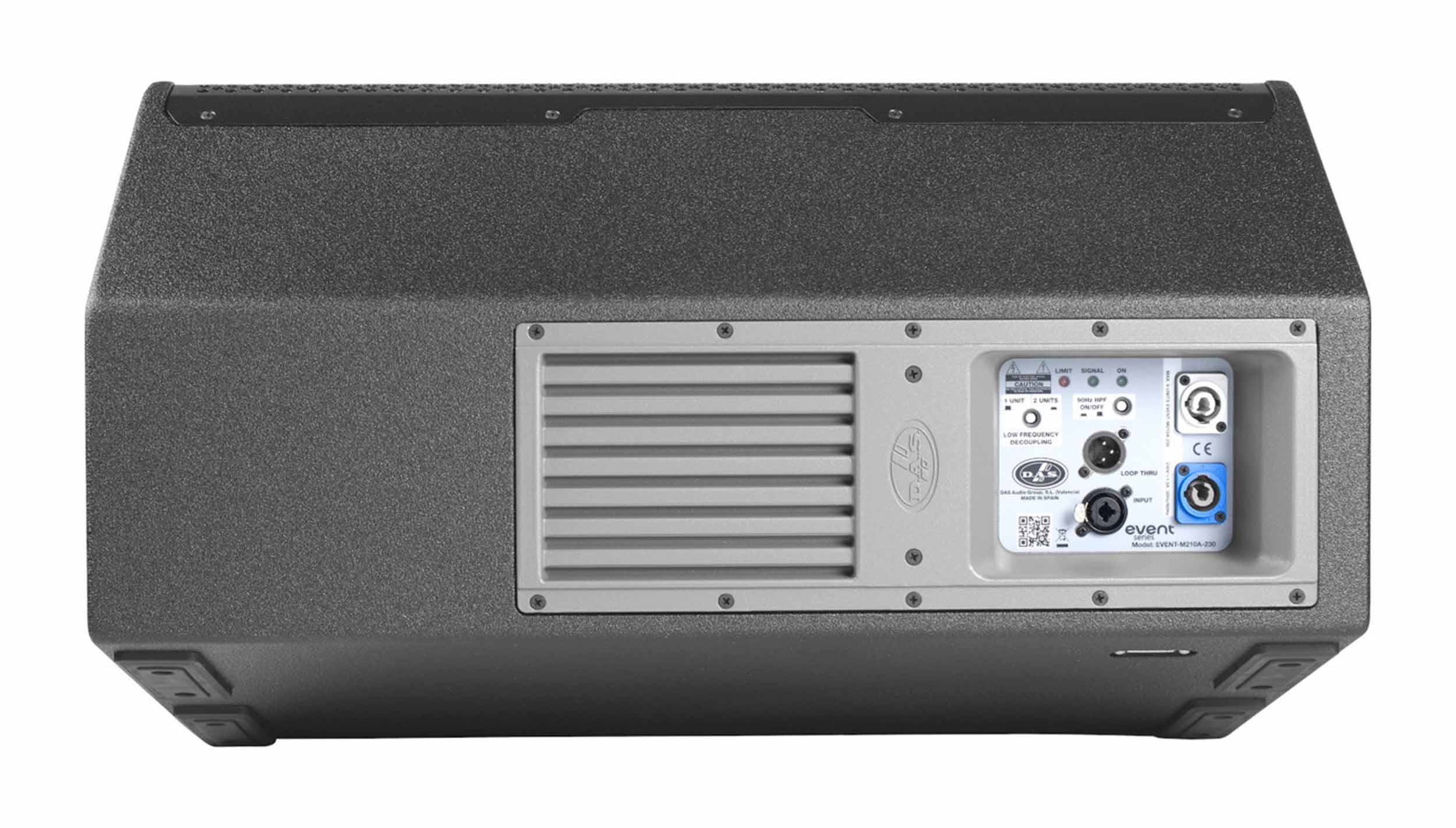

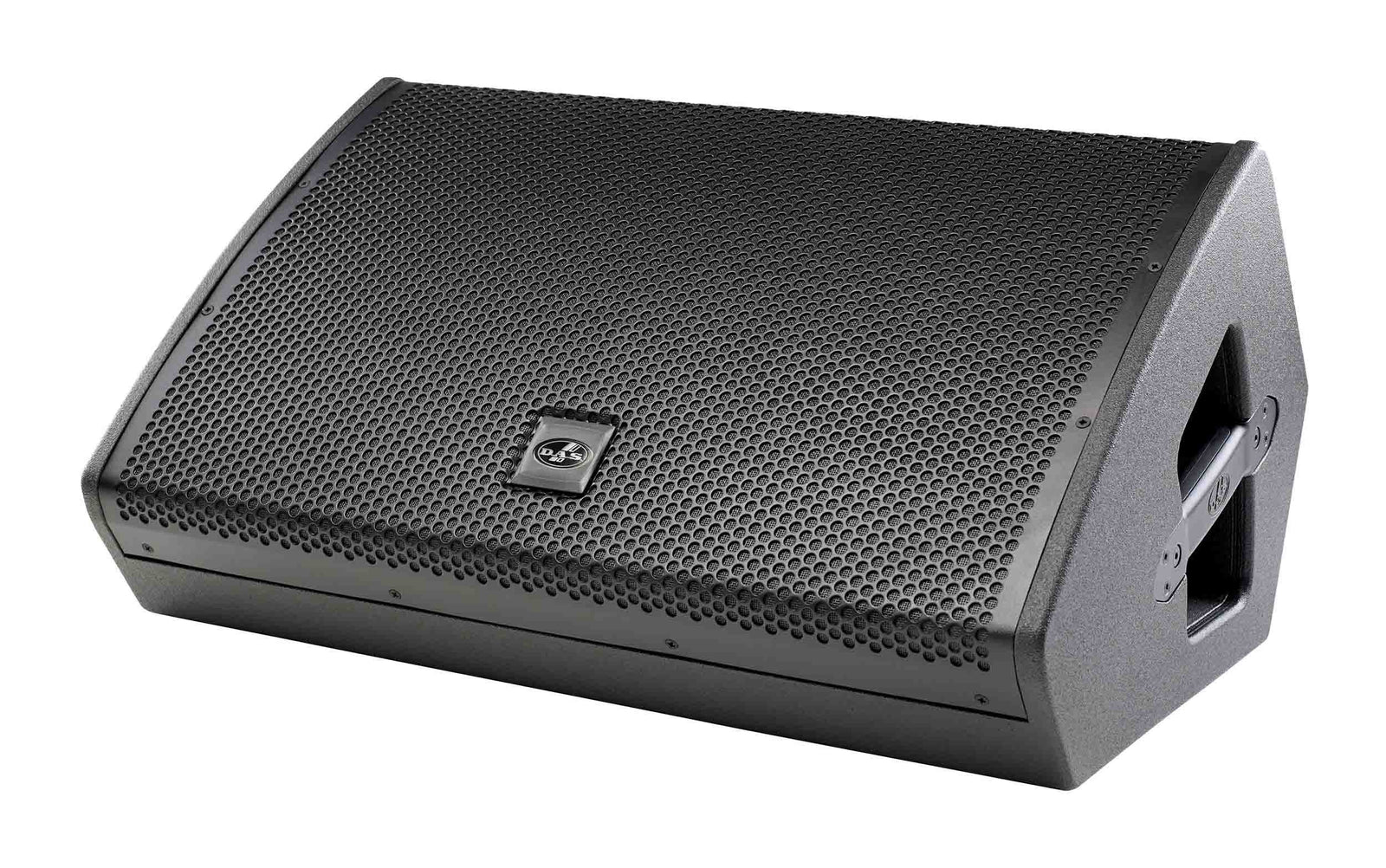

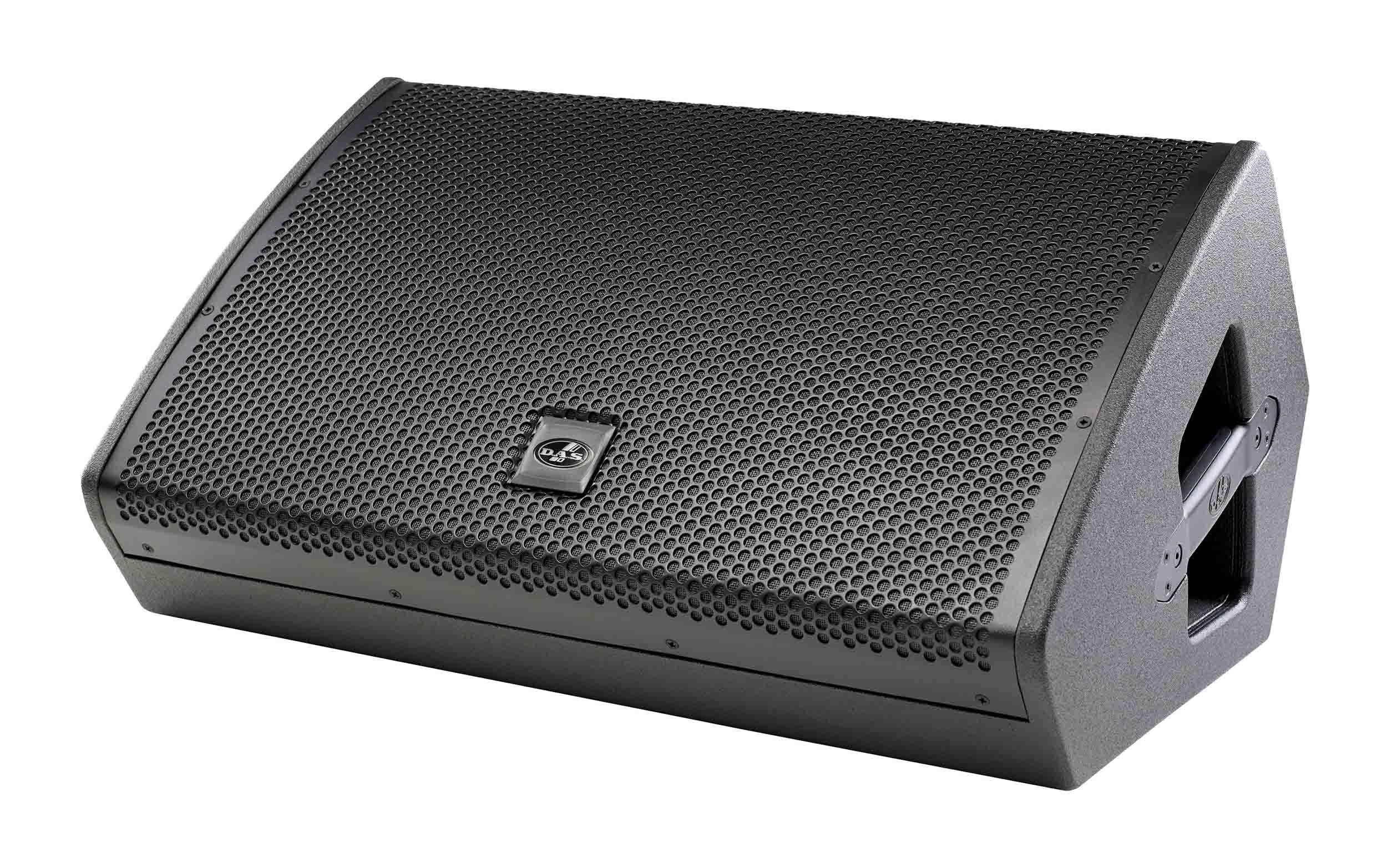

The EVENT-M210A is a three-way stage monitor in a double 10” “dual-band” configuration providing a wide frequency range. The DAS loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-M210A wedge is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.
Product Specifications:
Frequency Range (-10 dB): 70 Hz – 20 kHz
Horizontal Coverage (-6 dB): 60º
Vertical Coverage: 20ºUp/30ºDown
Maximum Peak SPL at 1 m: 132 dB
Nominal Amplifier Power LF (continuous): 180 W
Nominal Amplifier Power LF (peak): 360 W
Nominal Amplifier Power MF (continuous): 180 W
Nominal Amplifier Power MF (peak): 360 W
Nominal Amplifier Power HF (continuous): 180 W
Nominal Amplifier Power HF (peak): 360 W
Input Type: Balanced
Input Impedance: 20 kOhms
Input Sensitivity: 6.2 V (+18 dBu)
Audio Signal Input Connector: 1 x Female XLR
Audio Signal Loop Thru Connector: 1 x Male XLR
AC Output Connector: powerCON NAC3FCB
Current Draw 230 V / 115 V: -/3.0 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Trapezoidal
Rigging: Captive Rigging System
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 13,4 x 25,6 x 18,1 in"
Net Weight: 23,5 kg (51,8 lb)
Components:
LF Driver: 10MI4
MF Driver: 10MI4
HF Driver: M-60
Horn/Waveguide: BC-632
Carton Dimensions (H x W x D): 29,1 x 14,6 x 19,3 in"
Shipping Weight: 26,0 kg (57,3 lb)
