Description

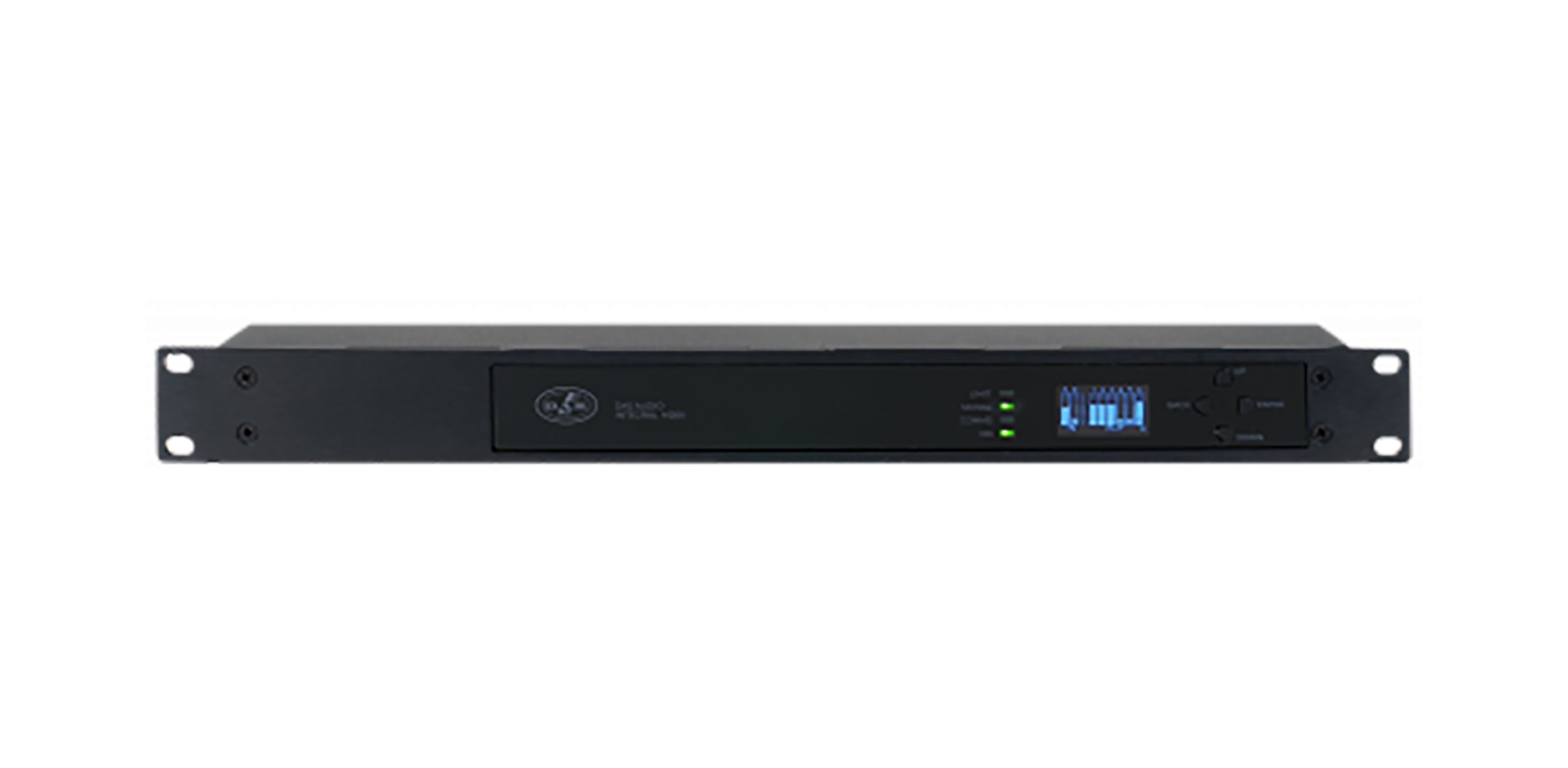

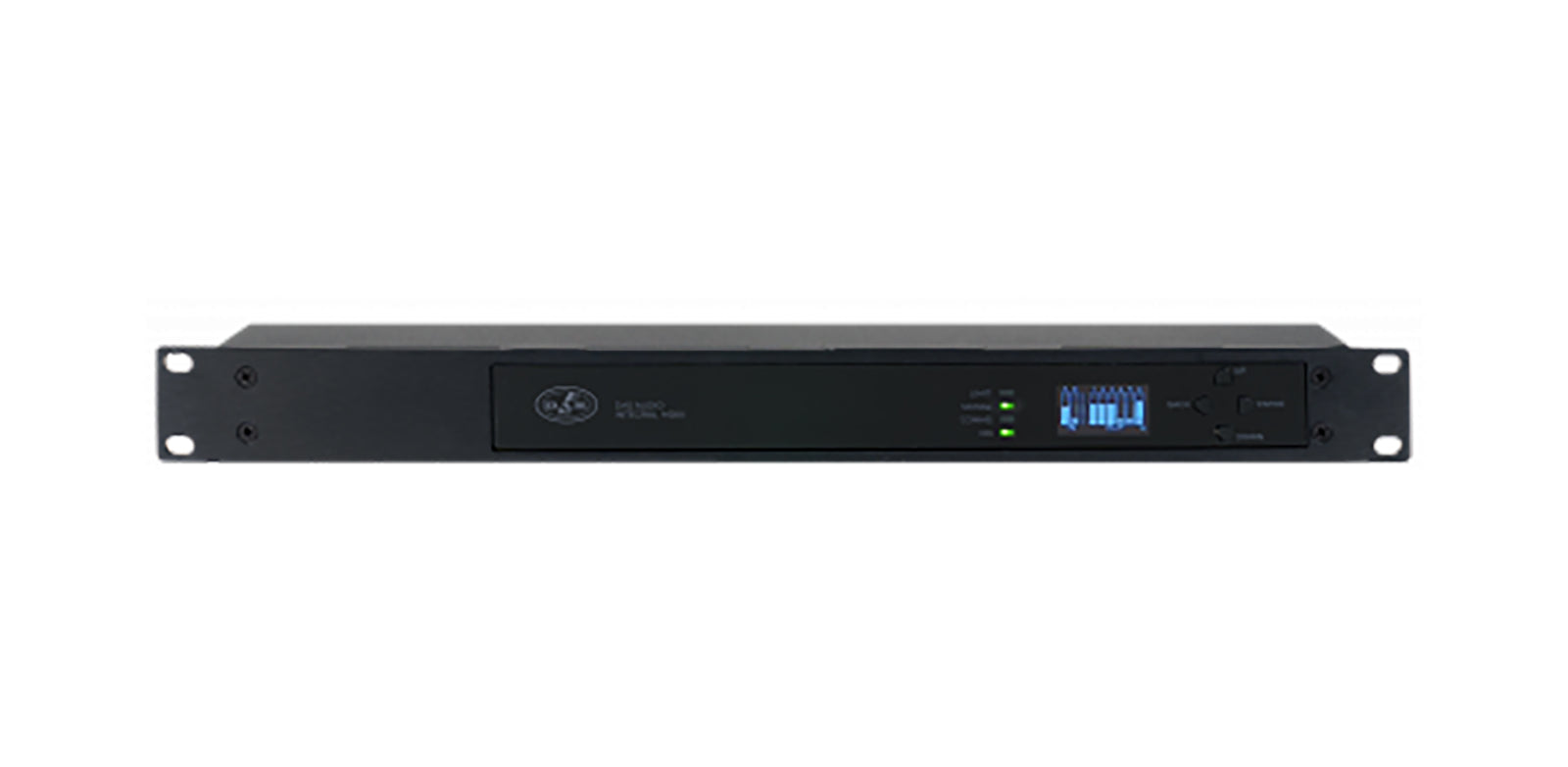

The D.A.S. Audio INTEGRAL-M26X, a 1U rack-mount digital signal processor, features two analogue input channels and six analogue output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live and installed PA systems.
Remote control and monitoring are possible via ALMA software using IP technology, or alternatively, it can be managed using external controllers through OSC messages. Direct unit control is facilitated through a 1.54″ OLED display with control buttons for basic parameters. These include input and output levels, preset recalls, mute, source selection, and link manager functions.
The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiters adjustment options. Its internal memory can store over 100 global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers. External control is further simplified through a General-Purpose Input / Output (GPIO) connector, providing an external 3V3 volt, GND signal, and 8 configurable pins via ALMA software.
Product Specifications:
Frequency Response: 20 Hz-30 kHz (+0 -0.5 dB)
Max Input Level: +22 dBu
Max. Output Level: +22 dBu
Controls: Power On/Off, Navigation Buttons
Sampling Rate: 48 kHz
Display OLED: 1.54″
Cooling: Side-Right-to-Left
LED Indicators: On, Comms, Signal, Limit
AC Input Connector: IEC 15A
Power Supply: Universal Mains Switch Mode
Operating Range: 90 – 250 VAC
Analog Input Channels: 2
Analog Output Channels: 6
AD Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
DA Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
Internal Precision: 32 Bit, 64 Bits Double Precission
Latency: 1 ms
Delay: 50ms per input / 135ms per output
Equalizer: Bell, Lo/Hi-Shelving, Hos
Crossover: Linkwitz-Riley, Butterworth, Bessel
High and Low Pass Filters: Up to 48 dB/oct
Limiters: RMS
Dimensions (H x W x D): 44 x 483 x 210 mm
1,7 x 19,0 x 8,3 in
Net Weight: 2,5 kg (5,5 lb)
