Description

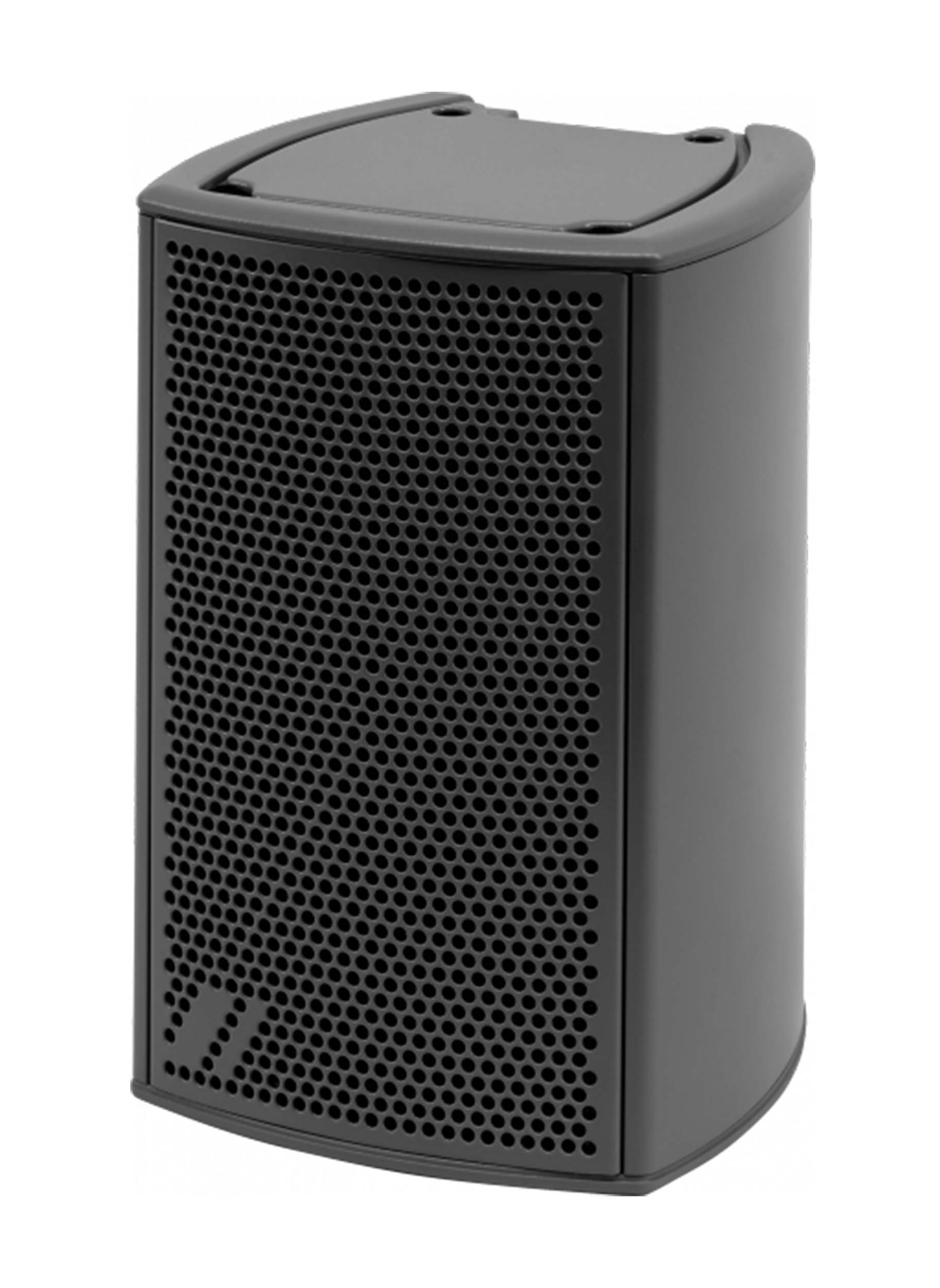

The DAS Audio Q-23-T, 40-Watt Passive Speaker is a highly compact and discrete system ideal for short distances, for creating ambience, and for front fill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment. The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.
Product Specifications:
Frequency Range (-10 dB): 150 Hz – 20 kHz
Horizontal Coverage (-6 dB): 120º
Vertical Coverage: Switchable: 90º -70º
Nominal Impedance: 8 ohms
Transformer Taps 70 V: 5 W – 10 W – 15 W
Transformer Taps 100 V: 10 W – 20 W – 30 W
RMS Power Handling: 40 W
Peak Power Handling: 160 W
On-axis Sensitivity 1W/1 m: 90 dB SPL
Maximum Peak SPL at 1 m: 112 dB SPL
Recommended Amplifier:
INTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended Processor:
INTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004

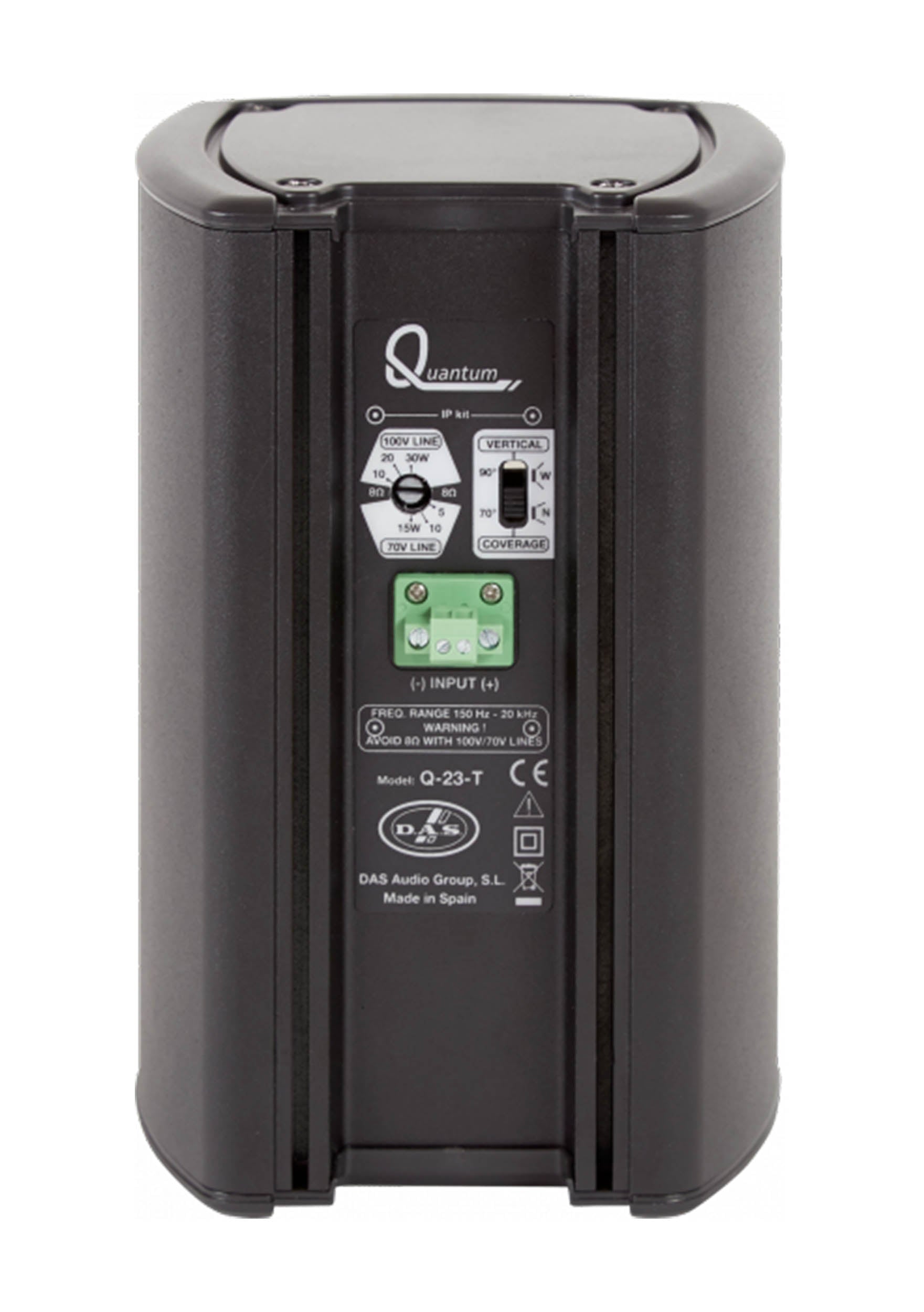

Audio Input Connector: 4-way Phoenix 2.54 mm
Enclosure Construction: Aluminum
Color: Black
IP Rating: IP66
Depth: 125 mm (4,9 in)
Dimensions (H x W x D): 7,5 x 4,9 x 4,9 in
Net Weight: 2,8 kg (6,2 lb)
