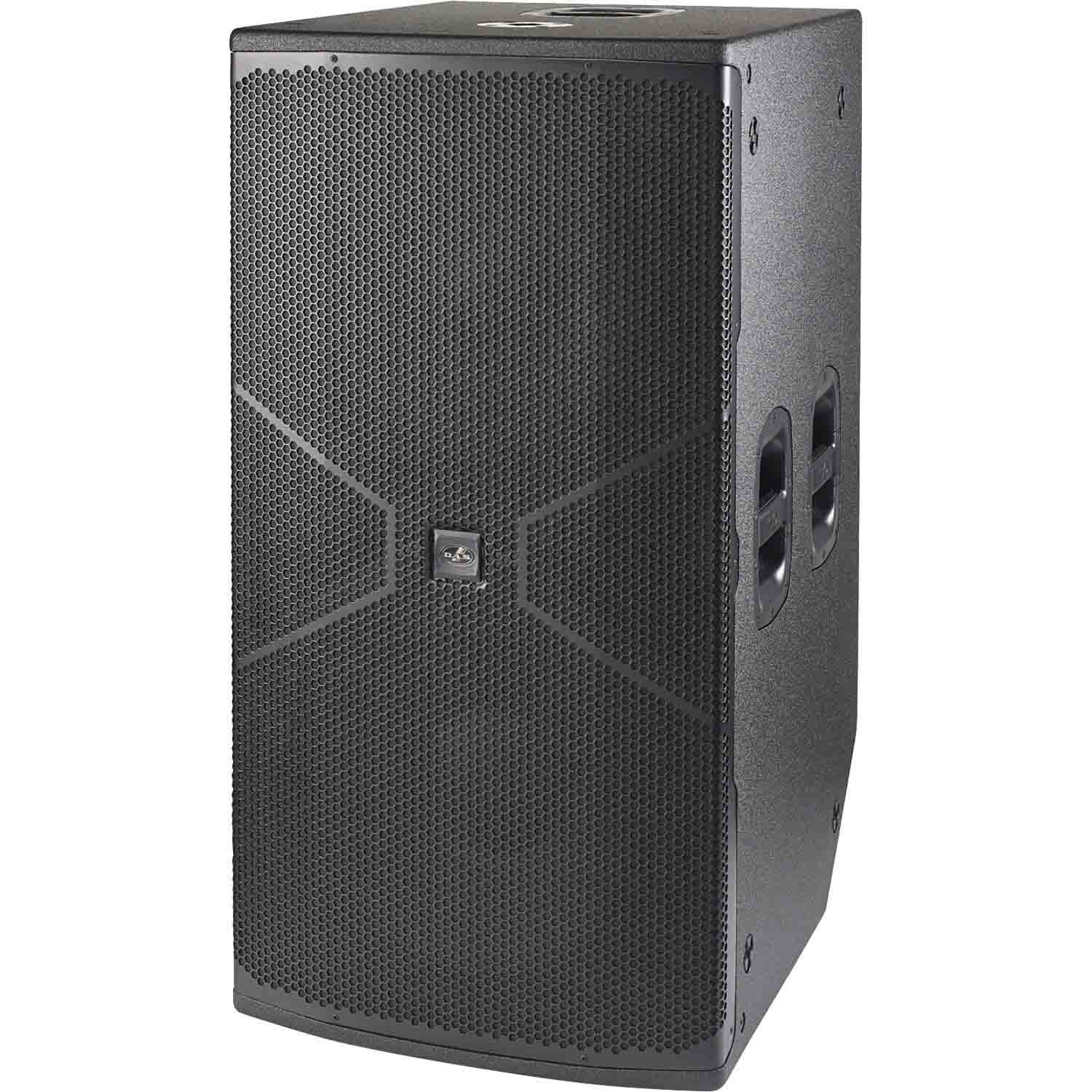

The VANTEC-218A is a powered bass subwoofer system designed to provide an extended bass response for the VANTEC full-range cabinets. A powerful 4000 Wpeak amplifier drives dual DAS 18LX-long excursion bass loudspeakers incorporating 4″ voice coils and massive magnet structures provide high power handling and impressive output.

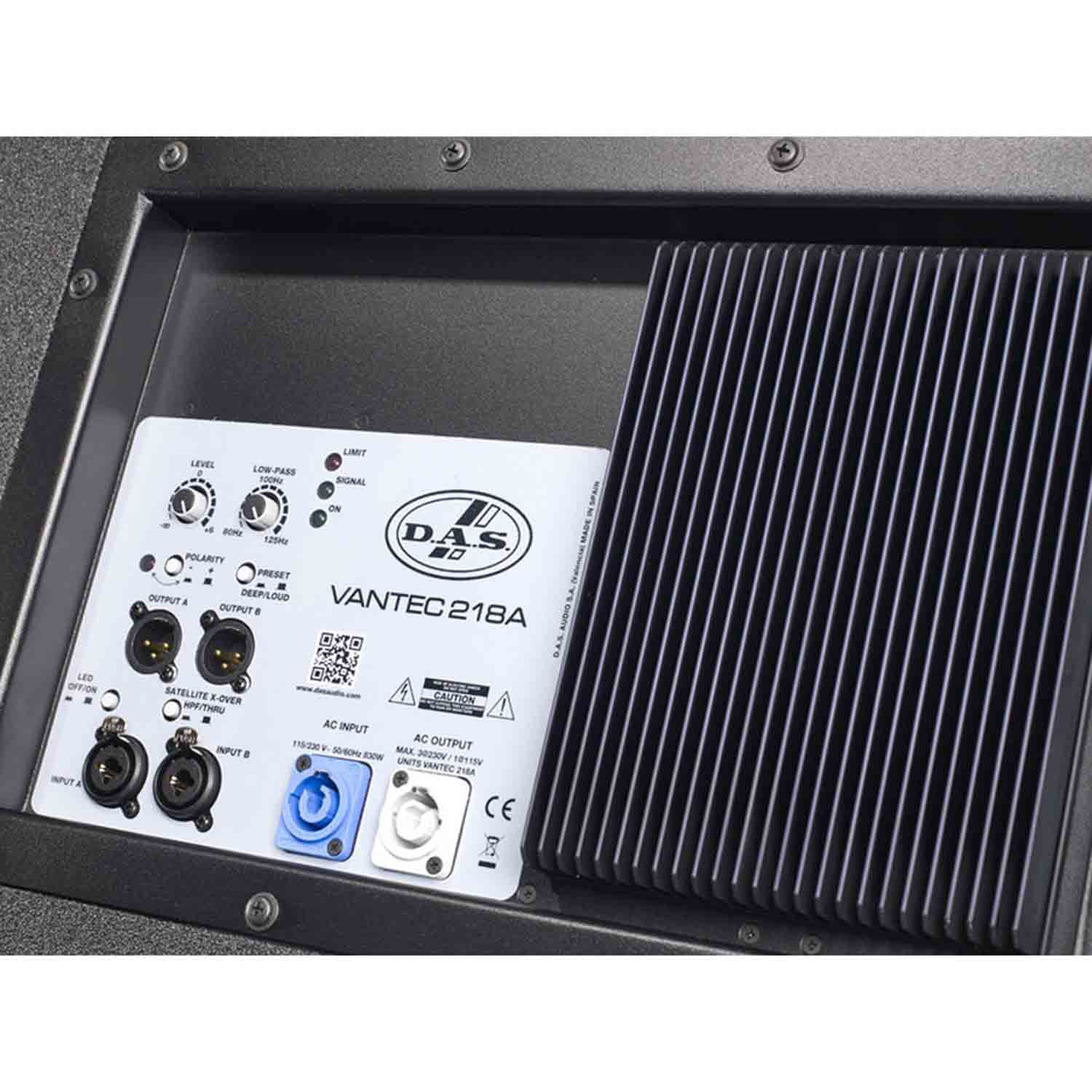

The VANTEC-218A is powered by a Class D amplifier with a switch-mode power supply, digital signal processing, and a 4000 Wpeak power rating. The system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. Gain control and polarity reverse feature increase user control over the system.

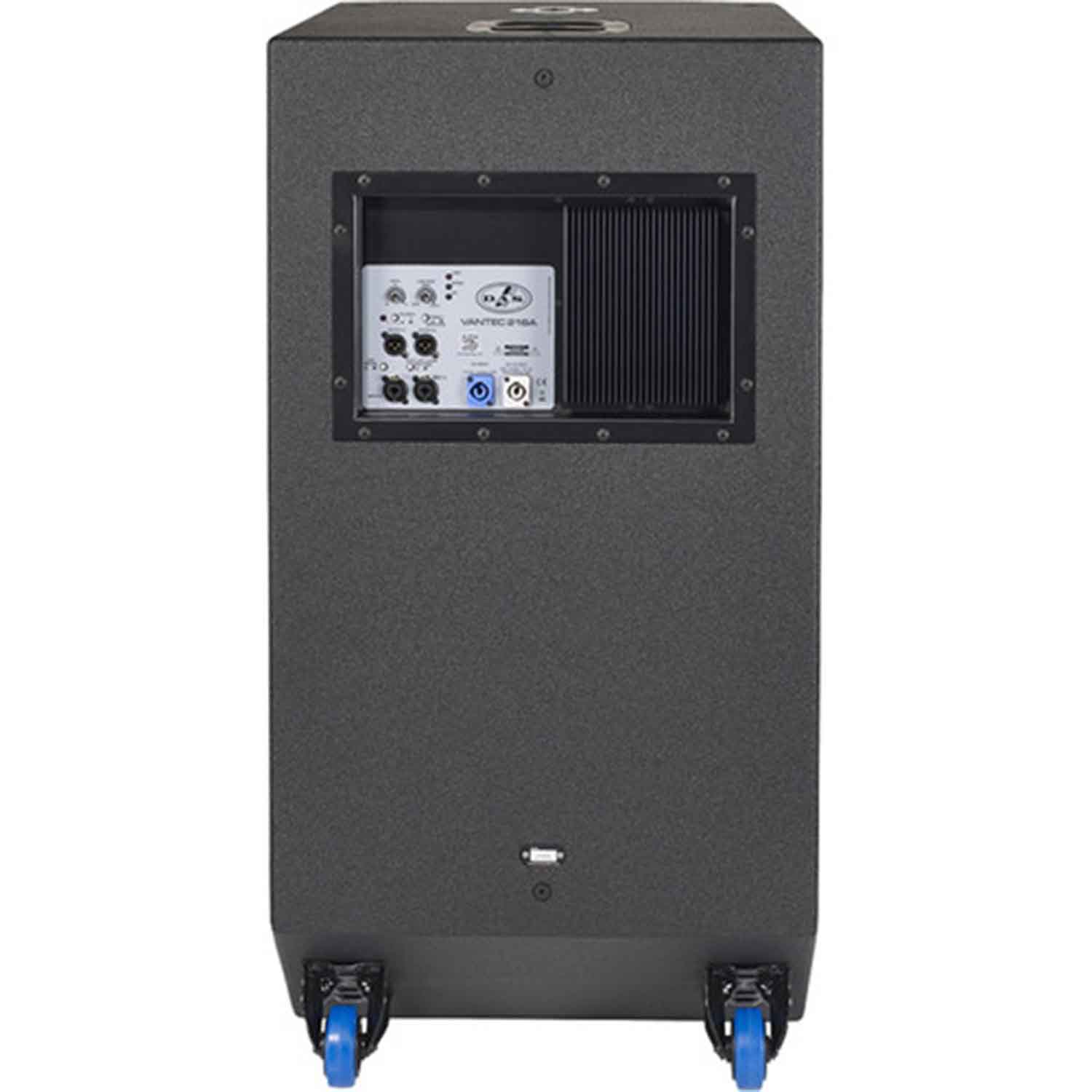

The compact VANTEC-218A cabinet is manufactured using birch plywood and is finished with a coating of the highly resistant ISO flex black paint for durability. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier. The powder-coated steel front grille protects the DAS components.
Product Specifications:
Frequency Range (-10 dB): Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz
Maximum Peak SPL at 1 m: 140 dB
Nominal Amplifier Power (continuous): 2000 W
Nominal Amplifier Power (peak): 4000 W
Input Type: Balanced
Input Impedance: 20 kohms
Input Sensitivity: 3 V (+12 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
AC Input Connector: powerCon NAC3FCA
AC Output Connector: powerCON NAC3FCB
Operating Range: 90-250 VAC
Current Draw 115 V: 6.0 A
Current Draw 230 V: 3.0 A
Color: Black
Dimensions (H x W x D): 42.1 x 21.5 x 26.6 in
Net Weight: 72,0 kg (158,4 lb)
