Description

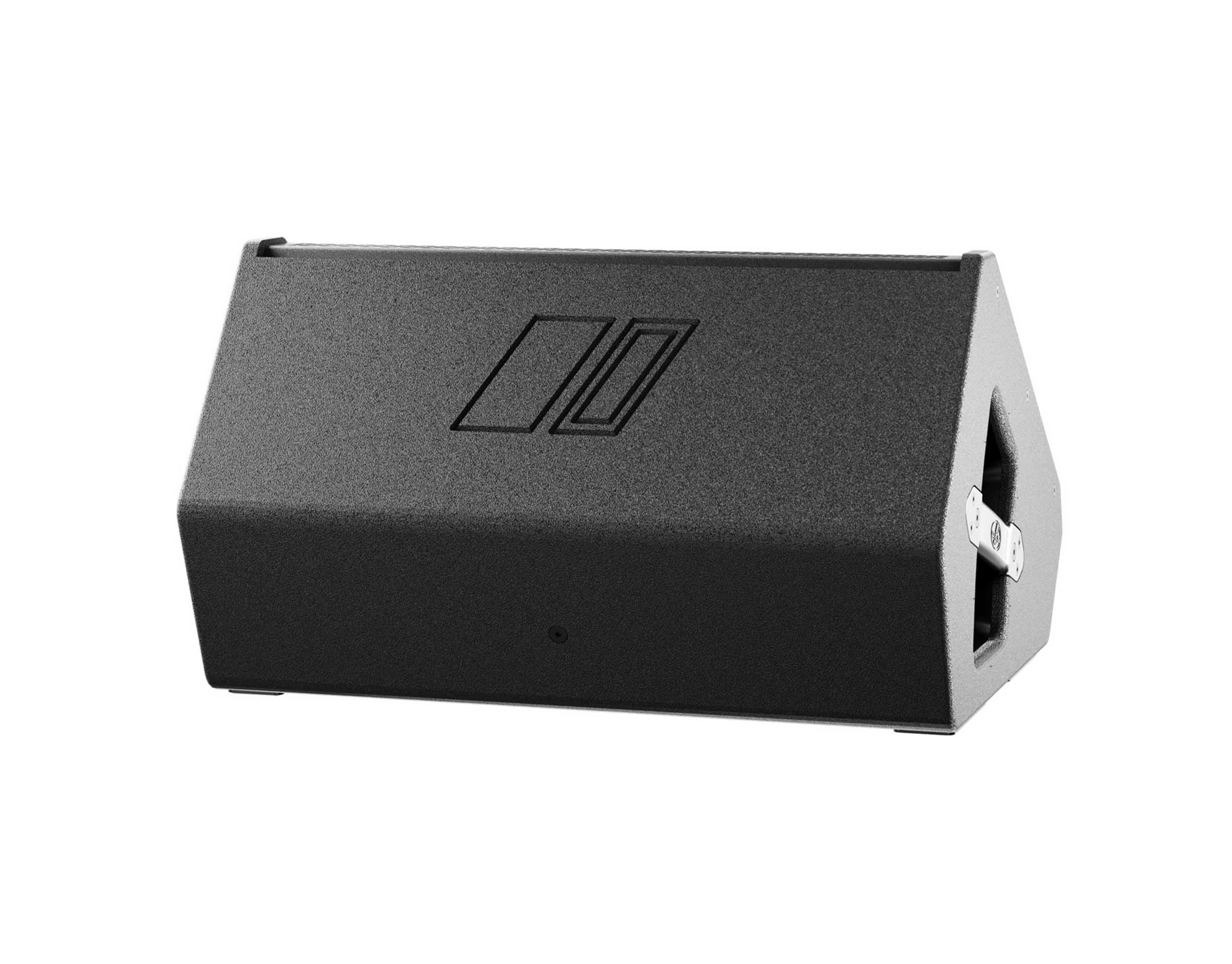

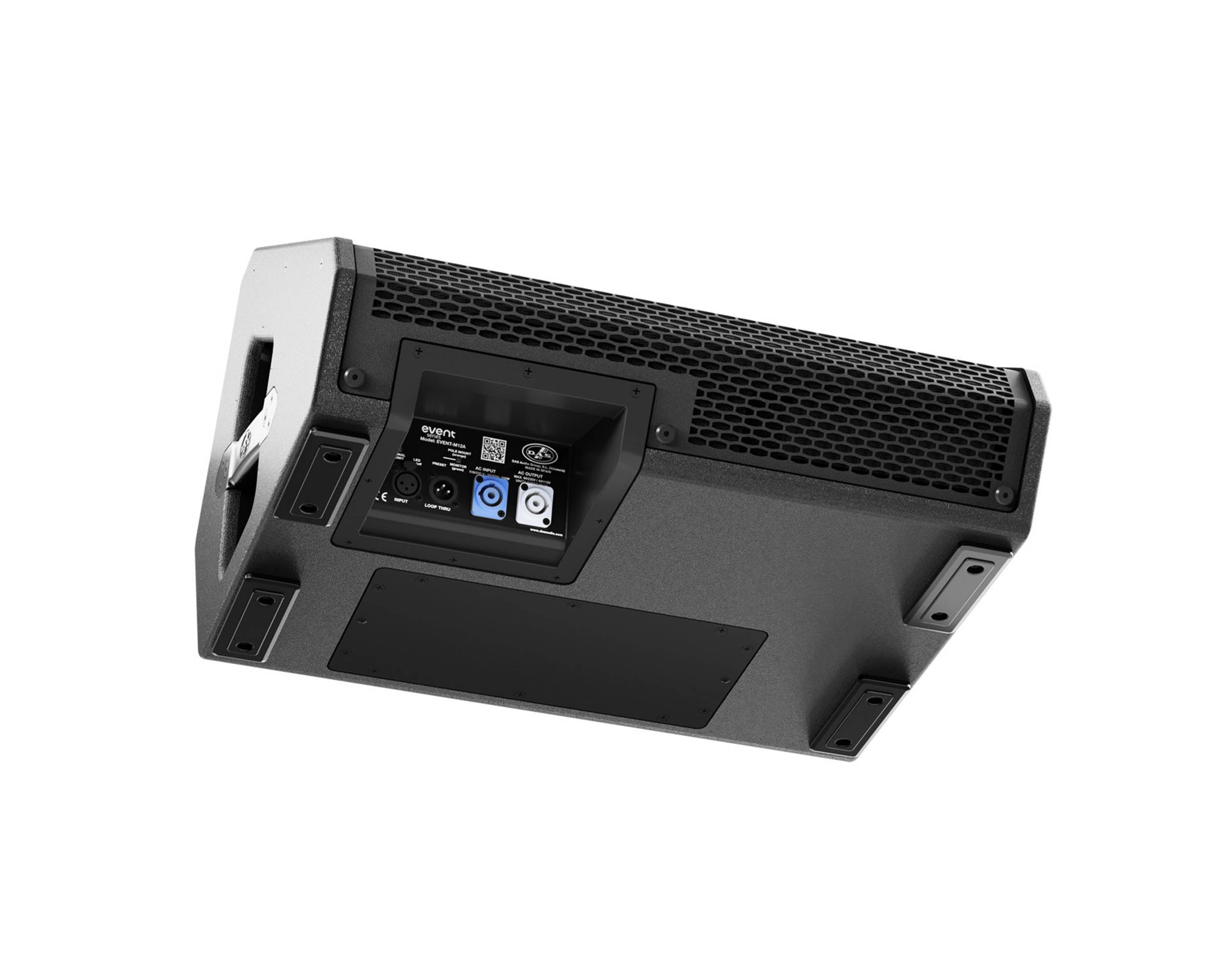

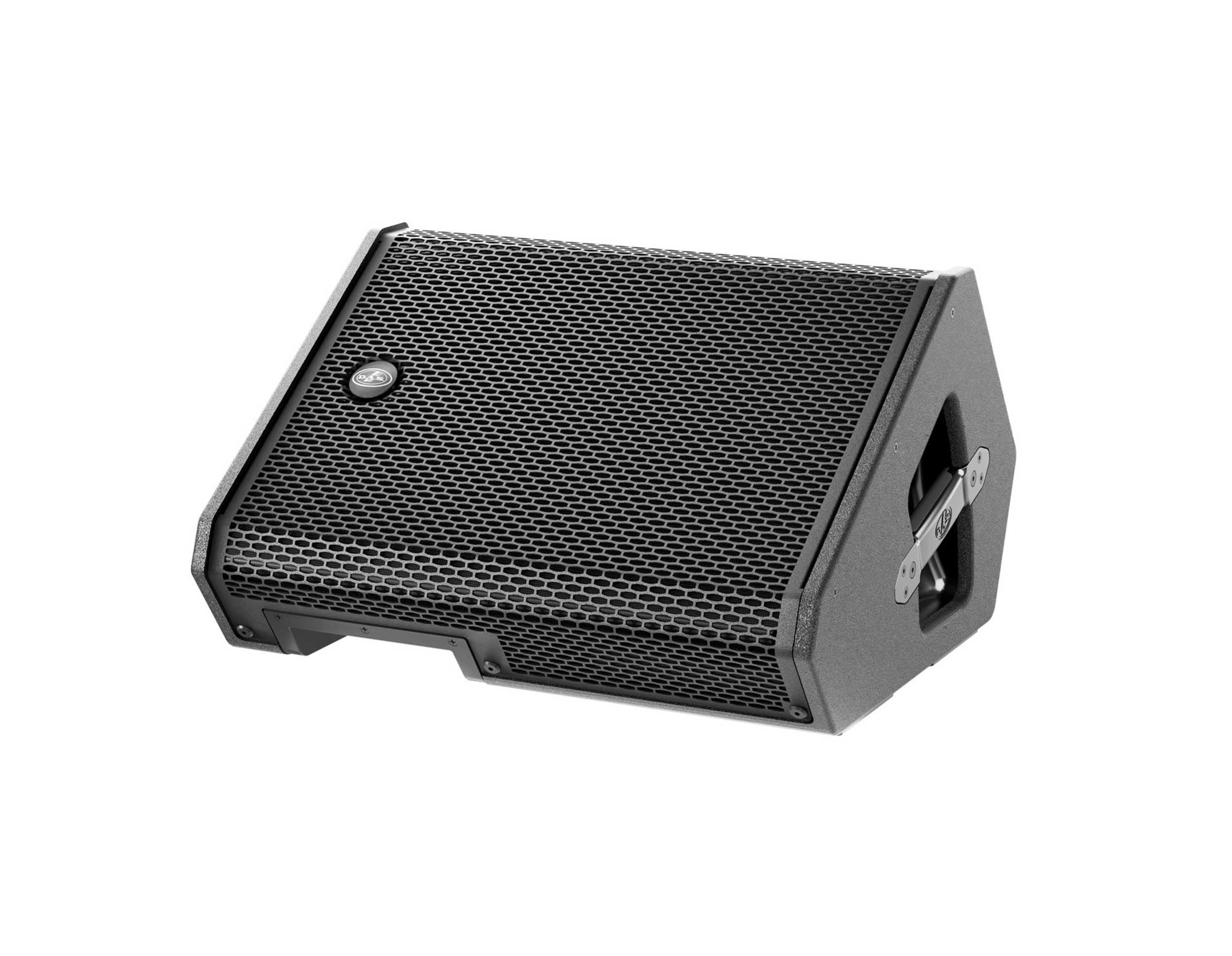

The DAS Audio EVENT-M12A is an ultra-compact, self-powered two-way coaxial monitor designed for professional stage and point-source applications. Its coaxial design combines a 12″ low-frequency transducer with a 3″ voice coil and a high-frequency compression driver with a 2.5″ voice coil on a common acoustic axis. This ensures compact dimensions, symmetrical coverage, and coherent behavior across the full frequency range, reaching down to 60 Hz.
The enclosure is built from multi-layer birch plywood with a polyurea finish for durability and impact protection. The integrated DSP platform with FIR filtering guarantees flat-phase response and full compatibility with the EVENT series. Wi-Fi connectivity allows easy firmware updates. With a maximum linear SPL of 132 dB and controlled 50º × 70º coverage, the EVENT-M12A delivers precise and reliable monitoring in demanding professional environments.
Product Specifications:
Frequency Range (-10 dB): 60 Hz – 20 kHz
Horizontal Coverage (-6 dB): 50º
Vertical Coverage: 70º
Maximum Linear SPL: 132 dB
Maximum SPL: 136 dB
Nominal Amplifier Power (continuous): 1000 W
Nominal Amplifier Power (peak): 2000 W
Nominal Amplifier Power LF (continuous): 850 W
Nominal Amplifier Power LF (peak): 1700 W
Nominal Amplifier Power HF (continuous): 150 W
Nominal Amplifier Power HF (peak): 300 W
Input Type: Balanced
Input Impedance: 20 kΩ
Input Sensitivity: 6.2 V (+18 dBu)
Audio Signal Input Connector: 1 × Female XLR
Audio Signal Loop Thru Connector: 1 × Male XLR
AC Input Connector: powerCON NAC3MPA
AC Output Connector: powerCON NAC3MPB
Enclosure Material: Birch Plywood
Enclosure Geometry: Trapezoidal
Finish: ISOFlex Paint
Color: Black
Product Dimensions (H×W×D): 13.1 × 21.8 × 18.7 inches
Net Weight: 21.0 kg / 46.3 lbs.
Shipping Dimensions (H×W×D): 15 × 24 × 22 inches
Shipping Weight: 23 kg / 51 lbs.
