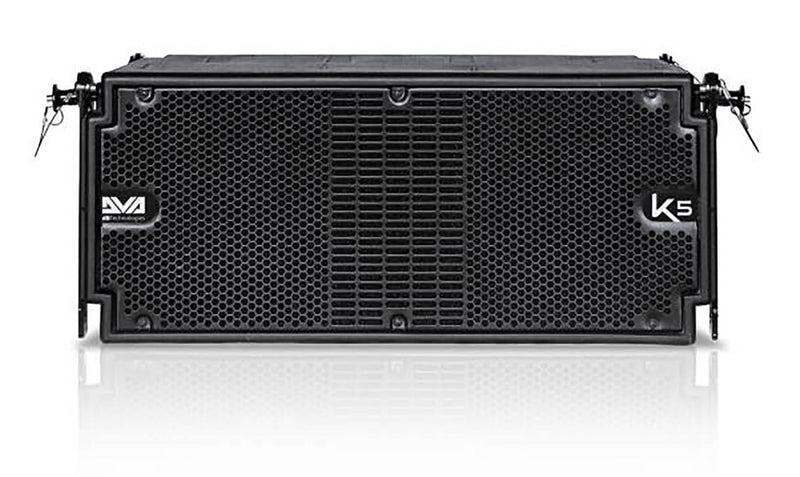

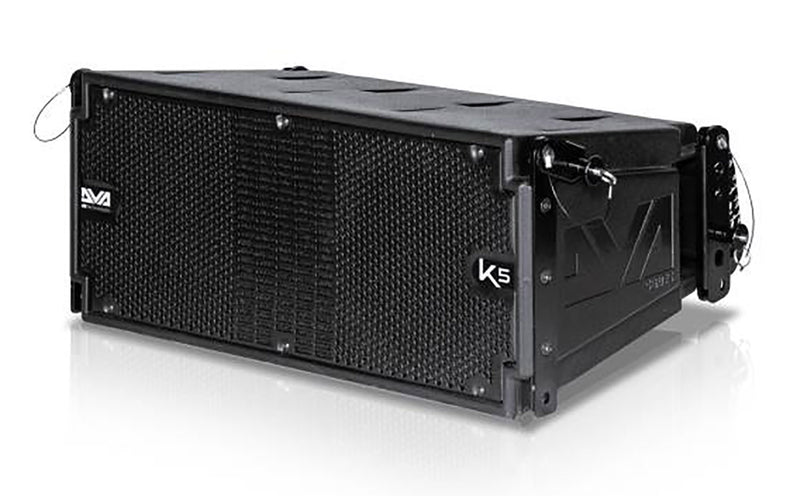

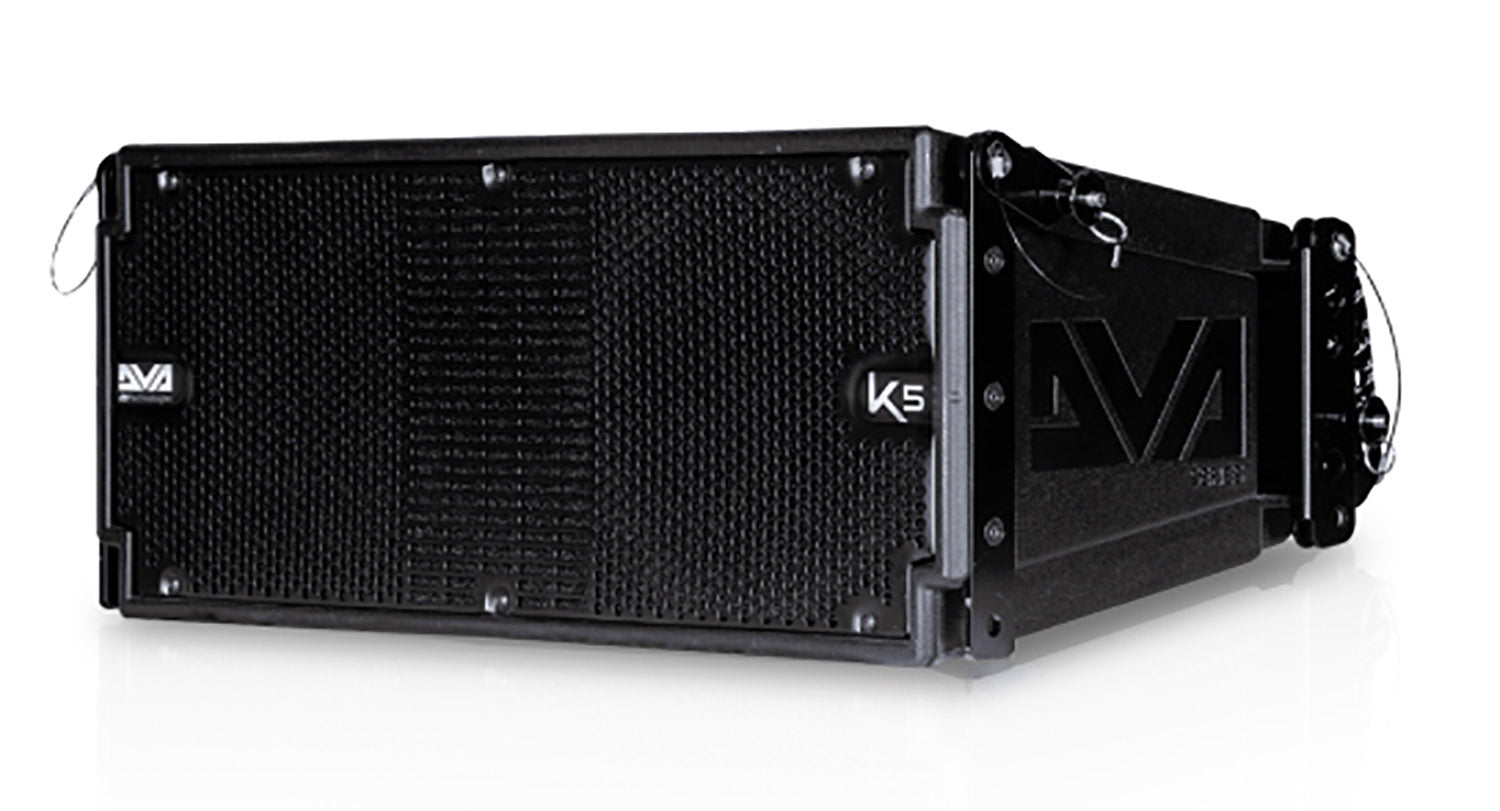

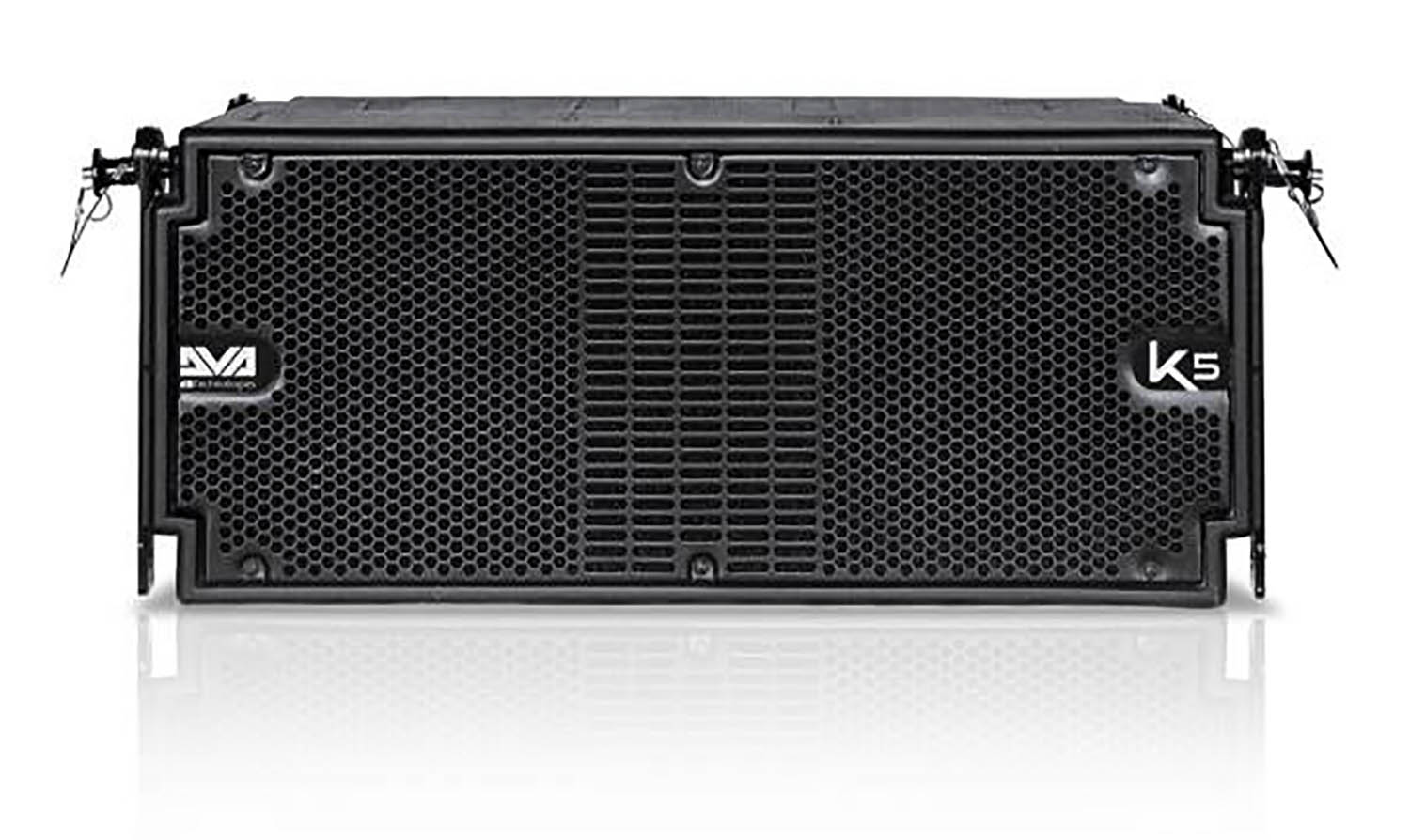

dB Technologies DVA K5, 8" 3-Way Active Line Array Module System - 500W

The dB Technologies active line array series DVAK5 has set new standards in the sound reinforcement industry since its market launch in 2006.  Equipped with top-notch features and engineered for maximum versatility, DVA series brought the benefits of line array technology to a much wider range of users. Now dB Technologies upgrades the best of technology that determined the success of the whole series in the new 3 way active line array module DVA K5. Featuring a Class D 500 W RMS Digipro G3 digital amplifier, DVA K5 is capable to reach up to 129 dB SPL and aims to inherit the success of the earliest model of the series DVA T4, thanks to technological upgrades partially derived from the most recent model of the series DVA T8. The new DVA line array module comprises 2 1,4” drivers, a 6” neodymium midrange and a 8” neodymium woofer.

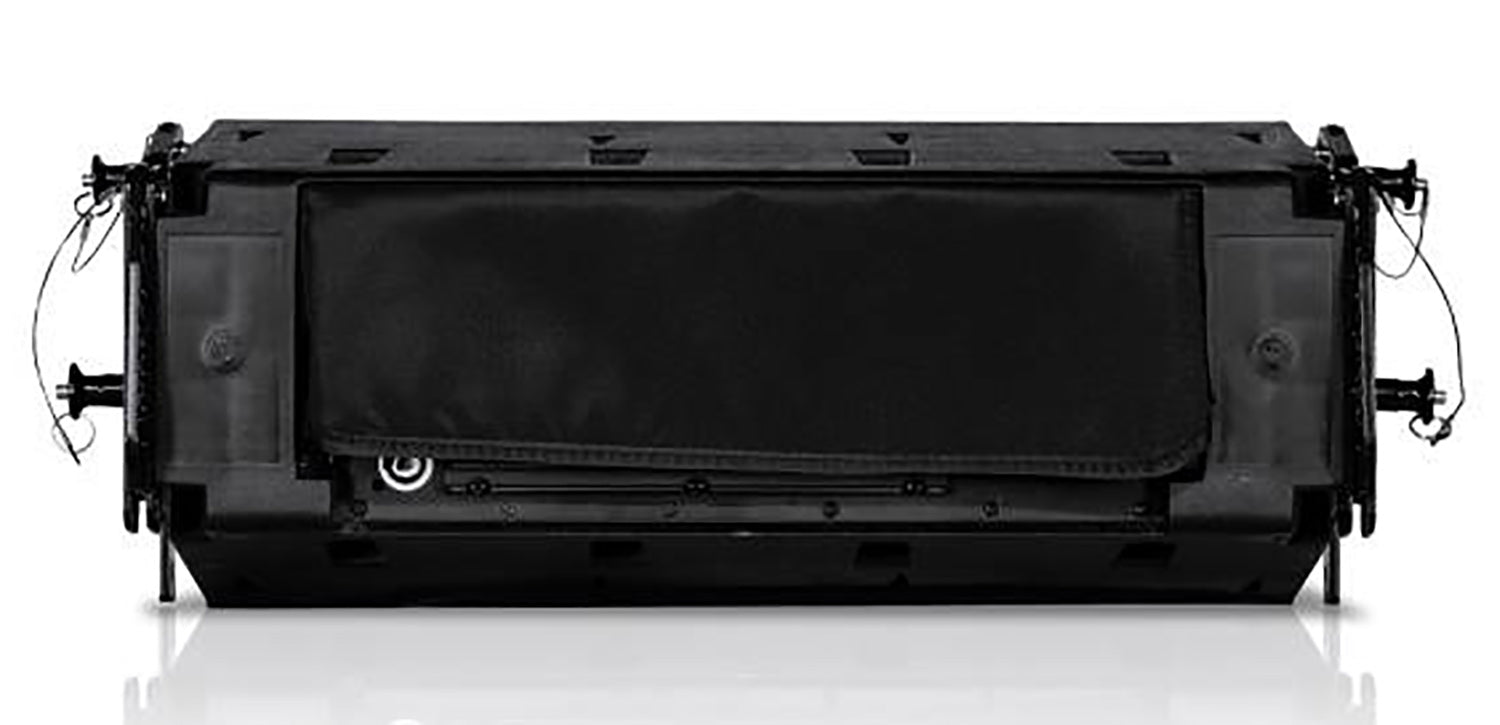

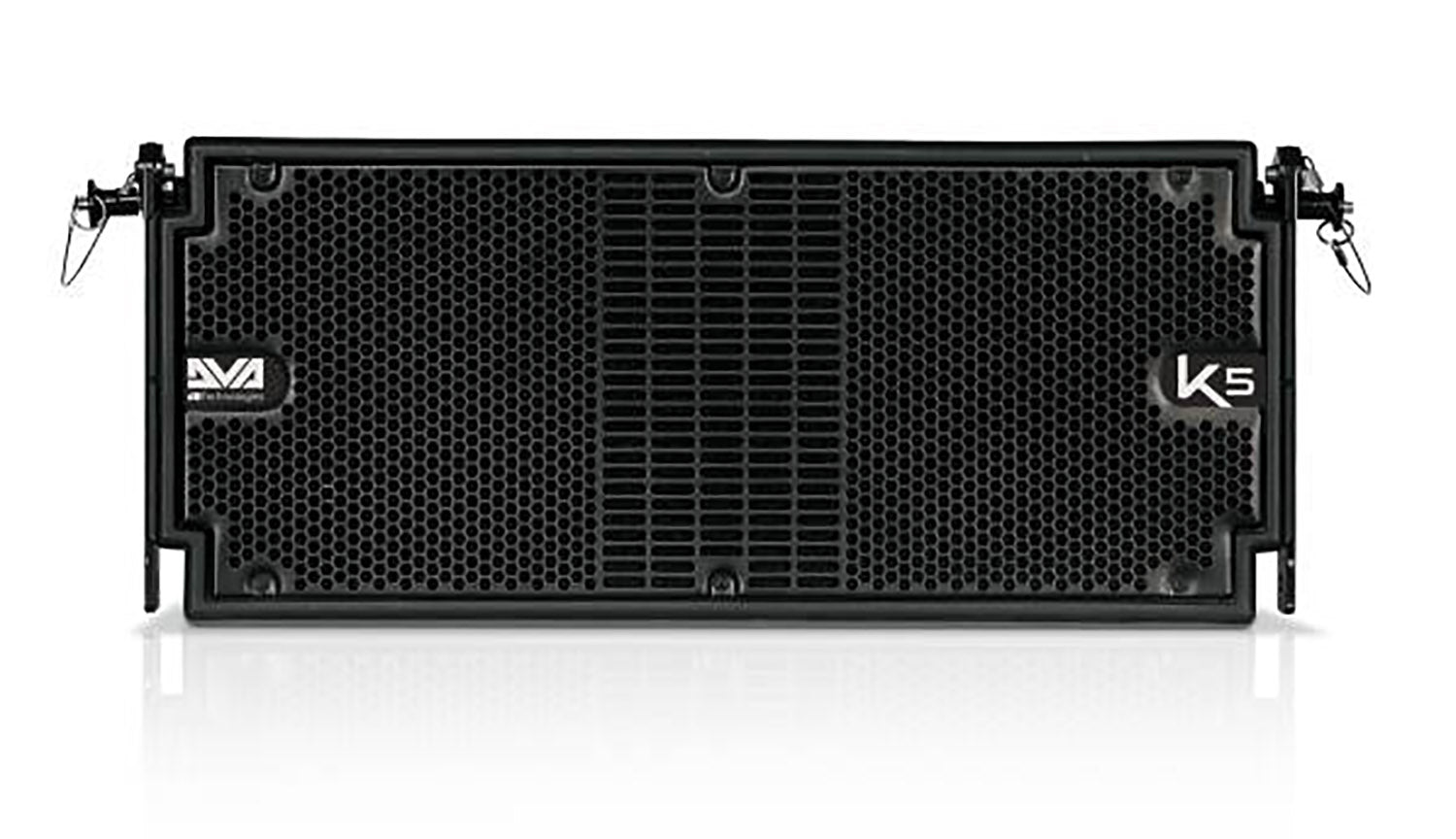

Furthermore, an advanced DSP user interface allows an extremely precise system tuning: a double rotary encoder provides a separate tuning for LF correction (coupling) and MF/HF correction (high-angle midrange loss and air absorption compensation due to throw distance). The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response. The unique design, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: each system weights 31,31 lbs (14,2 Kg). Moreover,  DVA K5 comes with a freshly designed frontal grille and an integrated raincover.

Product Specification:

Technical Data

Speaker Type 3-Way Active Line Array Module

Acoustical data

Frequency Response [+/- 3dB] 70 - 19,000 Hz

Max SPL One Unit: 129 dB

HF 2x1 "

Voice Coil HF 1.4 "

MF 1x 6.5 "

Type MF Neodymium

Voice Coil MF 2 "

LF 1x8 "

Voice Coil LF 2.5 "

Type LF Neodymium

Directivity (HxV) 100x15° Single unit

Amplifier

Amp Technology Digipro G3

Amp Class Class D

RMS Power 500 W

Peak Power 1000 W

Cooling Convection

Power Supply 500 W SMPS with Auto Range PSU

Processor

Controller DSP 56 Bit

AD/DA Converter 24 bit/48 KHz

Limiter Dual Active Multiband RMS, Peak, Thermal

Crossover Frequency MF-HF 1800 Hz

Slope MF-HF 24 dB/Octave

Crossover Frequencies LF-MF 340 Hz

Slope LF-MF 24 dB/Octave

Input

Signal Input 1x XLR Balanced

Signal Output 1x XLR Balanced

Power Socket 1x PowerCON In

1x PowerCON Out

Controls 1 x Input Sensitivity Rotary Switch

1 x DSP Rotary Encoder (LF Correction)

1 x DSP Rotary Encoder (MF-HF Correction)

Mechanics

Housing Polypropylene PP metal reinforced

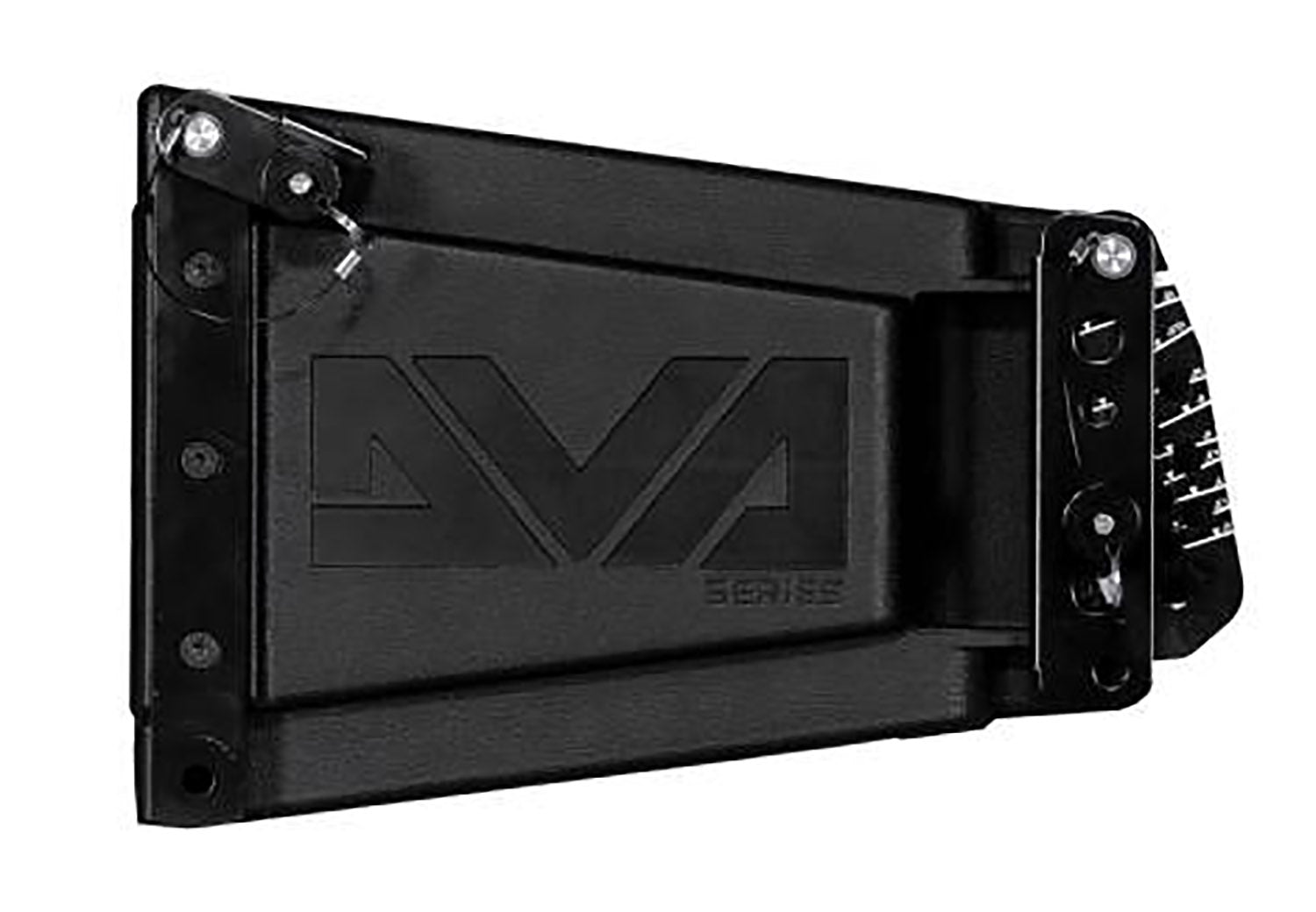

Rigging Points Integrated rigging hardware
