dB Technologies DVA M2M+M2S, 2 x 6.5" 2-Way Active Line Array Module System - 400W

Save 31%
DB Technologies
SKU: H-DBTE-DVAM2MM2S   |  MPN:DVA M2M+M2S
Price:
$2,139.00 $3,097.27
Stock:
Sold out

⏳ Sale ends in {timer}

Notify me when available

Free 2nd Day Air on most items

Additional 1 Year Warranty

Price Match Guarantee

Call us for package deal pricing anytime 800-700-4542.

Description

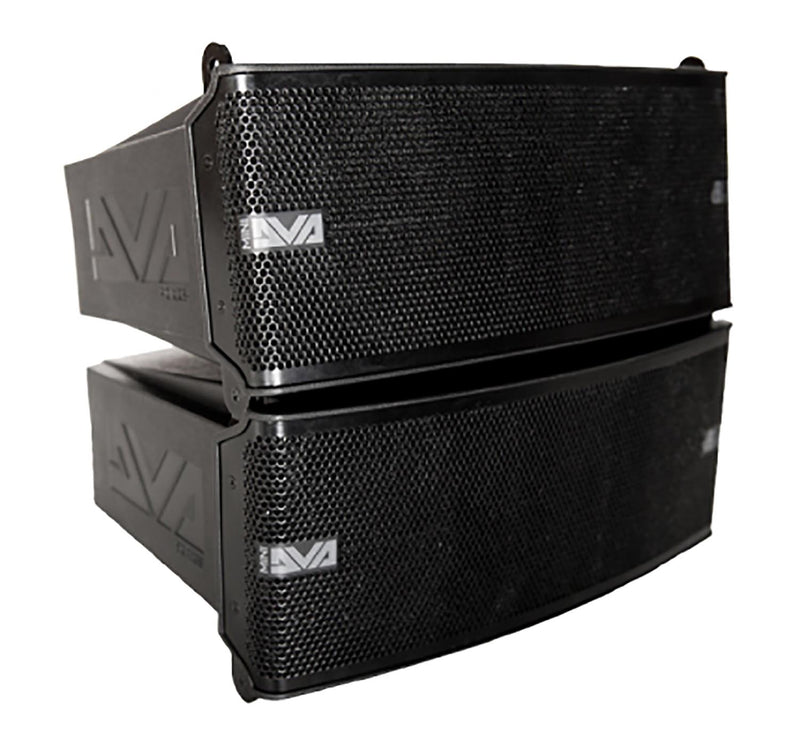

The dB Technologies DVA MINI system is comprised of two line array modules, each with two 6.5” neodymium woofers and two 1” high-frequency compression drivers. The M2M module is the master module that contains the 400-watt Digipro G3 amplifier that power both the M2M and M2S slave module. The system achieves 126 dB max SPL per unit.  Constructed in solid Polipropilene reinforced with an internal anti-vibration structure, DVA MINI features a new fast-lock mechanic design: users simply place one module below the other and slide it towards one side until it locks in place. Moreover, every DVA MINI module has a back mechanic with incremental steps allowing different line array positioning angles.

Product Specification:

Technical Data

Speaker Type M2M2-Way Active Master Line Array Module

Speaker Type M2S2-Way Slave Line Array Module

Acoustical data

Frequency Response [-6dB] 78 - 19.000 Hz

Frequency Response [-10dB] 68 - 20.000 Hz

Max SPL 126 dB per unit

HF 2x1"

Type HF Neodymium

Voice Coil HF 1"

LF 2x6.5"

Type LF Neodymium

Voice Coil LF 1.5"

Directivity 90x15°

Amplifier

Amp Technology Digipro G3

Amp Class Class D

RMS Power HF Amp 200 W (100 W + 100 W)

RMS Power LF Amp 200 W (100 W + 100 W)

Cooling Convection

Processor

Controller DSP 56 bit

AD/DA Converter 24 bit/48 kHz

System Presets 9 presets (8x HF and Low-Mid corrections and 1x for service use)

Limiter Multiband, RMS/Peak, Thermal

Crossover Frequency LF-HF 1800 Hz

Slope LF-HF 24 dB/Octave

Input

Signal Input 1x XLR fem, Bal.

Signal Output 1x XLR male, Bal.

Power Supply 400W SMPS with PSU Auto-range (110V~ and 220V~)

Power Socket 1x PowerCon In 1x PowerCon Out

Signal Input M2S 1 Custom connector

Mechanics

Housing Poly propylen PP

Handles 2x back side

Fittings Integrated hardware with fast lock mechanics

Splay Angles 0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
