Description

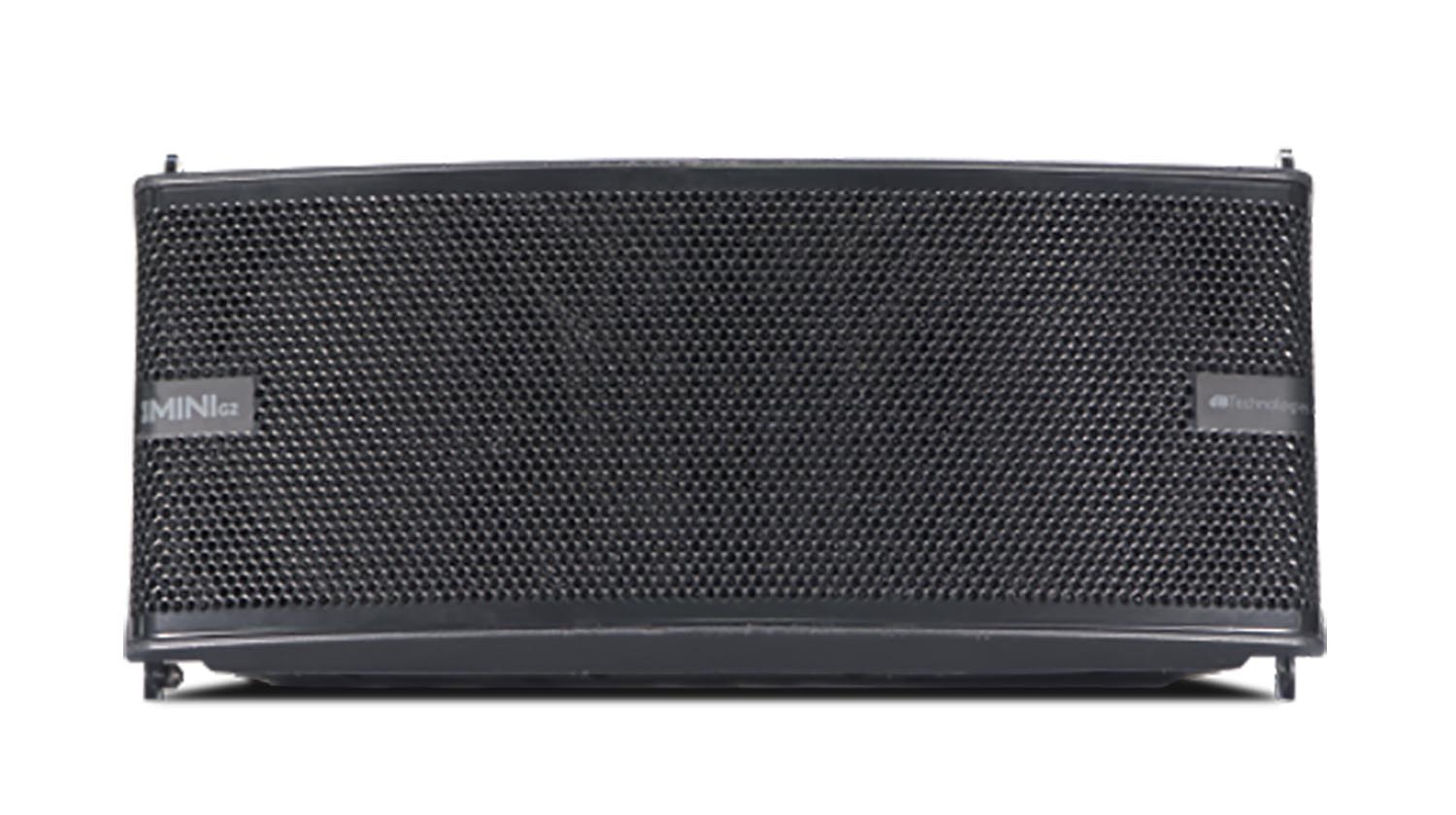

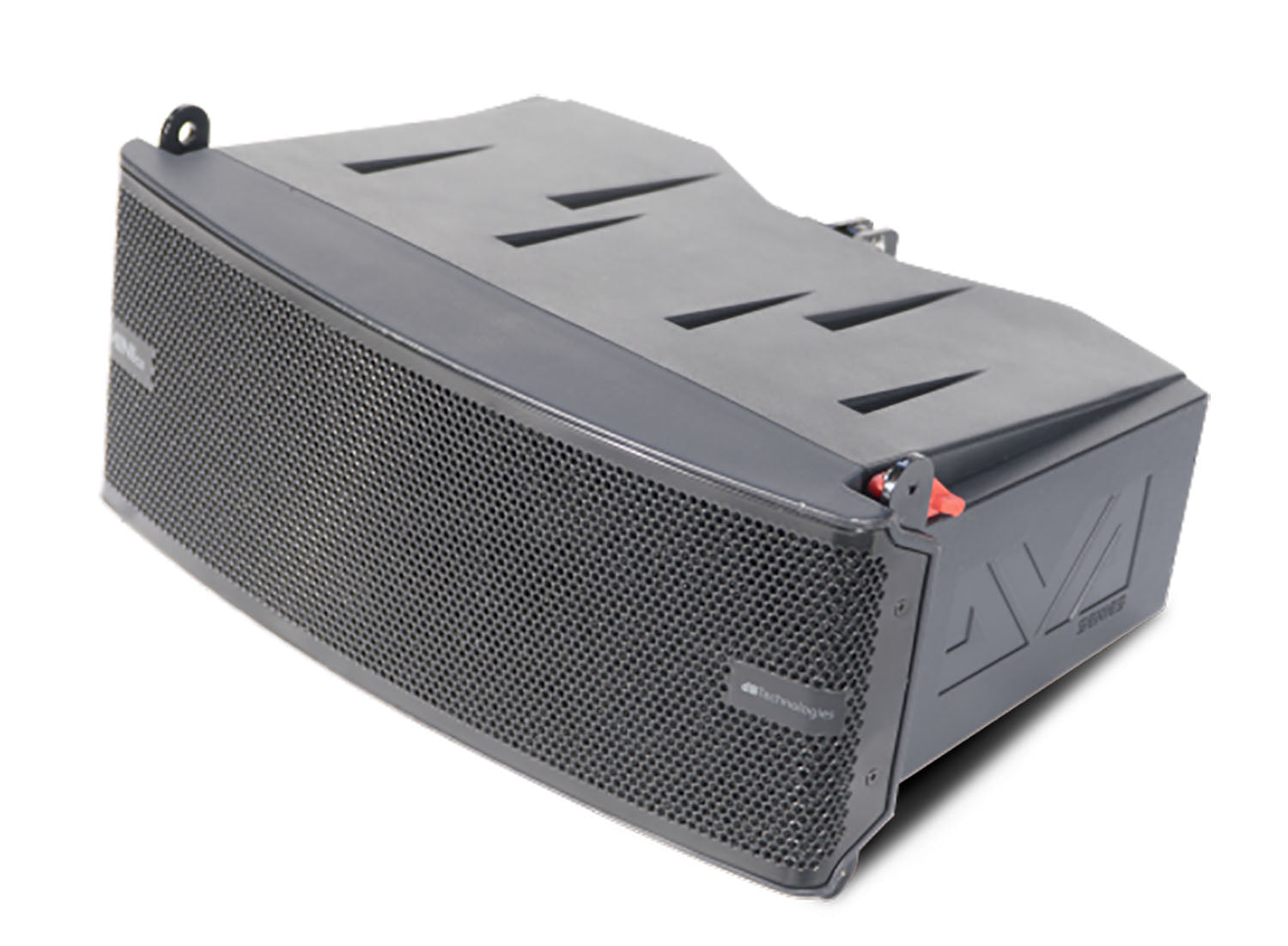

The dB Technologies DVA MINI G2 provides stunning power and sound pressure in an extraordinary lightweight and compact enclosure. Each element is equipped with 2x6.5” neodymium woofers and 2x1” high-frequency neodymium compression drivers and driven by a Class D Digipro G3 amp module providing 400 W RMS. The system can reach an impressive 131-dB-per-unit sound pressure level. The system’s advanced sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.

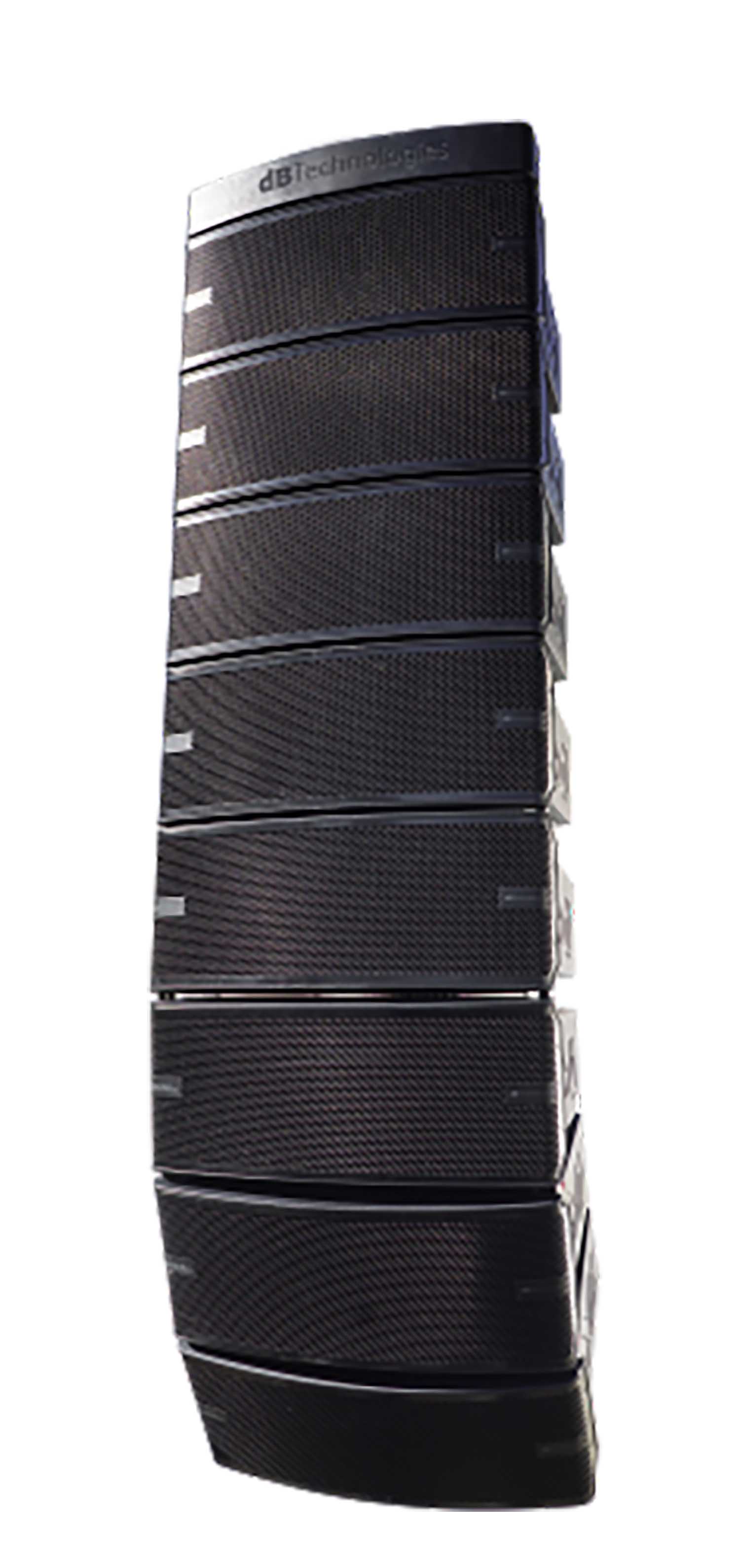

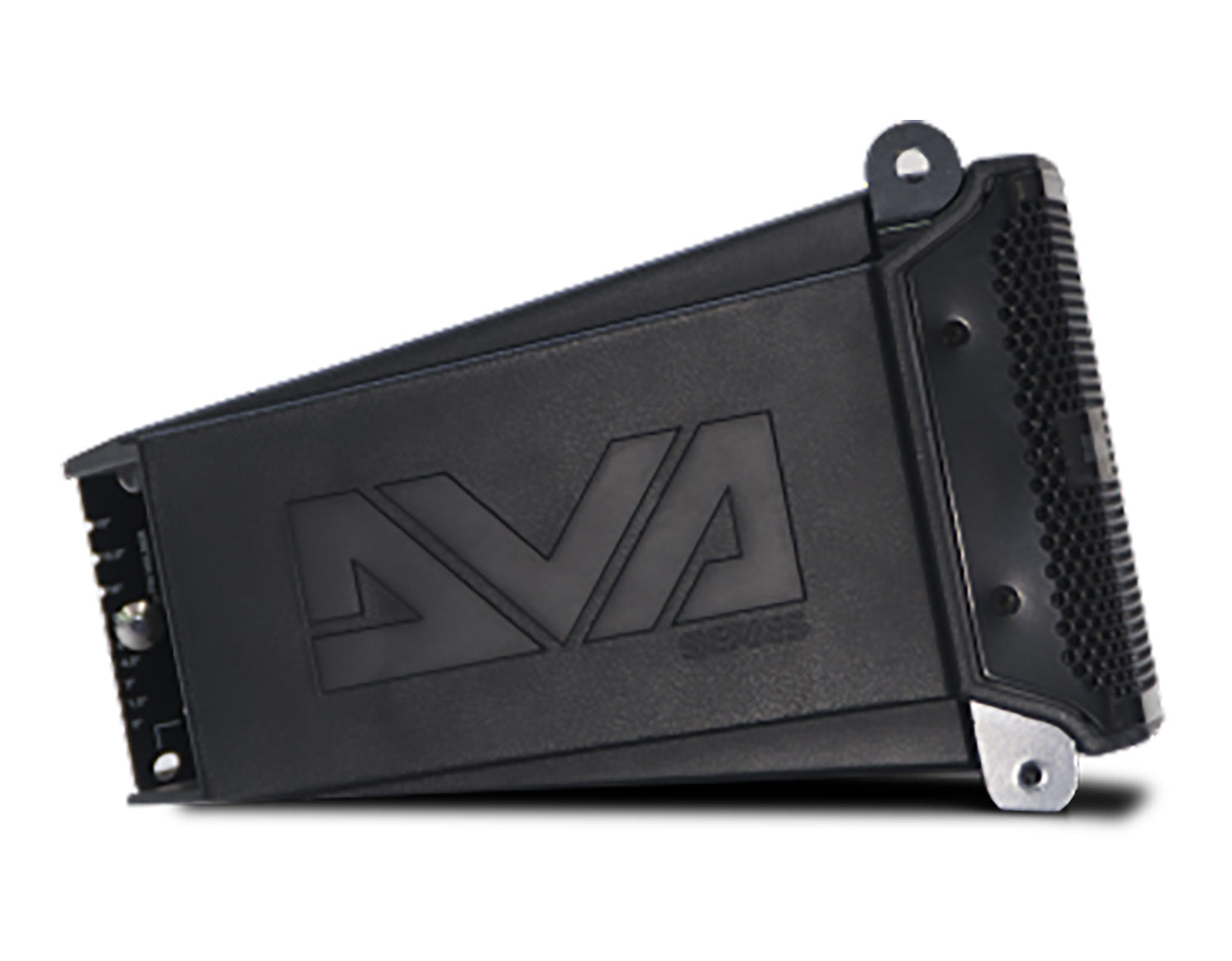

DVA MINI also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use. Nevertheless, the on-board 1 rotary provides for 7 different presets to adapt the system to basic applications. An integrated quick-lock system links enclosures by simply placing one module below a companion module and sliding it towards one side until it locks in place. The rigging hardware is on the rear of every cabinet allowing for incremental steps for line array positioning. Extra-light DRK M5 fly-bar easily allows a fast rigging while DSF M2 accessory enables the system to be stacked on a standard pole. The cabinets are constructed of reinforced polypropylene packing extra power in compact dimensions (460x190x345 mm) and feather-weight (only 8.4 kg per module).
Product Specification:
Technical Data
Speaker Type2-Way Active Line Array Module
Acoustical data
Usable Bandwidth [-10 dB] 75 - 20.000 Hz
Frequency Response [-6 dB] 80 - 19.000 Hz
Max SPL 131 dB per unit
HF 2x 0.75"
Type HF Neodymium
Voice Coil HF 1"
LF 2x 6.5"
Type LF Neodymium
Voice Coil LF 1.75"
Directivity (HxV) 15° x 100°
Amplifier
Amp Technology Digi pro G3
Amp Class Class D
RMS Power Amp 400 W
Cooling Convection
Processor
Controller DSP 56 bit
AD/DA Converter 24 bit/48 kHz
Controls 1x Rotary Encoder (8 presets)
Limiter Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF1900 Hz
Slope LF-HF 24 dB/Octave
Advanced DSP functions Linear Phase FIR Filters

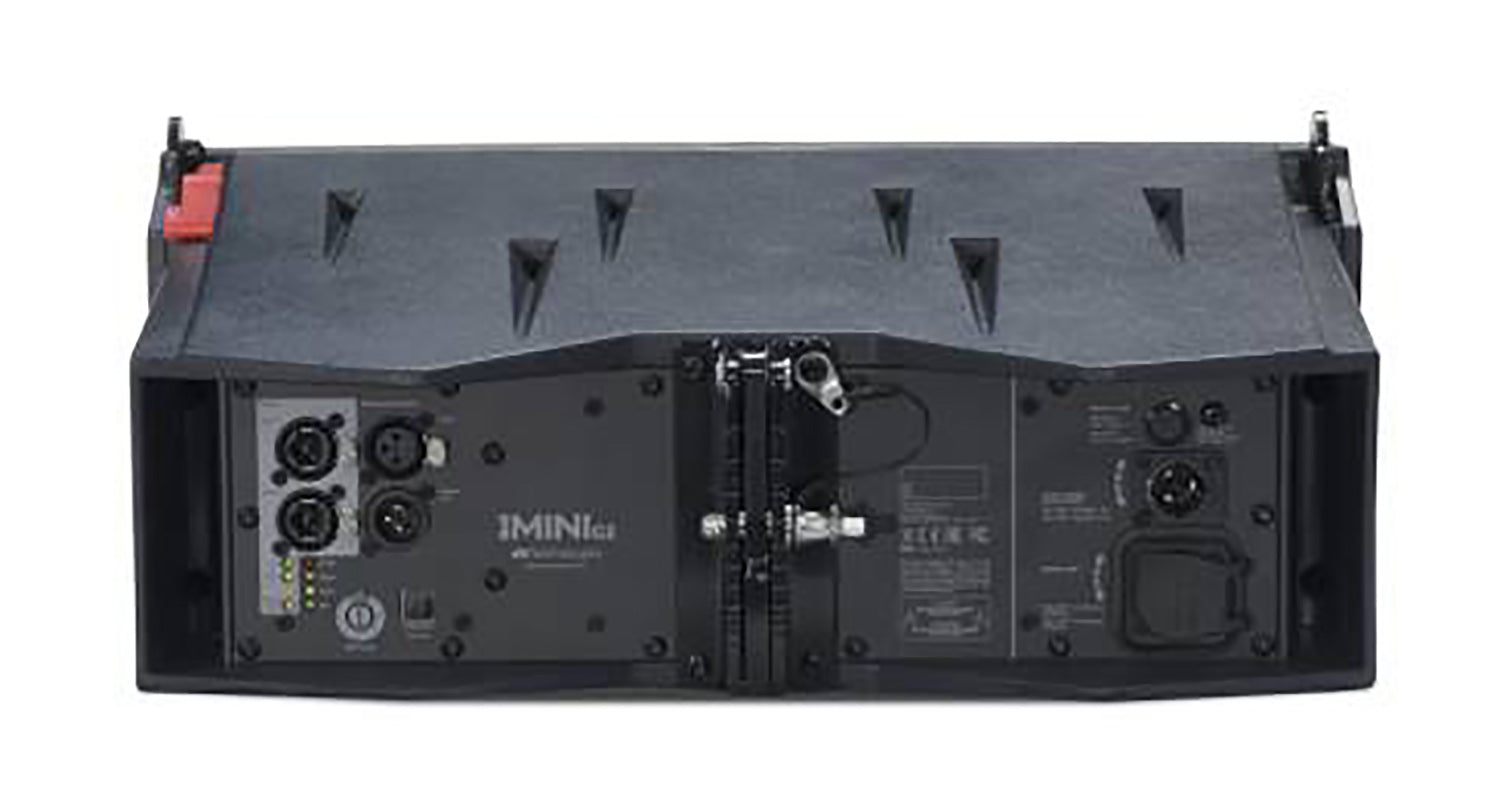

Input
Signal Input 1x XLR fem, Bal.
Signal Output 1x XLR male, Bal.
Power Supply 400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket 1x PowerConTRUE1 In 1x PowerConTRUE1 Out
Mechanics
Housing Poly propylen PP
Handles 2x back side
Fittings Integrated hardware with fast lock mechanics
