Description

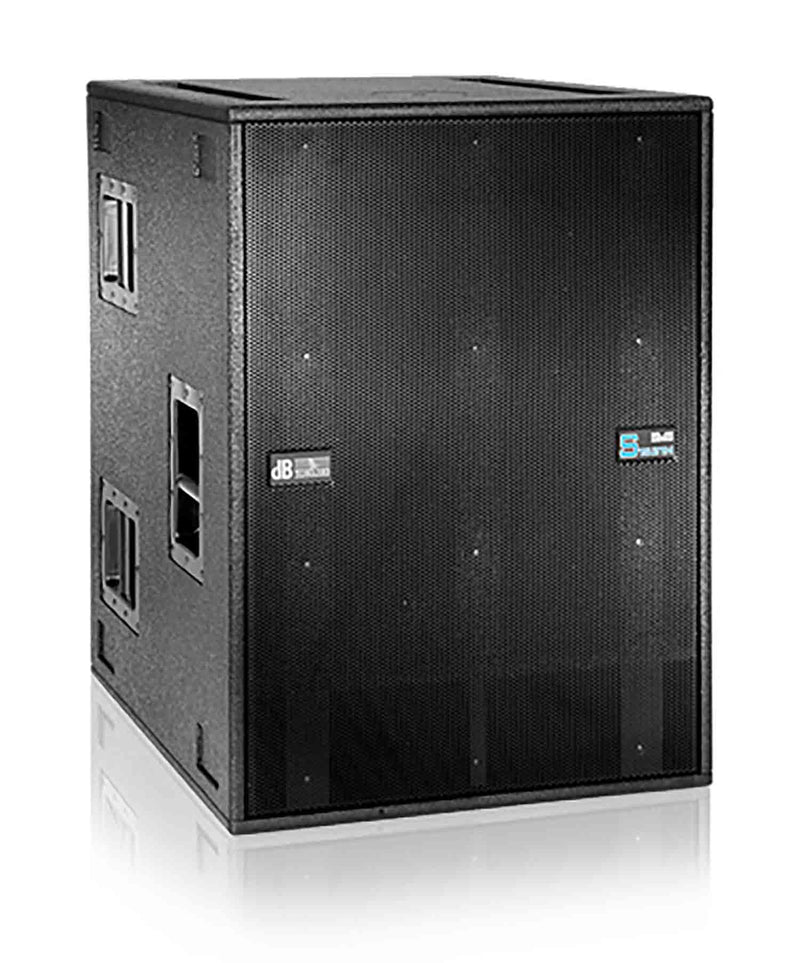

The dB Technologies DVA S1518N is a bandpass subwoofer based on the DVA S10, but with 50 percent higher power amp output, an integrated DSP, and an RDnet link. A remarkably versatile subwoofer, it delivers tight and punchy bass response that supports and transitions smoothly to satellites' lower midrange frequencies. The DVA S1518N is equipped with a next-generation, 18" woofer driven by a built-in 1500W digipro G2 digital power amp. Subwoofer arrays are easily flown using the optional SRK10 rigging hardware retrofit. The S1518N will also serve you well in compact stacks paired with DVA T12, T8 and T4 units or DVX Series enclosures. The DVA-S1518N features a premium-quality DSP boasting excellent audio specs with variable crossover frequencies, precise limiter functions and adjustable delay settings for perfect time alignment.
Product Specification:
Technical Data
Speaker Type Active Band pass Subwoofer
Acoustical data
Frequency Response [+/- 3dB]39 - 120 Hz
Max SPL138 dB
Directivity Omni directional, Cardiod Option with DSP setup
LF18 "
Voice Coil LF4 "
Amplifier
Amp Technology Digipro G2
Amp Class Class D
Power Supply1.5 kW SMPS
LF Amp1500 W RMS
Cooling Convection
Processor
Controller DSP 56 bit
AD/DA Converter24bit/ 96 kHz
System Presets X-Over, Delay
Phase0, 180 °
Limiter RMS, Peak, Thermal
Delay Option0-4.5 ms internal
Crossover Frequency LF-MF75-120Hz | steps of 5Hz
LF-X over out slope24 dB/Octave
Mechanics
Housing Multiplex plywood
Housing Design Rectangular
Handles3x Per Side
Accessory Dolly, Wheels 100mm,
Dust Cover, Rain Cover
Pole MountM20
Rigging Points integrated for SRK10 fly kit
2xPick Points on top to fix
DRK10/20 rigging frames
