Description

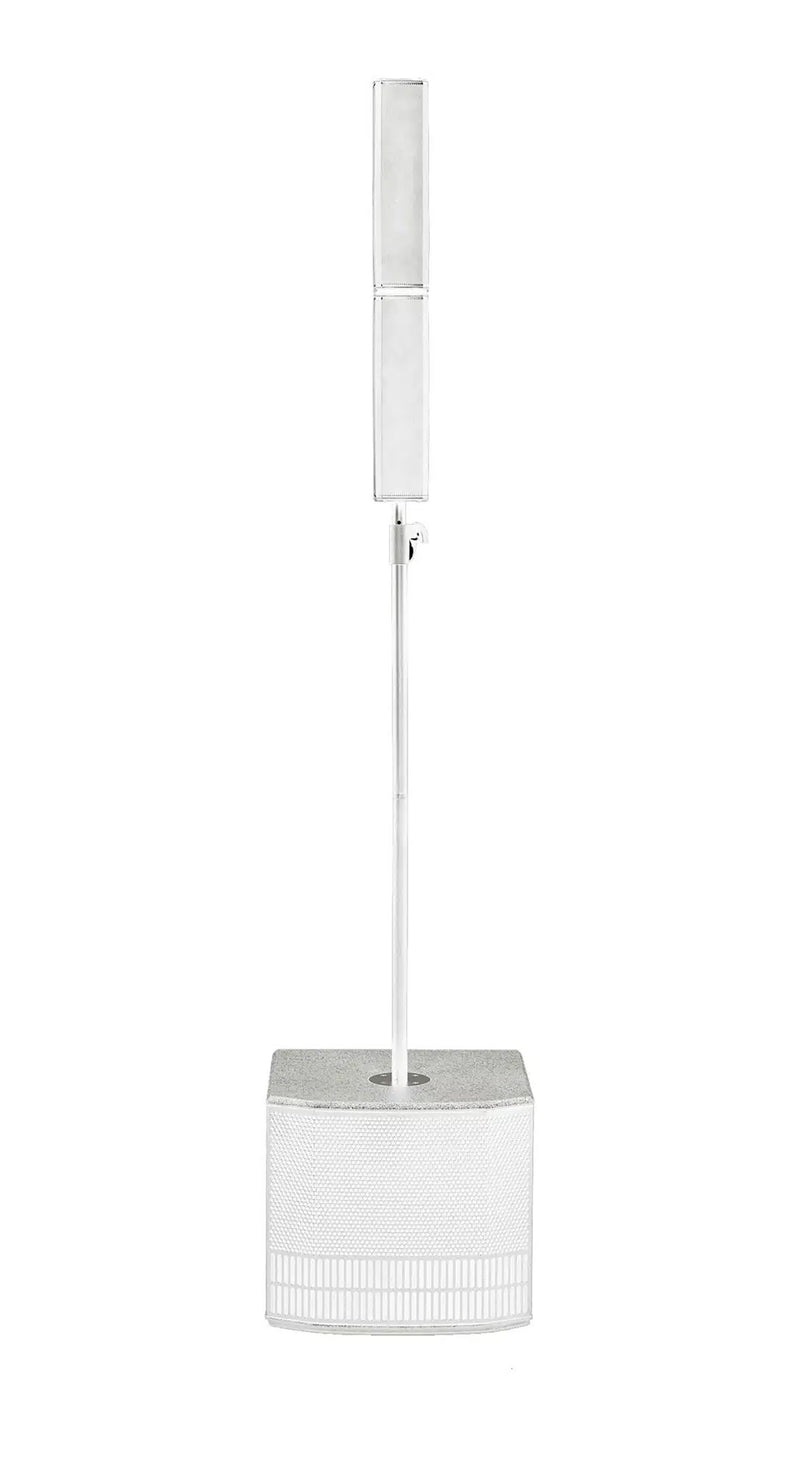

The dB Technologies ES 503 WHITE is a 1000W Power Amp Peak sound system composed by 2 slave 4x 3” full-range tops and 1 master 12” subwoofer. dBTechnologies’s components and design allow an amazing SPL/size ratio: 95x355x137 mm and 1.9 kg for the tops and 465x400x430mm 16,4 kg for the subwoofer for an overall 121 db SPL. The sub hosts a Digipro G3 amp module with auto-range PSU and a 3-channels mixer with Bluetooth connection. A powerful DSP manages all function of the on-board digital mixer, making the ES503 a real gem in terms of sound performance and versatility. The internal design of the tops allows an asymmetrical vertical coverage (thanks to the Logarithmic Curved Column Array technology) and a unique “double ringed” phase plug widens the horizontal coverage and guarantees a perfect voice intelligibility. This allows ES503 to adapt to any situation, both with a seated or standing audience. ES503 is the most eclectic among portable systems, allowing 3 different configurations suitable for hundreds of different occasions: 1 MONO MODE: The two satellites are connected top-on-top (thanks to a quick and easy slide connection system) and are placed on the subwoofer through a D25mm pole.
Product Specification:
Technical Data
Speaker Type 3-amped Stereo System with
two full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB] 37 - 15.000 Hz
Max SPL 121 dB
MF – HF 8x 3"
Type MF – HF Neodymium
LF 12"
Directivity 95x65°
Amplifier
Amp Technology Digipro G3
Amp Class Class-D
Power Amp Peak 1000 W
Processor
Controller DSP 24 Bit/48 kHz
System Presets Factory presets + User defined
Limiter Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF 206 Hz
Input
Mic/Instrument Channel 1x Combo (XLR/Jack) balanced/unbalanced input
Line Channels 2x Combo (XLR/Jack) balanced/unbalanced inputs
Media Channel 1x Bluetooth® built-in receiver
Mix Output 1x XLR balanced output
Mechanics
Housing (Subwoofer) 15mm Black Painted Plywood
Housing (Tops) Polypropylene PP
Handles 2x lateral side (Subwoofer)
