dB Technologies ES1203WDPTCESTOP, Portable Stereo Sound System DJ Package with Design Pole and Cover

Transform your DJ experience with the dB Technologies DJ Package, a powerhouse ensemble designed to elevate every event. This bundle features 2 dB Technologies ES 1203 Portable Stereo Sound Systems in stunning white, delivering a total of 2400W of pure audio power. To complement these exceptional speakers, the package includes 2 dB Technologies DP-ES1203 White Design Poles for optimal positioning and dispersion. Safeguard your investment with 2 dB Technologies TC-ESTOP Transport Covers, ensuring easy and secure transportation for your gear. Whether you're hosting a party, DJing a wedding, or rocking a club, this package will electrify your sound and impress any audience. Gear up for unforgettable performances with dB Technologies DJ Package—your sound, redefined.

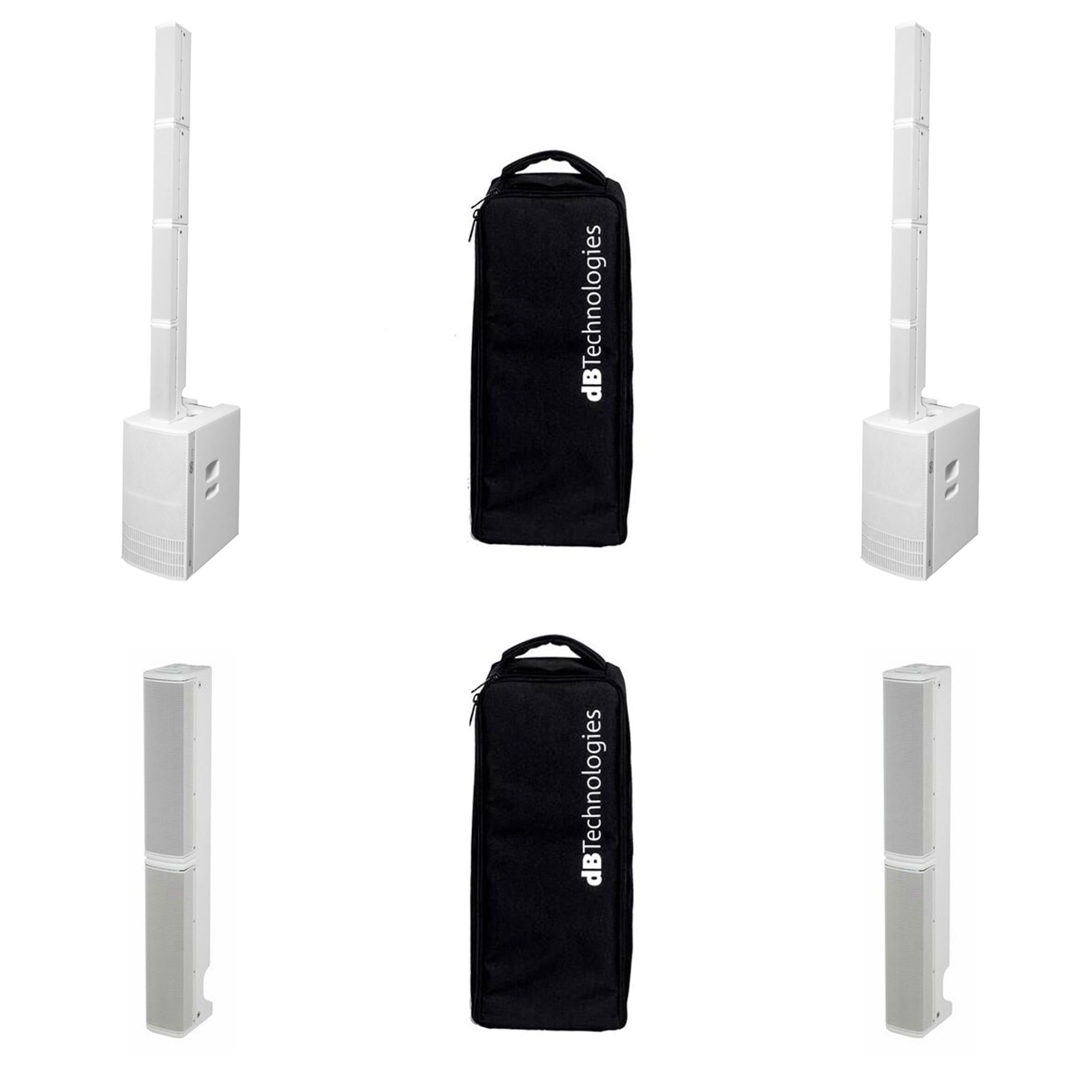

DB Technologies Package Includes

• 2 dB Technologies ES 1203 WHITE, Portable Stereo Sound System 2400W – White
• 2 dB Technologies DP-ES1203 W, Design Pole for ES1203 and ES1002 – White
• 2 dB Technologies TC-ESTOP, Transport Cover for 2x ES

2 dB Technologies ES 1203 WHITE, Portable Stereo Sound System 2400W – White

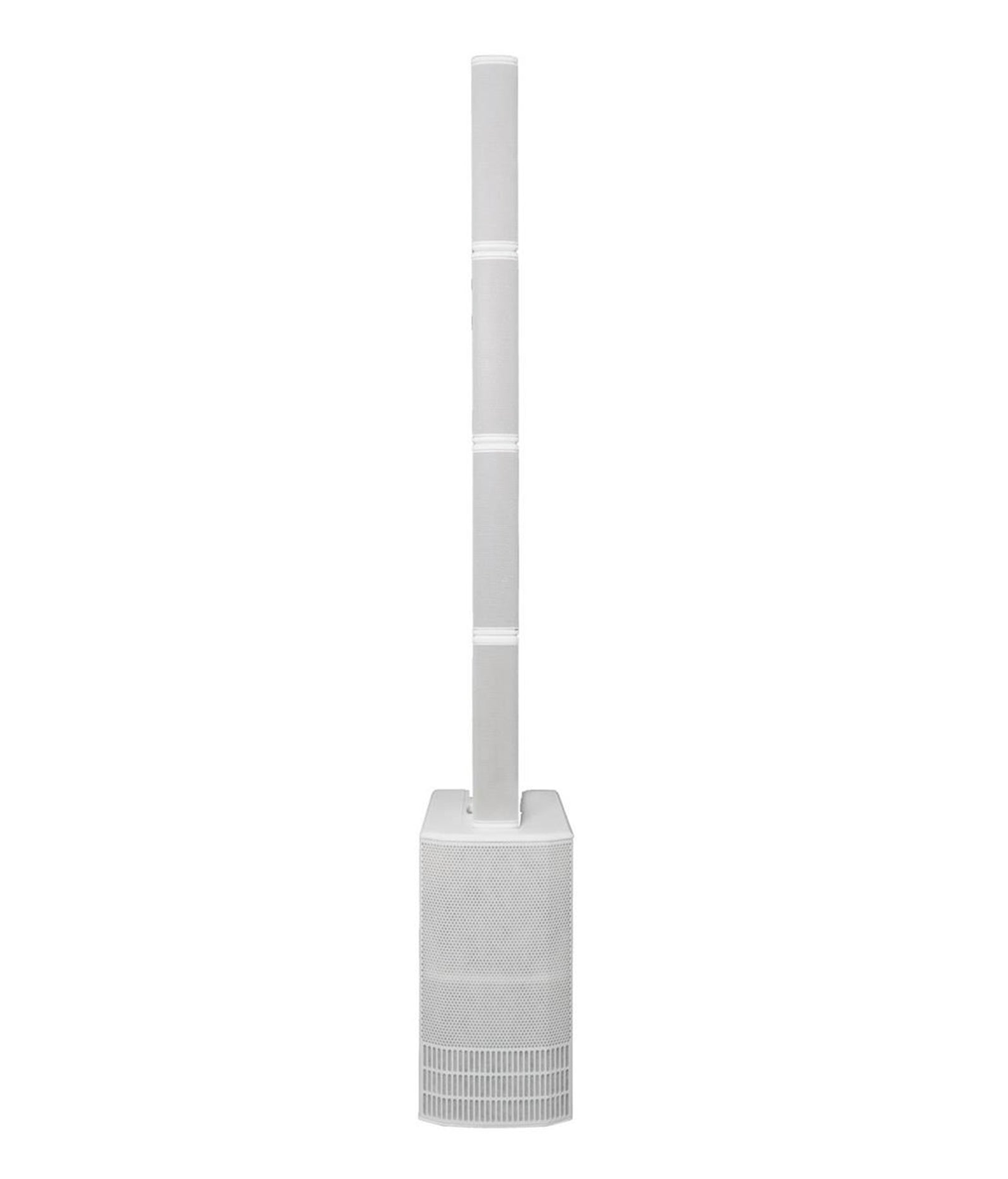

The dB Technologies ES 1203 WHITE is a 3-amped stereo sound system composed by 2 passive wooden tops and one active wooden subwoofer equipped with 2X12” woofers. The sub hosts last-generation Digipro G4 2400W Peak amp. A powerful DSP (controlled by an intuitive user interface placed on the top of the sub) manages all function of the 5-channel on-board digital mixer as well as the system configuration. Each top satellite is equipped with 4x4” mid-woofers, whose alignment allows an asymmetrical vertical coverage (thanks to the Logarithmic Curved Column Array technology). The unique design of phase plugs widens the horizontal coverage and guarantees a perfect intelligibility. Moreover, on board DSP allows users to choose among 3 Configuration Modes (Mono, Stereo or Double Column) and 2 different Steering Modes (Far and Near). This way, the system adapts to all kind of environments and guarantees the best throw pattern. Top satellites work separately in a stereo configuration (placed on tripods or installed with WB-44 accessory) or connected together in mono configuration.

The enclosure of both satellites embeds a metal lock system assuring perfect top to top matching and electrical connection. One of the two satellites receive the signal from the sub and relaunch it to the companion top. ES1203 features an on board 5-channel mixer: the first channel features a MIC/instrument balanced/unbalanced combo connector with an adjustable anti-feedback filter, impedance compensation and microphone gain with 3 positions (0, +10, + 20dB). The second and third channels are MIC/LINE inputs with balanced/unbalanced combo connector. This allows the system to manage up to 3 mic lines at a time.

Product Specification:

Technical Data

Speaker Type 3-amped Stereo System with

two full-range tops and one subwoofer

Acoustical data

Frequency Response [-10dB] 35 - 20.000 Hz

Max SPL 132 dB

MF - HF 8x4", v.c 1"

Type MF - HF Neodymium

LF 2X12"

Directivity 97x60°

Amplifier

Amp Technology Digipro G4

Amp Class Class-D

Power Amp Peak 2400 W

Controls 1xOLED Display with rotary encoder w/button

1x Audio signal monitoring LED

1XUSB port (service data)

Power Supply Full range with PFC

Power connection VDE Socket

Cooling Convection

Processor

Controller DSP 56 Bit

Converter AD/DA24 Bit/48 Hz

Limiter Peak, RMS, Thermal

Crossover Frequency LF-MF 160 Hz

Digital Steering Up/Down/Far

Input

Input Channels: 1x Mic/Instrument Combo (XLR/Jack)

2xMic/Line Combo (XLR/Jack)

1XBluetooth built-in receiver

Mix Output 1x XLR balanced output

Mechanics

Housing (Subwoofer) Plywood with full metal grille

Housing (Tops) Plywood with full metal grille

Pole Mount 36 mm (M20 Thread)

Handles (subwoofer) 1xtop

1x lateral side

2 dB Technologies DP-ES1203 W, Design Pole for ES1203 and ES1002 - White

The dB Technologies DP-ES1203 W is a design pole for the ES1203 and ES1002 speakers. It allows you to mount the speakers in a vertical column array, providing increased sound coverage and output. The pole is made of aluminum and steel, and it is powder-coated for durability.

Product Specification:

Material: Aluminum, steel

Color: White

Height: 62.9 inches (1590 mm)

Weight: 11.2 lbs (5.0 kg)

2 dB Technologies TC-ESTOP, Transport Cover for 2x ES

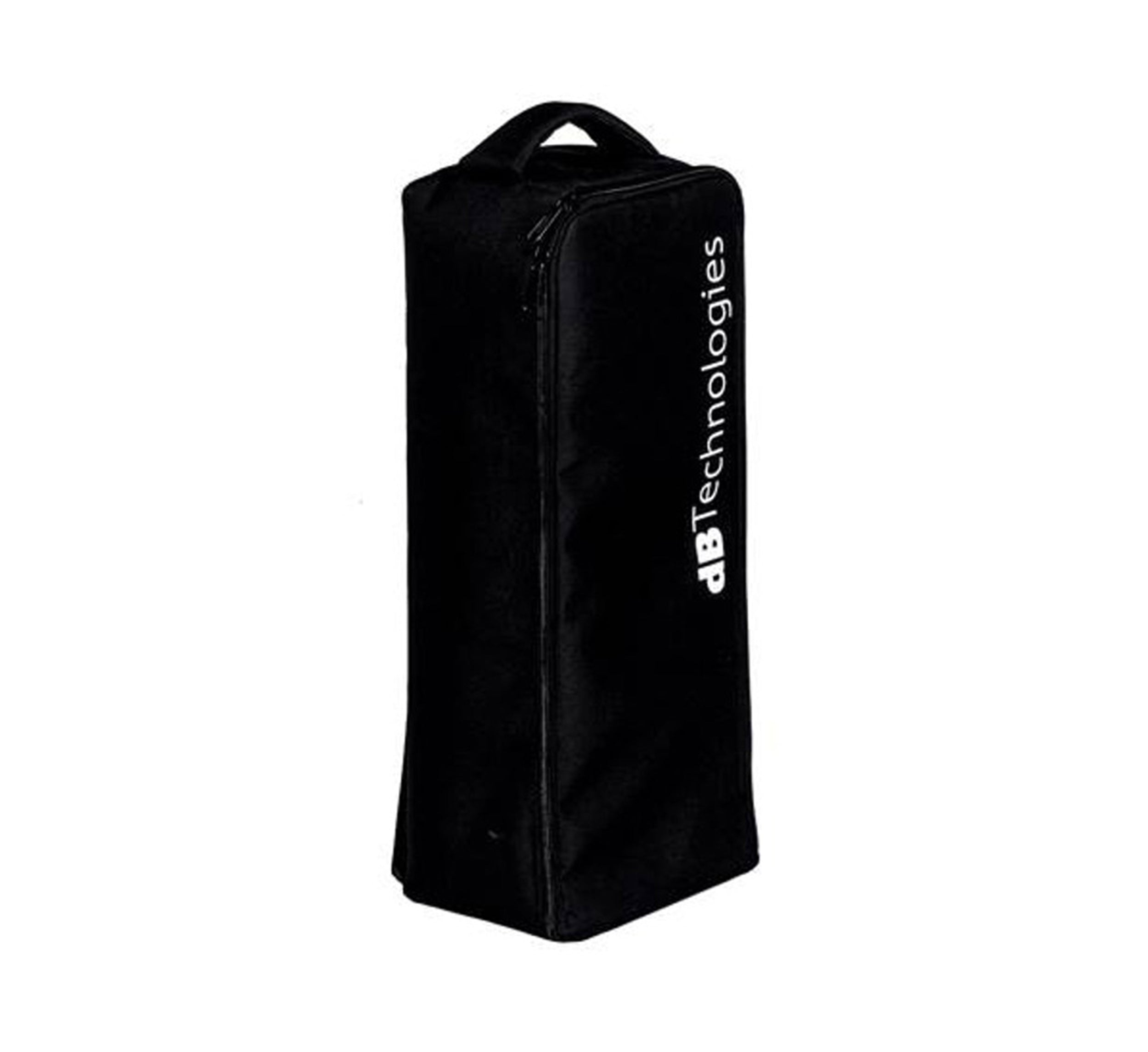

The dB Technologies TC-ESTOP is a transport cover for 2x ES Entertainment System tops and 1x D25 mm pole. It is made of durable nylon and has a padded interior to protect the speakers and pole from damage during transport. The cover also has a carrying handle for easy transport.

Product Specification:

Material: Nylon

Padded interior: Yes

Carrying handle: Yes
