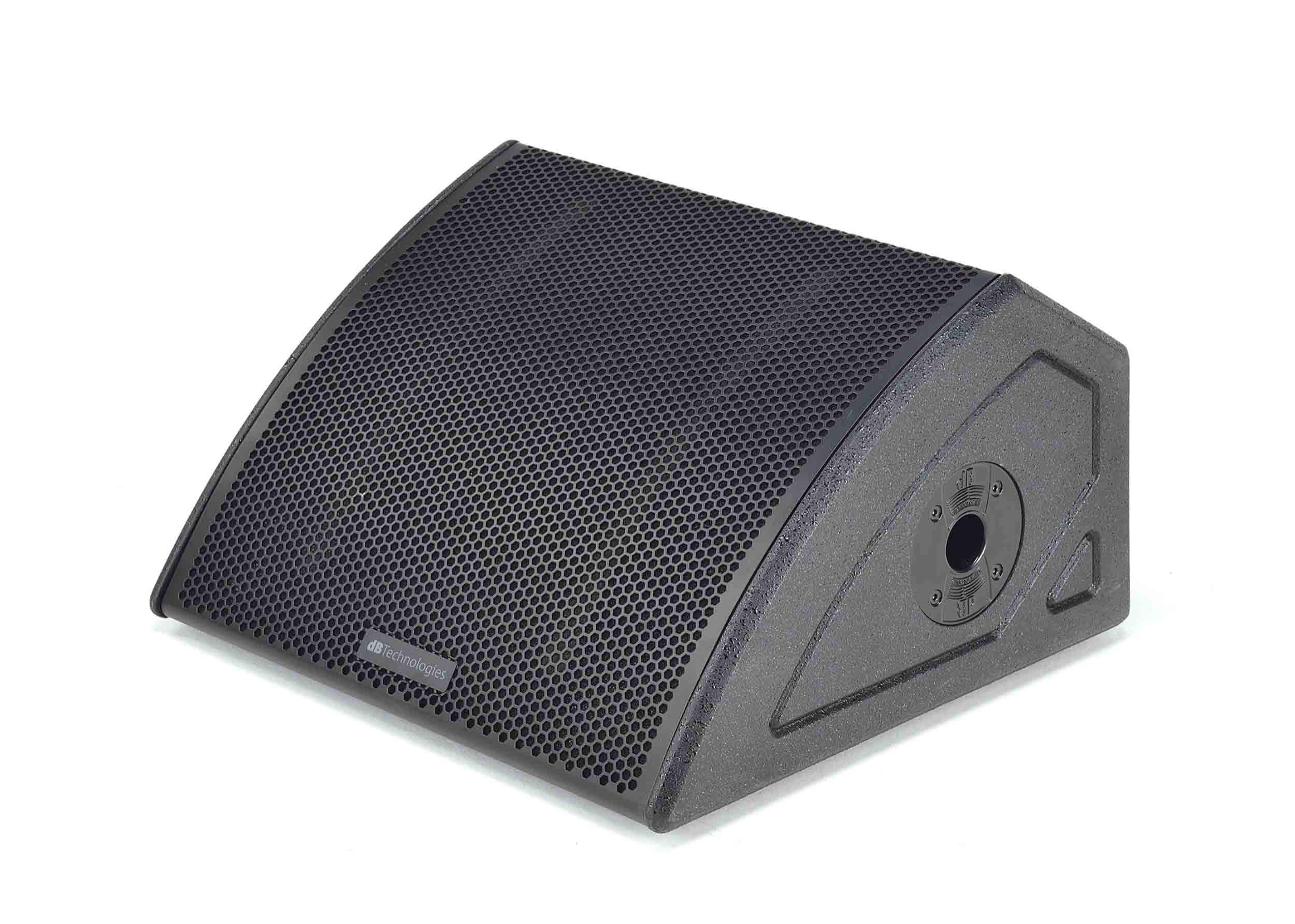

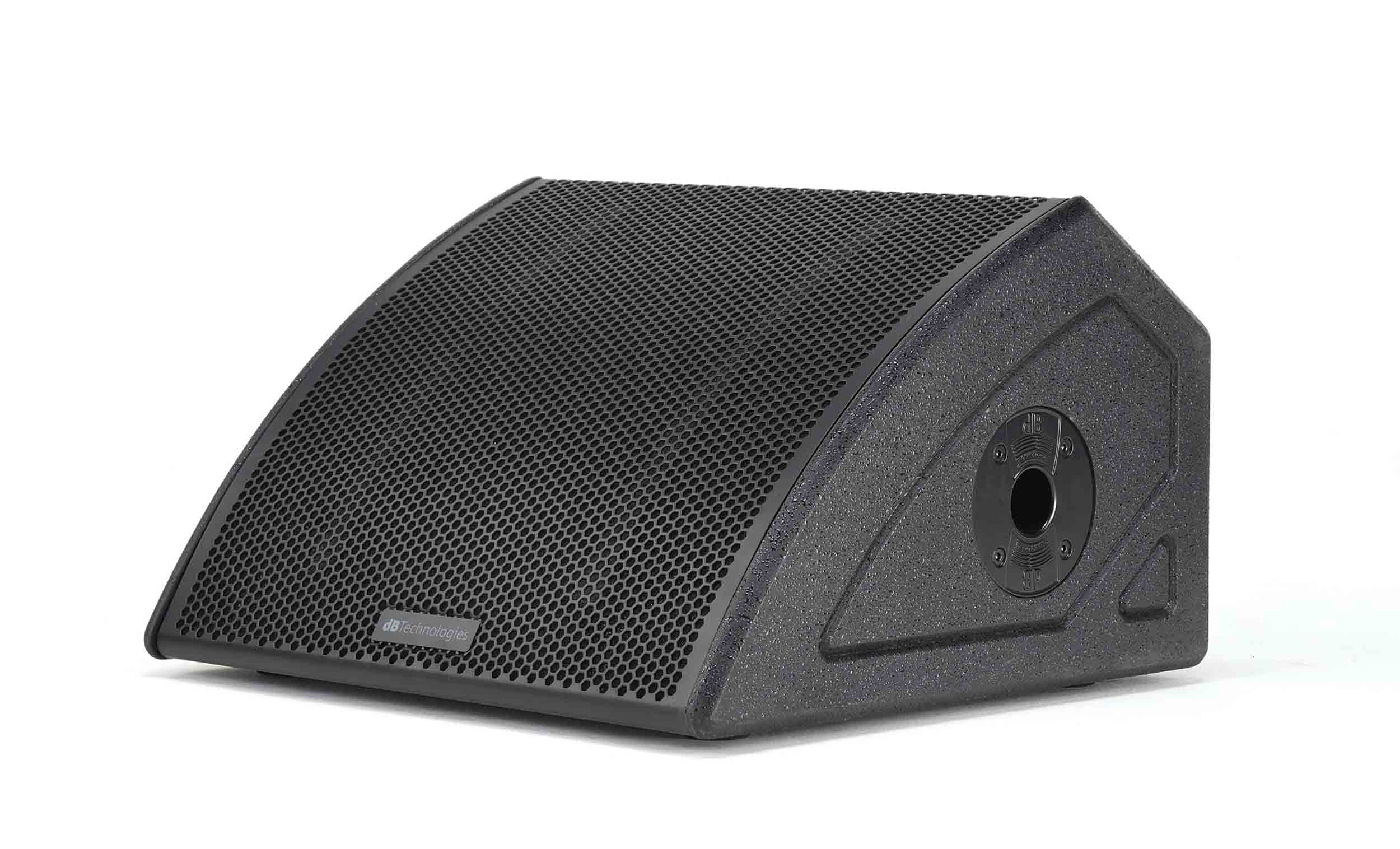

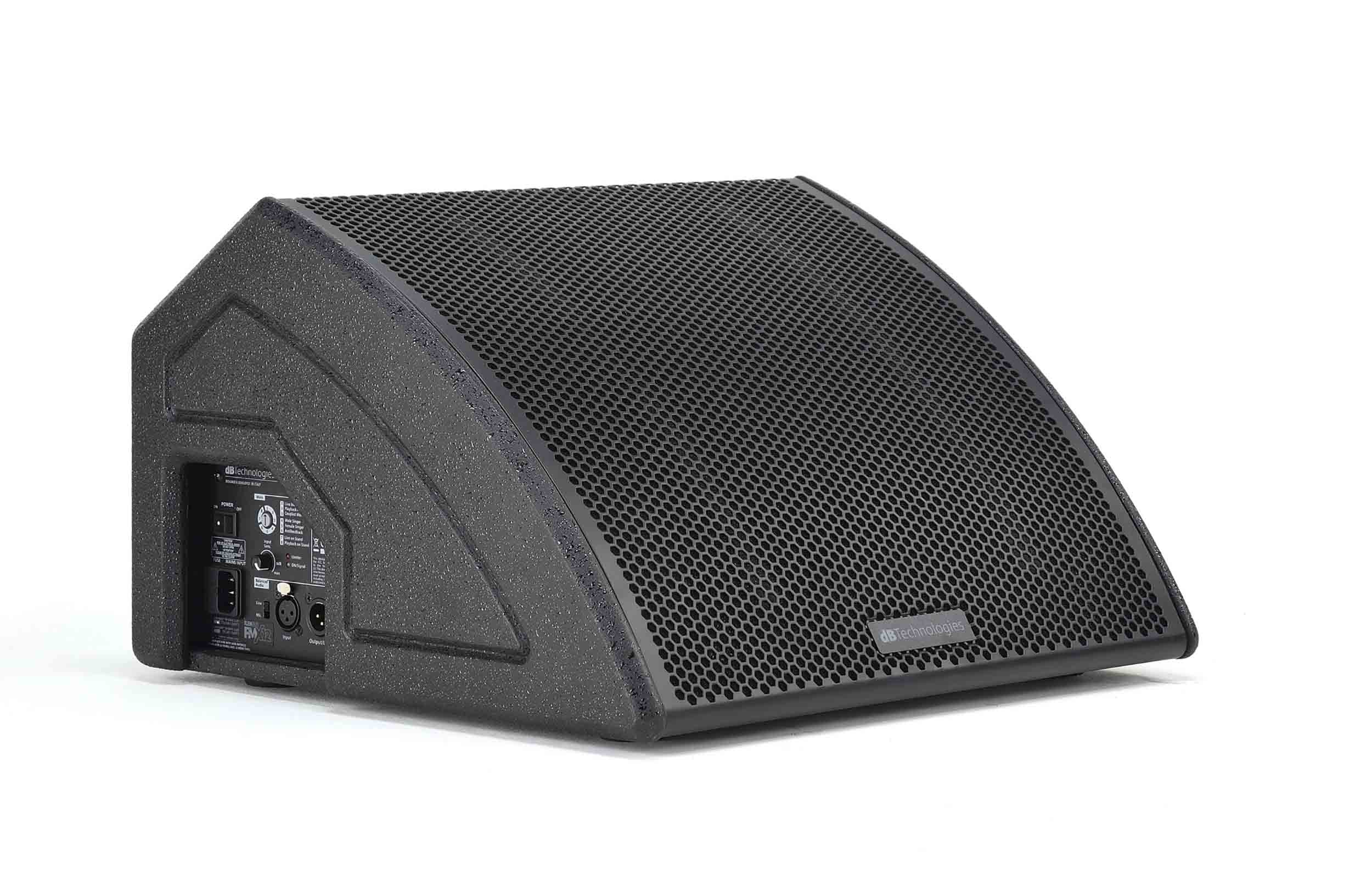

dB Technologies FMX 12, 12" 2-Way Active Coaxial Stage Monitor - 1200W

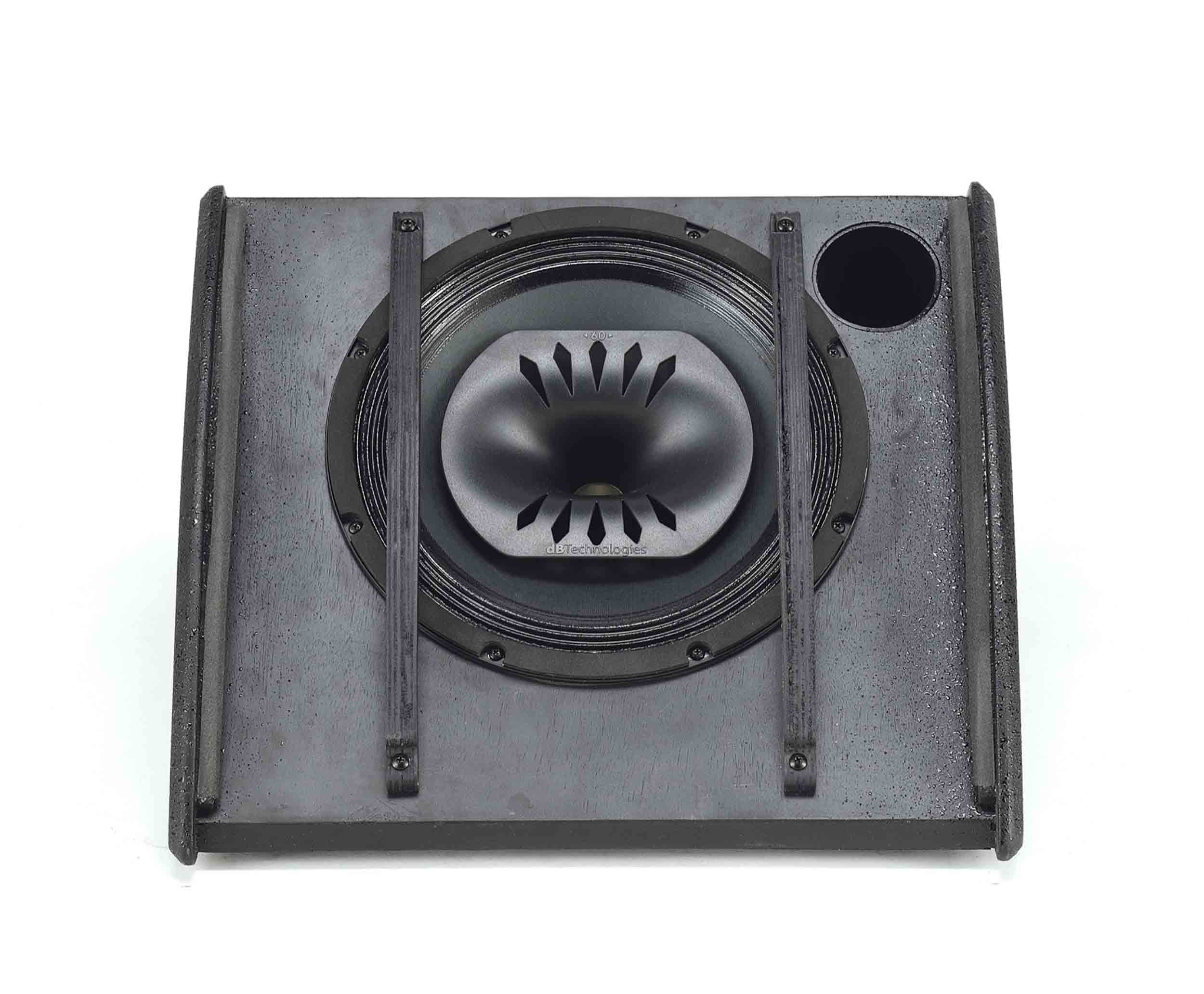

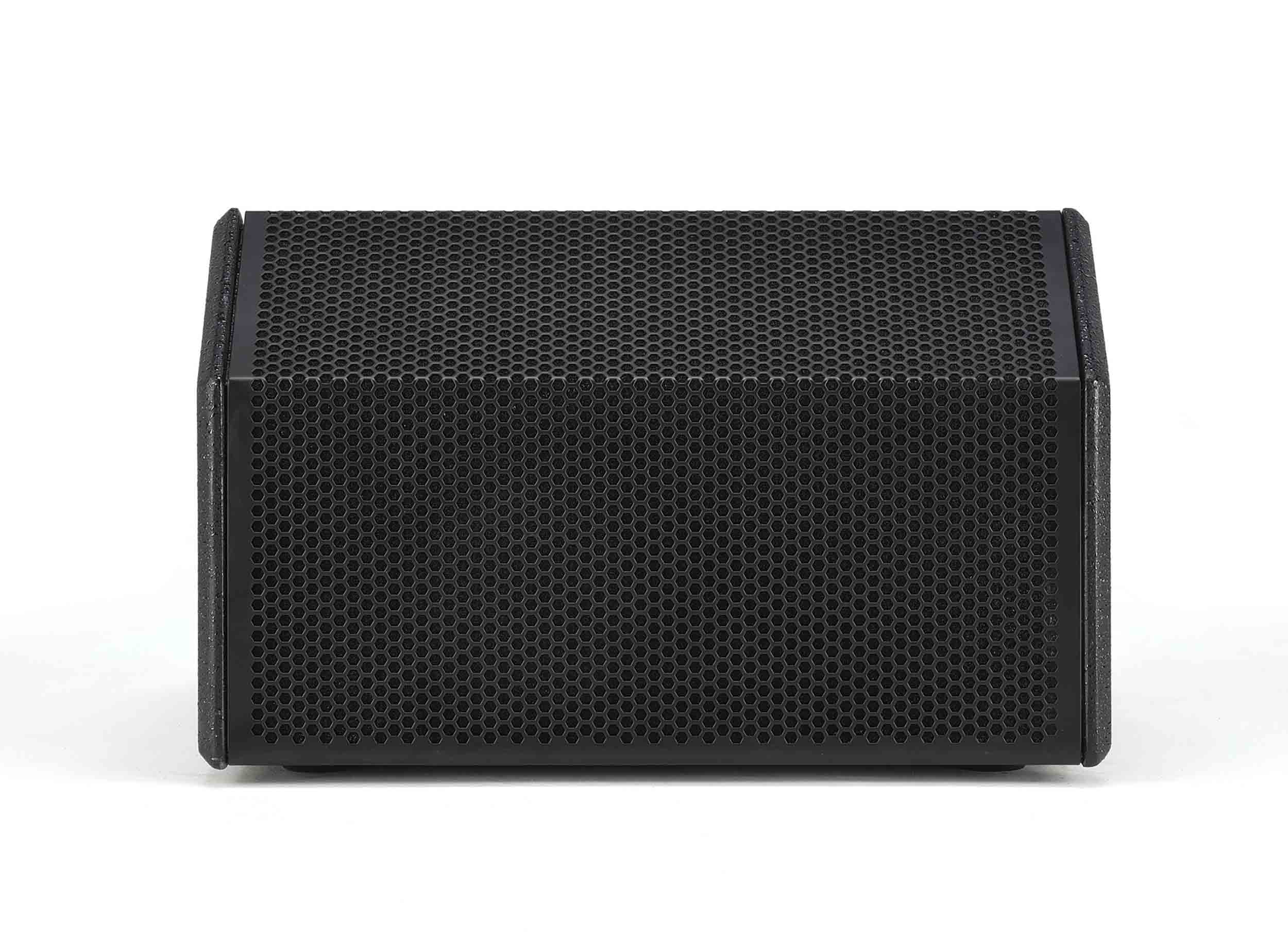

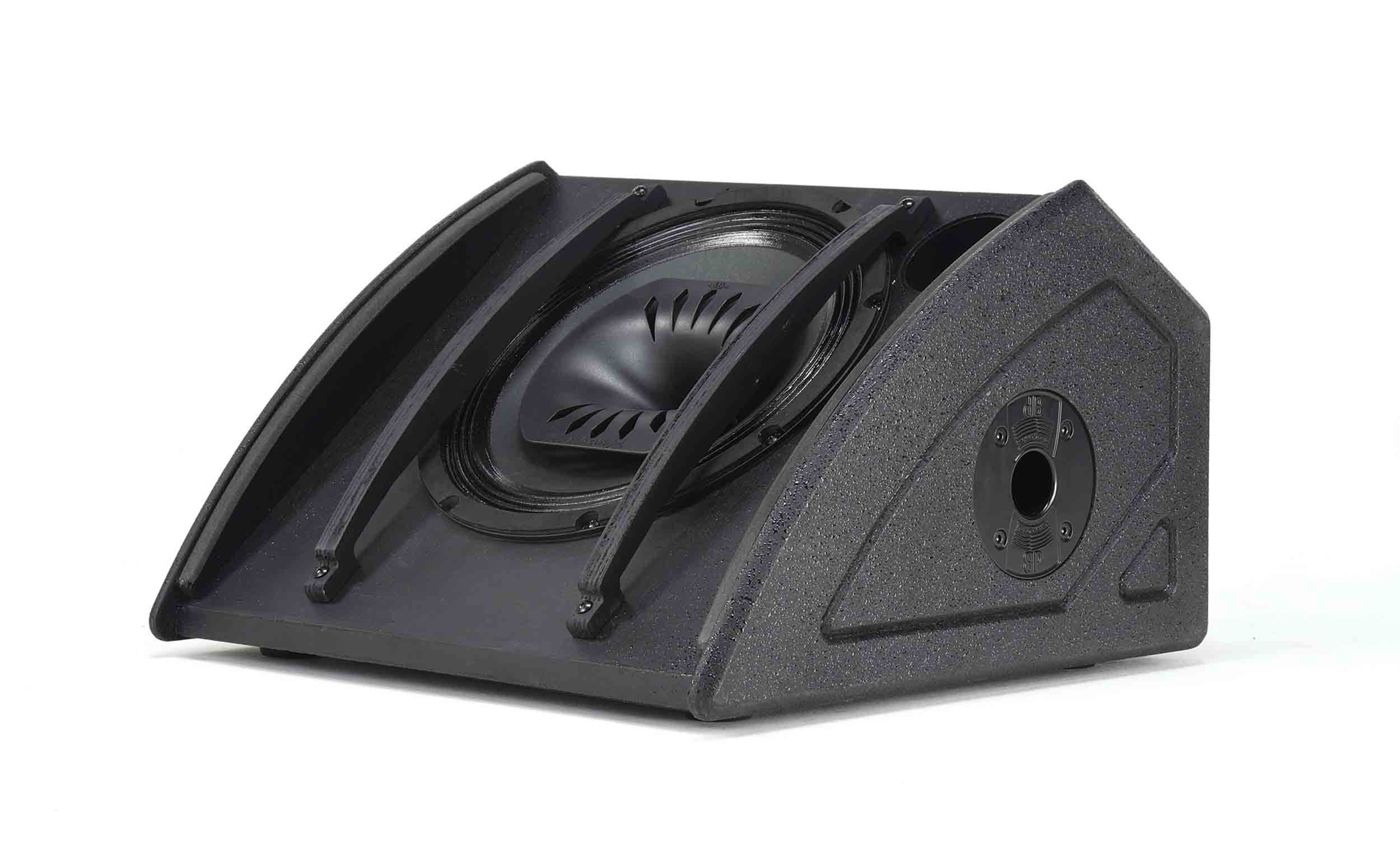

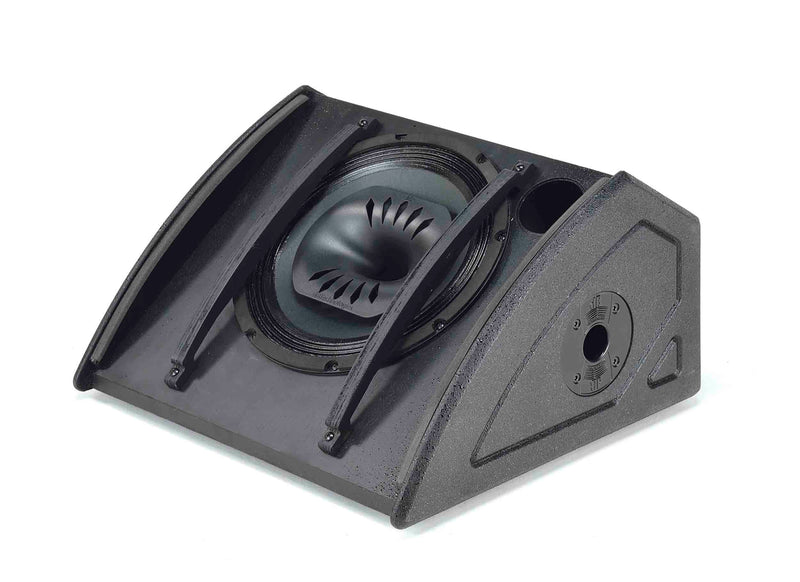

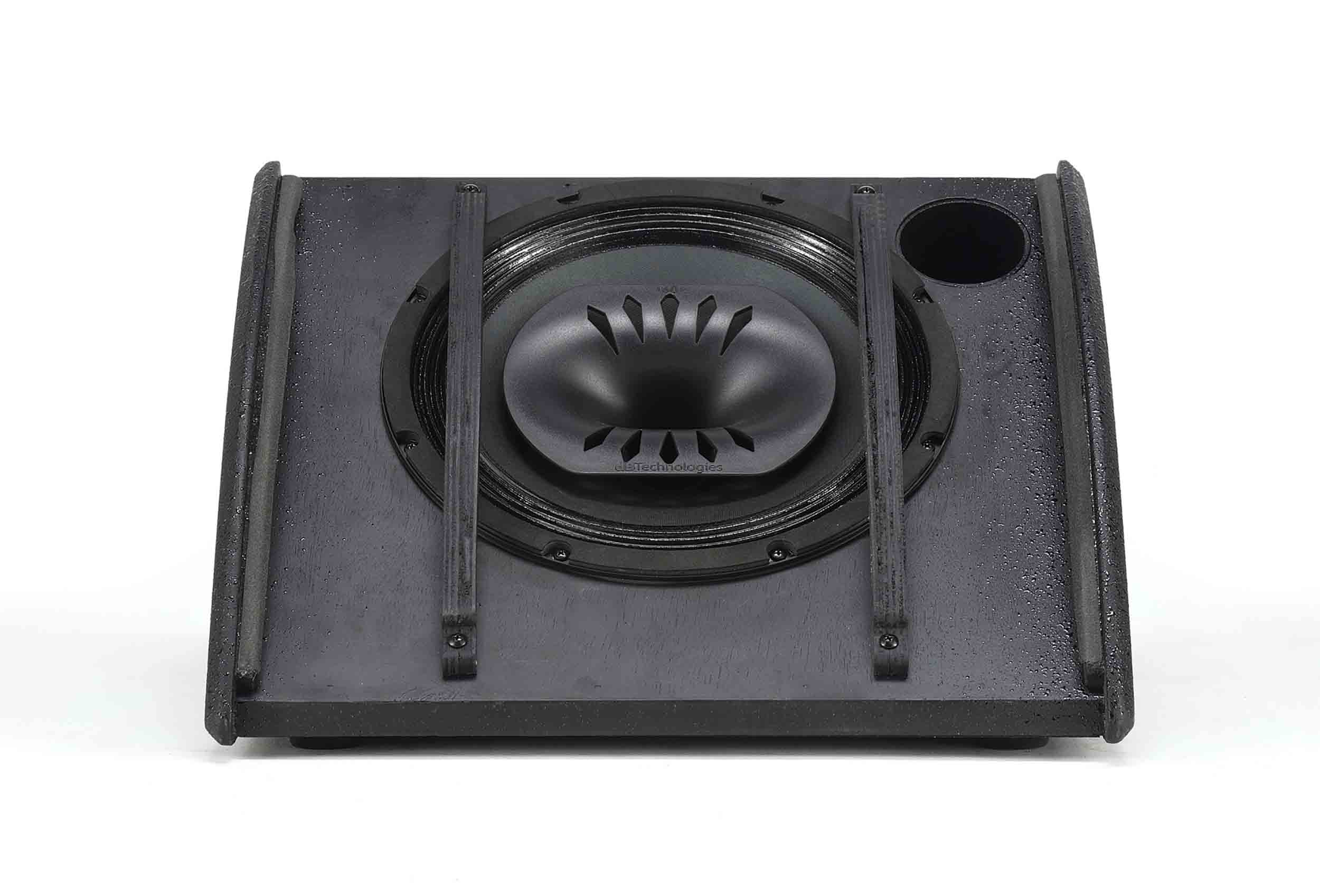

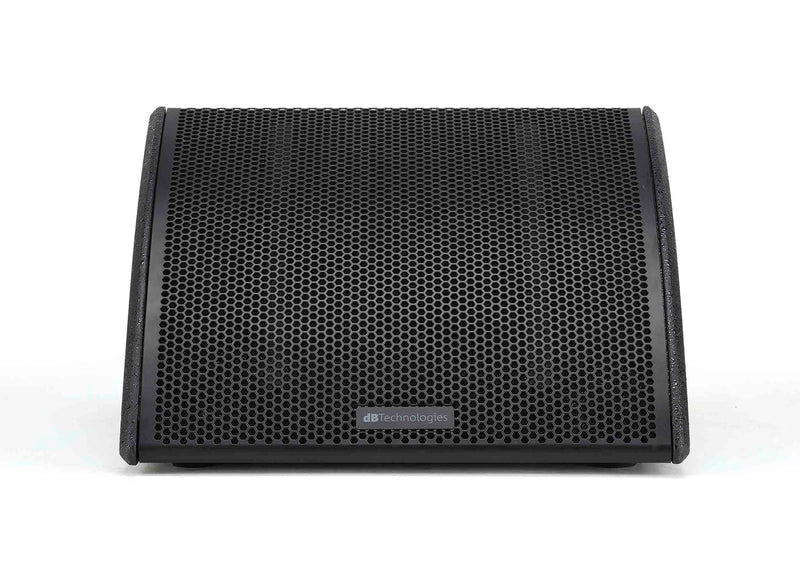

The dB Technologies FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers. The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound. In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user. Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind. All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Product Specification:

Technical Data

Speaker Type 2-Way Active Coaxial Stage Monitor

Acoustical data

Frequency Response [- 10 dB] 52 - 19.000 Hz

Max SPL 128 dB

HF 1", 1.3" v.c.

Directivity 60°X90°

Horn Rotatable

LF 12", 2" v.c.

Amplifier

Amp Class Class D

Peak Power 1200 W

Processor

Controller DSP 28/56 bit

AD/DA Converter 24 bit/48 kHz

System Presets 8 presets

Limiter Peak, RMS, Thermal

Advanced DSP Function FIR Filters

Crossover Frequency 1740 Hz

Slope LF/HF 24 dB/oct

Mechanics

Housing Plywood

Housing Design Multifunctional

Handles 1 integrated on bottom side

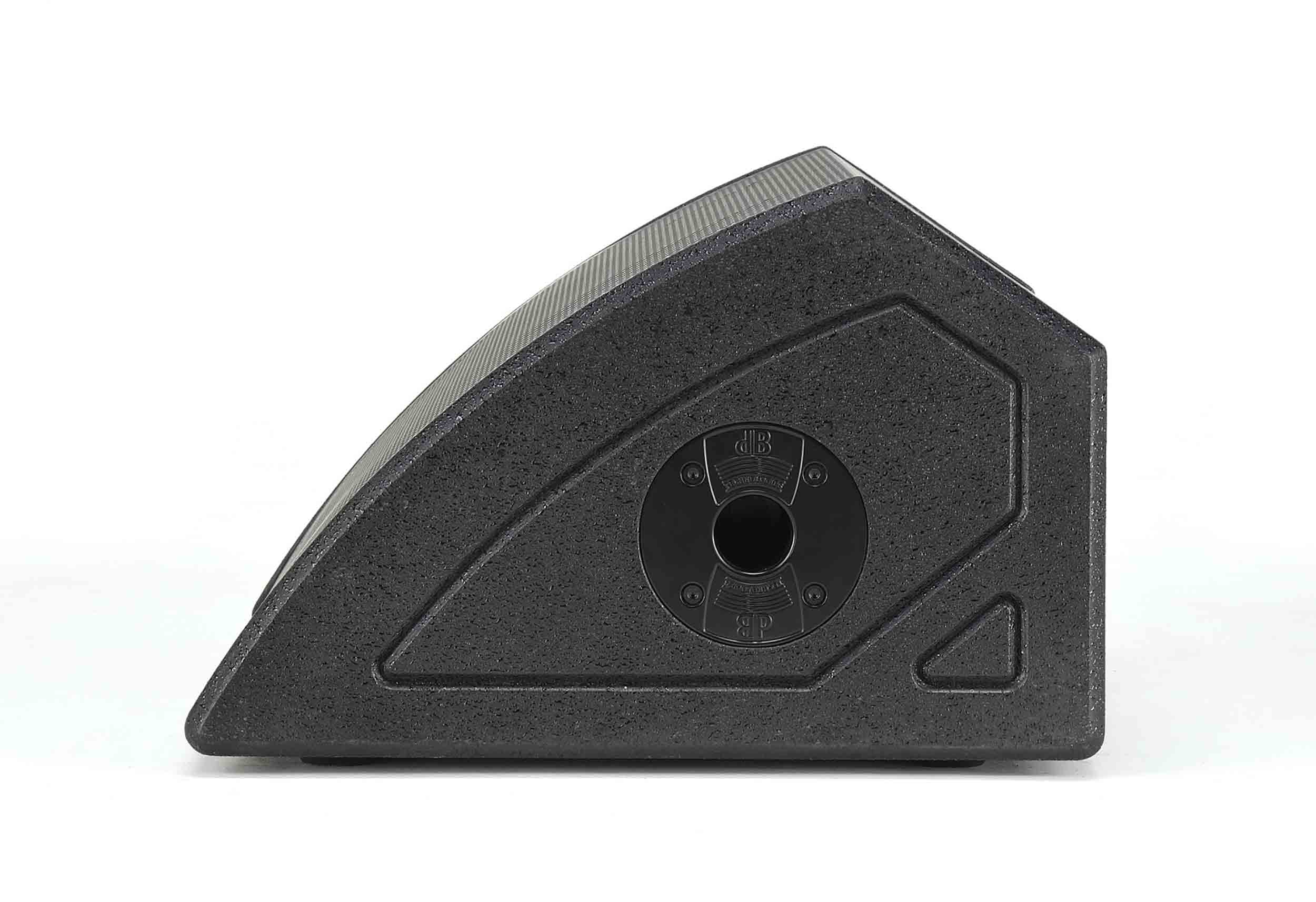

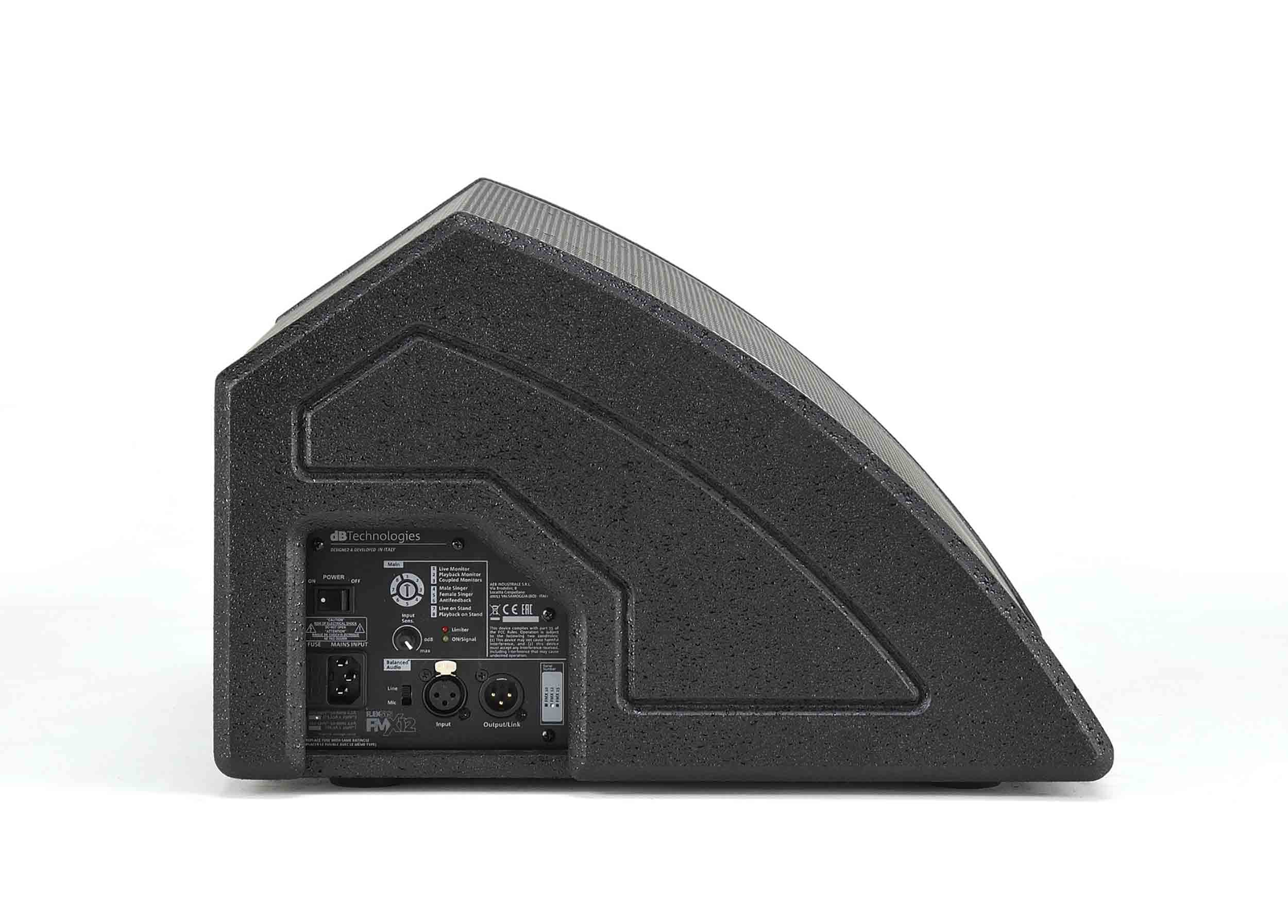

Pole mount 36 mm
