Description

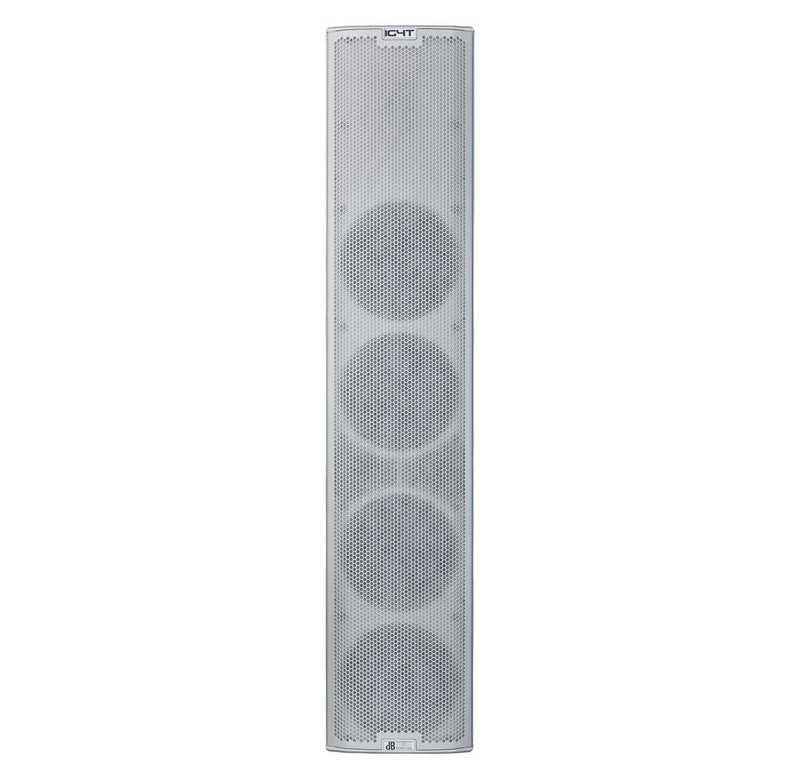

The dB Technologies INGENIA IG4 T White is equipped with 4 premium 6.5 low frequency transducers and 1 1.4"compression driver. All models of the series are designed to work individually, but they can also be coupled by simply turning one speaker upside down and placing it upon the other one. Thanks to infrared technology, INGENIA detects the presence of a second speaker, and an onboard-configuration wizard automatically sets up the system in order to ensure the best coverage and acoustic coherence. INGENIA’s horn design is horizontally symmetric and vertically asymmetric: this way, horizontal dispersion is wide and constant while vertical dispersion is narrow in the upper part and wider in the lower part. Thanks to such feature, when 2 Ingenias are coupled high frequencies add up avoiding any interferences. In addition to that, a sophisticated digital steering function process each way of the speaker in order to adjust the dispersion without moving the box. As a result, the whole audience enjoys a perfect intelligibility. Users can easily control the system through an intuitive OLED display. In fact, behind the simple interface runs a cutting-edge processing which manages mix, coverage steering, EQs levels and input devices. INGENIA can be easily and safely coupled through a LP-IG accessory which fits all the 4 INGENIA models. Moreover, feet and recessions on the top and the bottom of the enclosure ensure the speakers to be perfectly aligned, avoiding any incorrect setup operation. Ingenia DRK-IG flybar adapts to all the speakers of the series allowing to fly coupled speakers in a vertical array.
Product Specification:
Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 74- 20.000 Hz
Frequency Response [-6dB] 88 - 19.200 Hz
Max SPL 132 dB
HF 1.4"
HF Voice Coi 3"
Directivity (HxV) 110 x 90° (+20°/- 70°)
HF Type Neodymium compression driver
Horn Vertical asymmetric
Crossover Frequency 1100 Hz
LF 4x6.5”
LF Voice Coil 1.5"
LF Type Neodymium
Amplifier
Amp Technology Digipro G3
Amp Class Class-D
Peak Power 1800 W
RMS Power 900 W
User Interface OLED display + rotative knob w/switch
Self-rotating display Yes
Positioning EPD (Element Position Detection)
Display Mirroring Yes
Processor
Controller DSP 56 bit
AD/DA Converter 24bit/48kHz
System Presets Factory presets + User defined
Limiter Dual Active Peak, RMS, Thermal
DSP Processing FIR Linear Phase
Input
Signal Input 1 x Combo IN (XLR + Jack 6.3mm)
Signal Out 1 x XLR link OUT
USB connector Yes - mini USB
Mechanics
Housing Polypropylene PP reinforced
Grille FULL /Invisible screws
Flyable Yes
Handles 1x on top / 1x on bottom
Pole Mount Yes
