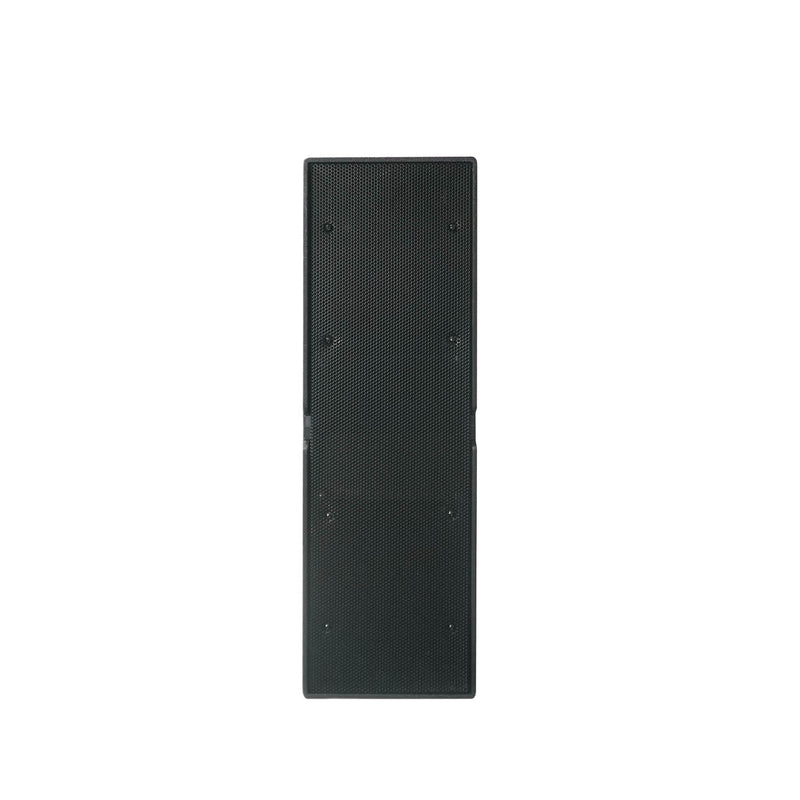

The dB Technologies IS26TB is equipped with two times 6.5" woofers plus a 1" compression driver for the higher end.2 different coverage options are available, with the two different coverage options providing respectively 60 x90° or a 100x15° dispersion pattern, which basically, thanks to a waveguide, is turning the point source speaker into a line array. You can either fly, or stack arrays with the very same accessories you would use with the VIO X206. Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.
Product Specification
| Technical Data |
Specification |
| Speaker Type |
Passive 2-way Speaker |
| Acoustical data |
Specification |
| RMS Power |
250 W |
| Peak Power |
1000 W |
| Frequency Response [-6 dB] |
80 Hz - 20,000 Hz |
| Impedance |
8 Ohm |
| Sensitivity 1Wm |
94 dB |
| Max SPL |
124 dB |
| HF |
1x 1", 1.7" v.c. |
| LF |
2x 6.5", 1.7" v.c. |
| IS26T Dispersion |
60x90° [rotatable horn] |
| IS26T100 Dispersion |
100x15° [H x V] |
| X-Over Frequency |
1200 Hz (internal X-Over) |
| Input |
Specification |
| Connections |
Phoenix |
| Mechanics |
Specification |
| Housing |
Plywood, water-painted coating |
| Rigging points |
2x M10 threaded nut (top and bottom) |
