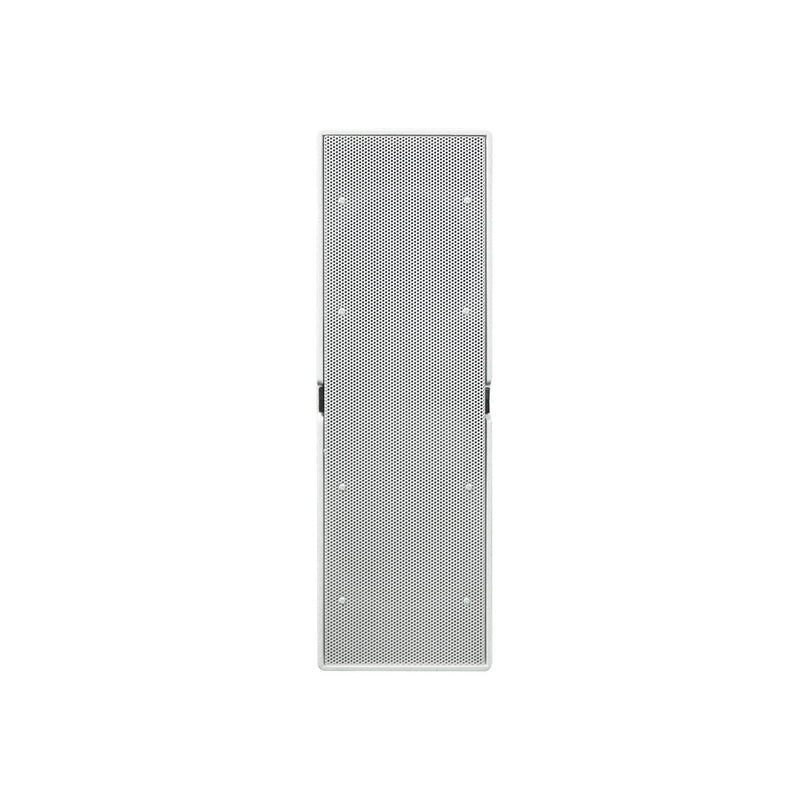

The dB Technologies IS 26TW WHITE is equipped with two times 6.5" woofers plus a 1" compression driver for the higher end.2 different coverage options are available, with the two different coverage options providing respectively 60 x90° or a 100x15° dispersion pattern, which basically, thanks to a waveguide, is turning the point source speaker into a line array. You can either fly, or stack arrays with the very same accessories you would use with the VIO X206. Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.
Product Specification
Technical Data |
Specification |
Speaker Type |
Passive 2-way Speaker |
Acoustical data |
Specification |
RMS Power |
250 W |
Peak Power |
1000 W |
Frequency Response [-6 dB] |
80 Hz - 20,000 Hz |
Impedance |
8 Ohm |
Sensitivity 1Wm |
94 dB |
Max SPL |
124 dB |
HF |
1x 1", 1.7" v.c. |
LF |
2x 6.5", 1.7" v.c. |
IS26T Dispersion |
60x90° [rotatable horn] |
IS26T100 Dispersion |
100x15° [H x V] |
X-Over Frequency |
1200 Hz (internal X-Over) |
Input |
Specification |
Connections |
Phoenix |
Mechanics |
Specification |
Housing |
Plywood, water-painted coating |
Rigging points |
2x M10 threaded nut (top and bottom) |
